Ftth XPON CATV Ont Modem 1GE CATV SC/APC XPON Onu Router Compatible for Fiberhome Huawei ZTE CISCO OLT
- Category: >>>
- Supplier: Microlink Electronics Co. Ltd.
Share on (1600519043852):
Product Overview
Description
Ftth XPON CATV Ont Modem 1GE+CATV SC/APC XPON Onu Router Compatible for Fiberhome Huawei ZTE CISCO OLT
Product Description
FEATURE
Supports Dual Mode (can access GPON/EPON OLT).
Supports SFU and HGU of EPON CTC 3.0 standard
Supports GPON G.984/G.988 standards
Support CATV interface for Video Service and remote control by Major OLT
Support NAT, Firewall function.
Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
Support port mode of VLAN configuration
Support LAN IP and DHCP Server configuration
Support TR069 Remote Configuration and WEB Management
Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
Support IPv4/IPv6 dual stack
Support IGMP transparent/snooping/proxy
In compliant with IEEE802.3ah standard
Compatible with popular OLT (HUAWEI, ZTE, FiberHome,CISCO, ect)
Supports SFU and HGU of EPON CTC 3.0 standard
Supports GPON G.984/G.988 standards
Support CATV interface for Video Service and remote control by Major OLT
Support NAT, Firewall function.
Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
Support port mode of VLAN configuration
Support LAN IP and DHCP Server configuration
Support TR069 Remote Configuration and WEB Management
Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
Support IPv4/IPv6 dual stack
Support IGMP transparent/snooping/proxy
In compliant with IEEE802.3ah standard
Compatible with popular OLT (HUAWEI, ZTE, FiberHome,CISCO, ect)
DATASHEET
Wavelength | Insertion force | TX: 1310nm, RX: 1490nm CATV 1550nm | |||||||
GPON BOB | CLASS B+ | ||||||||
Downstream rate | 2.5Gbps | ||||||||
Upstream rate | 1.25Gbps | ||||||||
Receiving sensitivity | ≤-27dBm | ||||||||
Transmitting optical power | +0.5~+5dBm | ||||||||
Transmission distance | 20KM | ||||||||
Optical Interface | WDM | SC/APC Connector | |||||||
LAN Interface | 1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces | ||||||||
rj45 connector ,Full/half duplex mode | |||||||||
Gateway | Router mode | PPPoE/DHCP/ static | |||||||
IP WAN | Route rand Bridge mode | ||||||||
WAN | Internet,VoIP,IPTV,TR069 | ||||||||
LAN | DHCP and static IP | ||||||||
Support | NAT and NAPT | ||||||||
Support | UPnP | ||||||||
CATV Interface | RF/ WDM/optical power | +2~-18dBm | |||||||
Optical reflection loss | ≥45dB | ||||||||
Optical receiving wavelength | 1550±10nm | ||||||||
RF frequency range | 47~1000MHz, RF output impedance: 75Ω | ||||||||
RF output level | 78dBuV | ||||||||
AGC range | 0~-15dBm | ||||||||
MER | ≥32dB@-15dBm | ||||||||
LED | PWR,LOS,PON,LAN, Normal(CATV),Worn, 6 LEDs to indicate statis | ||||||||
Power Supply | DC 12V/1A | ||||||||
Power Consumption | ≤3W | ||||||||
Operating Condition | Temperature | 0℃~+50℃ | |||||||
Humidity | 10%~90%(non-condensing) | ||||||||
Storing Condition | Temperature | -30℃~+60℃ | |||||||
Humidity | 10%~90%(non-condensing) | ||||||||

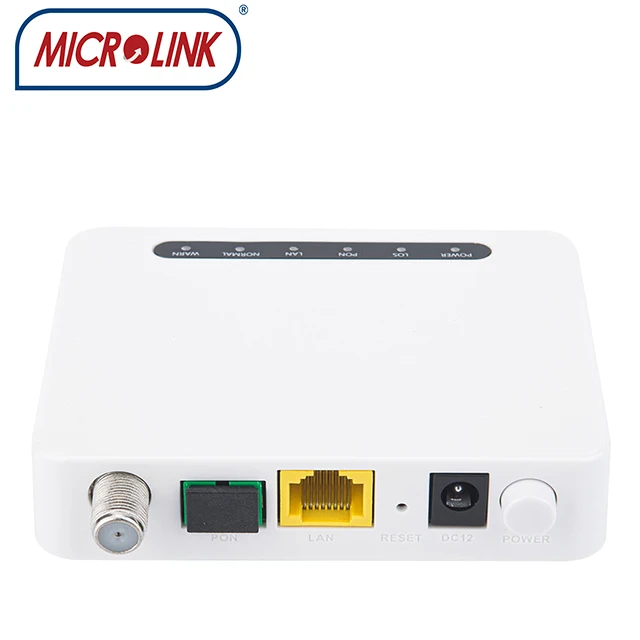

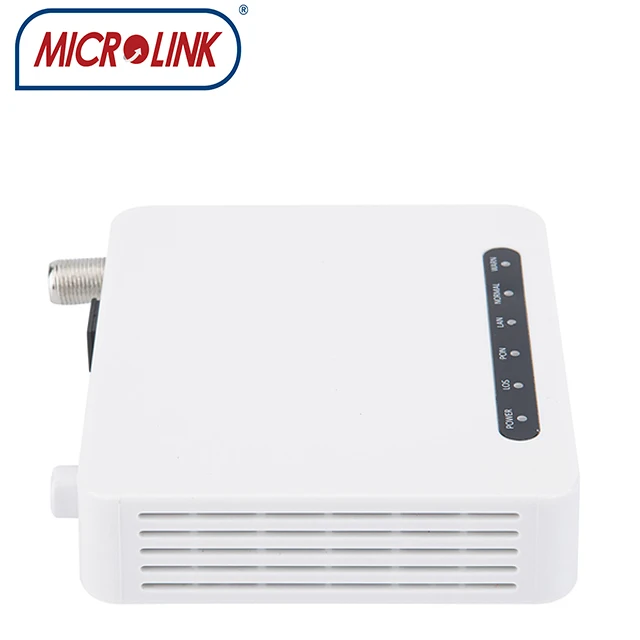

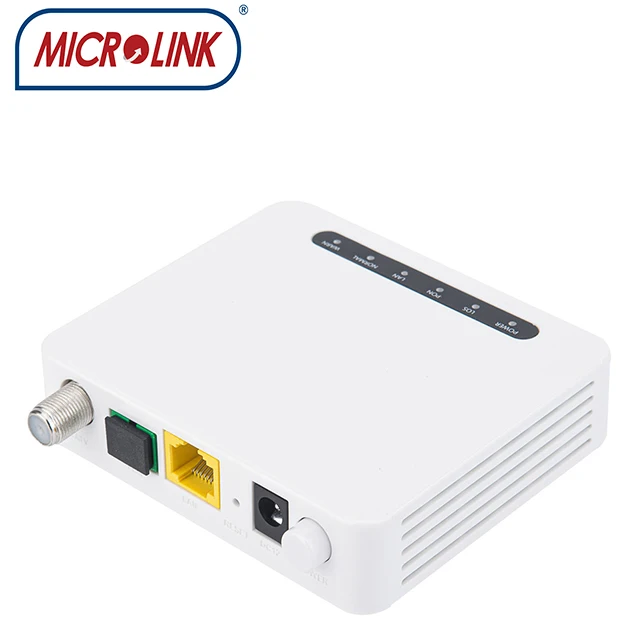

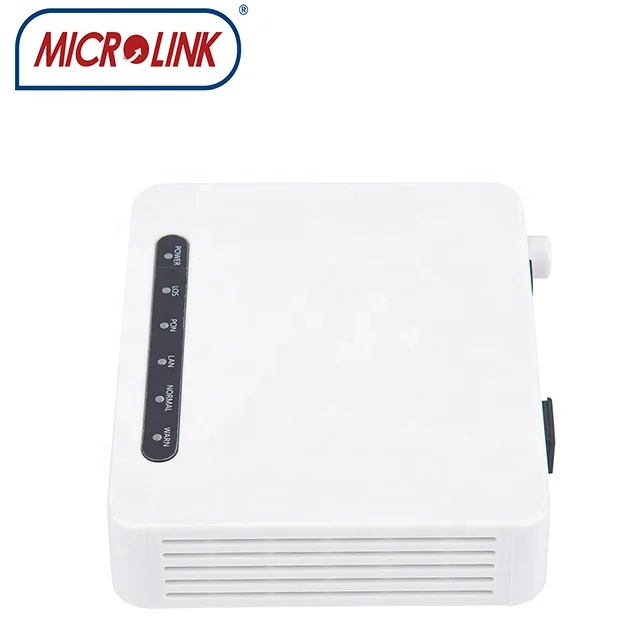

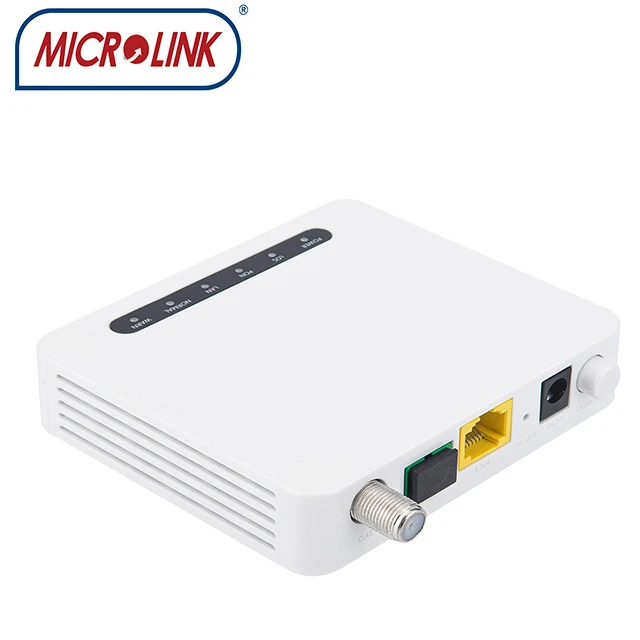

Detailed Images

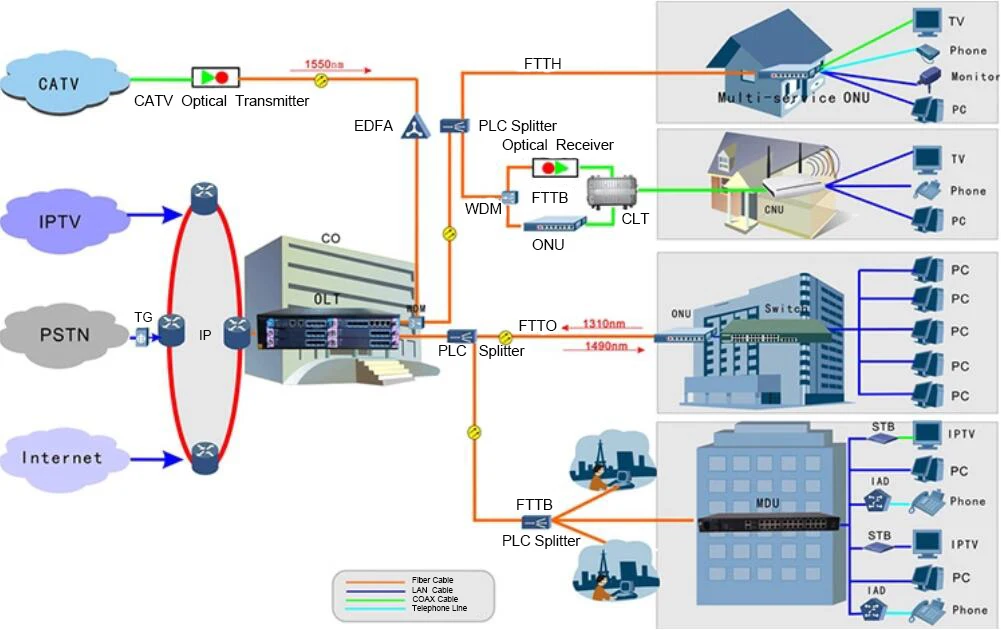

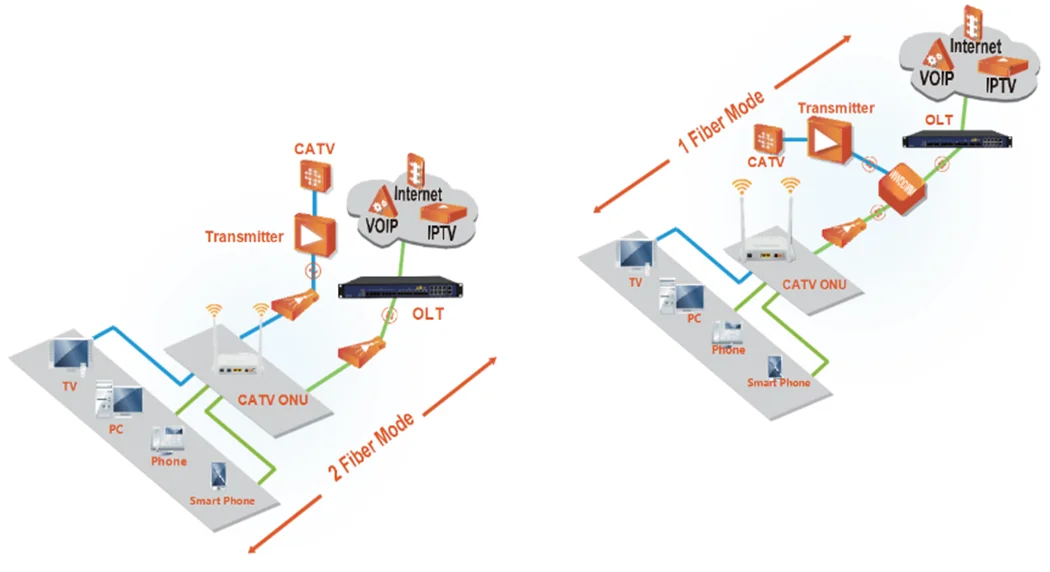

Application
Packing & Delivery
Related Products
Our Factory
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer, designer and distributor.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it depends on order quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight which is refundable from an official order. For our regular clients, we bear sample cost and delivery freight.
Q: Do you offer OEM & ODM service
Yes, we can print your LOGO on RJ45 plug and cable and package as per demand for bulk order.
Q: What is your terms of payment ?
A: Payment less than 1000USD, 100% in advance. Paymen more than 1000USD, 30% T/T in advance ,balance before shipment.Also we accept L/C at sight. Other payment ways are negotiable.If you have another question, pls feel free to contact us as below:
Q: What about shipment?
A: we have long term cooperation with premium logistic forwarders, who can offer fast delivery at low freight rate for shipment like express, post, air cargo, ocean cargo, door to door DDP &DDU.
