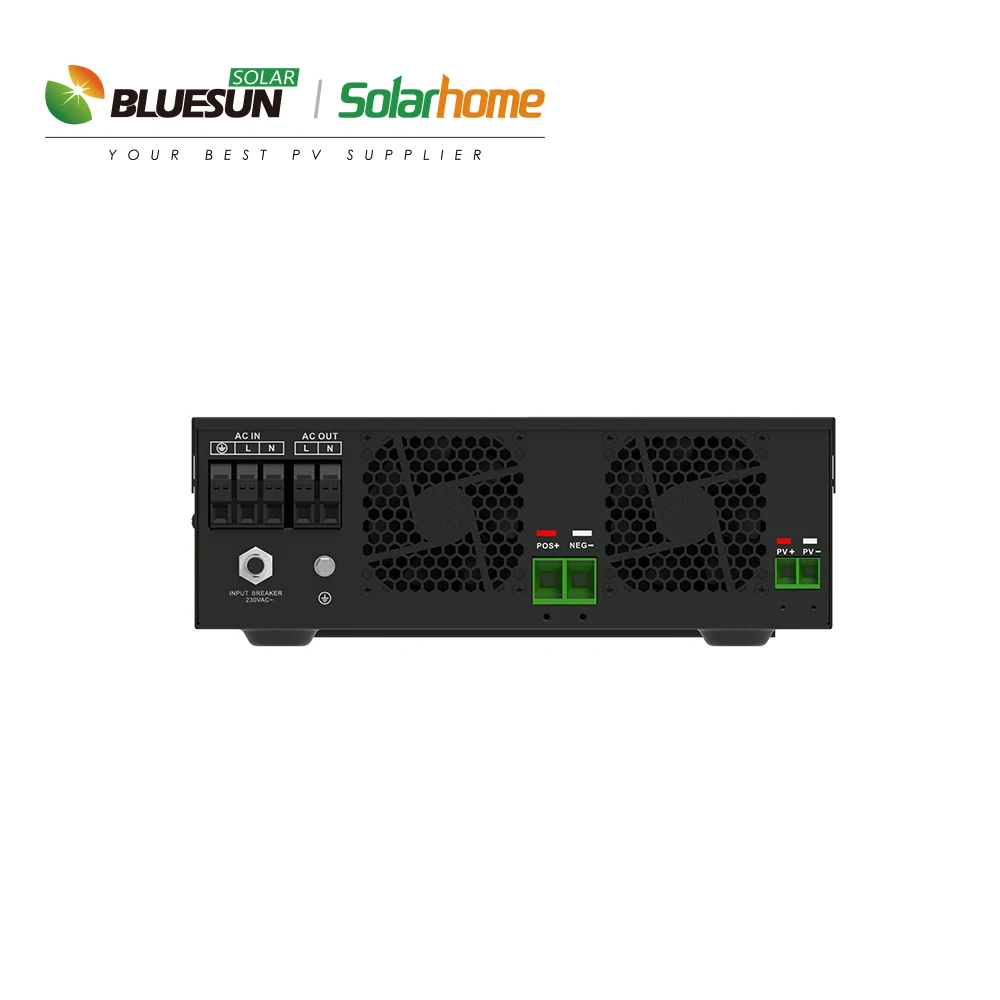

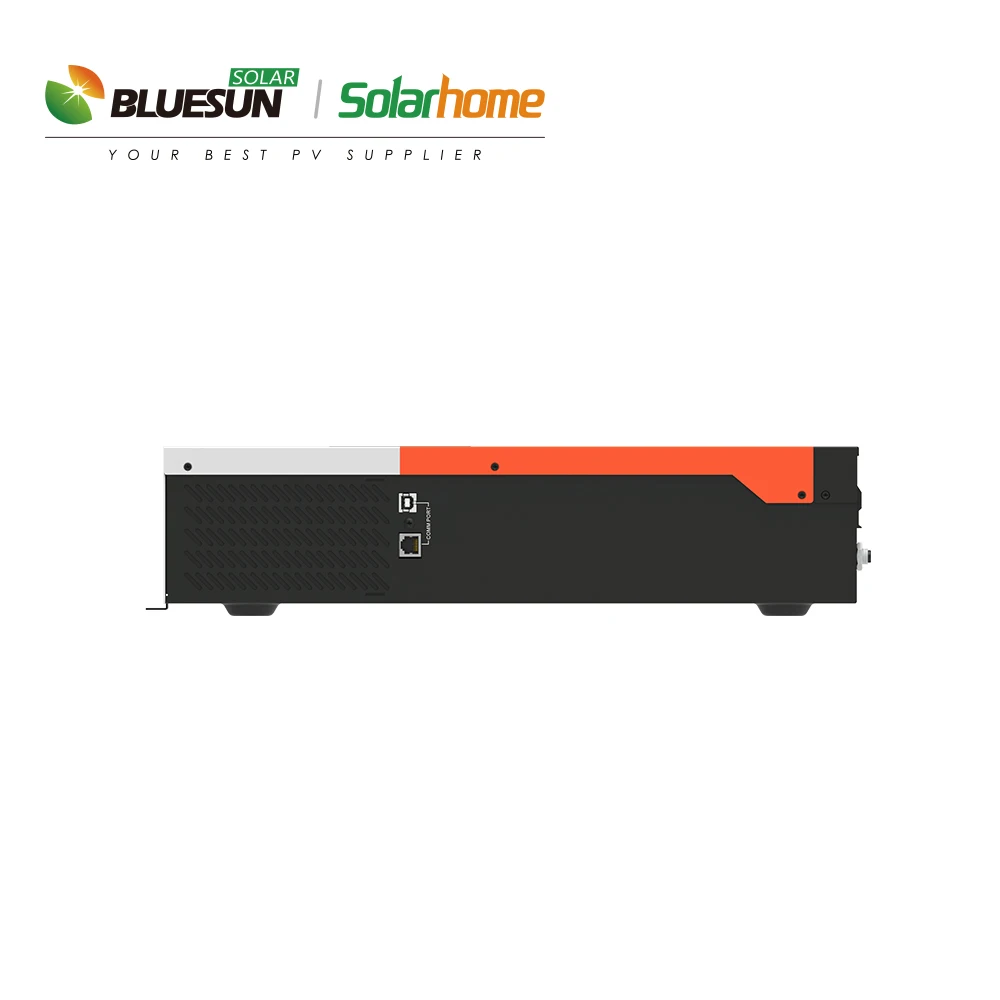

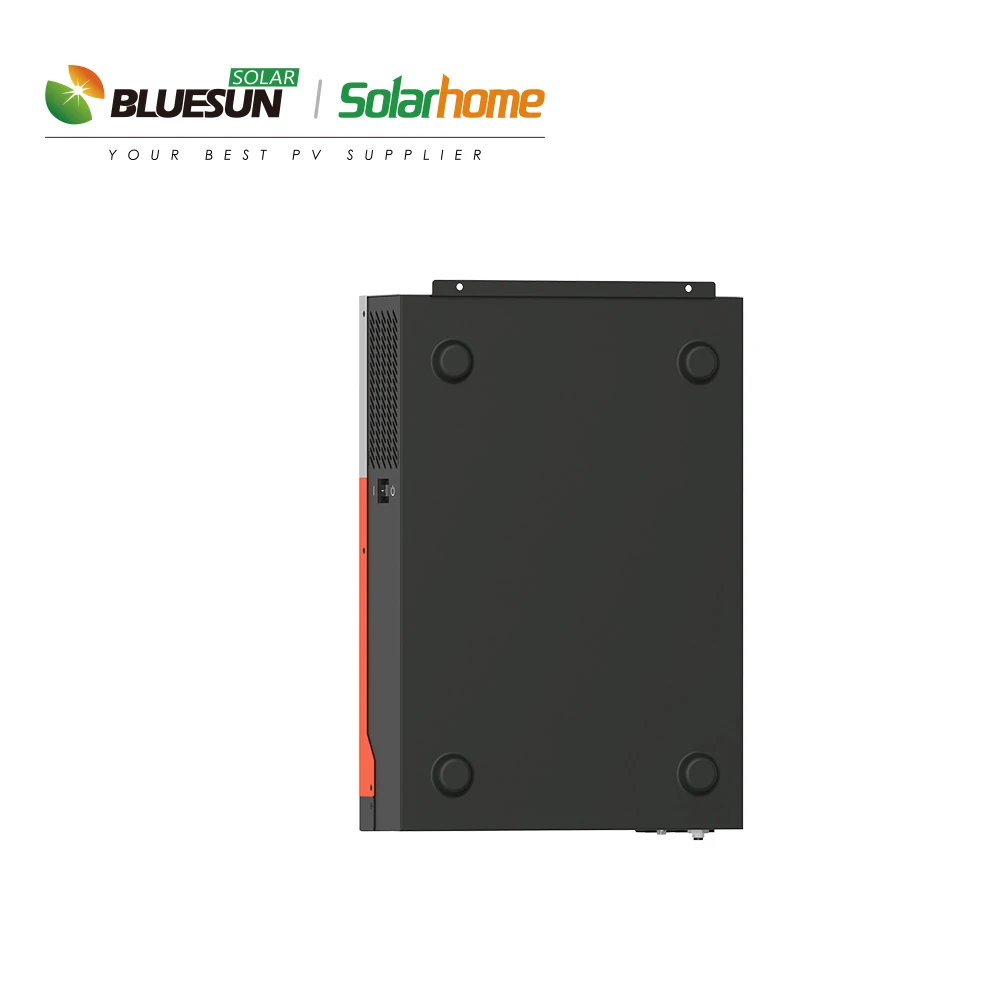

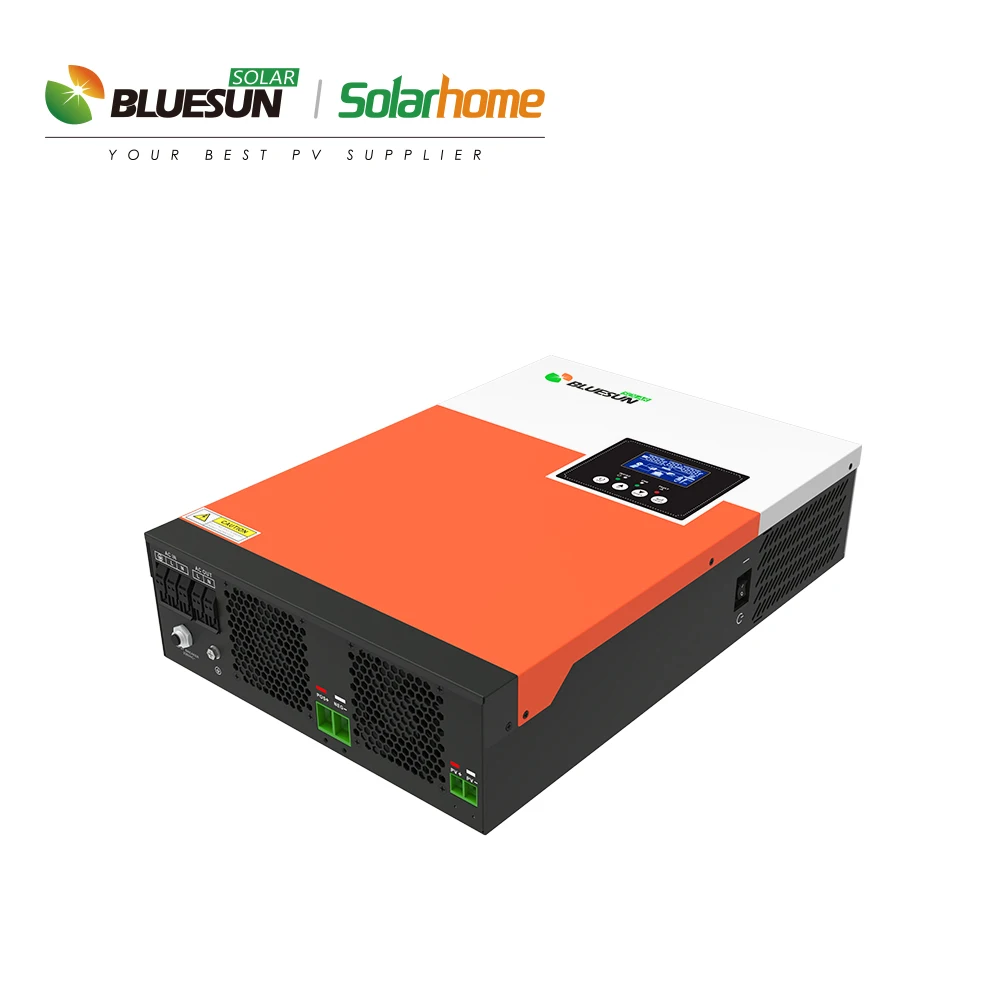

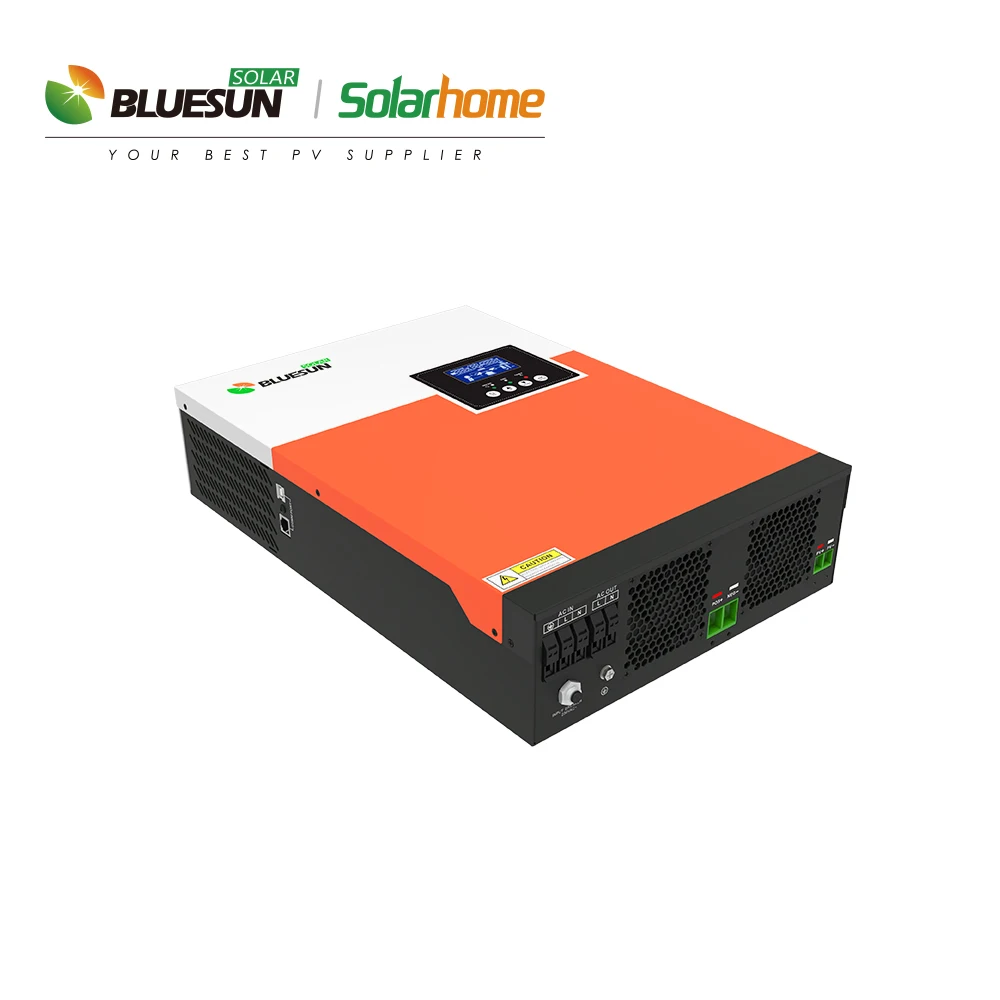

Off grid solar inverter 3kw off grid solar inverter 3000W low frequency solar inverter with battery for home
- Category: >>>
- Supplier: Bluesun Outdoor Energy Co. Ltd.
Share on (1600519075197):
Product Overview
Description
Advantages Of Bluesun
Products Description
MODEL | BSM-3500LV-24 | BSM-5500LV-48 | ||
Rated Power | 3500VA/3500W | 5500VA/5500W | ||
INPUT | ||||
Voltage | 230VAC | |||
Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) | |||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||
OUTPUT | ||||
AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||
Surge power | 7000VA | 11000VA | ||
Efficiency(Peak) PV to INV | 97% | |||
Efficiency(Peak) BAT to INV | 94% | |||
Transfer Time | 10ms (for personal computers) 20ms (for home appliances) | |||
Wave form | Pure Sine Wave | |||
BATTERY & AC CHARGER | ||||
Battery Voltage | 24VDC | 48VDC | ||
Floating Charge Voltage | 27VDC | 54VDC | ||
Overcharge Protection | 33VDC | 63VDC | ||
Maximum charge current | 80A | 80A | ||
SOLAR CHARGER | ||||
MAX.PV Array Power | 5000W | 6000W | ||
MPPT Range@ Operating Voltage | 120-450VDC | |||
Maximum PV Array Open Circuit Voltage | 500VDC | |||
Maximum Charging Current | 100A | |||
Maximum Efficiency | 98% | |||
PHYSICAL | ||||
Dimension.D*W*H(mm) | 440*300*100 | |||
Net Weight (kgs) | 11kg | 12kg | ||
Communication Interface | USB/RS232(Standard) GPRS/WIFI(Optional) | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Operating Temperature Storage | 0°C to 55°C | |||
Temperature | -15°C to 60°C | |||

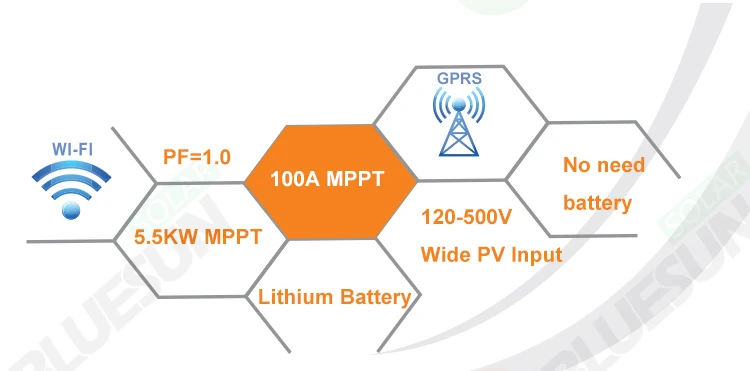

Key Feature
Packing & Delivery
Our Company
Payment
Payment Term | T/T | EXW | |||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Paypal | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
