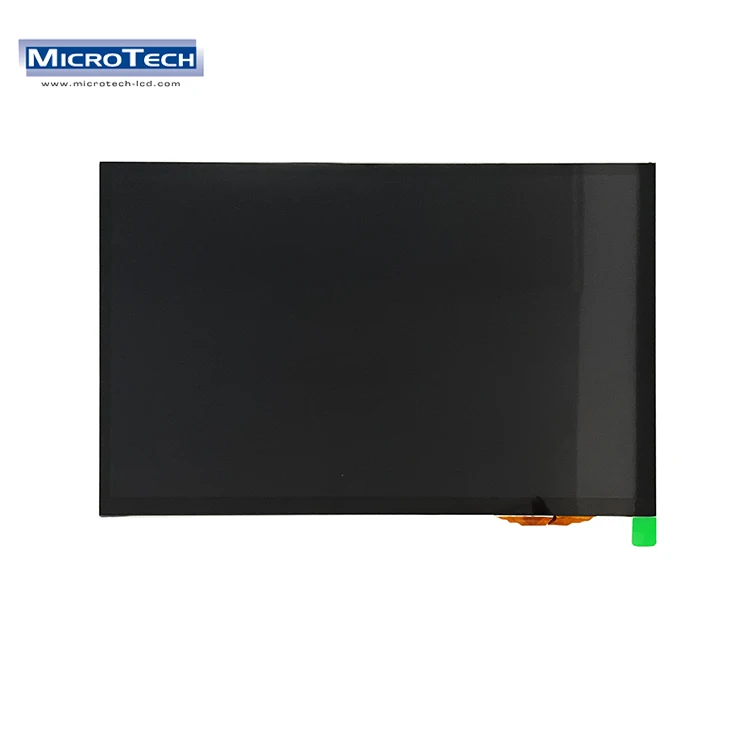

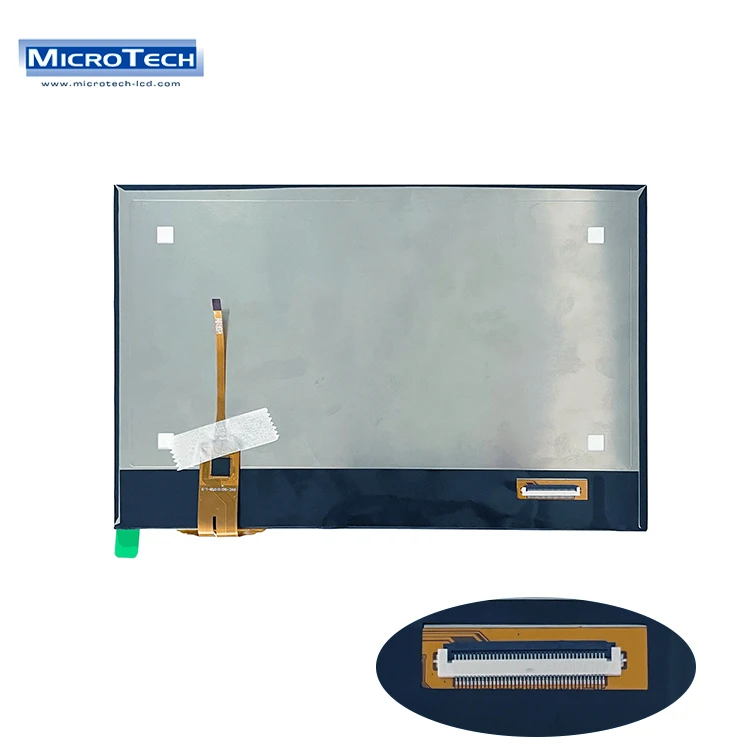

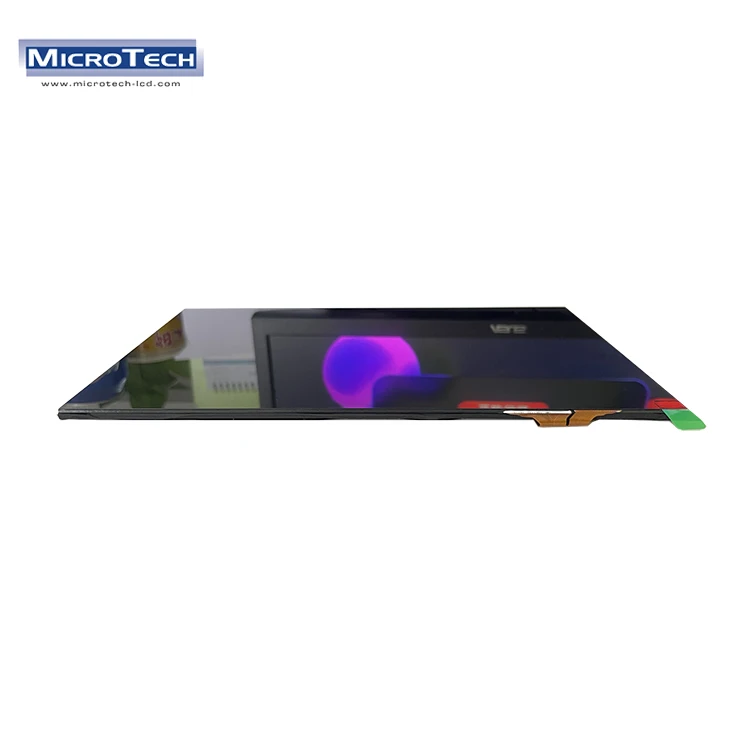

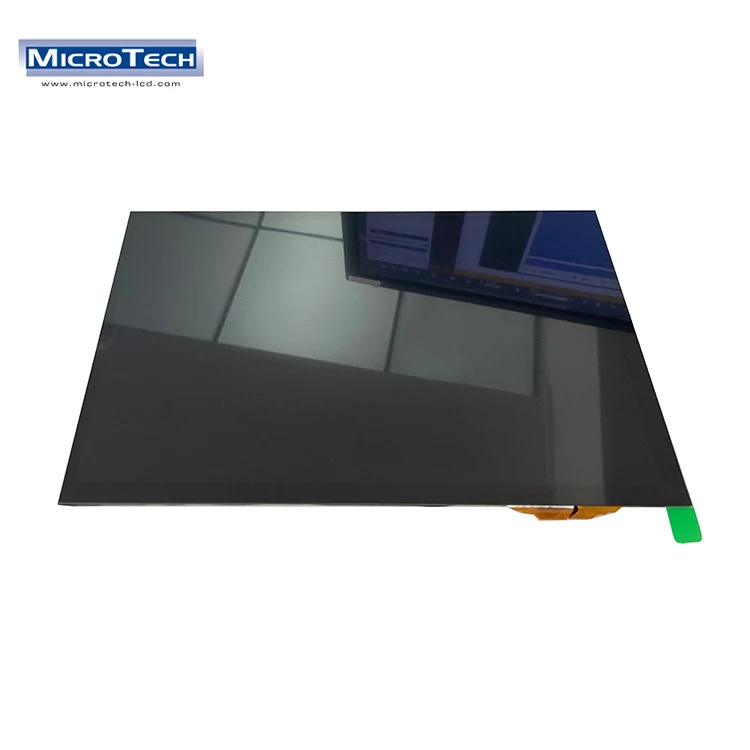

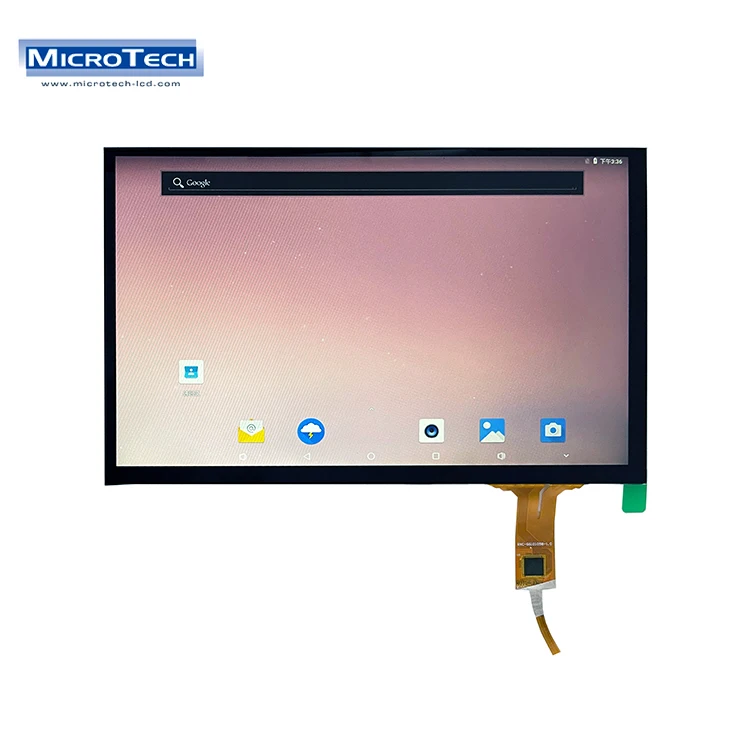

10.1 inch 1280*800 LCD touch screen 4K kit with LVDS/EDP driver board Android system RK3200 control board
- Category: >>>
- Supplier: MICROTECH TECHNOLOGY COMPANY LIMITED
Share on (1600519083357):
Product Overview
Description
10.1 inch 1280*800 LCD touch screen 4K kit with LVDS/EDP driver board Android system RK3200 control board
Specification

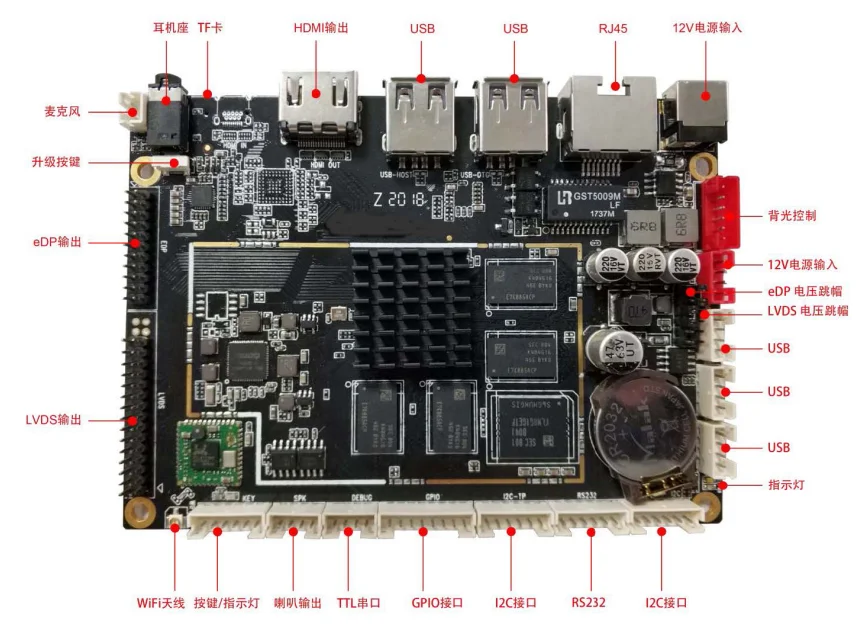

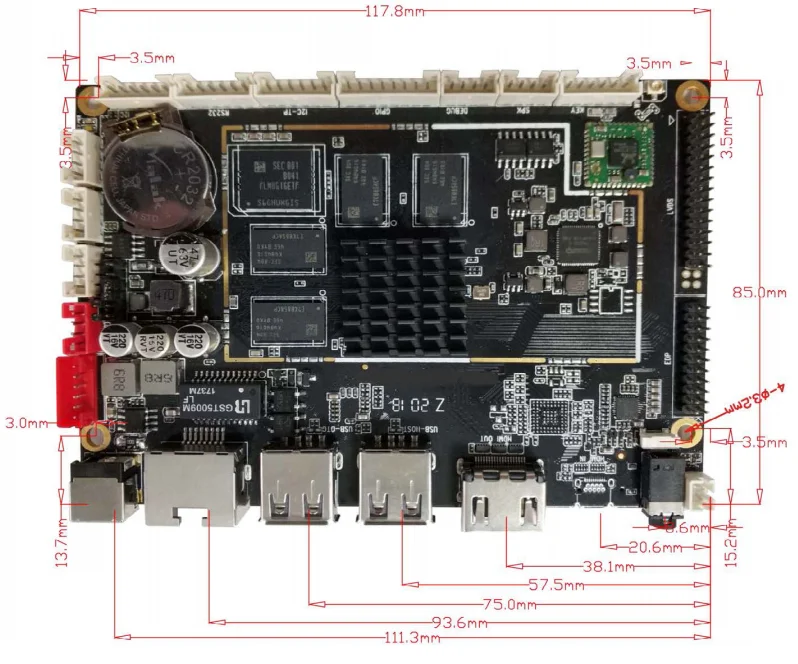

MT3288-V1 Multimedia Control Board use Rockchip MT3288-V1 Quad core solution.It is support Google’s Android 6.0 operation system. The MT3288-V1 is aARM cortex-A17 Quad-core CPU which integrated with the Mali-T76x GPU, it supports4K 10bits H265/H264 video decoders. The control board has LVDS/EDP ports for driving LCD screens (up to 1080P resolution) and it also support for dual-screen display. The control board has rich interfaces,such as HDMI-4K output， Ethernet, Wi-Fi, Bluetooth, Serial Communication,USB,GPIO,etc. The operation system can supportsAndroid,it
makesApplication development is more convenient. This Board is widely used in advertising machines, interactive all-in-one machines, security, medical, transportation, finance, industrial control and other intelligent control fields。
makesApplication development is more convenient. This Board is widely used in advertising machines, interactive all-in-one machines, security, medical, transportation, finance, industrial control and other intelligent control fields。
CPU | Rock chip MT3288-V1 (28nm), ARM Cortex-A17 Quad-core processor, 1.8GHz |
GPU | Mail-T764 GPU MP4 Quad-core GPU Support OpenGL ES1.1/2.0/3.0,OpenVG1.1,OpenCL,DX11 |
RAM | DDR3 2GB (up to 4GB) |
FLASH | eMMC 8GB (16G/32G/64G/128G optional),support TF Card external storage |
Network | Ethernet 10/100/1000Mbps |
2.4G Wi-Fi,802.11b/g/n (5G Wi-Fi is optional) | |
Bluetooth 4.0 | |
Display | 1*eDP port (eDP1.3,4lanes with 2.7Gbps), 5V/12V power simply 1*LVDS port (Signal/Dual channel,6 bit/8 bit),7"-108"LCD up to 1080P 60Hz .support 3.3V/5V/12V power supply 1*HDMI 2.0 support 4K 60Hz output |
Support for dual-screen display | |
Integrated Backlight control | 12V LCD backlight power supply |
Display Rotate | Support 0/90/180/270 degree rotation |
Audio | 1*Speaker output (2*6W4R THD<10%) 1* 3.5mm earphone socket (with MIC input) 1*MIC input |
Touch panel | I2C or USB capacitive touch screen |
Camera | Support 8Mega pixel-USB camera |
RTC | Build-in RTC battery, support timing power on/off |
USB | 4*USB-2.0 HOST, 1*USB-OTG (Default is HOST, user can choose the function in |
system-settings-security) | |
IR remote | 1*IR remote socket |
LED | 1*Red LED(Power indicate) 1*Blue LED(system status) |
Keys | 1*Rest, 1*power kev.1*unarade |
Serial norts | 2*RS232,1*UART TTL |
GPIO | 6*GPIO |
SPI | 1*SPI Dort |
Power input | DC12Vwith 5.5mm DC plug 2A-5A Warning :surge voltage less than 18V, ripple voltage less than 100mV |
OS | Android 6.0 |
Audio Decode | MP3,WMA,WAV,APE, FLAC, AAC, OGG,M4A,3GPP etc. |
Video Decode | 4K1 Obits H265/H264 VP8, MAV, WMV, AVS , H.263 , MPEG4 @1080P/2160P |
Picture | Support JPG> BMP、PNG |
language | Android multi-language |
Input method | Android screen keyboard |
Software features | Original Android system, support root |
System crash self - recovery, 7*24 hours unattended | |
Support Wi-Fi display | |
No. | Item | Specification | Remark |
1 | LCD size | 10.1 inch(Diagonal) | |
2 | Driver element | a-Si I FI active matrix | |
3 | Resolution | 1280 x 3(RGB) x 800 | |
4 | Display mode | Normally Black, Transmissive | |
5 | Dot pitch | 0.0565(W) x 0.1695(H) mm | |
6 | Active area | 216.96(W) x 135.60(H) mm | |

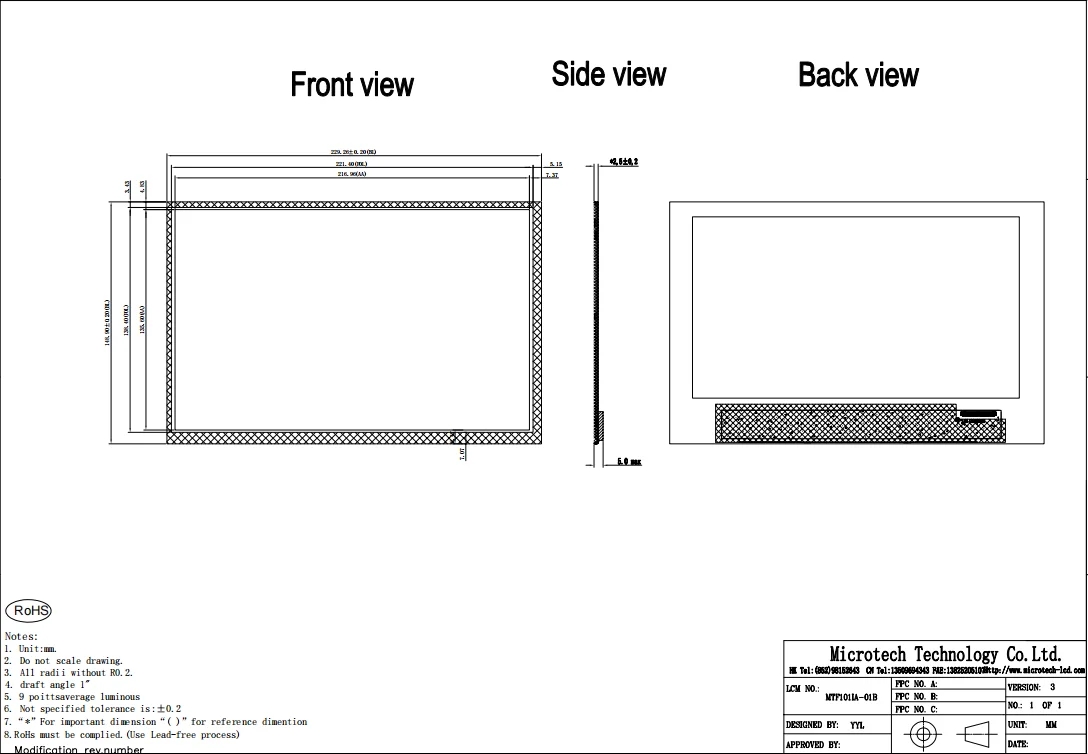

7 | Panel size | 229.26(W) x148.9(H) x2.5(D) mm | Note 1 |
8 | Surface treatment | HC | |
9 | Color arrangement | RGB-stripe | |
10 | Interface | LVDS | |
11 | View direction(Gray Inversion) | free | |
12 | Panel power consumption | 0.7W (Typ) | Note 2 |
13 | Weight | 80g(Typ) | |
14 | Brightness | 350 cd/m2 |
