Factory Supply Price Industrial Prawn Vacuum Freeze Dryer Aquatic Vegetable Fruit Strawberry Vacuum Lyohpilization Machine

Product Overview

Description









Main Technical Parameters of SFD Freeze-drying



Model Parameters	SFD -5	SFD -10	SFD -25	SFD -50	SFD -100	SFD -125	SFD -200
Drying area (m²)	5	10	25	50	100	120	120
Average moisture output (kg/h)	5	10	25	50	100	120	200
Size of material tray (mm)	540x870x35	540x635x35
Number of material tray (pcs)	6x2	22x2	72x2	144x2	288x2	360x2	576x2
Overall dimension (m)	4.4x2.3x2.0	7.4x2.3x2.4	/
Operation vacuum (pa)	13.3~200
Heating plate temperature (°C)	Normal temperature ~+120°C
Eletric heating (kw)	15	24	45	96	/
Steam consumption (kg/h, 0.7mpa)	/		70	160	320	400	540
Cold load (kw)	11	18	45	110	180	225	360
Power required (kw)	35	63.2	64+	130+	245	287	404



Note: Customized according to your needs, welcome to contact me for more information !

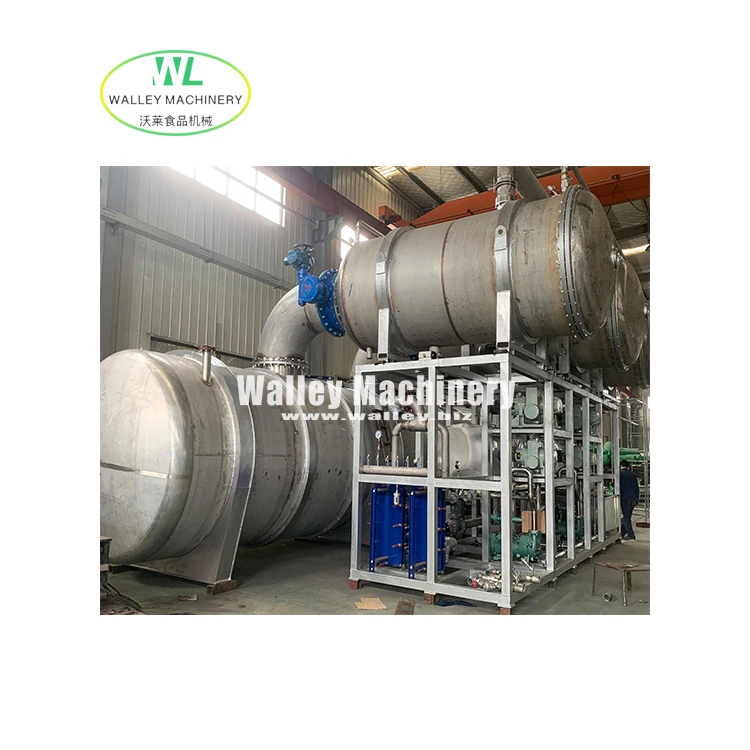

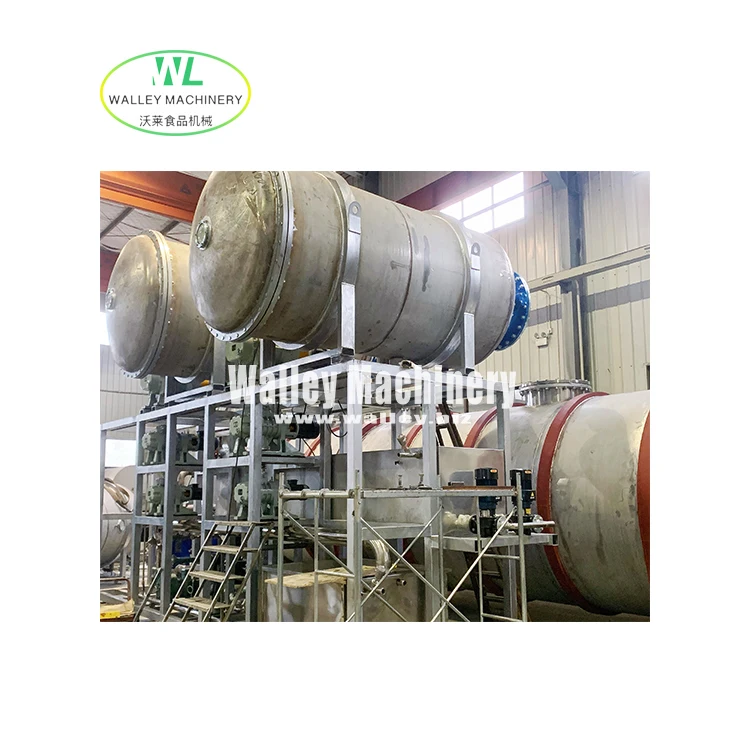

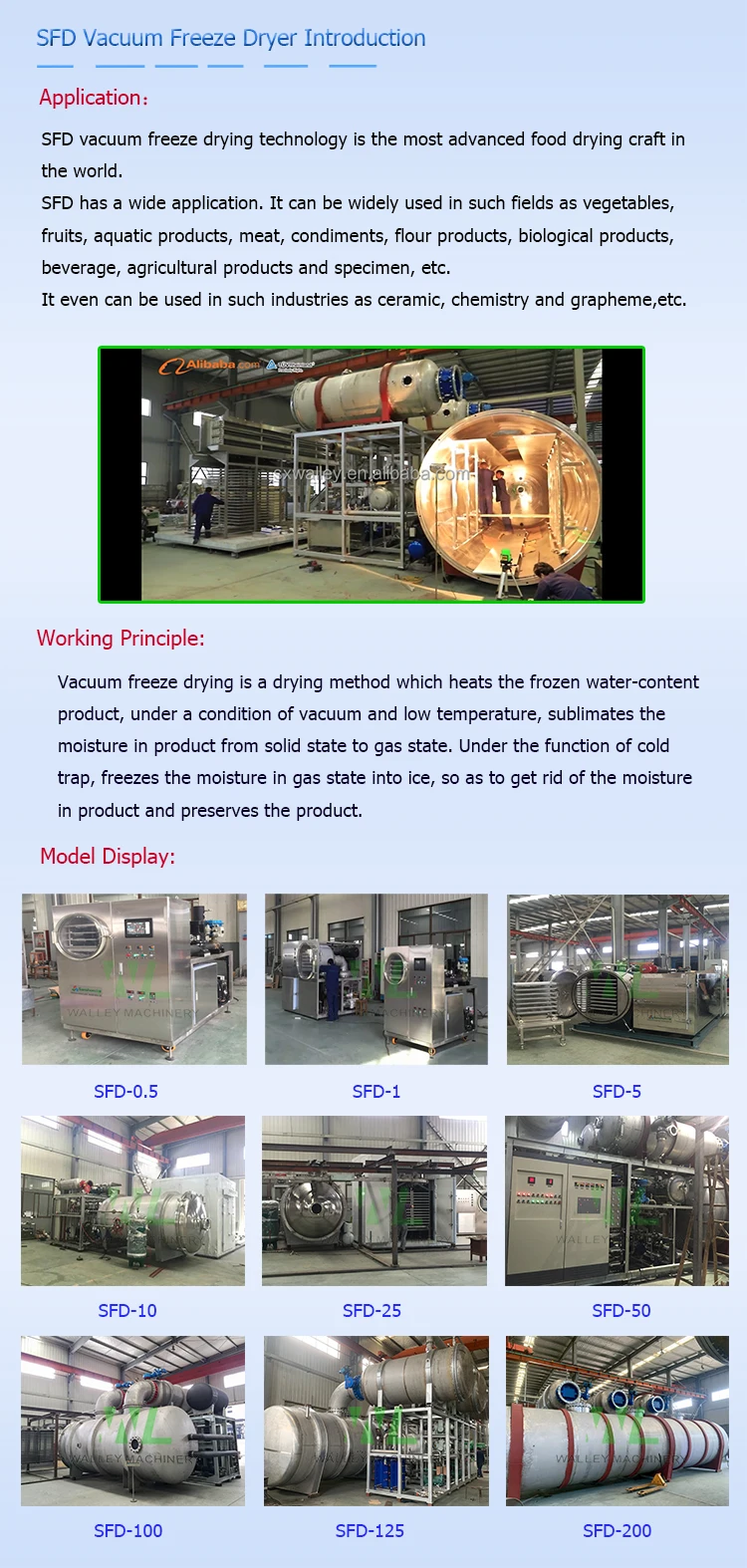

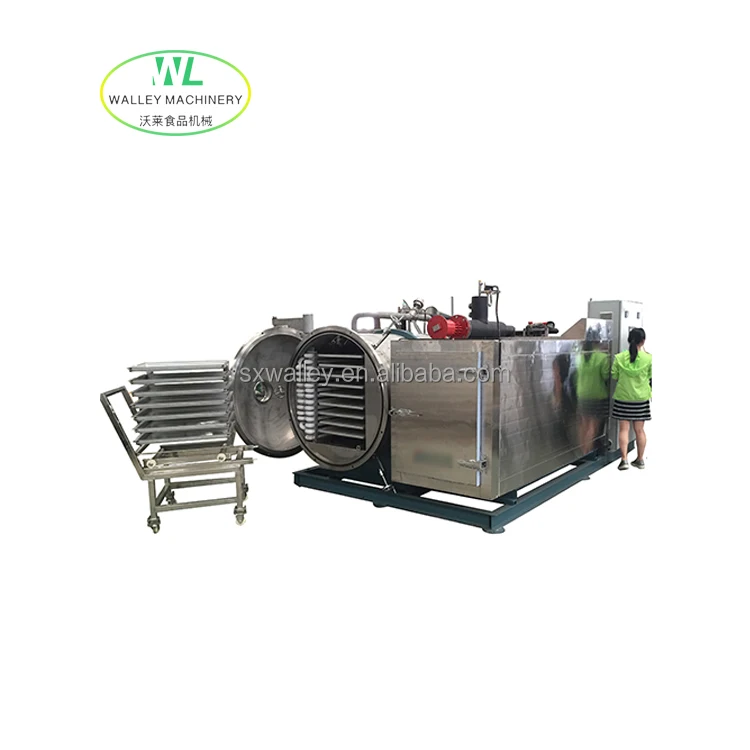

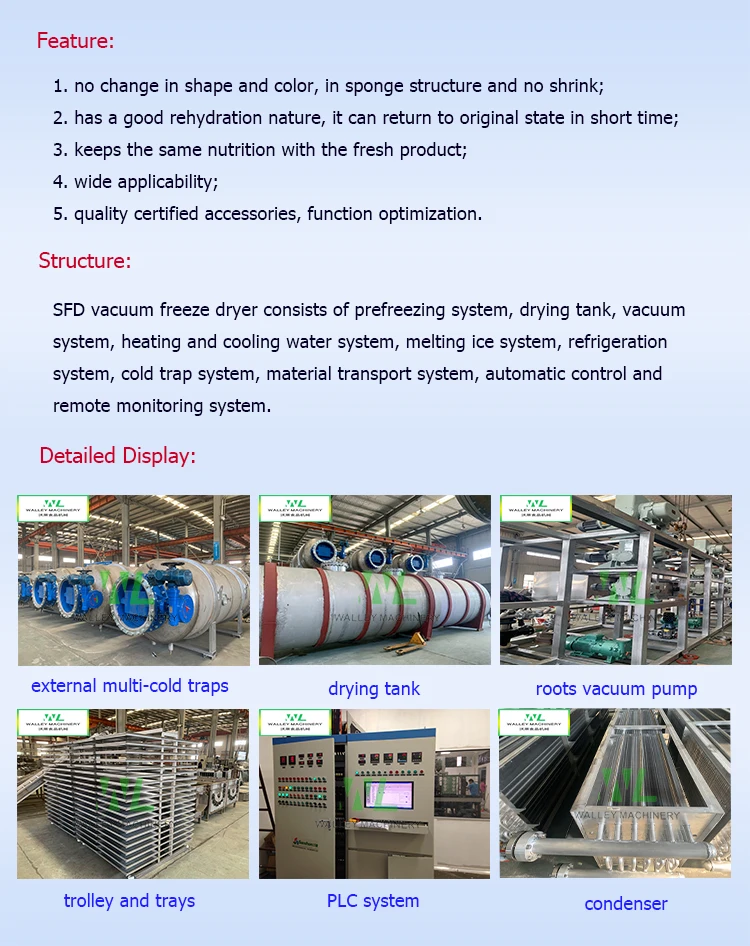

SFD Series Vacuum Freeze Drying Equipment

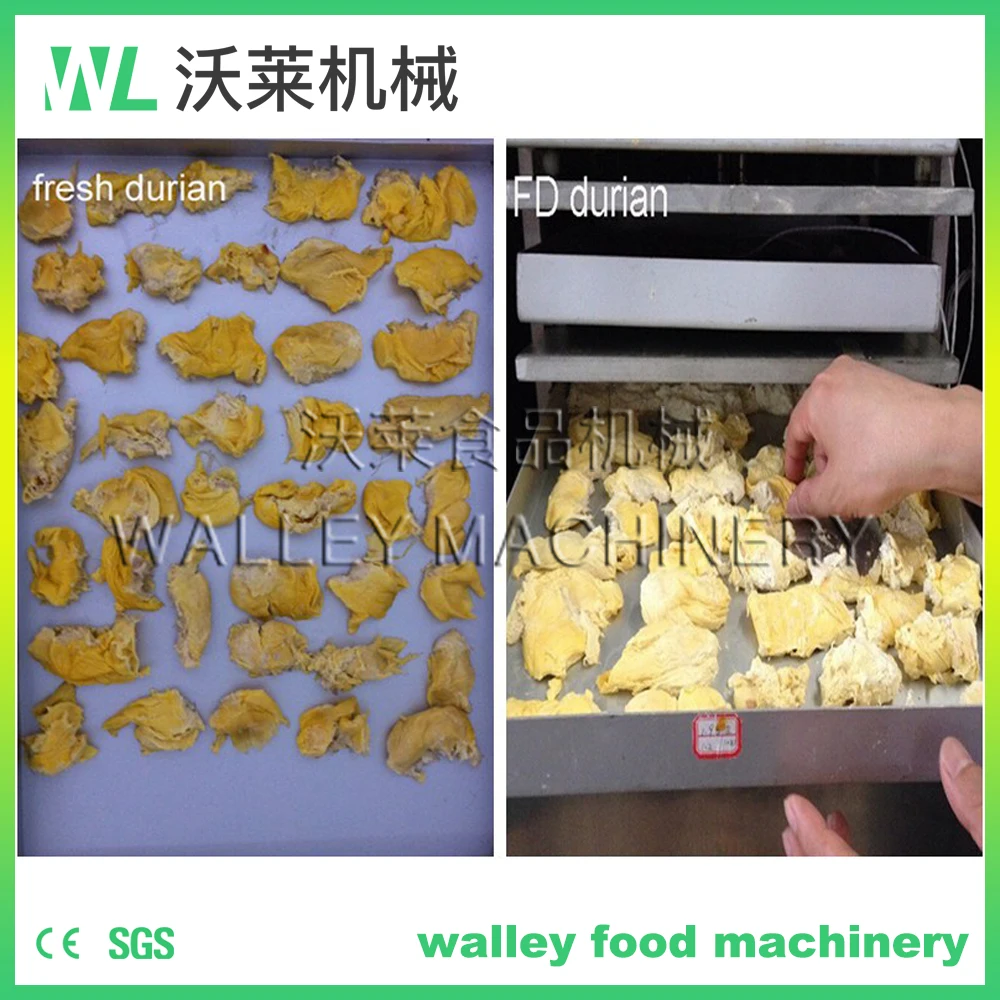

SFD Finished Products:









                 Strong Packing, ensure transportation safety









              Thank you for your visit, please contact us if you have any questions,

              we will answer in detail for you!
