Crawler mounted diesel NQ 1200M rotary core sampling drilling rig machine for sale

Product Overview

Description

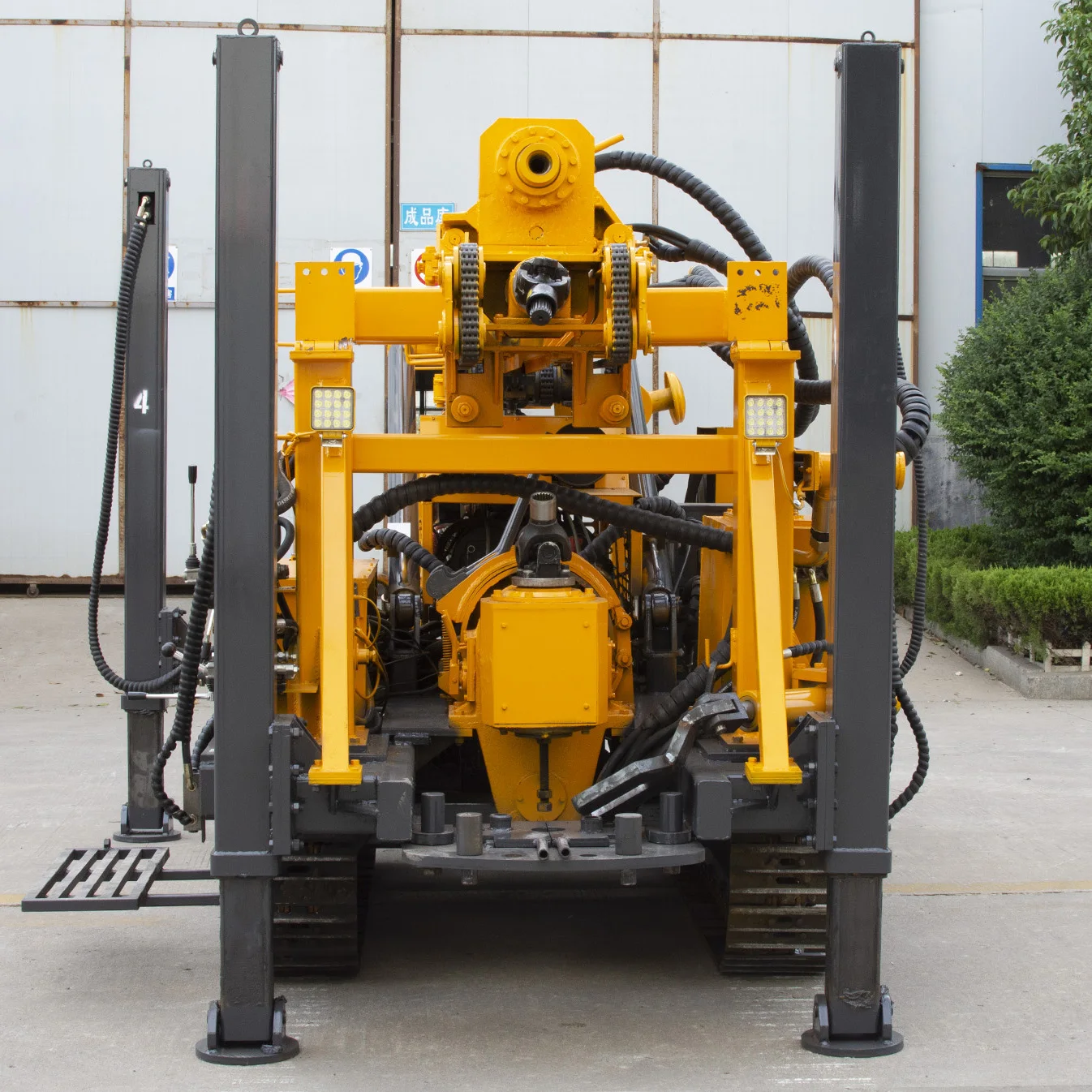

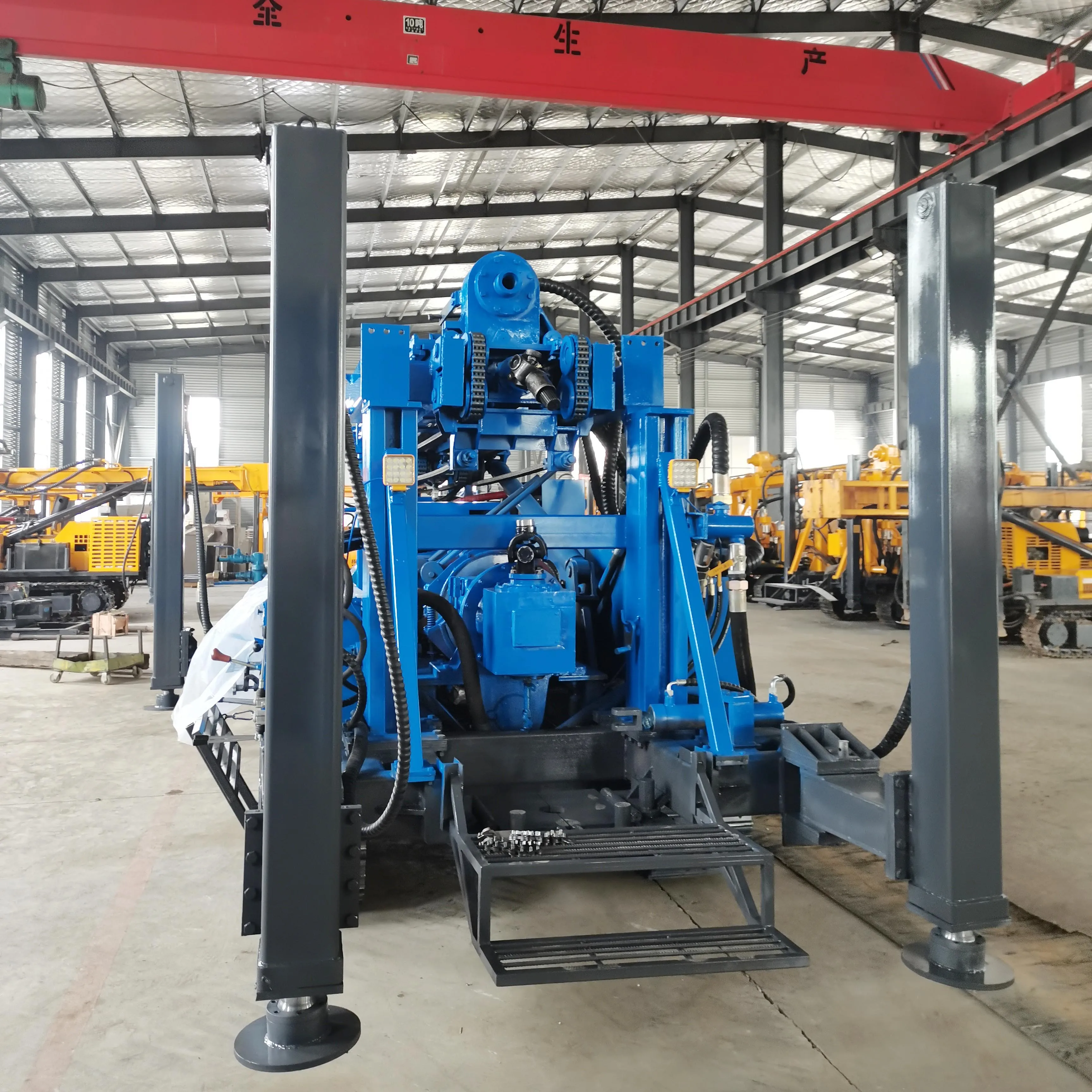

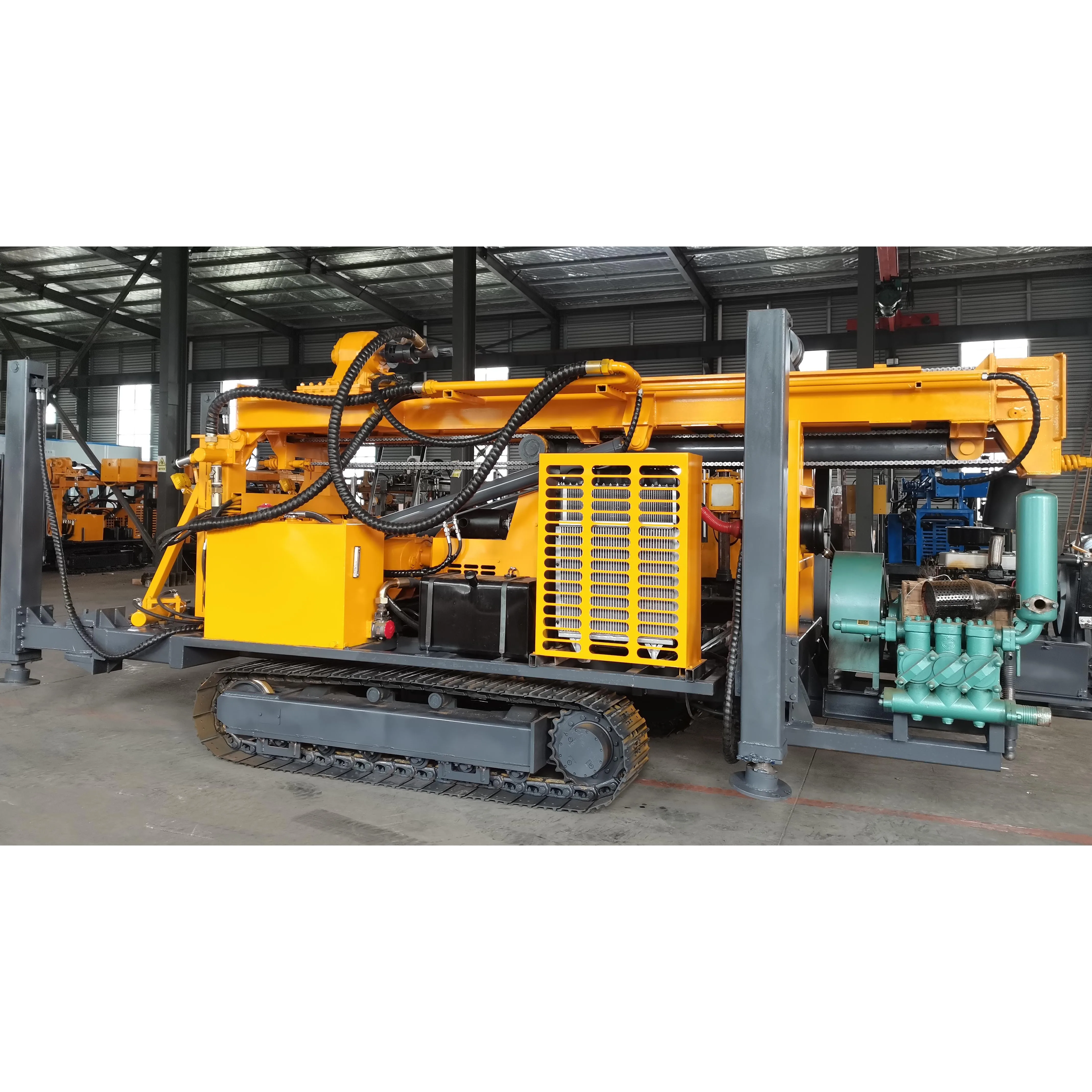

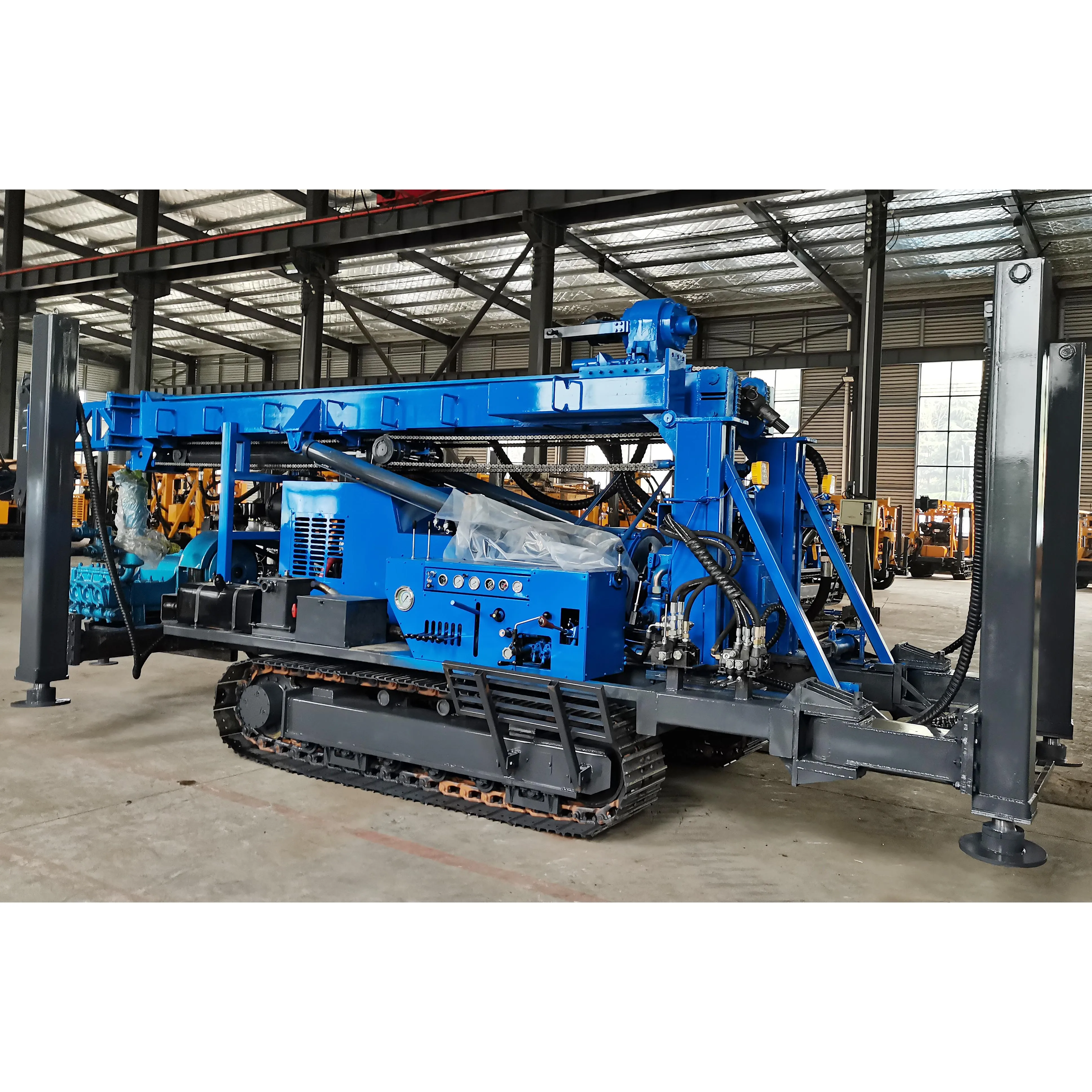

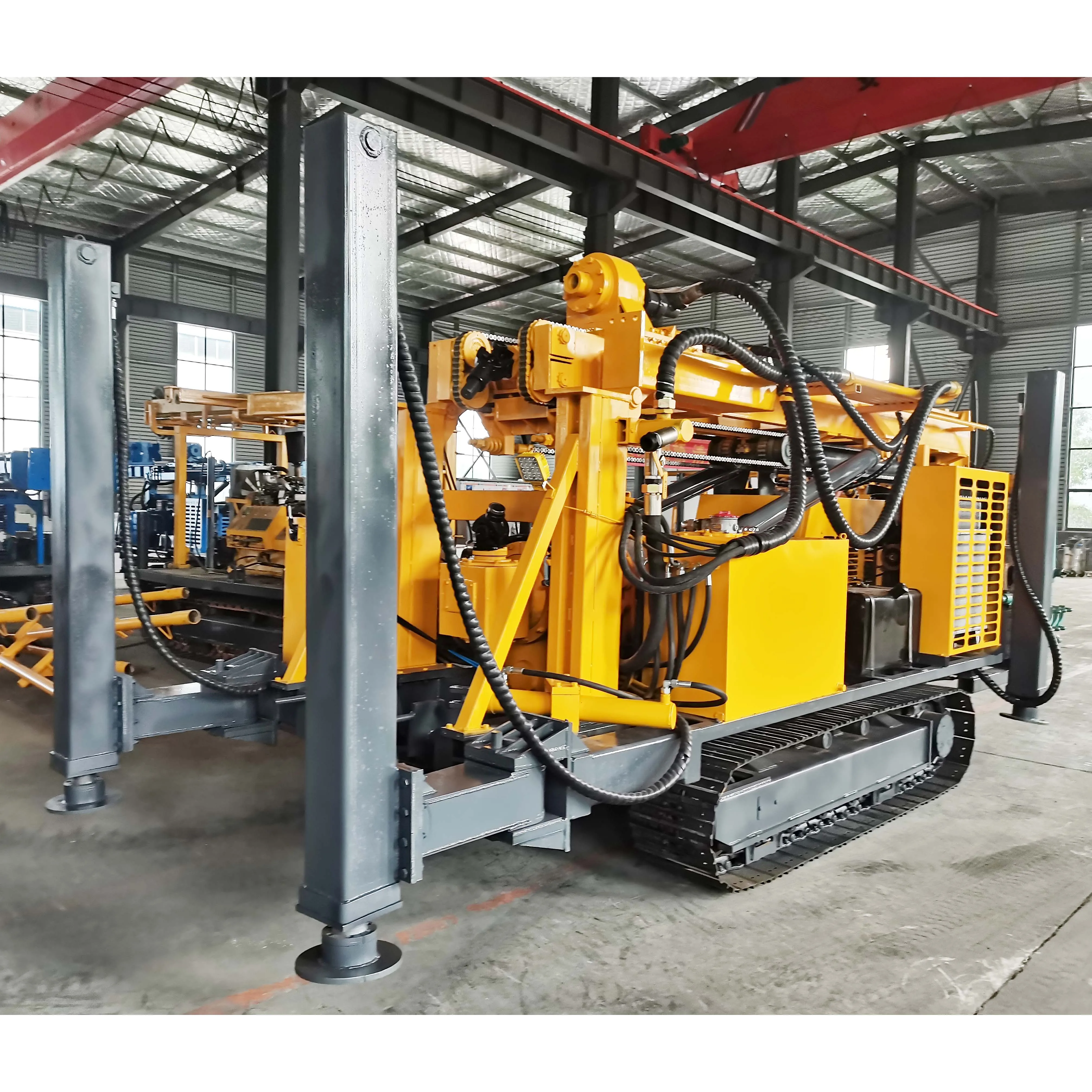

Crawler mounted diesel NQ 1200M rotary core sampling drilling rig machine for sale

1. Machine introduction
DKL500 Mechanical crawler mounted top drive geological exploration core drilling rig is mainly used for core drilling based on alloy and diamond, as well as engineering geological exploration, hydrology, wells, agricultural irrigation wells and other drilling. especially suitable for water intake projects in mountainous areas and rock formations.

2. Machine features

1. The speed of the drilling rig can reach 33-1120r/min, and the maximum output torque is 9800N.m.
2. The drilling rig adopts long-stroke speed double mechanism, mechanical power head, and power head stroke of 2300MM, which is used to improve the drilling efficiency and reduce the occurrence of drilling blocking and drilling accidents.
3. The drilling rig adopts double oil pump to supply oil, use a single pump when drilling, and use double pump confluence when lifting drilling; less power loss and short auxiliary time.

Machine technical data

3. Main technical data about core drilling rig

Model	DKL280	DKL350	DKL500
Machine weight(T)	3.5	6.5	11.5
NQ wire-line core drilling depth (M)	400	600	1200
Drilling depth for water well (M)	280	350	800
Drill rod length(M)	2	3	3
Walking speed (km/h)	2	2	2
Max.climbing capacity	20	20	20
Main motor power (kw)	42	58	92
Using air pressure (mpa)	1.05-2.46	1.05-2.46	1.05-2.46
Air consumption (m3/min)	16-35	16-35	16-35
Rig lifting force(KN)	100	120	240
Swing speed (rpm)	33-906	27-901	43-1080
Swing torque (N.M)	9800	10500	16500

4. Machine application about core drilling rig:

It can be used to drill water well equipped mud pump or air compressor;
It also can be used for NQ, HQ, PQ wire line core drill to get geology sample

5. Packing and trasportation about core drilling rig

20GP or 40HC container according to your purchasing quantity;

6. Company brief introduction

We are specialized in water well drilling rigs and core drilling rig machine research and development, manufacturing enterprises. At the same time, we are the first sales agent of Kaishan and Zhigao brand products;
The company has been committed to the professional production of water well drilling rigs and down-the-hole drilling rigs and the sales and maintenance of drilling tools and air compressors for more than 20 years. It has accumulated rich professional maintenance technology and thoughtful and meticulous after-sales service experience. It has accumulated through extensive contacts with users a lot of usage data.
We always firmly believes that "the market is the only standard for testing products", keep innovating closely with market demand, and always meet customer needs as the corporate responsibility, and sincerely cooperate with users to create a better future!

7. FAQ
Q1.Are you manufacture?
Ans.: Yes, we are factory with more than 20 years of manufacturing experience.and we have independent import and export rights of goods and have 10 years of experience in international trade
Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q3. Do you test all your machine before delivery?
Ans.: Yes, we have 100% test before delivery and share the test video to you.
Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories broken can be changed for a new one. And we provide videos for machine install and operation.
Q5. What is your terms of payment?
Ans.: 30% T/T as deposit, and the balance will be paid before delivery. We'll show you the photos and testing videos of the products and packages before you pay the balance.
Q6.Could you supply english manual book for our machine?
Ans: Yes, we will attach it with the machine when we delivery your machine.
Q7. Could you supply all spare parts when we need?
Ans.: Yes, we will provide after-sales service and equipment accessories for life
Q8. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q9.Could you supply any certificates for your machine?
Ans.: Yes, we can supply CE IS09001 etc certificate if you need;
