Product Overview

Description



Aluminum Circle Aluminum Slug for Tube





About Aluminum Slug



        HAOMEI ALUMINUM is the leading manufacturer in China who is committed to the production and commercialization of aluminum slugs and discs. Located in Zhengzhou, Henan. HAOMEI is committed to providing the highest quality aluminum product for new and existing markets around the world.

All the aluminum slugs of different shapes are heat-treated, soft - annealed and the surface tumbled or sand blasted. The aluminum slugs are widely used for the manufacturing of aluminum containers or Collapsible Aluminium tubes for cosmetics, pharmaceutical, beverage containers, and many other packaging solutions.



Products description of aluminum slug 1070





Material	Aluminium Slugs with or without holes
Alloy	AA1070
Purity	99.70% minimum
Grain Sizes	Grain 5
Hardness	16 to 19 HB
Thickness	3.00 mm. to 10.00 mm
Diameters	We can supply aluminium slugs of 99.7% Al purity from our aluminium  rolling mill. Slugs from Diameter 20 mm to 116 mm can be supplied.  The following are the different diameters that can be readily supplied.  20mm, 25 mm, 27mm, 40mm, 45 mm, 50 mm, 54 mm, 63.5 mm, 74 mm,  75 mm, 85 mm, 89 mm, 90 mm and, 116 mm. Slugs to customer's  specifications can also be supplied.
Tolerances	According to norms DIN 59604
International Standards	DIN 59604, 1721, ASTM E 112, MIL STD 105 D, EN 570
Shape	Flat, Domed, Round, Oval, Concave, Preform, Rectangle
Weight	Slugs weight (grs.) is determined by the nominal dimensions of the  diameters (mm), thickness (mm) and aluminum density.
Packing	Corrugated cardboard boxes (25 kg. each), on wooden pallets.
Finish	Tumble Rolled or Shot Blasted





Application of Aluminum Slug



Aluminum Slug of different shapes are heat-treated, soft-annealed and the surface tumbled or sand blasted. Aluminum Slug are widely used for the manufacturing of aluminum containers or Collapsible Aluminium tubes for cosmetics, pharmaceutical, beverage containers, and many other packaging solutions.

Aluminum Slug are widely end usage in cold-extrusion or deeply-drawing for Cosmetic packing -tube (lipstick tube, Lipstick Cases, Mascara, Eyebrowbrush, Perfume Atomizer, Cheaters Box, Brush, Lipgloss Cases, Accessories, pharmaceutical tubes, collapsible tubes, toothpaste tubes, Capacitor Shell and more) household utensils have a good quality of oxidation in the surface.







  Chemical Compositions of Aluminum Slug





Alloy	Si	Fe	Cu	Mn	Mg	Ni	Zn	Ti	Other	Min.AL
1070	0.2	0.25	0.04	0.03	0.03	---	0.04	0.03	0.03	99.7

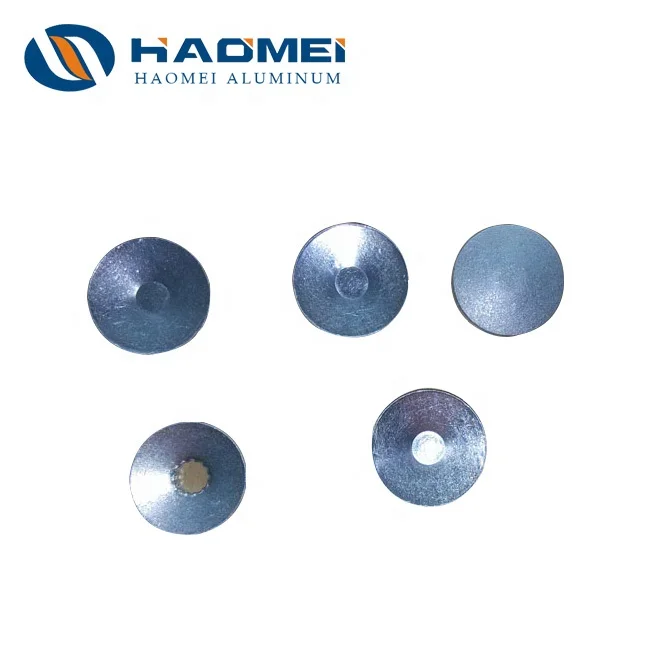

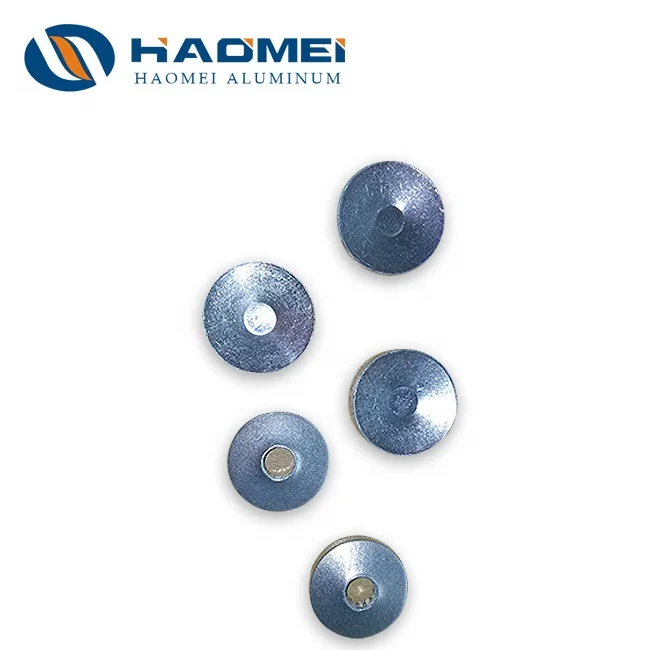

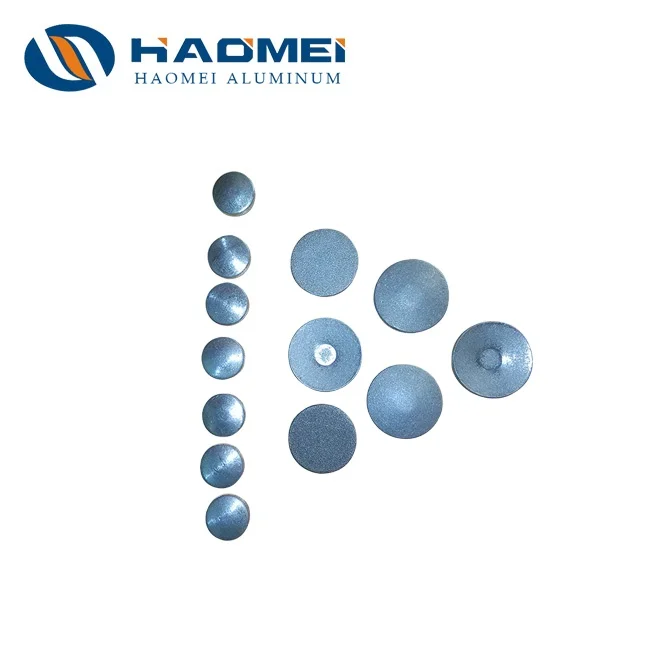

The shapes of aluminum slugs

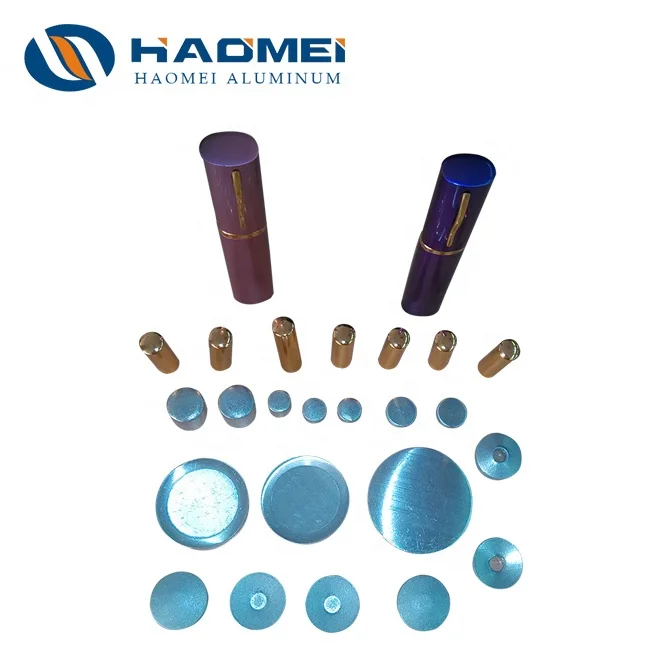

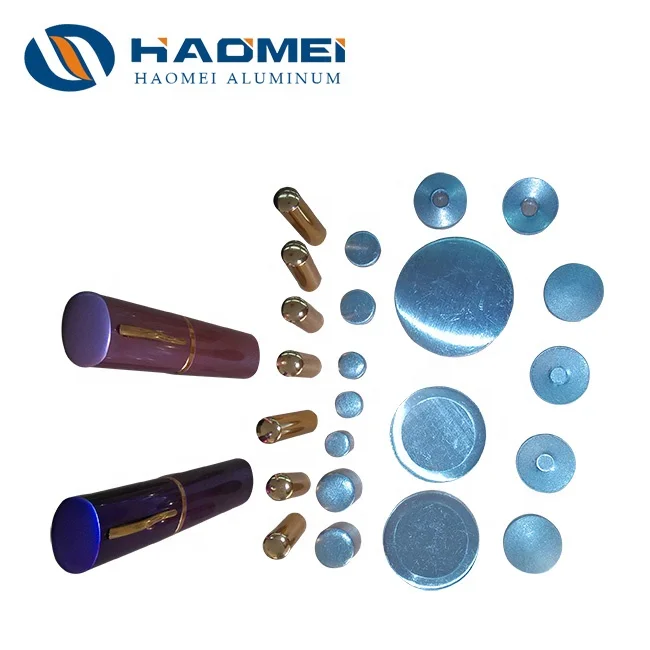

The Pictures of Aluminum Slugs









Production process llustration of aluminum slugs









 Packing of Aluminum Slugs
