Product Overview
Description

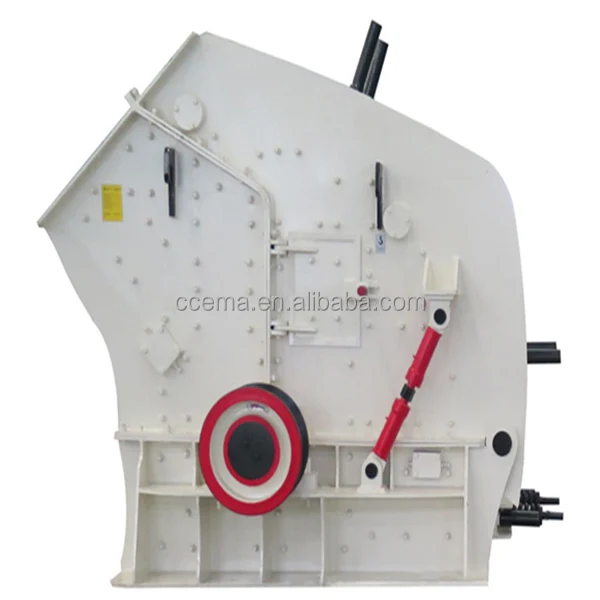

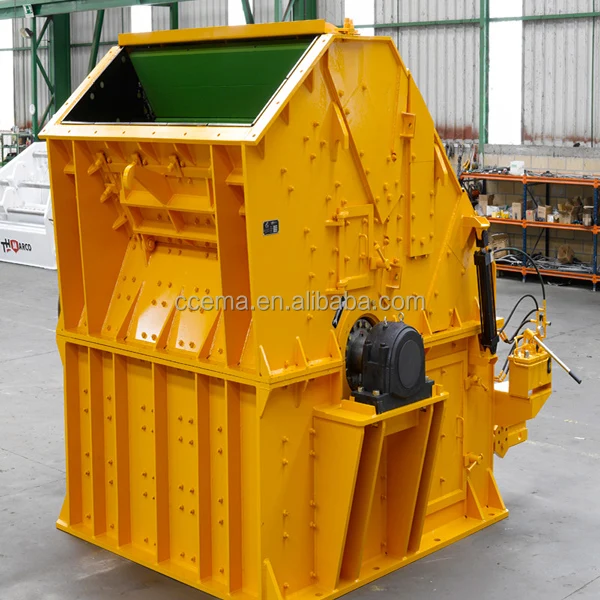

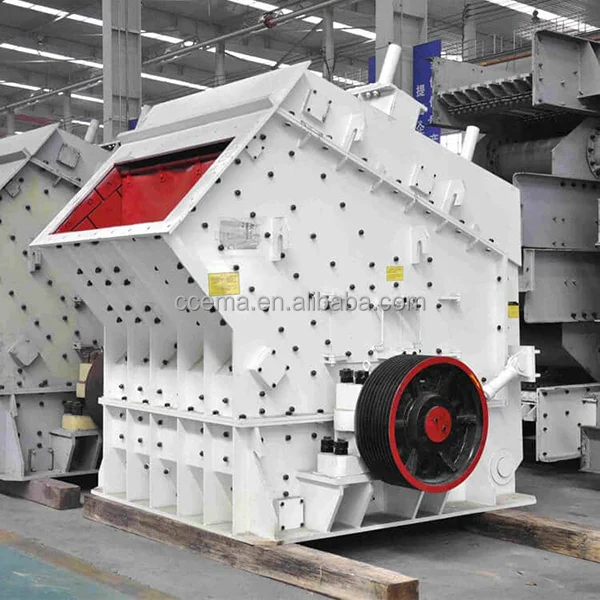

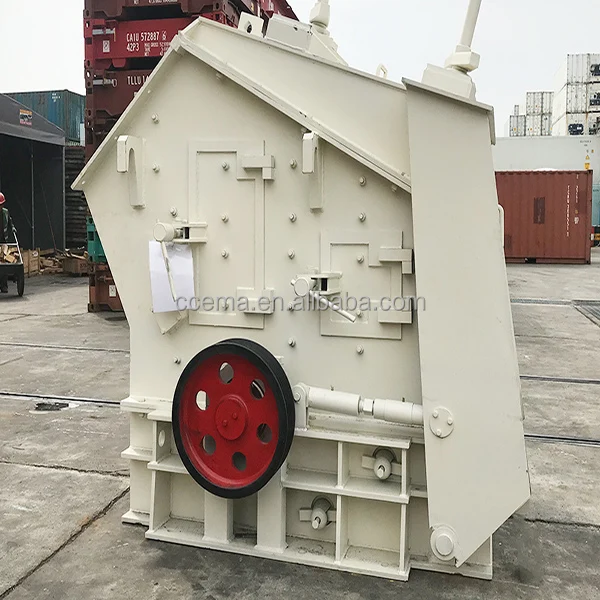

The hammer crusher is a kind of crushing machine which uses impact energy to crush materials. It is mainly composed of shell,rotor, impact iron, lining plate, and screening strips. The shell is divided into upper and lower parts, which are welded after being cut by the steel plate. There is a high manganese steel lining plate inside the shell, which can be replaced if worn. The spindle is equipped with hammers with regular array distribution, and together with a rotary table and a hammer passing shaft,they compose the rotor. When the motor drives the rotor to rotate, the centrifugal forces cause the hammers to point radially outwards. After the large materials enter the crushing chamber from the feed port, they are smashed by the high-speed moving hammers. The qualified materials are discharged from the gap between the bottom screening strips, and the unqualified materials are left in the crushing chamber and repeatedly hit by the hammer until they can be discharged.
Hammer crusher can be used for medium and fine crushing of barite, limestone, gypsum, terrazzo, coal, slag, and other soft and hard ores. The equipment can also adjust the gap between the screen strips, improve the discharge particle size to meet the need of users.
Hammer Crusher Features:
1. High output capacity and reduction ratio;
2. Low power consumption and even product granularity;
3. Simple mechanical structure, compact and light;
4. Less investment, simple maintenance, and convenient management.
2. Low power consumption and even product granularity;
3. Simple mechanical structure, compact and light;
4. Less investment, simple maintenance, and convenient management.
Model | SPC | Weight (t) | Capacity (t/h) | Motor Power(KW) |
LaFa-64 | φ600ⅹ400 | 1.3 | 12-15 | 18.5 |
LaFa-86 | Φ800ⅹ600 | 2.5 | 18-24 | 55 |
LaFa-108 | Φ1000ⅹ800 | 6.5 | 20-50 | 110 |
LaFa-1010 | Φ1000ⅹ1000 | 7.6 | 40-60 | 115 |
LaFa-1210 | Φ1250ⅹ1000 | 14.4 | 60-80 | 130 |
LaFa-1412 | Φ1400ⅹ1200 | 17.5 | 7--100 | 150 |
LaFa-1616 | Φ1600ⅹ1600 | 34 | 150-220 | 315 |
