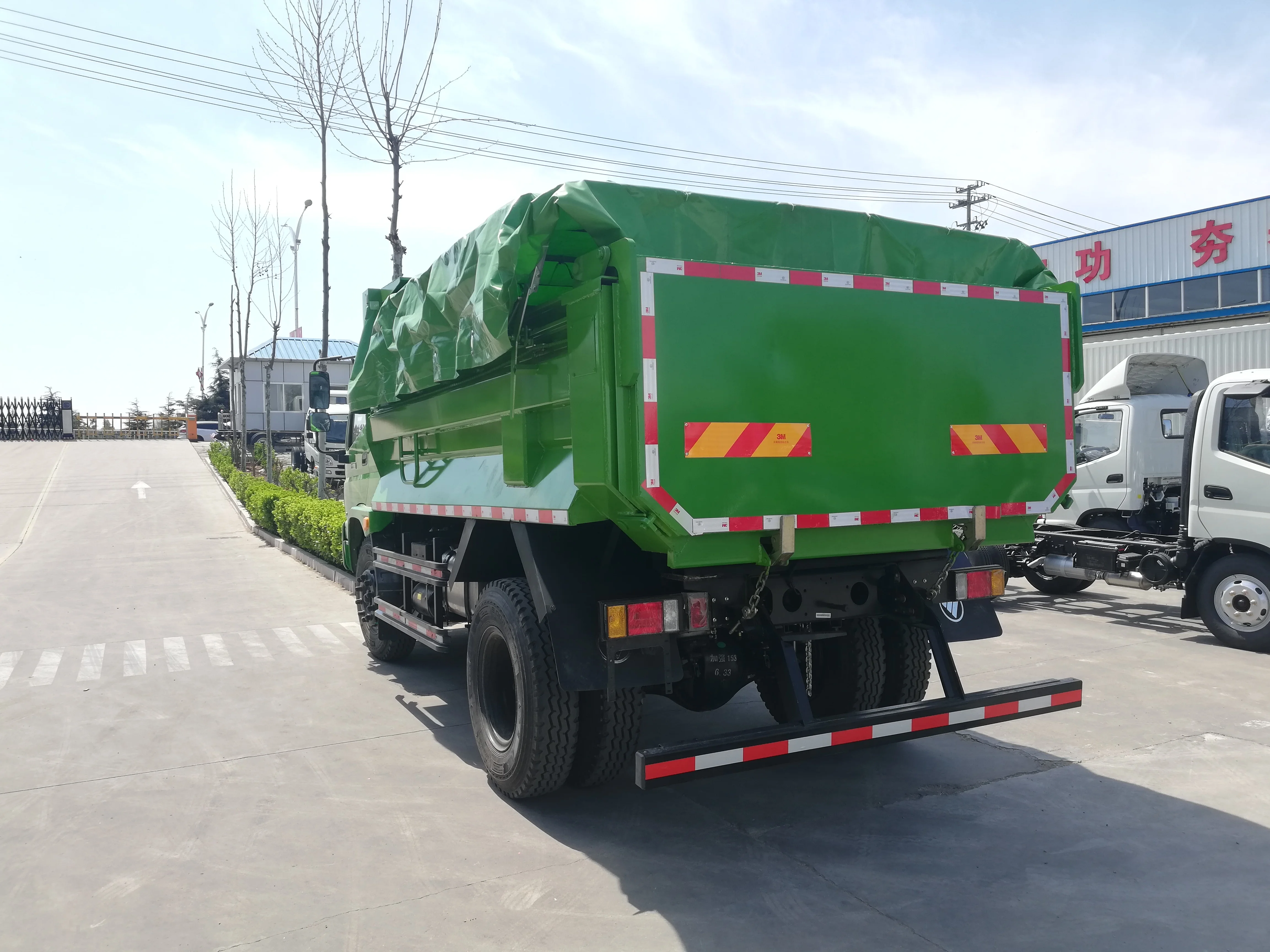

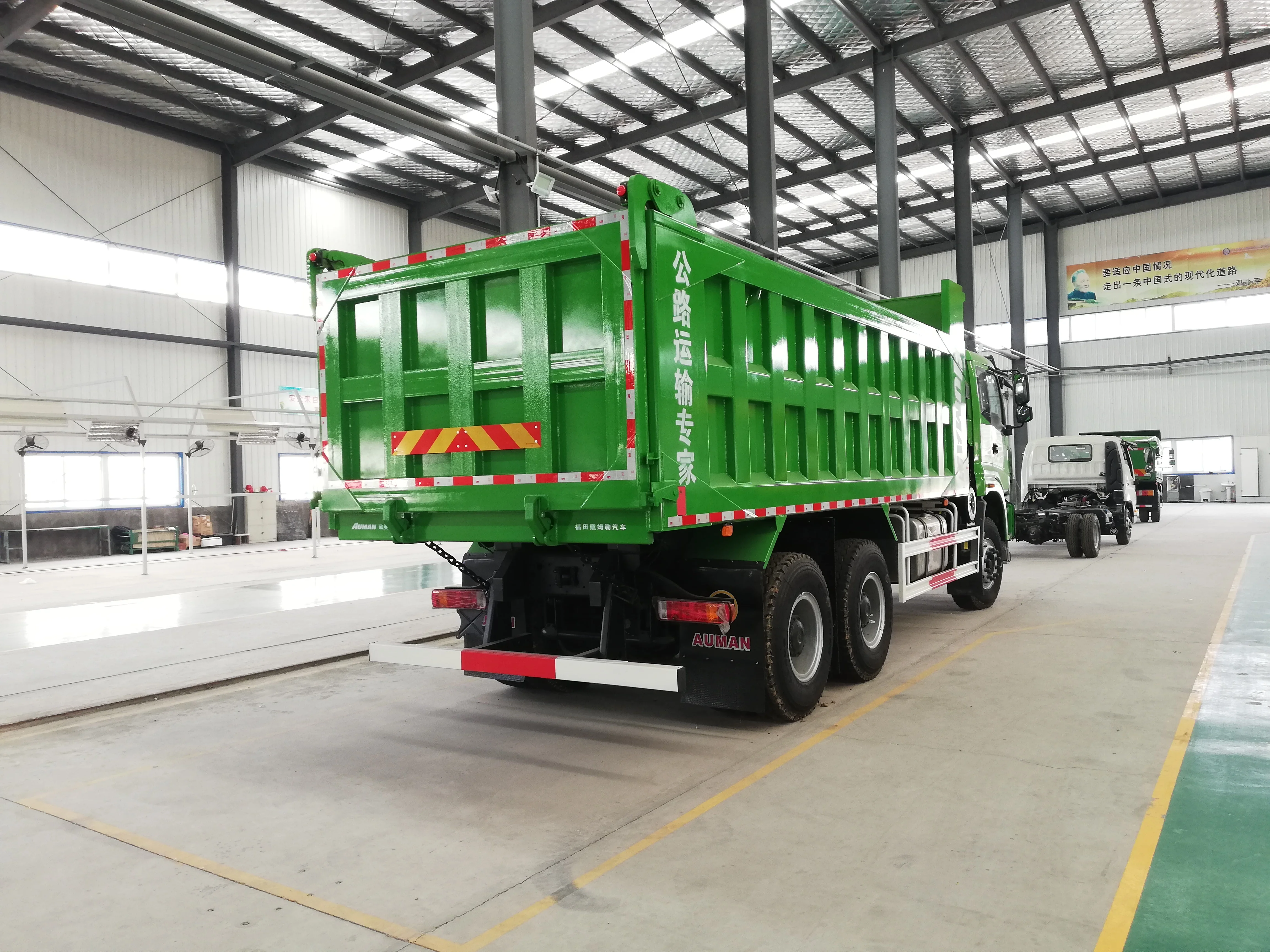

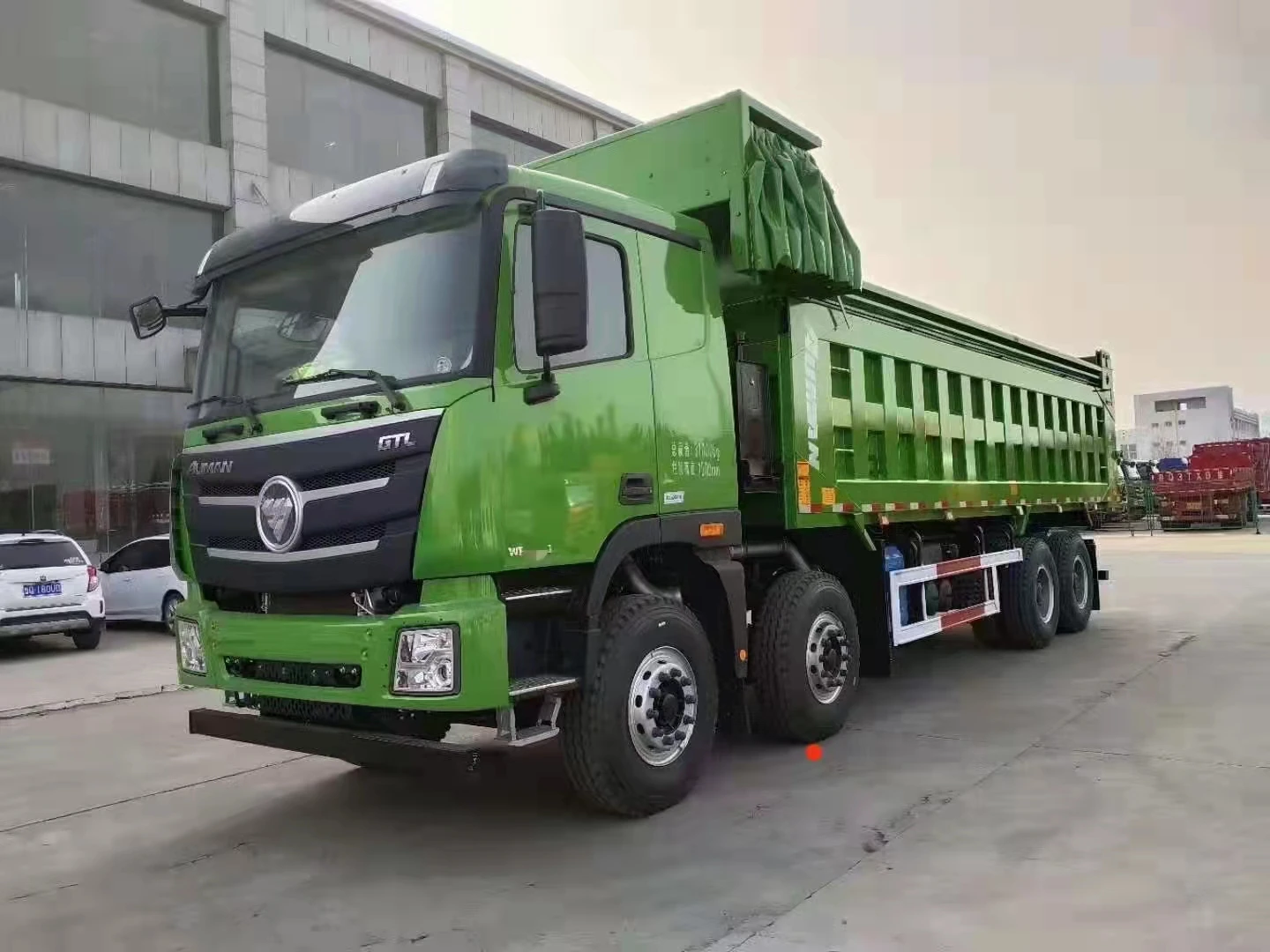

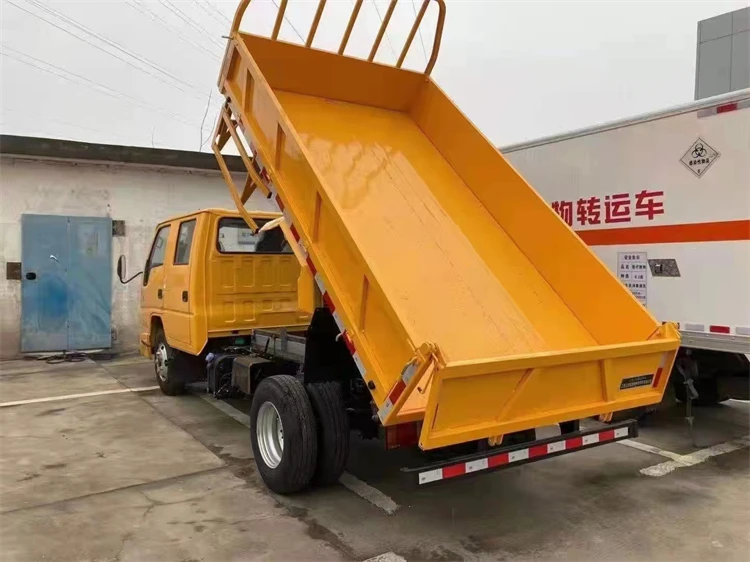

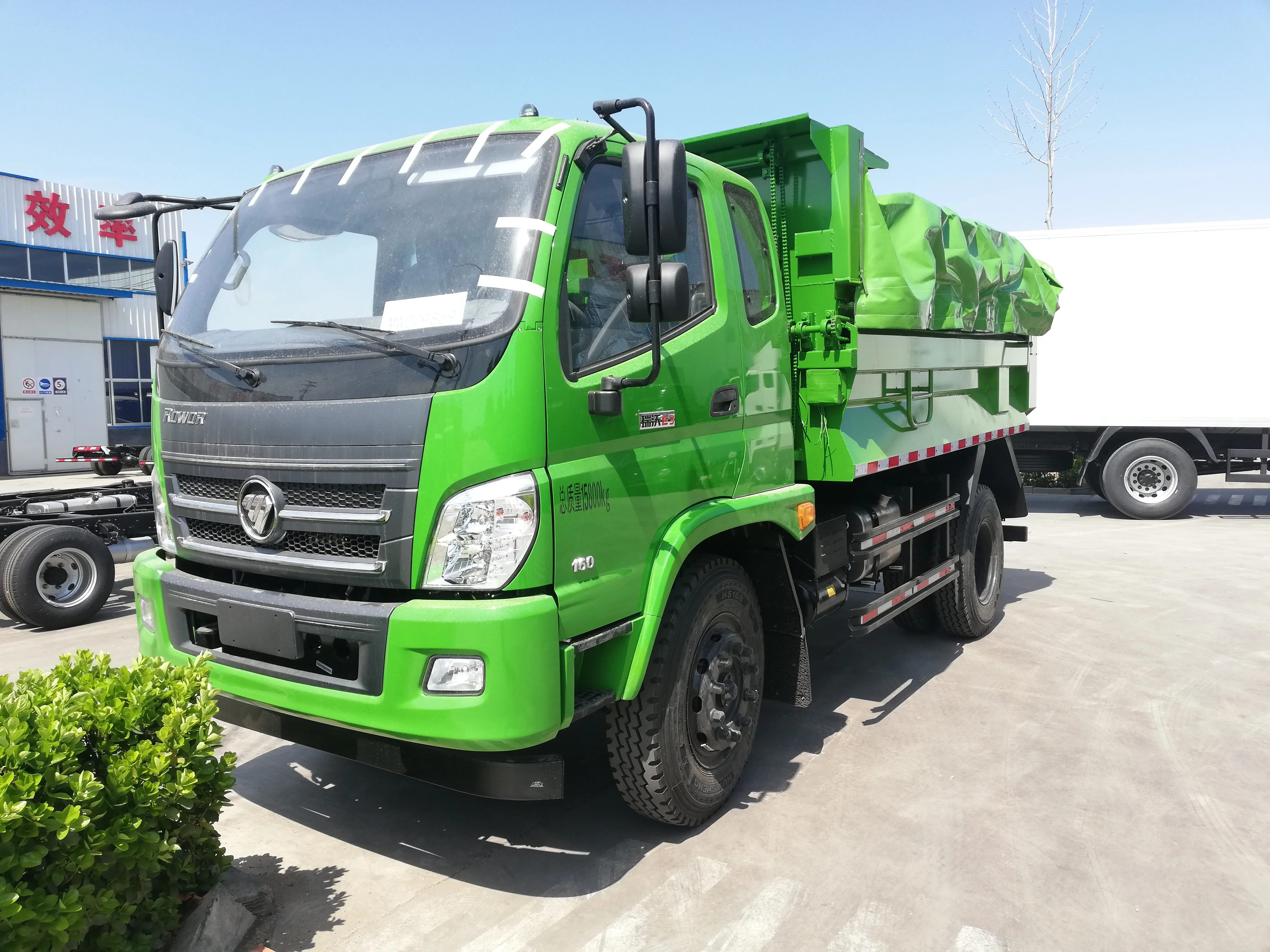

Cheap Price Promotional Construction Machine Tipper Dumper Truck
- Category: >>>
- Supplier: Shandong Shenghao Special Vehicle Co. Ltd.
Share on (1600519140376):
Product Overview
Description
Product Description
Specification
Product name | Shunda double standard rear twin tire dump truck VI | ||||||
vehicle model | JX3041ZXETSA26 | ||||||
chassis | Chassis models | JX1041TSA26 | |||||
Tire model | 7.00R16LT 8PR | ||||||
Fuel consumption (L/100km) | 8.4 | ||||||
total quality | 4100 | ||||||
Curb weight | 2480 | ||||||
Rated load mass | 1295 | ||||||
engine | Engine type | JX4D30B6H | |||||
Engine power | 85 | ||||||
Size parameters | Overall dimensions (length × width × height) | 4845×1880×2075 | |||||
wheelbase | 2490 | ||||||
Before after wheel track | 1385/1425 | ||||||
Minimum ground clearance | 195 | ||||||
Driving performance | Top speed | 100 | |||||
Minimum turning diameter | 11.4 | ||||||
Maximum climbing Angle | 21 | ||||||
With the performance | Size parameters | Empty dimension of box body | 2190×1800×400 | ||||
body material | HC420 | ||||||
thickness of the plate | 2 | ||||||
thickness of the plate | 1.2 | ||||||
lifting parameters | Maximum Lift Angle (degree) | 45 | |||||
Lifting time (seconds) | 30 | ||||||
Descent time (seconds) | 30 | ||||||
Oil cylinder type | JLJL3TGE90×300 | ||||||
Cylinder Dimensions (Section 1/2/3) | 90/70/50 | ||||||
Cylinder Stroke (Section 1/2/3) | 300/300/300 | ||||||
Number of cylinders | 1 | ||||||
accessory parameter | Working pressure of hydraulic system | 16Mpa | |||||
Take the type number of force instrument | SDQ51/74KGS-JL-G | ||||||
Maximum torque (N.M) | 300 | ||||||
External dimensions of hydraulic tank | 420×230×280 | ||||||
Hydraulic pump maximum pressure (MPa) | 20Mpa | ||||||
Hydraulic pump maximum pressure (MPa) | 32 | ||||||
Oil pump type | CB-E532(levogyration) | ||||||
Hydraulic tank capacity | 25 | ||||||
Type of reversing valve | FP-E40L(33SM-1) | ||||||
Opening pressure of reversing valve (MPa) | 14 | ||||||
Opening pressure of reversing valve (MPa) | 32 hydraulic fluid | ||||||
compartments body | floor | Iron straight beam | long | 2212 | |||
Section shape/size | 100*60*4.0 | ||||||
material | Square tube | ||||||
Intermediate stiffener | number | 1 | |||||
size | 580 | ||||||
Section shape/size | 80*40*2.0 | ||||||
Lateral reinforcement | number | 6+2 | |||||
size | 550 | ||||||
Section shape/size | 100*100*2.5/80*40*2.0 | ||||||
material | Q235 | ||||||
Vice frame | Longitudinal beam | Section shape/size | u-type/100×60×3.0×2000 | ||||
material | Q235 | ||||||
beam | Section shape/size | U-bar/80*43 | |||||
Maximum lift Angle | Section shape/size | 45° | |||||
Hydraulic dumping mechanism | Lifting time | 30 | |||||
Fall time | 30 | ||||||
Company Profile
Shandong Shenghao Special Purpose Vehicle Co., Ltd. was established in 2020 and more than 78 Employees (6 professional technology R & D). It is located in Zhucheng truck production base, coastal blue economic zone of Shandong Peninsula. At present, our company is mainly engaged in the R & D, manufacturing and sales design of special vehicles, including refrigerated vehicle body, dry truck body, truck body, truck body panel, meat transport vehicle body and other types of van body you want, as well as refrigerated compartment, insulation compartment, wingspan compartment, FRP honeycomb panel compartment, logistics stowage transport vehicle, van transport vehicle, medical garbage vehicle, livestock and poultry transport vehicle, corrugated board, aluminum plate, warehouse grid compartment Hydraulic tail plate transporter, etc.
The company has advanced technology and equipment in the international industry. It adopts today's European and American classic structure and advanced refrigeration compartment plate making technology. The product quality and performance have reached the international leading level. The products sell well at home and abroad and are widely praised by customers. Such as South America, East Asia, Africa, domestic market and Central America.
The company has advanced technology and equipment in the international industry. It adopts today's European and American classic structure and advanced refrigeration compartment plate making technology. The product quality and performance have reached the international leading level. The products sell well at home and abroad and are widely praised by customers. Such as South America, East Asia, Africa, domestic market and Central America.
Cooperative Client
Package & Transport
for truck body,we are transport it by container.
for light truck,we are transport it by container. nude packing
for bigger truck,RO-RO ship it. nude packing
for light truck,we are transport it by container. nude packing
for bigger truck,RO-RO ship it. nude packing
FAQ
1. What are your shipping terms? |
Usually, we ship our truck bodies CKD (fully disassembled) or SKD (semi disassembled) by container, and assembled trucks are also shipped by container, but in small quantities |
2. Our truck is a Korean or Japanese brand, does your truck body fit it? |
Of course, the general global light truck can be divided into 10ft, 11ft, 12ft, 14ft, 15ft, 16ft, 18ft according to the length of the cargo box, and the medium truck has 20-32ft. The body can be matched with different brands of trucks just by adjusting the distance of the beam. |
3. Is it difficult to install the body CKD or SKD? |
Our company has ten years of truck body export experience. We can provide the easiest to assemble truck body ckd |
4. Why should you buy from us instead of other suppliers? |
For the past 10 years, our company has only produced truck bodies. Our more specialized truck body. |
5. What are your payment terms? |
T/T 30% as deposit, 70% for copy of bill of lading |
6. What are your delivery terms? |
EXW,FOB,CFR,CIF |
7. What is your delivery time? |
Usually within 10 days |
8. Can it be produced according to customer requirements? |
Yes, we can produce according to customer's technical drawings and specifications |
