96W 12V8A 24V 4A 48V2A Class II medical scanners AC dc regulatore SMPS Customized 24volt 4AMP AC/DC Switching Power Supplies
- Category: >>>
- Supplier: Shenzhen Excellent Top Electronics Co. Ltd.
Share on (1600519154859):
Product Overview
Description

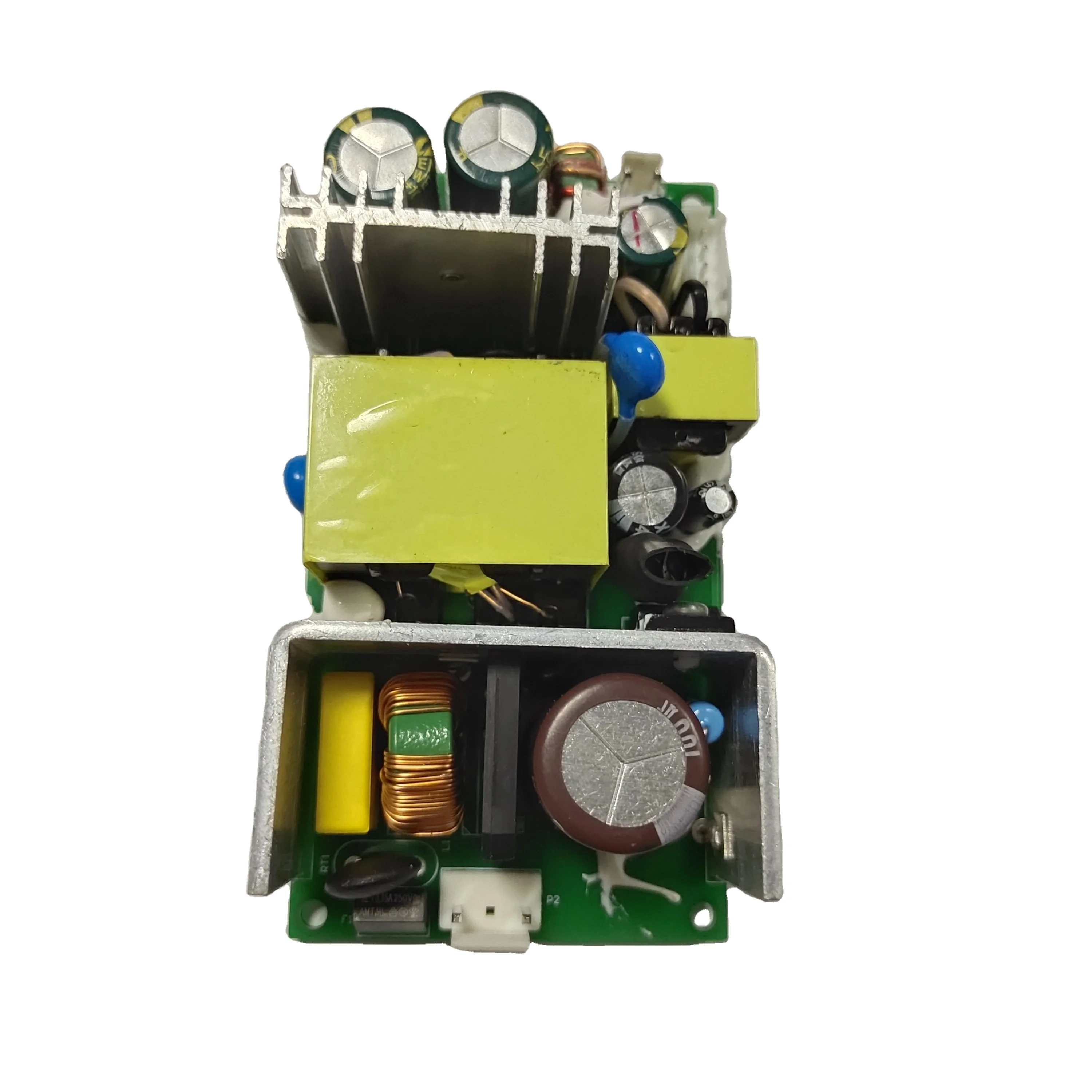

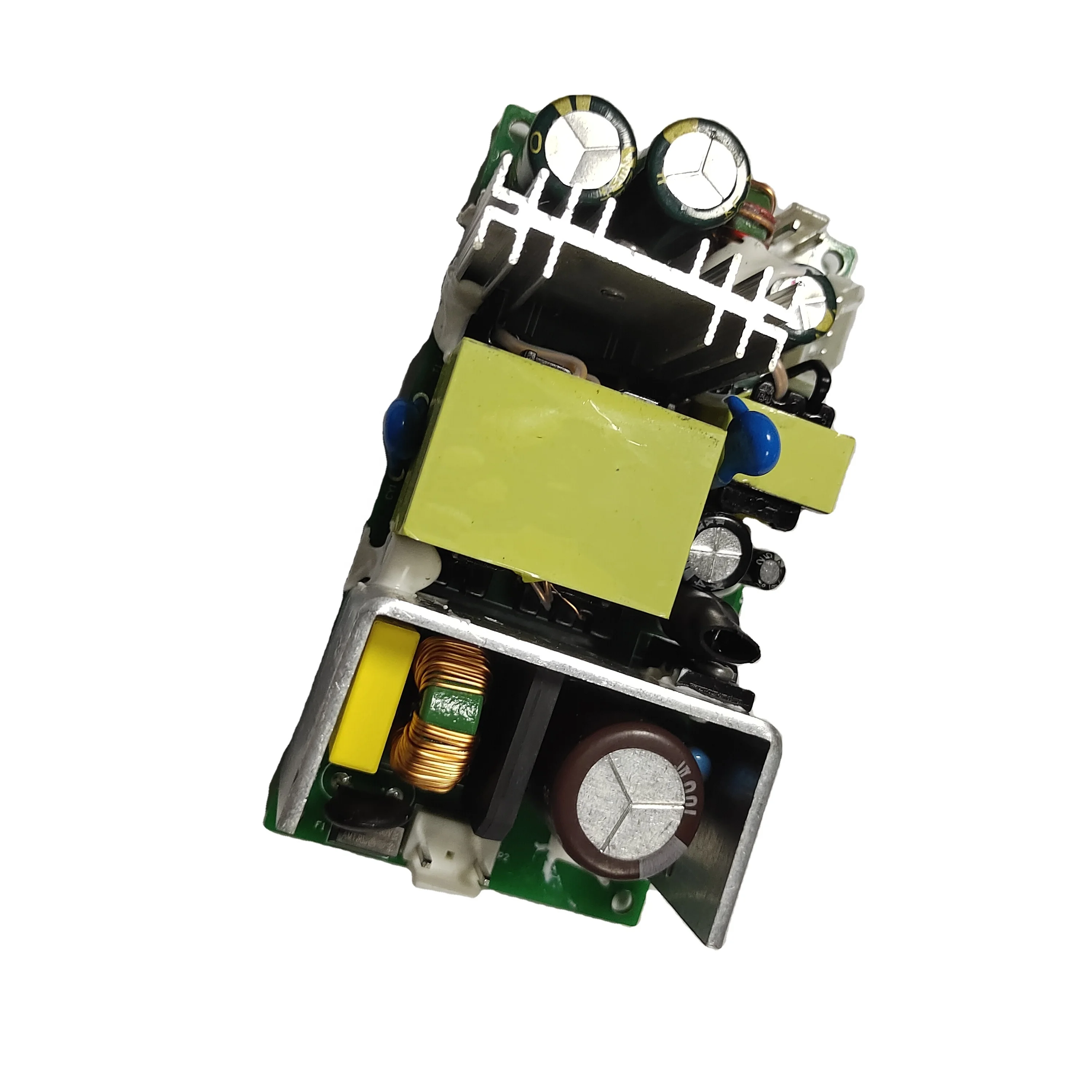

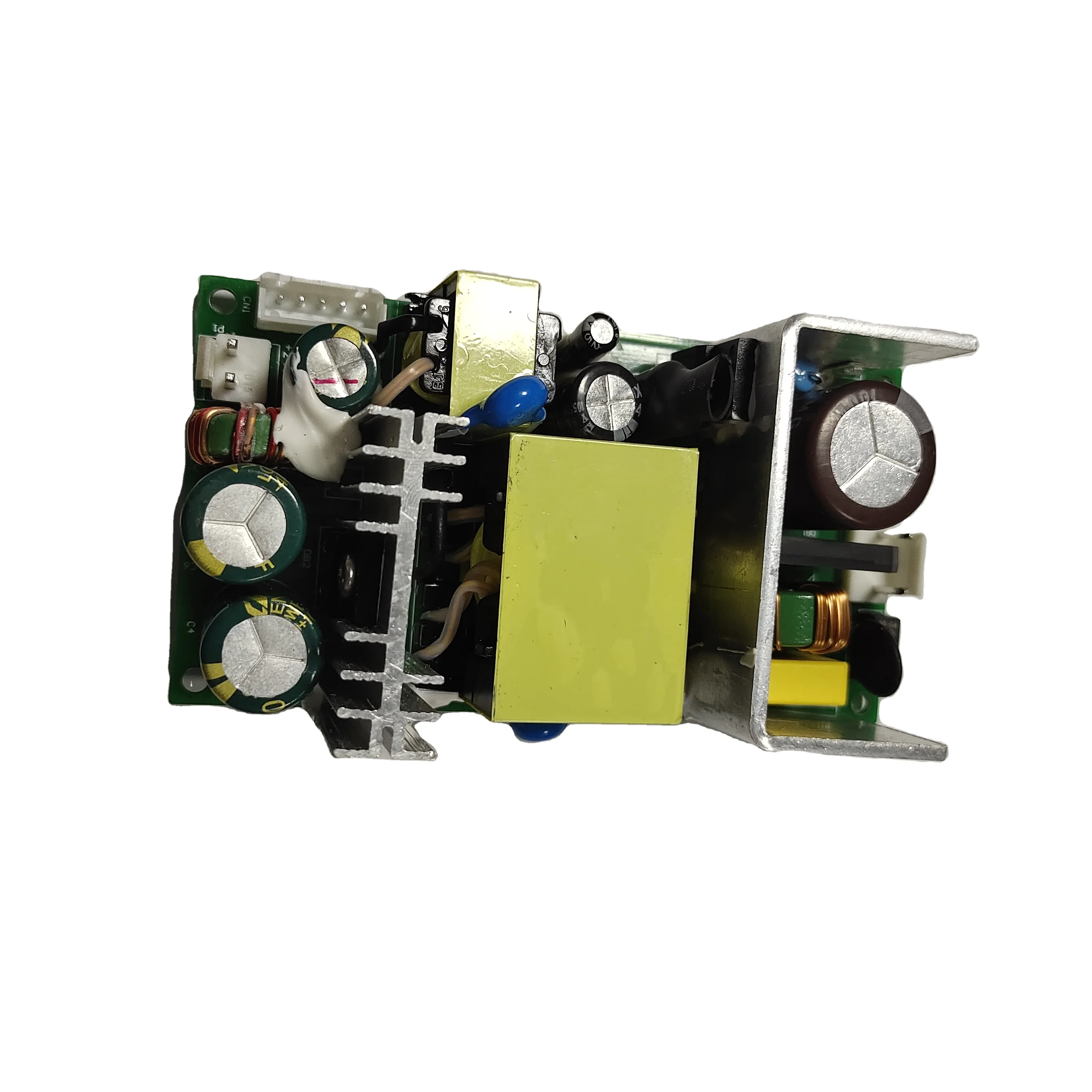

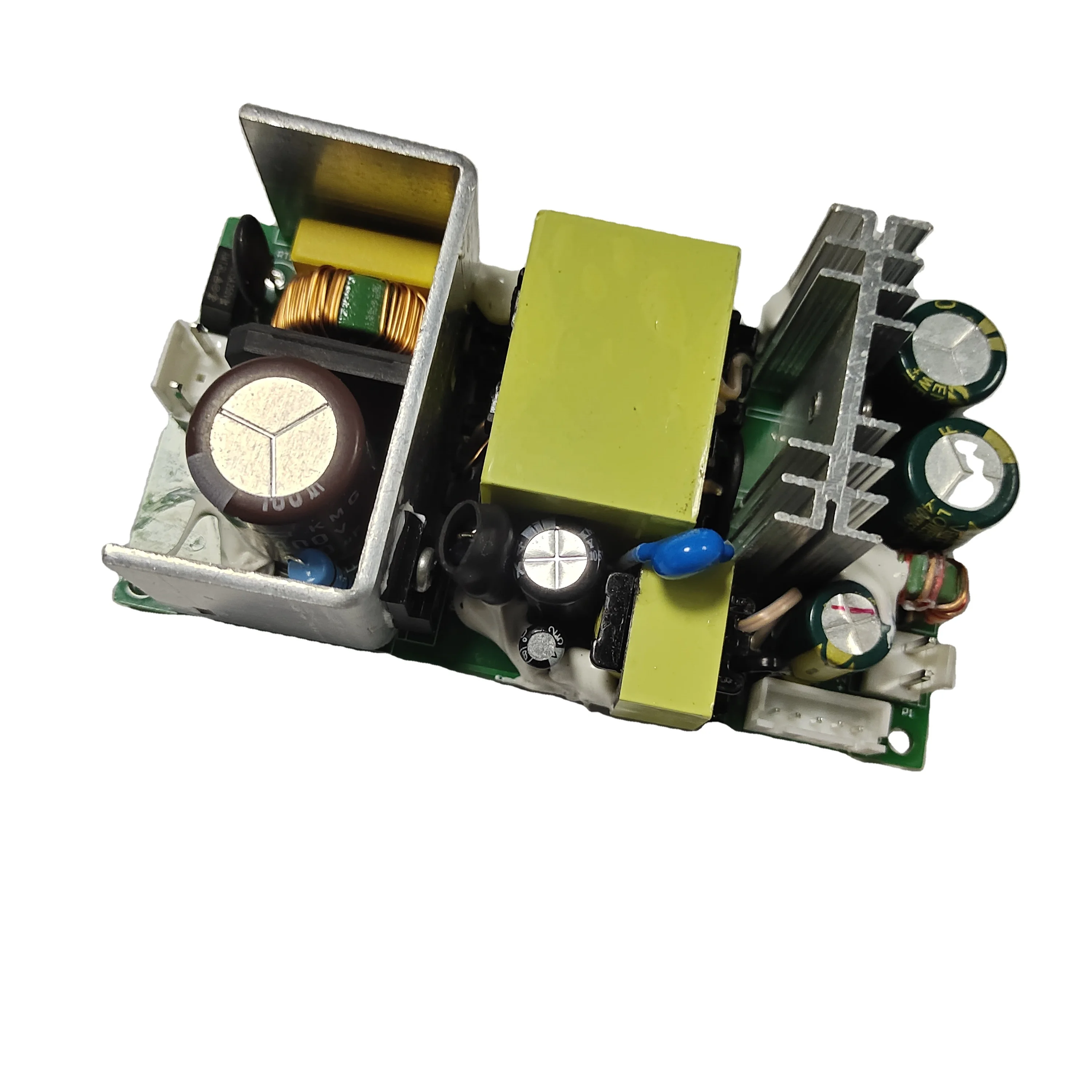

96W Class II medical scanners Customized 24volt Switching Power Supply
Product Description
· Widely used in different field.
· Provide customizing service
· Protections:Short circuit/Over load/Over voltage/ Over temp
· 3 years warranty
· 100% full load burn-in test
· Use Imported machine to test,such as Chroma machine
· Lead time: 15 working days after receiving deposit
· Payment: TT,L/C,Paypal etc,
· Sample is available
· L/T of sample :7 days
Parameter table :
| Model No. | LPS-U096S24L | |
| Input | Input Voltage(V) | 100-240VAC |
| Input Current (A) | 2.5A Max | |
| Frequency (Hz) | 47Hz–63Hz | |
| Efficiency | 75% Typ(230VACFull Load) | |
| Inrush current(A) | Cold star <80A/230VAC | |
| Leakage current(mA) | <0.75mA/240VAC | |
| Output | Output Voltage(V) | 24Vdc |
| Voltage Regulation | 3% | |
| Output Current(A) | 4A | |
| Current Range (A) | 0-4A | |
| Rated Power(W) | 96W | |
| Start time, hold-up time(ms) | Ton≤3000ms,Td≥20ms @230Vac Full Load | |
| Rise time(ms) | Typ:80ms @230Vac Full Load | |
| Ripple/Noise(mVp-p) | 240mVp-p | |
| Environment | working Temperature (°C) | 0°C - +40°C |
| Storage Temperature(°C) | -20°C - +80°C | |
| Humidity(%) | 20% - 90% RH non condensing | |
| Safety/ EMC | Withstand voltage(VAC) | I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min |
| Protection | Over voltage Protection | >115%-135% Rated output voltage |
| Over load Protection | >105%-150% Auto recovery | |
| Short circuit Protection | Latched | |
| Over Temperature Protection | Auto reboot | |
| Others | Dimension H *W*H(mm) | 105*50*35mm |
About Our Factory :
ETOP:It has got ISO9001 certification in 2002. And in 2004, we finished renewing the ISO9001:2000 quality management system certification. Moreover, ETOP passed the ISO14001 environmental management system
certification and GB/T28001 occupational health and safety management system certification in 2005.
Our Certificates:
Our products are 100% through high temperature ageing, which accords with CCC, CE, FCC,Rohs and many
other authoritative organization security authentication standard.
Our Services
Advantage of our products and company:
(1) Provide customizing service:We are good at designing and developing various products.We can
customize all kinds of power supples you expect as long as you can provide us your detailed comments .
(2) SMT---High Efficiency & High Quality: largely adopt SMT components because of its tight mechanism,
small volume and exquisite appearance.
Our packaging:
with PP bag into small with box and then in to standard carton box
Company Information
Our Team & Compay:
Corporate mission:Combine advanced technology to promote the industry progress, return to shareholders
and benefit the society. Stand in the forefront of the industry and adopt new technology to provide the optimal
investment and management plan and promote industry improvement.
With best location and most convenient transportation: Our company is located in Longgang District, shenzhen City, which it is with friendly environment and nearby to Airport and
harbour, that ensure us timely delivery as soon as we had finished.
Business goal:Promote industry development, form complete industry chain and creat an international
well-known power supply brand with consulting, design, manufacturing and service.
