SMC Air Filter Pneumatic With Auto Drain 1/8 1/4 Port Size AW2000 01D AW2000 02D AW Air Filter Regulator
- Category: >>>
- Supplier: Hangzhou Chenming Automation Technology Co. Ltd.
Share on (1600519159557):
Product Overview
Description
SMC Air Filter Pneumatic With Auto Drain 1/8 1/4 Port Size AW2000-01D AW2000-02D AW Air Filter Regulator

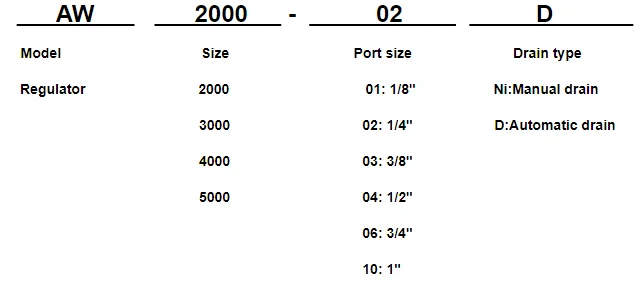

Ordering Code:
Specification
Model | AW2000-01 (D) | AW2000-02 (D) | AW3000-02 (D) | AW3000-03 (D) | AW4000-04 (D) | AW4000-06 (D) | AW5000 -06 (D) | AW5000 -10 (D) | |||||||||
Port size RC(PT) | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 3/4'' | 1/4'' | |||||||||
Pressure gauge port size | 1/8'' | 1/8'' | 1/8'' | 1/8'' | 1/4'' | 1/4'' | 1/4'' | 1/4'' | |||||||||
Flow rate(L/Min) | 550 | 550 | 2000 | 2000 | 4000 | 4500 | 5500 | 5500 | |||||||||
Pressure gauge | Y40-01Z | Y50-02Z | |||||||||||||||
Adjustable Pressure range | 0.05~0.85Mpa | ||||||||||||||||
Ambient & fluid temperature | 5~60°C | ||||||||||||||||
Main parts material | Body | Aluminum alloy | |||||||||||||||
Bowl | PC | ||||||||||||||||
Bowl guard | AW2000:without AW3000~AW5000:with(lron) | ||||||||||||||||

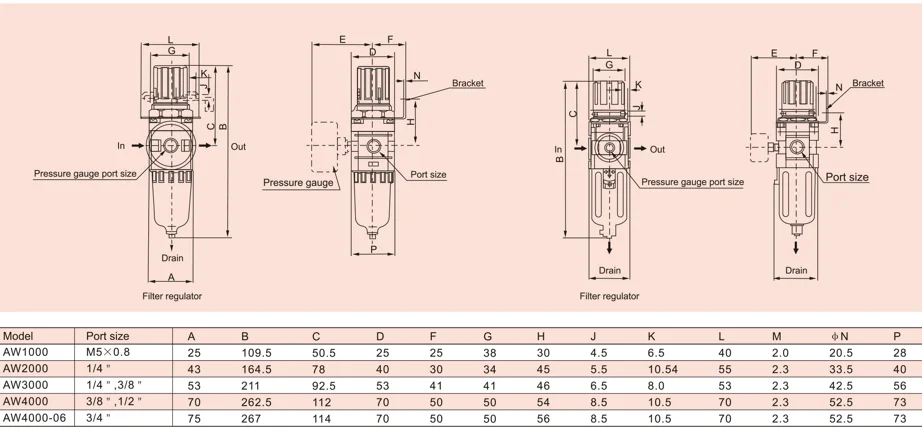

Dimension

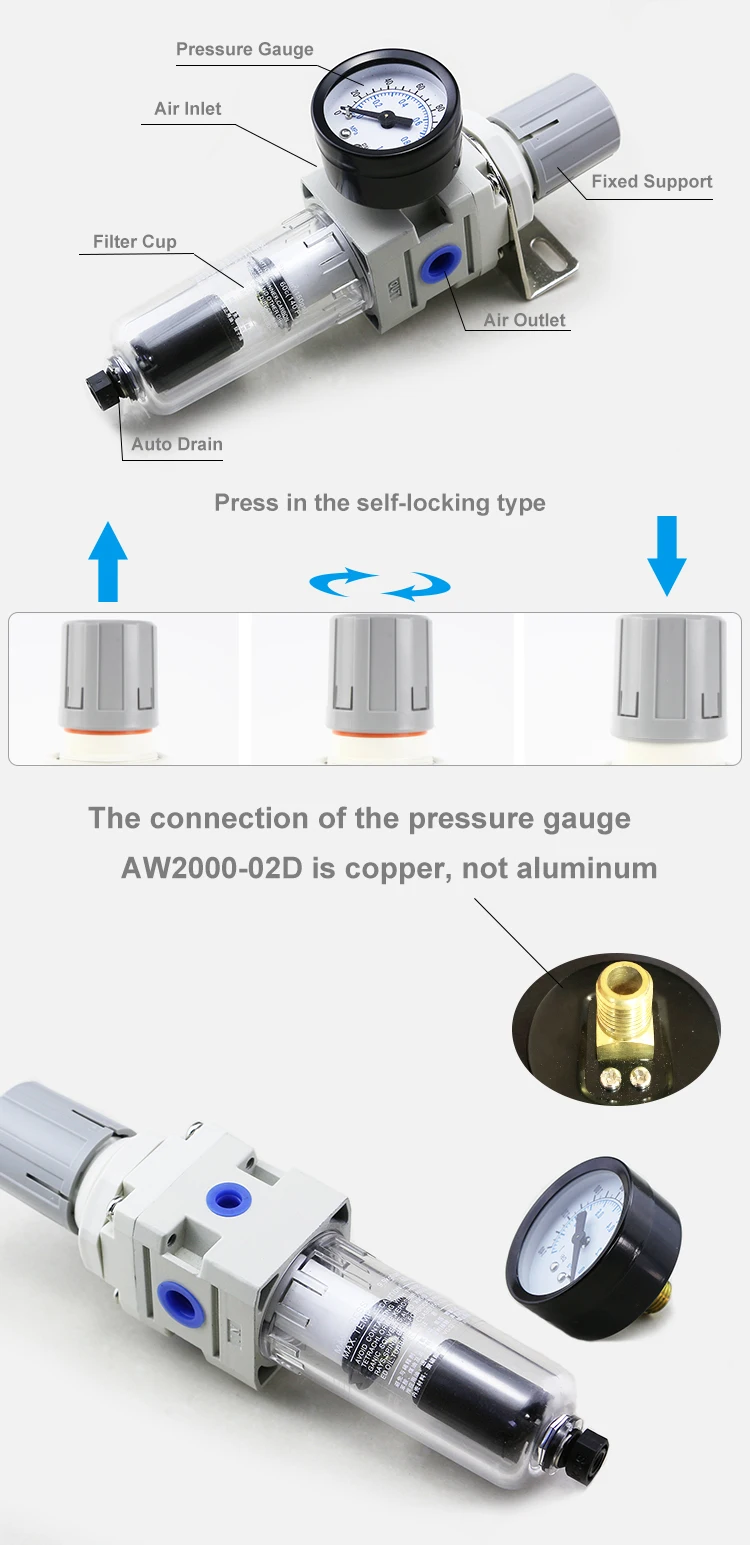

Product Details:
More Product:
Other type for you to choose
Other pneumatic part for you to choose
Main Products:
Why Choose Us:
FAQ:
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each F.R.L by one box packing with protection.
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
A: 5pcs for MOQ.
Q: What is your packing?
A: Each F.R.L by one box packing with protection.
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
