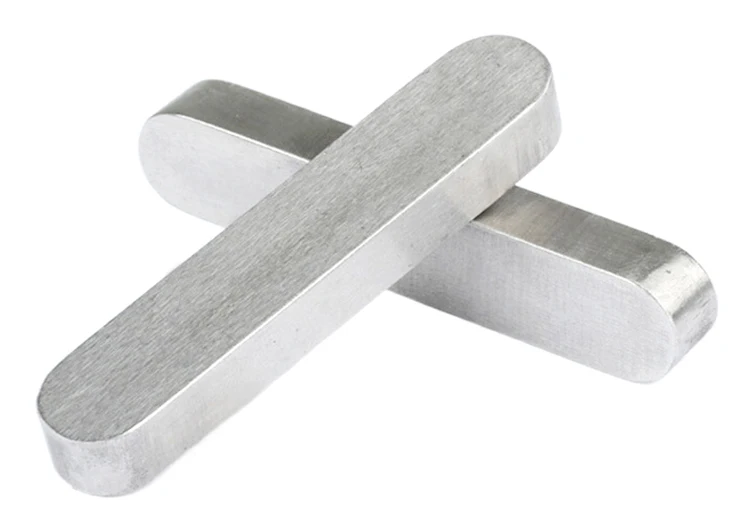

Flat Parallel Key ANSI/ASME B 18.25.3M ISO2491
- Category: >>>
- Supplier: Jiaxing Relia Hardware Co. Ltd.
Share on (1600519163046):
Product Overview
Description
Products Description
The application of the keys

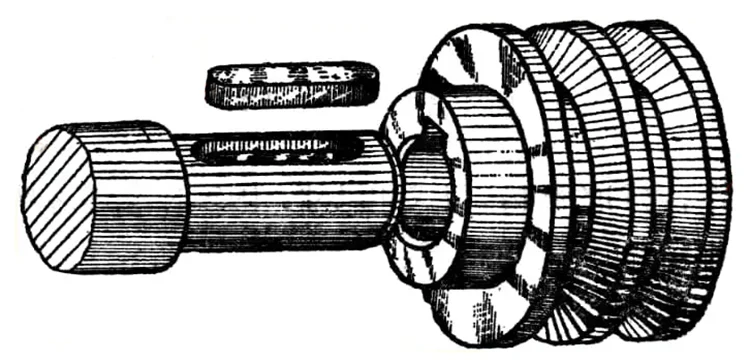

The keys are used to connect the shaft and the transmission parts on the shaft (such as gear, pulley, etc.) so that the shaft and
the transmission parts do not rotate relative to transfer torque or rotary motion, this connection is called the key connection.
the transmission parts do not rotate relative to transfer torque or rotary motion, this connection is called the key connection.
Key Types | Standards |
Parallel Keys/ Flat Keys | DIN6885(A), UNI6604, ANSI/ASME B 18.25.3M, ISO2491 |
Sguare And Rectangular Keys | ANSI/ASME B 18.25.1M, DIN 6885 (B) |
Woodruff Keys | DIN6888, ISO 3912, ANSI/ASME B 18.25.2M, BS 4235-2, UNI6606 |
Woodruff key Flat Bottom Keys | ANSI/ASME B 18.25.2M |
Taper Keys | DIN6883, ISO2492 |
Gib Head Taper Keys | DIN6887, DIN6889, ISO2492(G), DIN6884 |
Other Keys | DIN 6885 (C, D, E, F, G, H, J) |
