Pilot Plant Chemical Nutsche Filtering Glass Reactor for Filtration Washing Coprecipitation and Solid Phase Peptide Synthesis
- Category: >>>
- Supplier: Shanghai Hjlab Instruments Co. Ltd.
Share on (1600519164775):
Product Overview
Description
Products Description

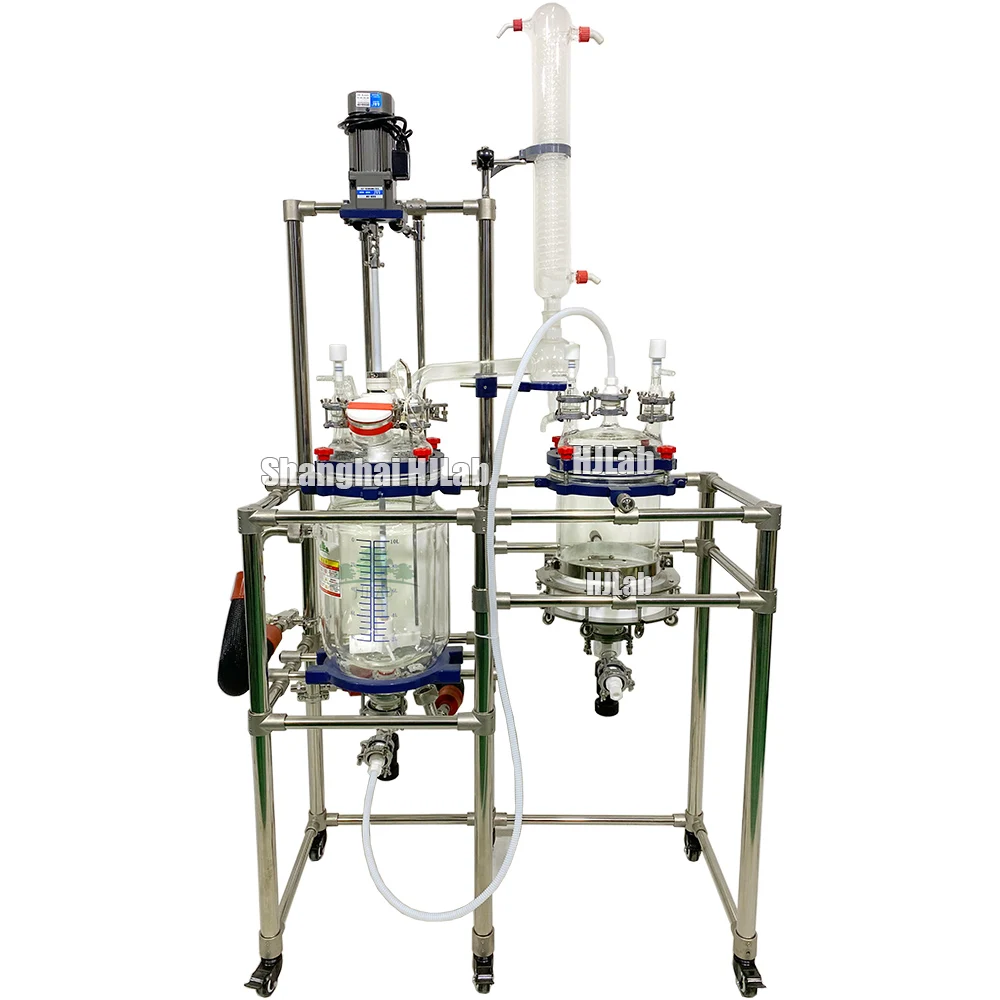

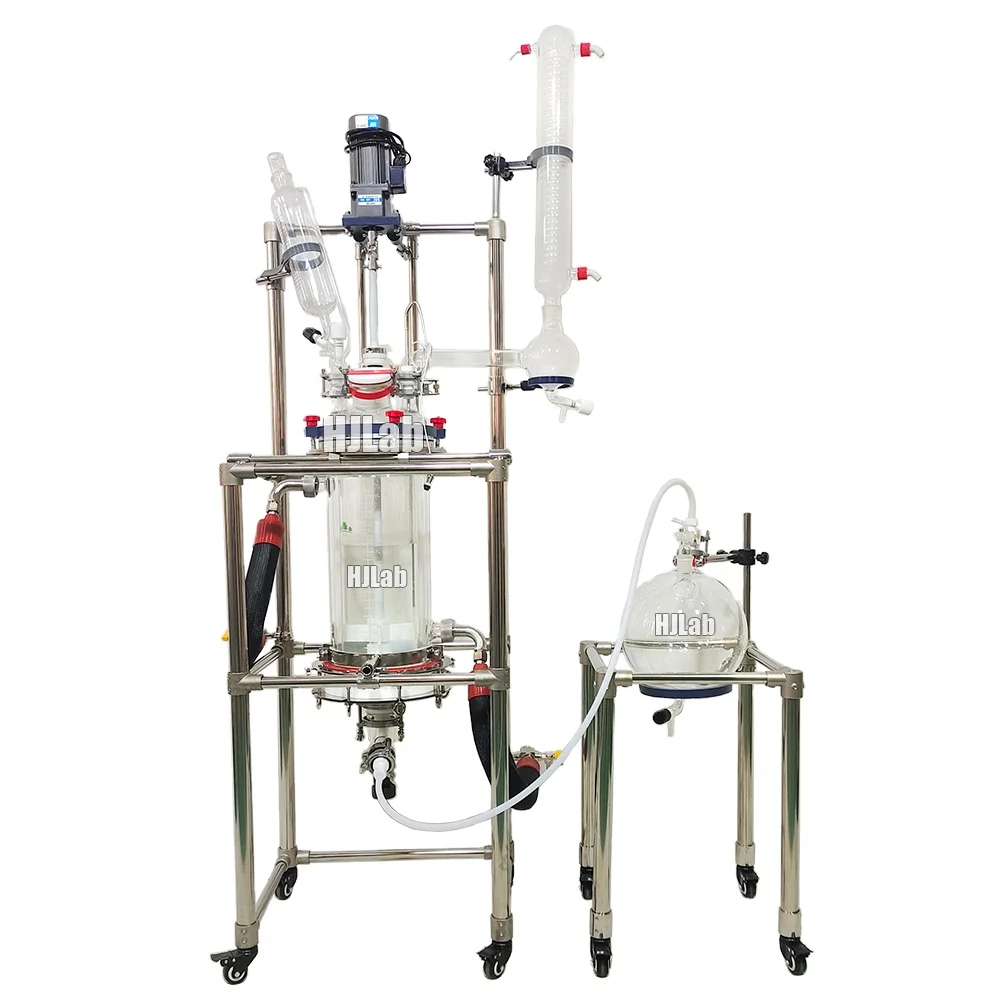

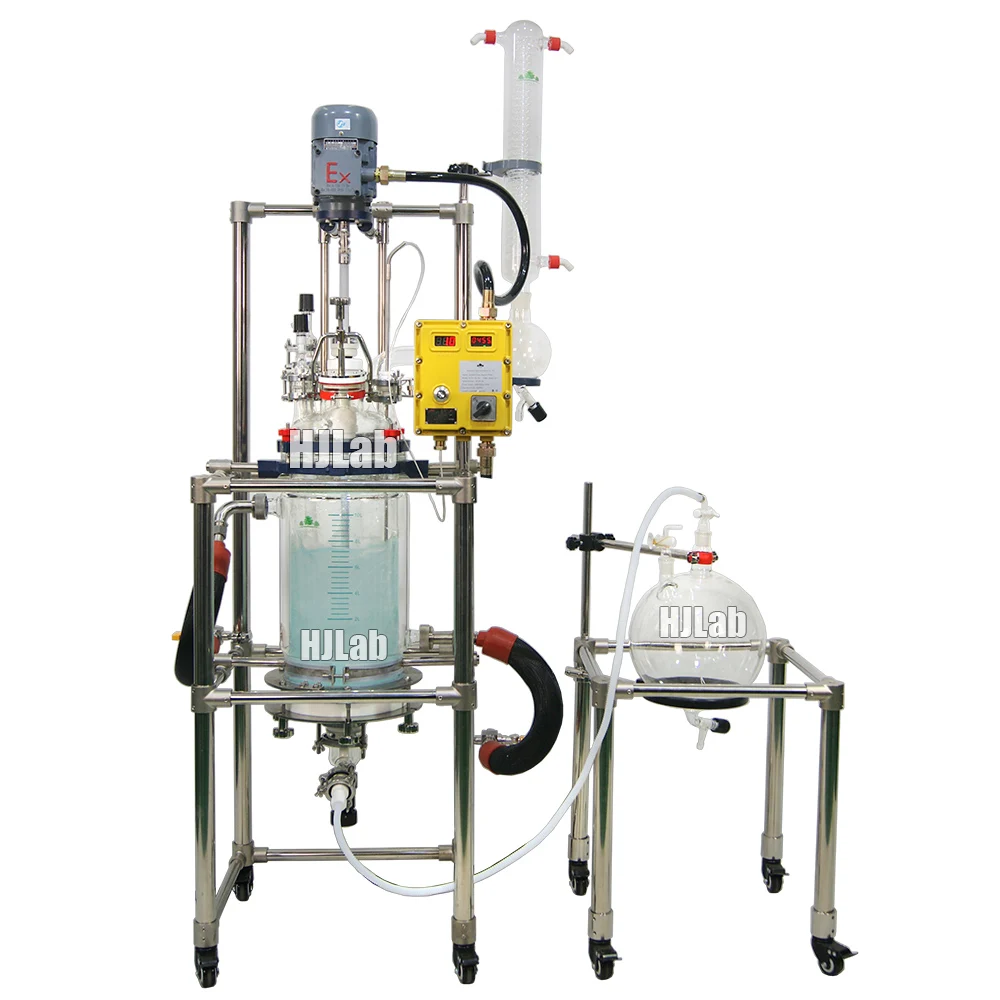

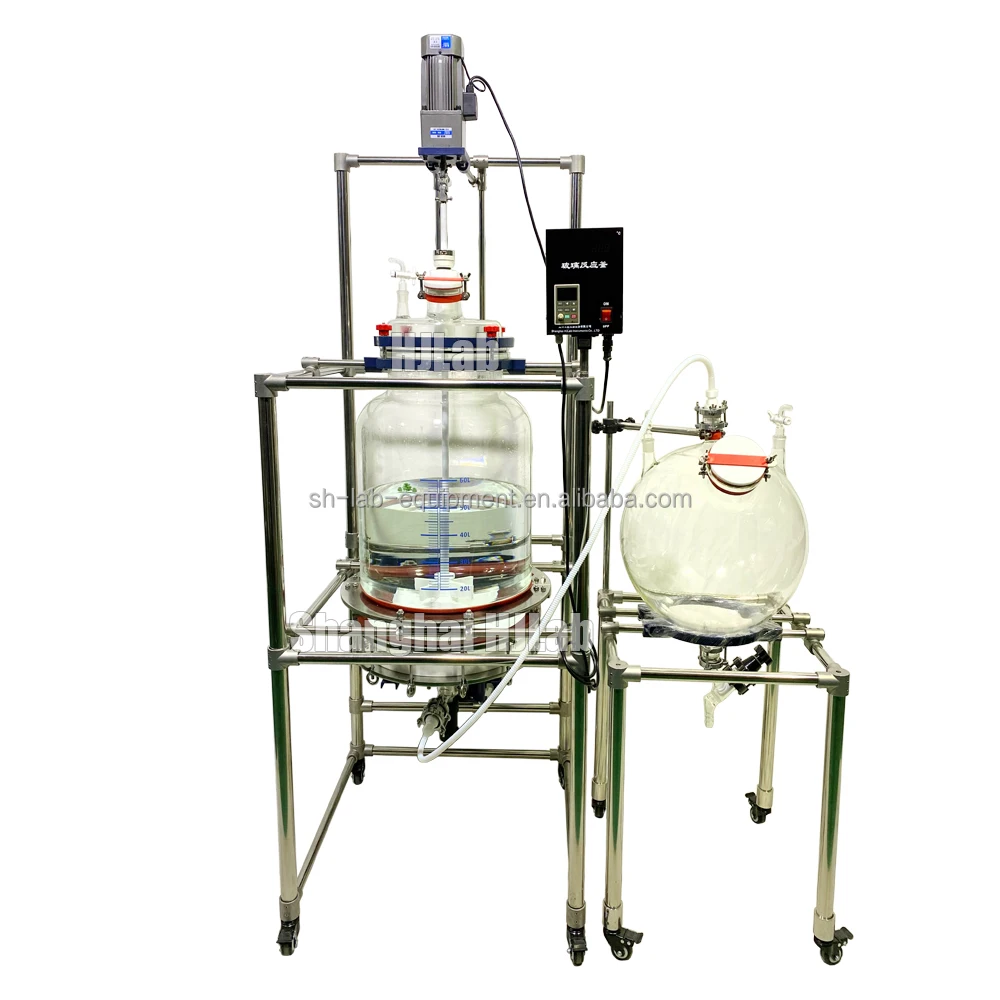

Pilot Plant Chemical Nutsche Filtering Glass Reactor
for Filtration Washing Coprecipitation and Solid Phase Peptide Synthesis
HJLab Pilot Plant Filter Reactor is designed to fulfil demanding crystallization and filtration processes.
Integrating the functionality of a reactor a filter in one system, a full crystallization process can be performed in the reactor without ever opening the vessel.
Processes range from crystal formation, filtration, product washing and drying.
Large quantities of crystalline product can be processed easily and safely in the HJLab Pilot Plant Filter Reactor, making it ideal for process development, kilo lab and pilot scale production.
√ Reaction, Filtration and Washing in One Vessel
√ Contamination-free Materials Processing

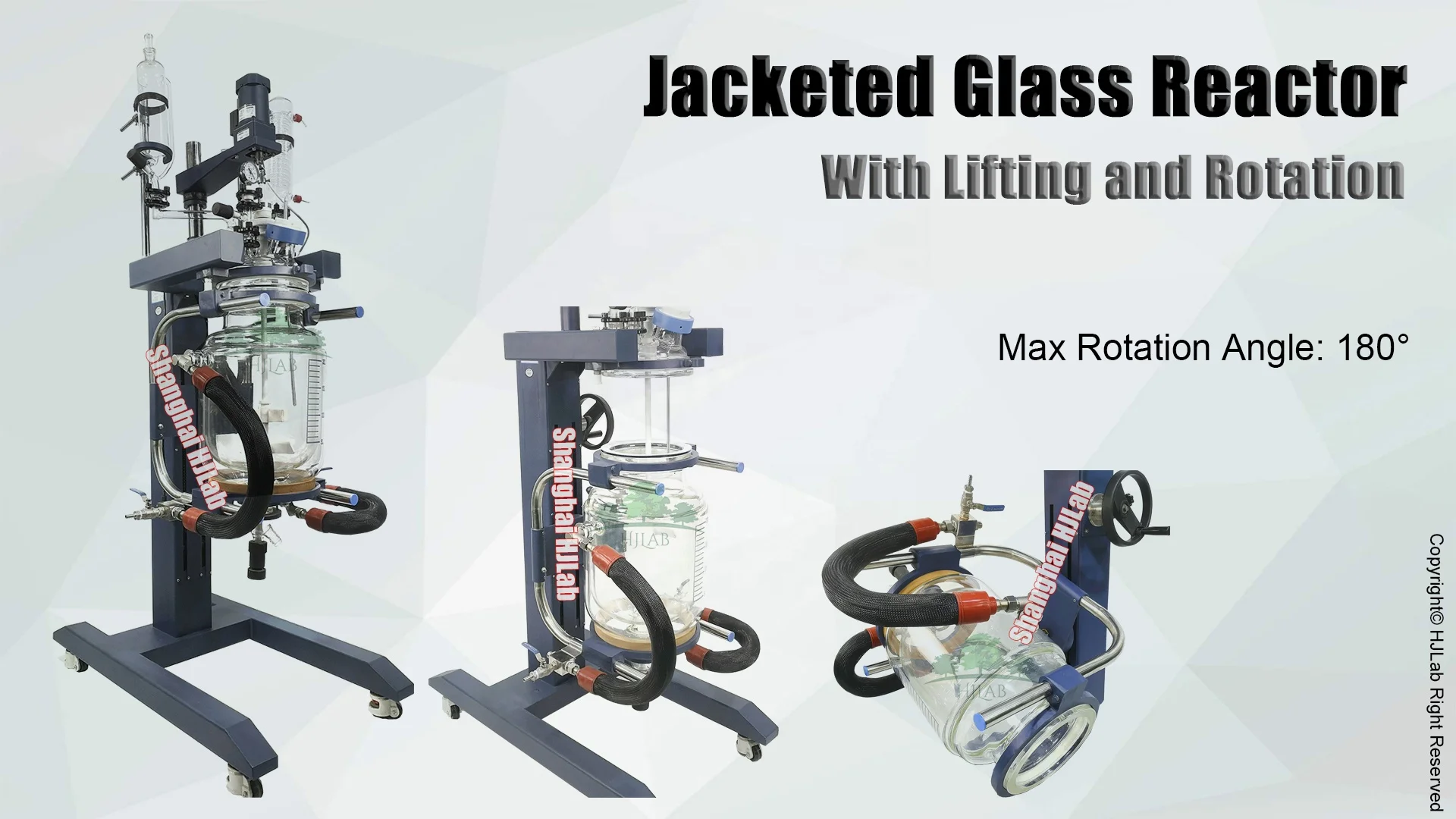

√ Vessel Swing/Rotating/Lifting Mechanism for Easy Product Collection

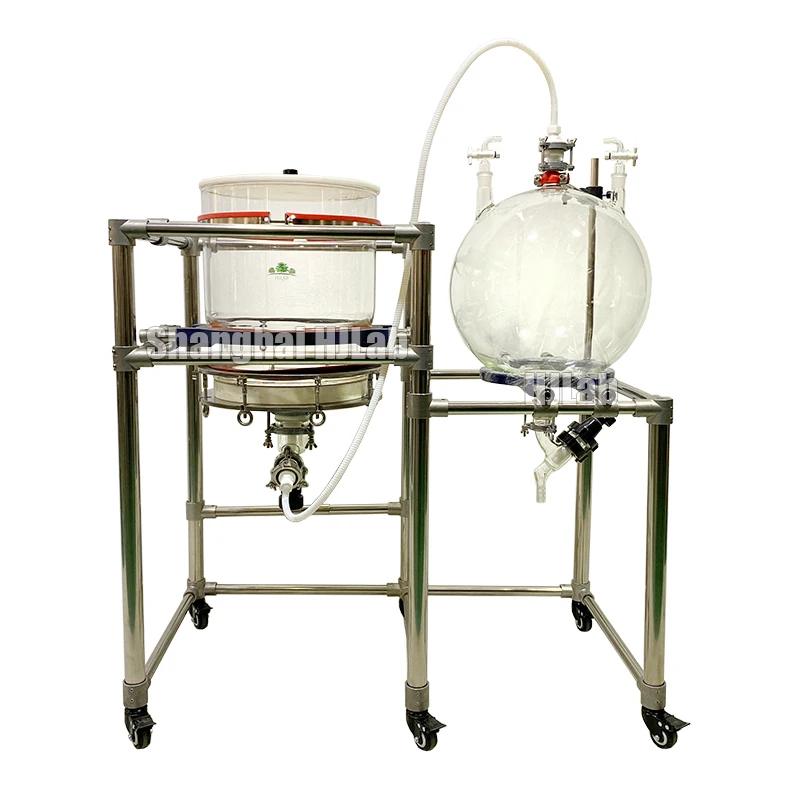

√ PTFE Filtering Module Automatic Lifting and can be Moved Easily.

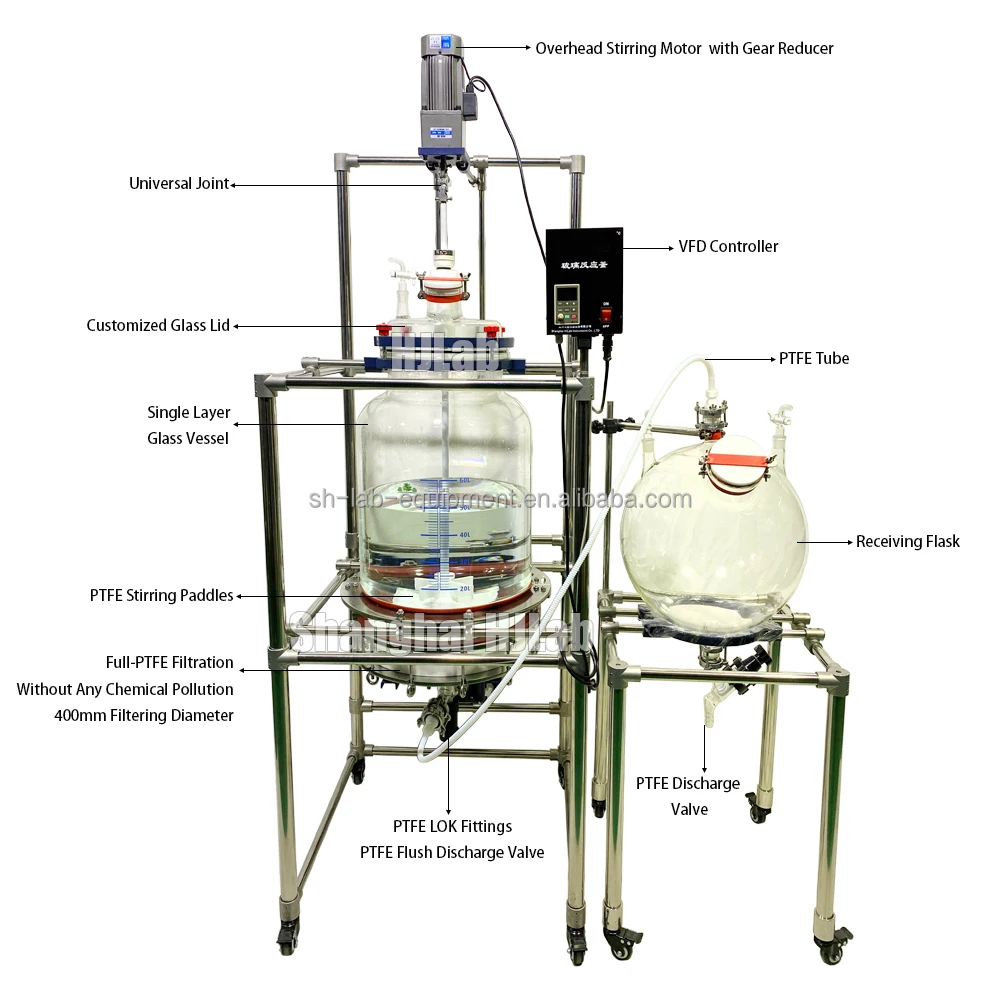

PTFE Filtering Module + Vessel Lifting/Rotation Mechanism
Why Should You Choose HJLab Pilot Plant Reactor?
√ Reaction and Filtration in a single vessel
√ Easy access to filter using a lever mechanism
√ Design that safeguards against product loss
√ Easy cleaning and maintenance
√ Scale-up to 100L
√ Space, time and cost saving
√ Wide process temperature range: -80°C to +200°C
√ Support structure with castors for mobility
√ Vessel with Full Jacket Design for maximised thermal transfer efficiency
Specification
Items | Details | |
Glass Materials | High Borosilicate Glass 3.3 | |
Wetted Parts | Glass and PTFE | |
Reaction Vessel Capacity | 5L, 10L, 20L, 30L, 50L, 100L | |
Thermal Jacket | Ring Baffles within the Thermal Jacket (Optional) Full Jacket Design for Maximised Thermal Transfer Efficiency | |
Stirring Motor | DC Brushless Motor, 50W, 100W, 150W AC Motor with Gear Reducer: 120W ~ 1500W Explosion-Proof Motor: 180W, 250W, 370W, 550W, 750W, 1500W Stirring Range: 50 ~ 2200 RPM Realtime Display: Mixing Speed, Materials Temperature | |
Mixing Sealing | PTFE + Mechanical | |
Condenser | Cooling Coil Condenser | |
Dropping Feeding Funnel | Dropping Feeding Funnel with PTFE Metering Valve and Equalizing Arm | |
Glass Lid | Diameter: DN265, DN340, DN400 for you selection 1) Dropping Feeding Funnel 2) Solid Materials Feeding 3) Stirrer 4) Liquid-Feeding or Cleaning or PH measurement 5) Temperature Probe 6) Condenser Reflux 7) Reserved (By default: Pressure Release) | |
Stirring Impeller | PTFE Anchor Type PTFE Pitched Paddle Type PTFE Retreat Curve Type | |
Operating Temperature | -90℃ to +230℃ | |
ΔT - Thermal Shock Resistance | 90℃ (Double Wall), 60℃ (Triple Wall) | |
Operating Pressure | Full Vacuum to Atmospheric Pressure | |
Operating Jacket Pressure | Up to +0.5 bar (0.05 MPa) | |
Power Supply | 100V ~ 240V, 50Hz/60Hz | |
Functionality | √ Reaction - vacuum to atmospheric pressure √ In-stand distillate cooling and collection √ Filtration - vacuum or gravity assisted √ Pressure monitoring and relief √ Temperature regulation √ Inert atmospheric processes √ Temperature Monitoring √ Reflux Condensation √ Distillation √ Agitation √ Dosing of solids and liquids √ Additional functionality based on your request | |
Turnkey Solution
At HJLab, we can help to find the best solution for you. If you have additional requirements or a design already in mind, feel free to send us a message or drawing so that we can understand your process better and provide you with a customized product that meets your exact needs
Our Service
Pre-Sales Services
1) Online video meeting to visit our factory
2) Online video meeting to get every details about our products quickly
3) Online video meeting to confirm the working performance
4) Rapid answering the questions to support you to working with your End-User
2) Online video meeting to get every details about our products quickly
3) Online video meeting to confirm the working performance
4) Rapid answering the questions to support you to working with your End-User
Delivery Services
1) We can arrange the delivery to your specify location which saving your energy andexpensive time.
2) By Air and By Sea
3) Any broken during transportation will be FedEx to you For Free.
2) By Air and By Sea
3) Any broken during transportation will be FedEx to you For Free.
Inspection Service (Bureau Veritas)
1) Third-party for in-depth post-production product inspection
2) On-Site Check
3) Workman Check
4) Function Check
5) Contract Product Quality
6) Conformity Check
7) Quantity Verification
2) On-Site Check
3) Workman Check
4) Function Check
5) Contract Product Quality
6) Conformity Check
7) Quantity Verification
Payment Service
1) Visa, MasterCard, e-Checking
2) TradeAssurance (Covers all payment made during the ordering process up to 30 daysafter you receive the goods)
3) BuyNow and Pay Later
4) T/T(30% Advance payment and 70% Balance)
2) TradeAssurance (Covers all payment made during the ordering process up to 30 daysafter you receive the goods)
3) BuyNow and Pay Later
4) T/T(30% Advance payment and 70% Balance)
After-Sales Service
1) 1 Year Warranty
2) Free Spare Parts except the glasswares and sealings
3) On-Site Installation / Maintenance
2) Free Spare Parts except the glasswares and sealings
3) On-Site Installation / Maintenance
Packing & Delivery
1) Wooden packing
2) Fumigation certification, certification of original
3) The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.
4) Also you can specify your own forwarder.
5) Door to Door Delivery to save your energy and time. We'll take the all risks during transportation.
