Product Overview

Description





Products Description


Gate Opening Indicator

Gate Opening Indicators attached to sluices of dams and rivers in flood monitoring systems and water resource management systems. River managers and water users can know the exact gate opening level to perform appropriate gate operation and control.

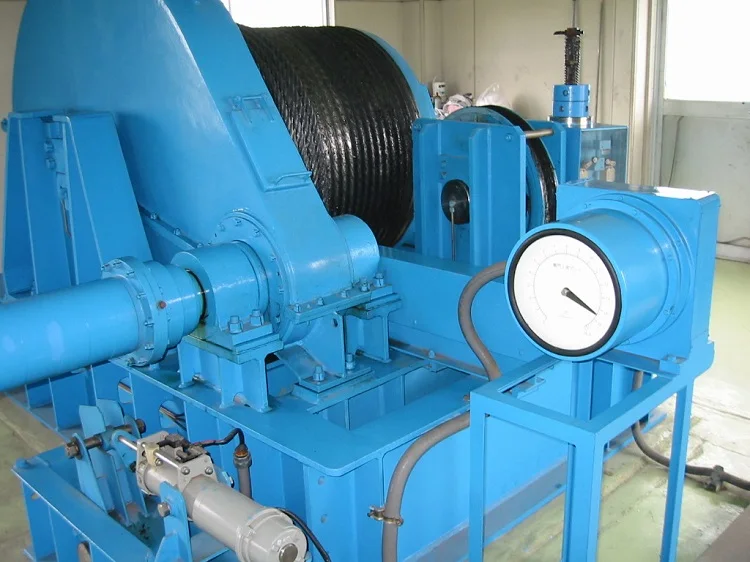

1. Shaft rotation type

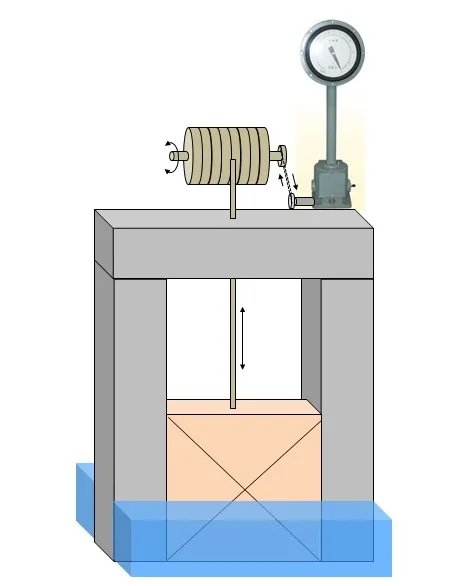

Shaft rotation type detects the amount of gate traveling from the amount of rotation of the shaft of the hoist.

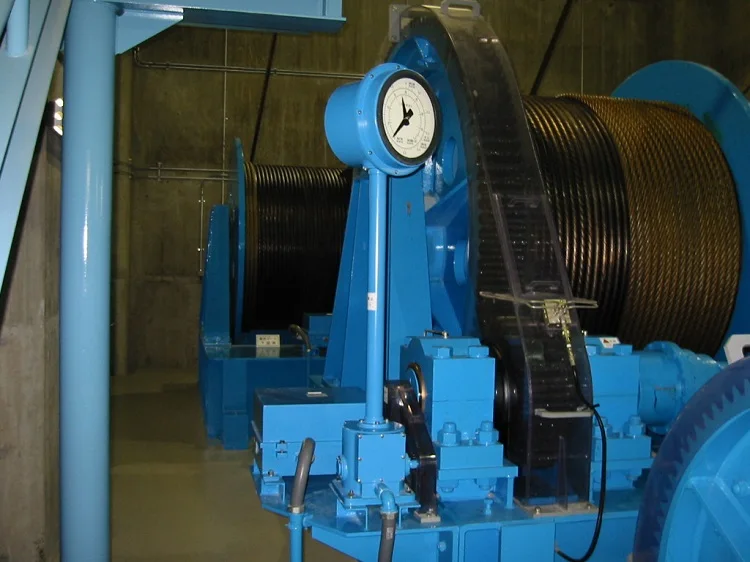

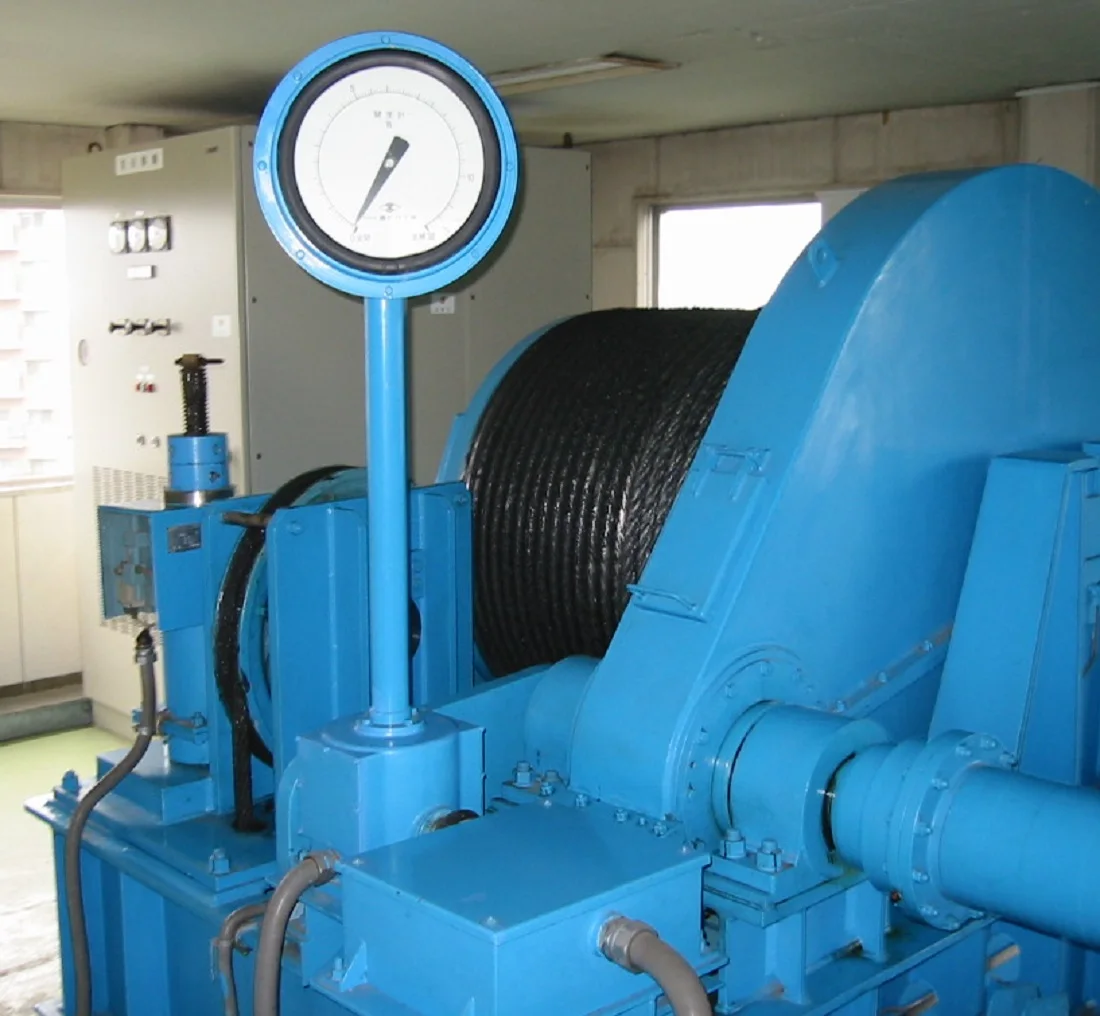

・STX100 series: Self- stand type for analog display at the site. Built-in sensors available (Synchro transmitter, Potentiometer, Limit switch) for remote monitoring.




STX100 series

Option





A
Indicator
1: 1pointer
2: 2 pointer



B
Limit switch
0: none
3: 3 points
6:
6 points


CD
Built-in sensor
00: none
S1: synchro
SP:
synchro+
potentio
P1: potentio
PA: potentio+R/I
E
Shaft
S: one side
D: both sides

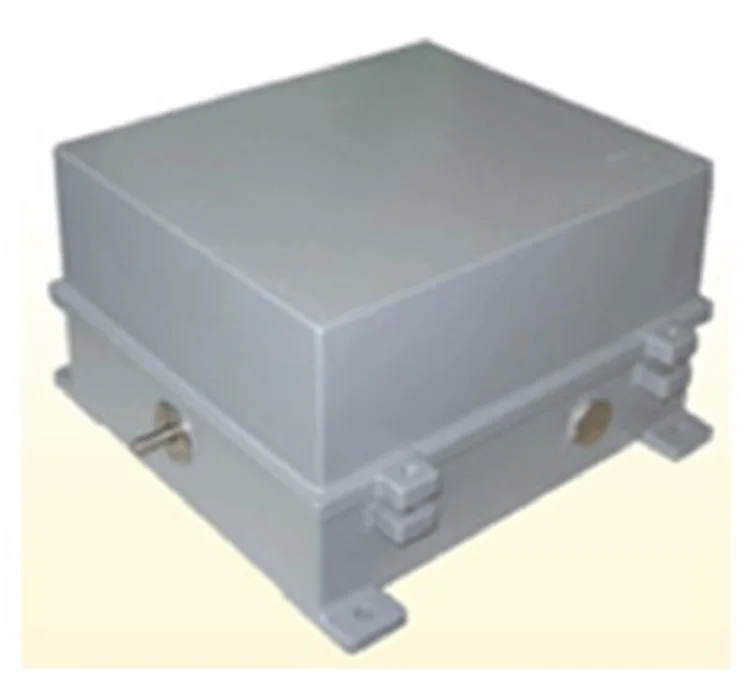

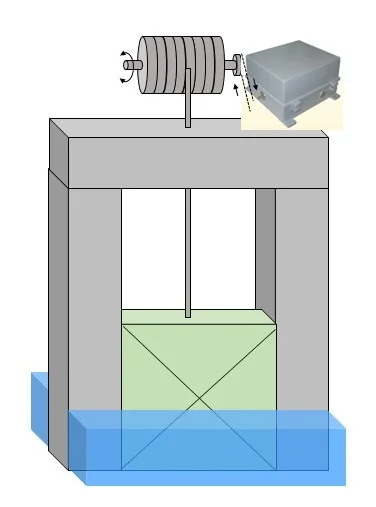

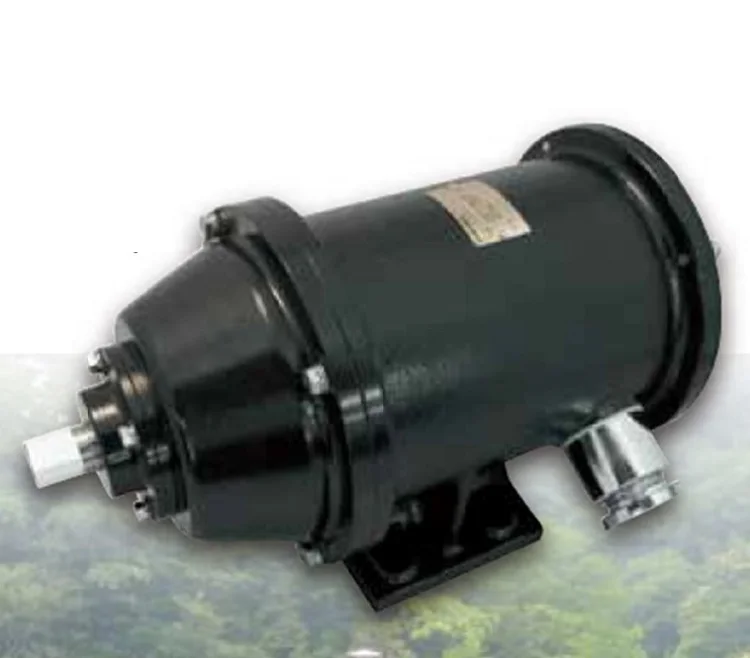

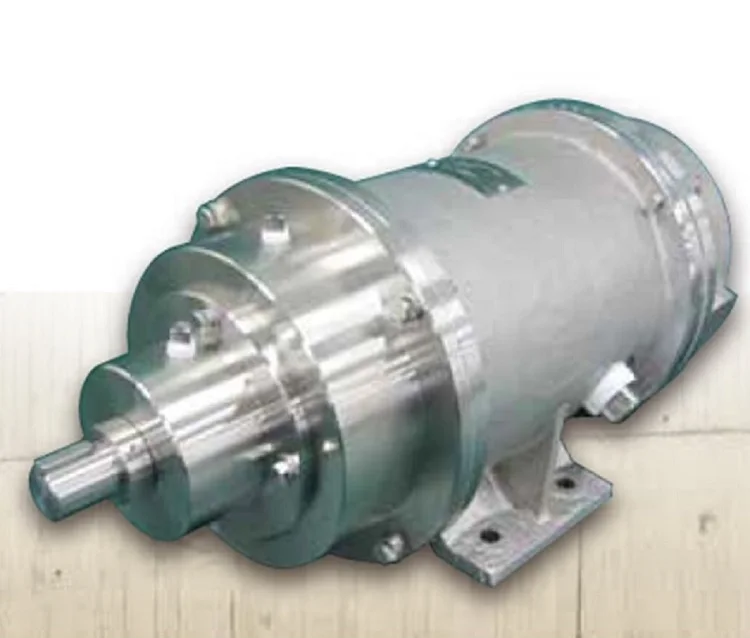

・NTX210 series: Combination of synchro and gear, encased in waterproof case.




NTX210 series

Conduit position

A
Right
With cable (10m)
B
Left
With cable (10m)
C
Right

D
Left

E
Back
With cable (10m)
F
Back


・NTX400 series: Combination of synchro and gear, encased in floor-standing case.




 NTX400 series

Option


A
Gear
G: normal
L: Back lash less
B
Body size
N: Normal
L: Long
CD
Built-in sensor
Synchro

E
Conduit position
A: Right
B: Left




2. Wire spring type

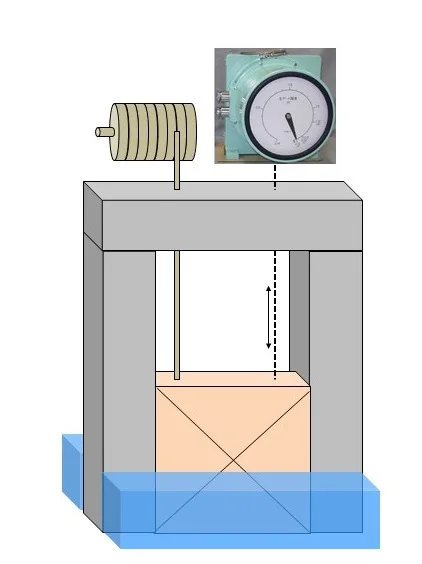

Wire spring type detects the amount of gate traveling from the amount of traveling of the wire attached to the gate body.

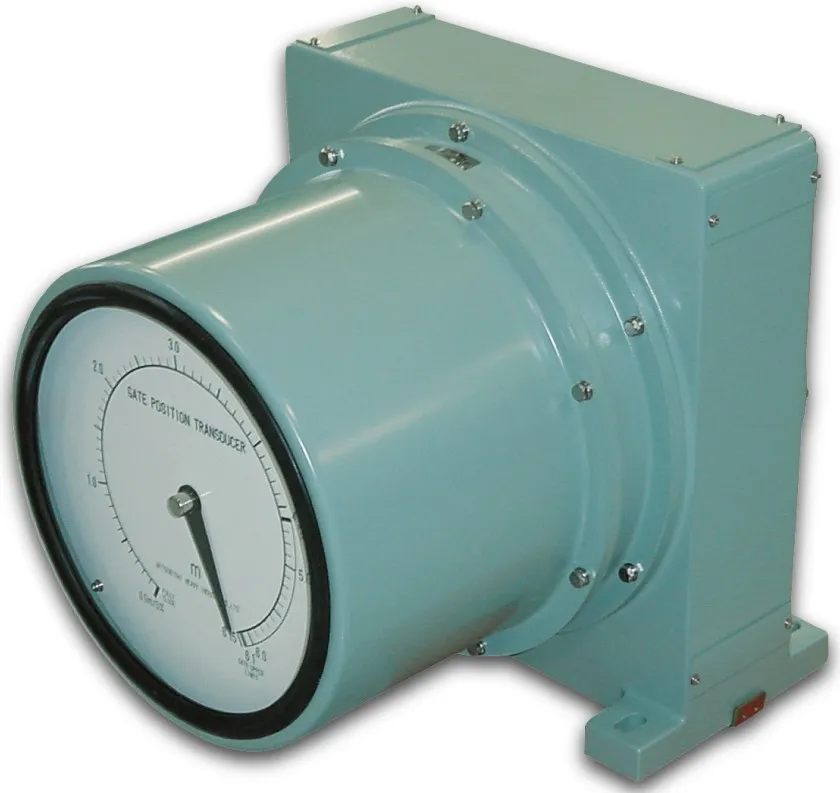

・RTX1000 series: Direct measurement of the gate position by dedicated wire with analog indicator. Built-in sensors available (Synchro transmitter, A/D-RS converter, Potentiometer, Limit switch) for remote monitoring. Can be installed to the existing gate.




 RTX1000 series

Option







A
Indicator
0: none
1: 1 pointer
2: 2 pointers




B
A/D converter
0: none
1: A/D-RS converter 3digits + Arrester
2: A/D-RS converter 4 digits + arrester




C
Built-in sensor
0: none
1-4: synchro
5: others




D
Potentio
0: none
1: potentio
2: R/I unit + arrester
3: others



E
Limit switch
0: none
1: 4 points
2: 8 points




F
Power source
0: none
1: AC100V 50/60Hz
2: AC110V 60Hz
3: AC200V 50/60Hz
4: AC220V 60Hz
5: DC24V
6: Others

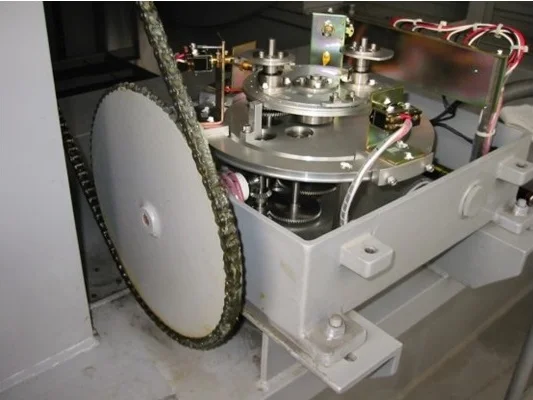

3. Limit Switch Box
・MD200 series: Limit switch box which outputs contact signals depends on the gate opening. Two types of epicyclic cam make limit switches depending on the rotation of the disk by inputting a shaft rotation of the gate hoist




 MD200 series

Option





A
Multi turn cam
0: non
1: 1point
2: 2 points
3: 3points
4: 4points
B
Single turn cam
0: non
1: 1point
2: 2 points
3: 3points

C
Shaft rotation direction
R: CW
L: CCW







4. Converter

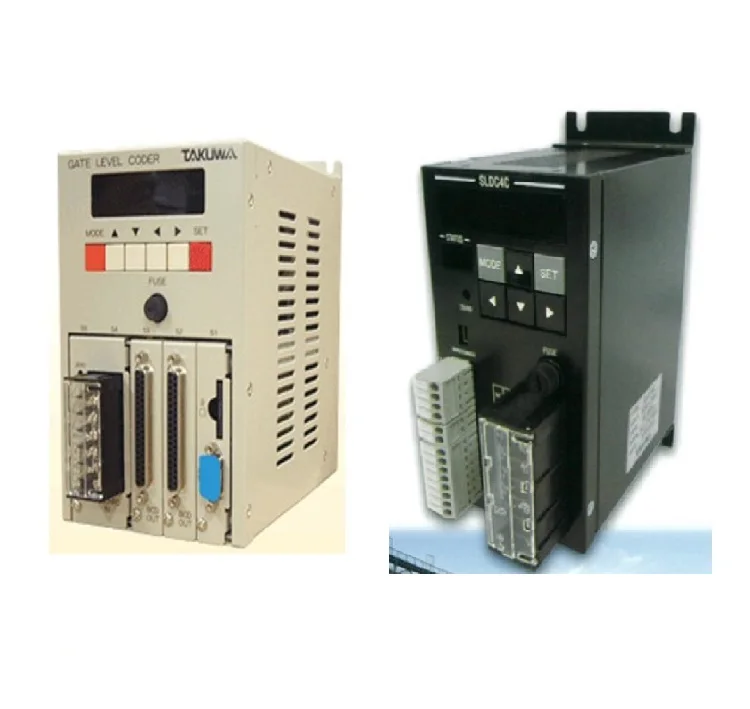

・GLCW series: Signal converter of synchro signal to digital signal for output to external equipment.
-Arbitrary scale adjustment (Zero adjustment, Free scale, Level offset)
-Non-linearity scale conversion table can be set up easily by PC software and installed it to the GLCW through the SD card.
-Self-diagnosing function (ERR code is displayed)
・SLDC4C: Signal converter of synchro signal to Analog (4 to 20mA/0 to 10V).
-Small temperature coefficient
-Zero hold function




 GLCW series

Option


AB
Synchro
S1: normal
S2: high accuracy
CD
output
20: BCD x 2, non comparison contact output
11: BCD x 1, comparison contact output





5. Indicator
・RB series: Display of gate opening angle with analog indicator (1point or 2points) from synchro signal of gate opening indicator

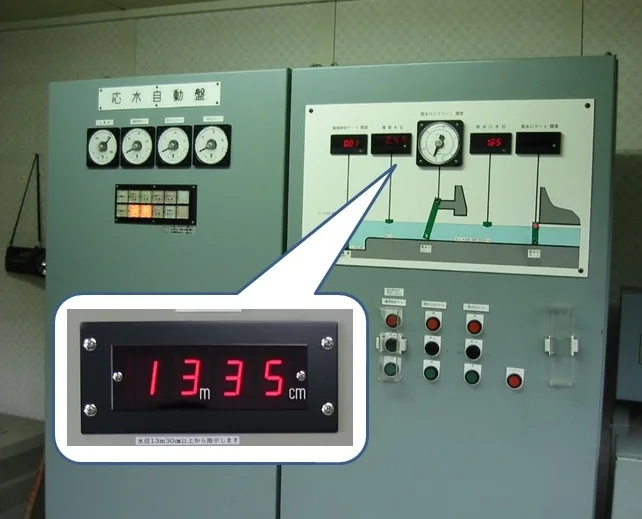

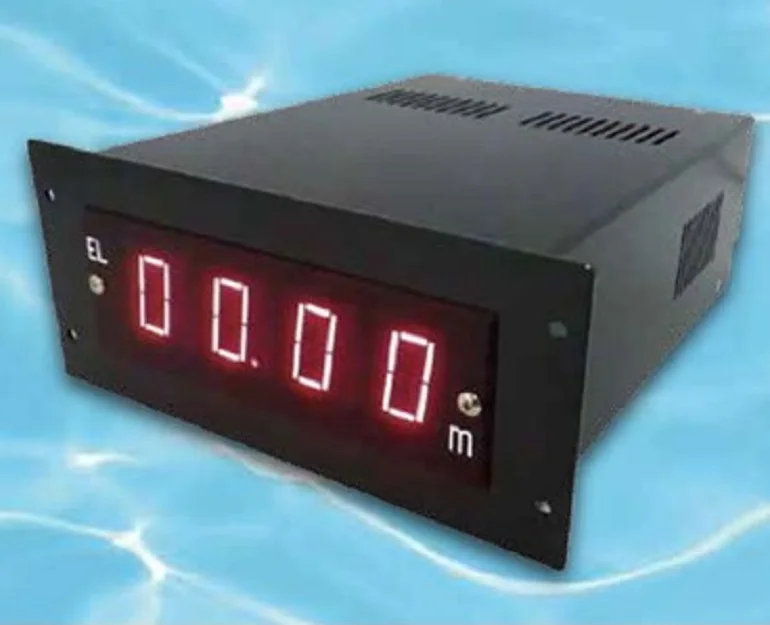

・DU3000 series: Display of gate opening angle from A/D converter. With high visibility, vivid LED display and large character size (26mm), up to 5 digits.
