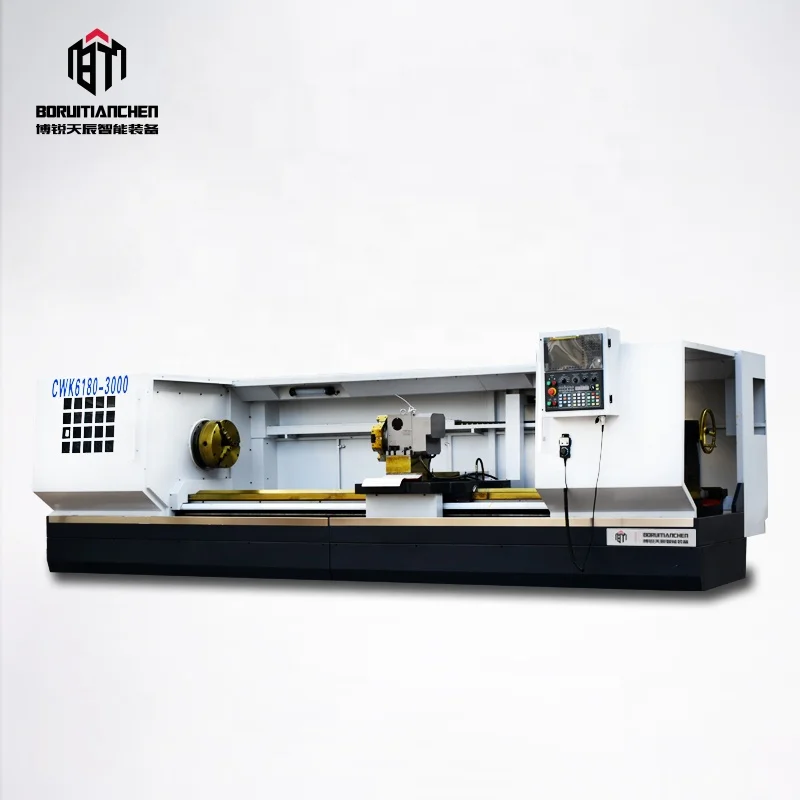

CWK6180 Cnc Lathe Fanuc Control Precision Metal Turning Cnc Lathe Machine
- Category: >>>
- Supplier: Borui Tianchen (Shandong) Intelligent Equipment Co. Ltd.
Share on (1600519221406):
Product Overview
Description
Products Description
The machine is suitable to process the middle and large size work piece in steel , cast iron ,non-ferrous metal material . With the feature of big power and high rigidity , this machine is applied to heavy-cut the inner circle ,ex-circle , end surface and thread in both metric and English system , and could drill and bore the holes .
* Higher stability one-piece machine bed
* 3-gear spindle speed step-less in gear
* Higher rigidity pedestal
* Wider layer board
* Integrated automatic lubrication system
* Higher stability one-piece machine bed
* 3-gear spindle speed step-less in gear
* Higher rigidity pedestal
* Wider layer board
* Integrated automatic lubrication system
Product main technical parameters:
ITEMS | UNIT | CWK6163 | CWK6180 | ||
Capacity | Swing over bed | mm | Φ630 | Φ800 | |
Swing over cross slide | mm | Φ350 | Φ550 | ||
Distance between centers | mm | 1000/1500/2000/3000 | |||
Width of bed way | mm | 550/600 | |||
Max. load capacity | T | 3/5 | |||
Spindle | Spindle bore | mm | Φ104/Φ130 | ||
Spindle bore taper | - | MetricΦ120, MT#5 MetricΦ140, MT#6 | |||
Spindle speed steps | - | Manual 3 steps | Manual 3 steps HYD. 4 steps | ||
Spindle speed range | rpm | 10-1000 | 17-1000 | ||
Chuck size | mm | Φ315 | |||
Chuck type | - | 3-jaw manual | |||
Turret | Turret type | - | NC turret 4 position | ||
Tool shank size | mm | 32x32 | |||
Carriage | X axis travel | mm | 320 | 420 | |
Z axis travel | mm | 850/1350/1850/2850 | |||
X axis rapid traverse speed | mm/min | 4000 | |||
Z axis rapid traverse speed | mm/min | 4000 | |||
Tailstock | Tailstock quill diameter | mm | Φ104 | ||
Tailstock quill taper | - | MT#5 | |||
Tailstock quill travel | mm | 250 | |||
Motors | Main spindle motor | kW | 11 | ||
Coolant pump motor | kW | 0.125 | |||
Accuracy | Positioning accuracy | mm | 0.020 | ||
Repositioning accuracy | mm | 0.010 | |||
Dimensions | Width x Height | mm | 1690x1740 | ||
Length | mm | 3390/3890/4390/5390 | |||
Weight | Net weight | T | 4.7/5.1/5.5 | ||

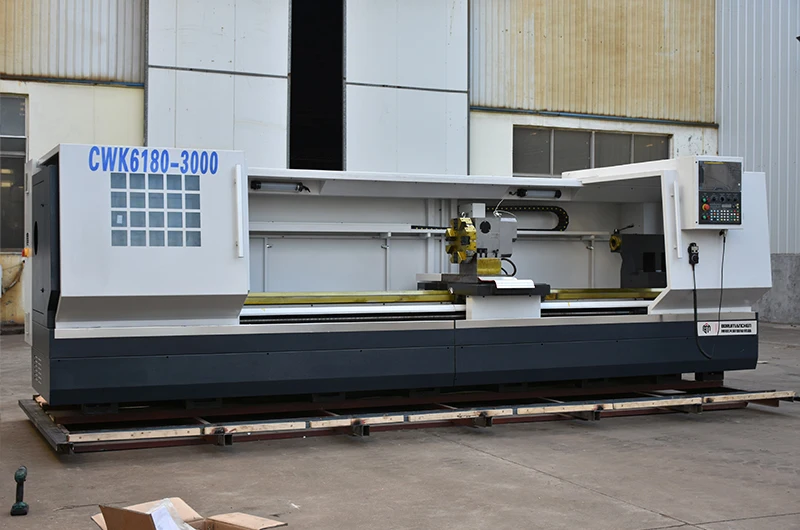

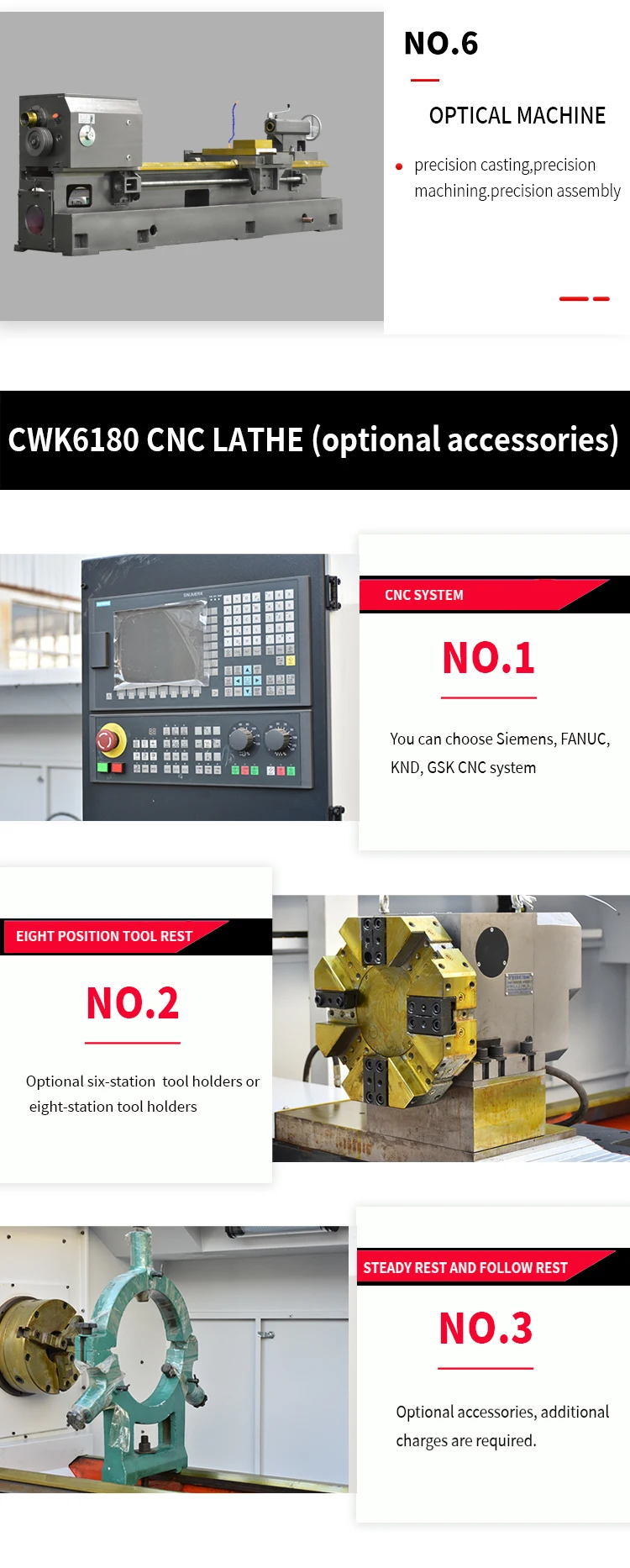

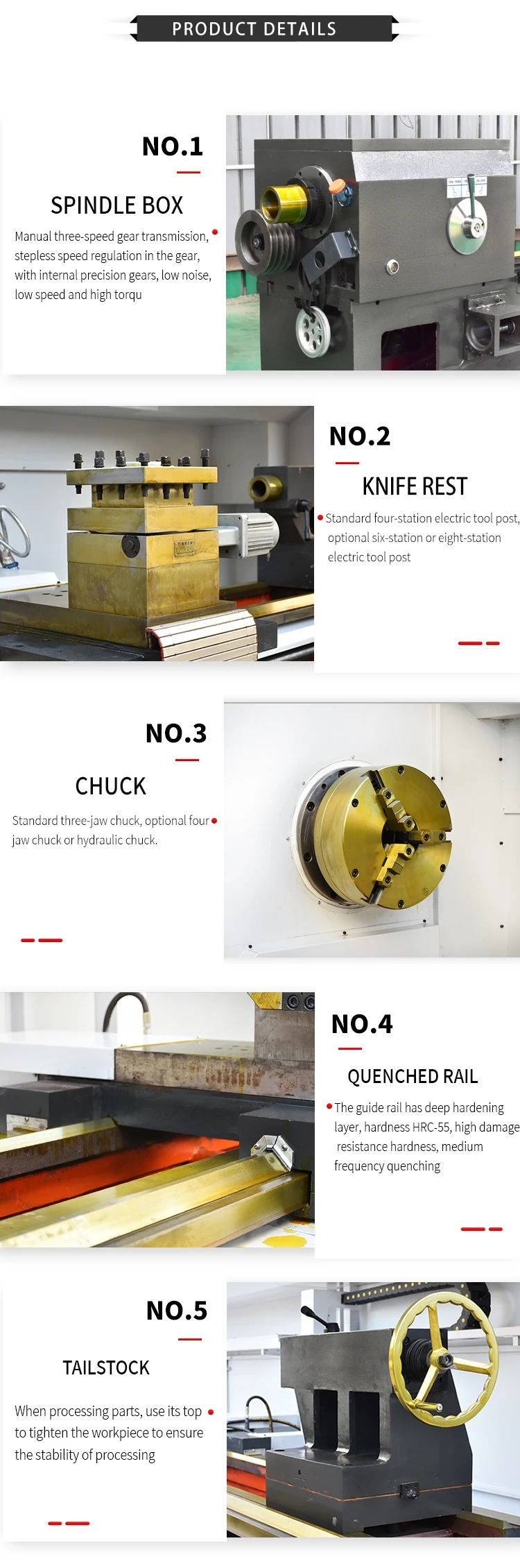

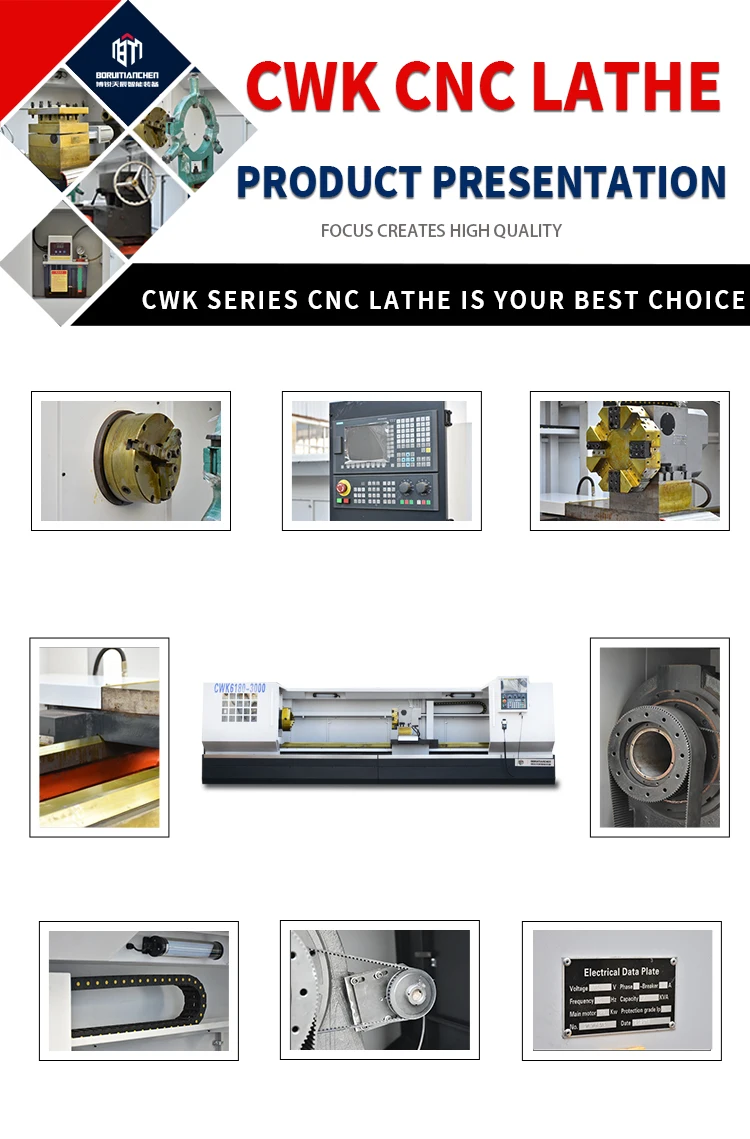

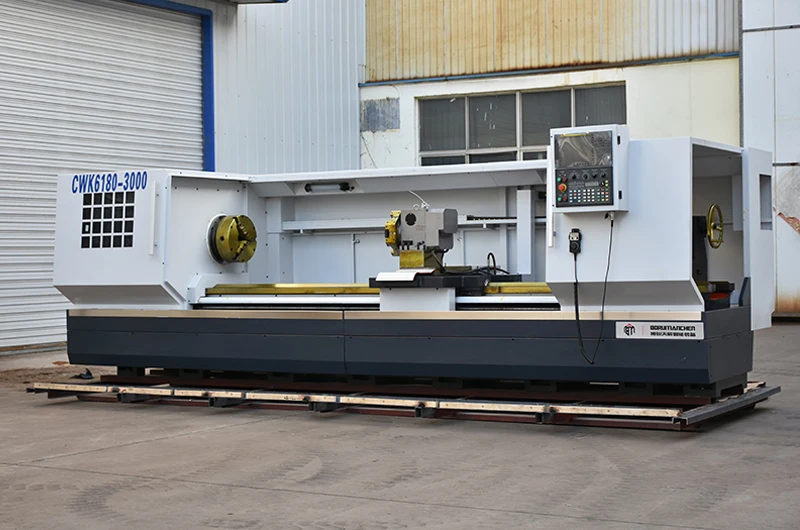

Details Images
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
