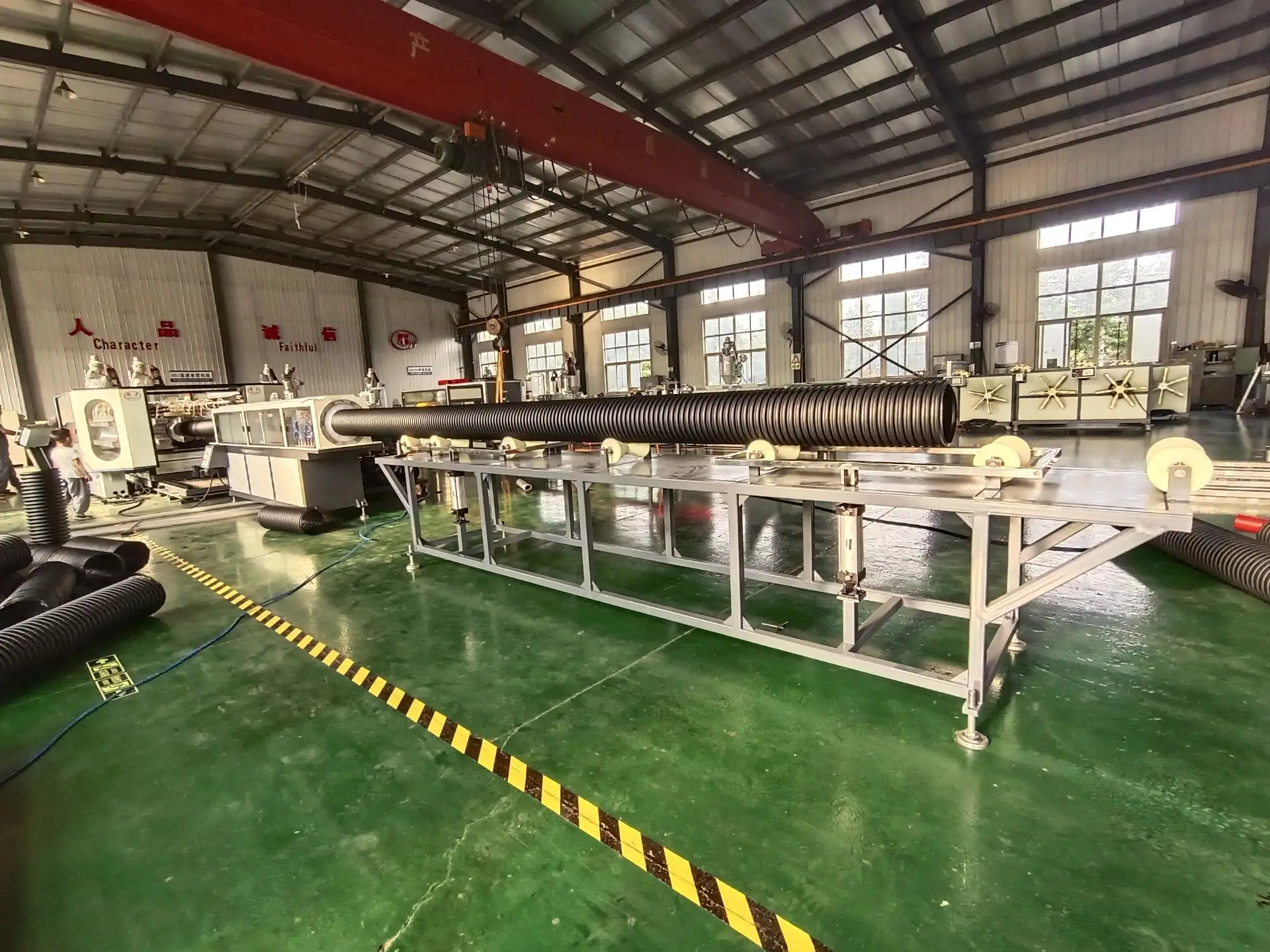

DWC pipe extruder machine manufacturing double wall corrugated HDPE underground drainage pipe
- Category: >>>
- Supplier: Qingdao Hegu Wood-Plastic Machinery Co. Ltd.
Share on (1600519232471):
Product Overview
Description
Product Overview
DWC pipe extruder machine manufacturing double wall corrugated HDPE underground drainage pipe
PE/HDPE/PVC double wall corrugated pipe making production machine adopts extruding and forming process, it has the featuresof reliable quality and high efficiency.Compared with other plastic pipe wall structure ,double wall corrugated pipe has excellent wall structure design,its low weight reach the lower production cost and improve the market competitiveness.The pipe is widely used in various field instead of concrete pipe and iron pipes,because it has excellent features such as:easy connected and accessiories installed,and quality reliable.
SBWG series double - wall corrugated pipe production line can continuously produce HDPE double - wall corrugated pipe and this line can achieve on-line belling.
The machine has the function of automatic demoulding when power is off.
The extruder adopt high-efficiency screw, the die head adopts double-layer spiral structure, mould die and core die being nitrided.
The forming machine adopts vacuum forming type, equipped with automatic lubrication system.Forming mould is made of aluminiumalloy, adopt water cooling type.
The pipe can be cut by on-line cutting machine automatically.
The machine has the function of automatic demoulding when power is off.
The extruder adopt high-efficiency screw, the die head adopts double-layer spiral structure, mould die and core die being nitrided.
The forming machine adopts vacuum forming type, equipped with automatic lubrication system.Forming mould is made of aluminiumalloy, adopt water cooling type.
The pipe can be cut by on-line cutting machine automatically.
Model | Pipe Diameter | Production speed | Extruder model | Motor power |
SJSBWG-50 | 32-50mm | 4-5m/min | 65/30&50/30 | 30KW&15KW |
SJSBWG-110 | 50-110mm | 3-4m/min | 65/33&65/30 | 37KW&30KW |
SJSBWG-160 | 75-160mm | 2-3.5m/min | 75/30&65/30 | 45KW&30KW |
SBWG-250 | 75-250mm | 1.5-4m/min | 75/33&65/33 | 55kw&45kw |
Electric control system
SIEMENS PLC control system
Frequency converting control

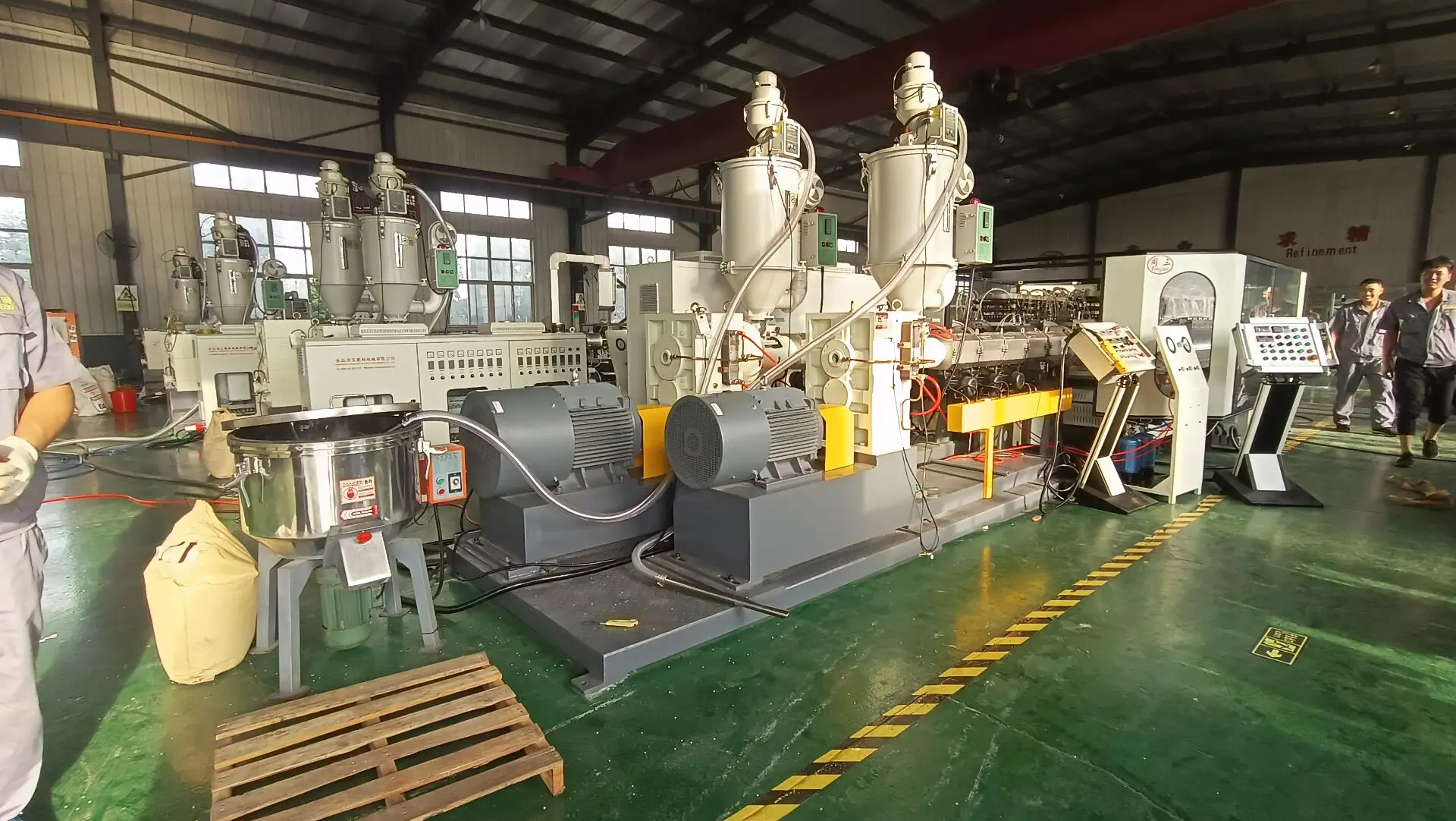

Two extruders
Two extruders for each layer extruding
High efficiency screw
Die head
Connection die head
Water jacket
Water cooling inside

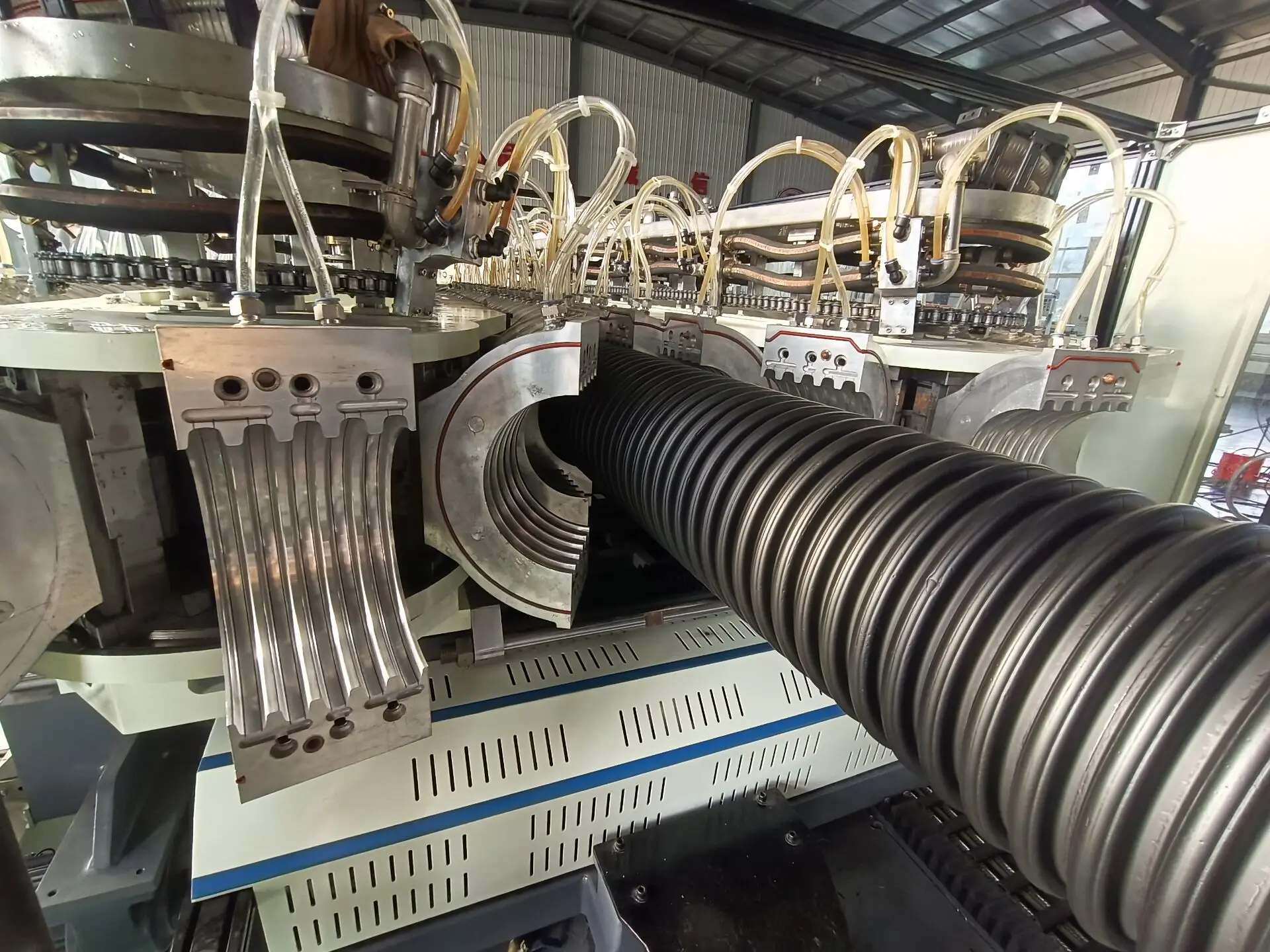

Forming machine/Corrugator
water cooling system
Vacuum forming system
Molds
Aluminum mold blocks

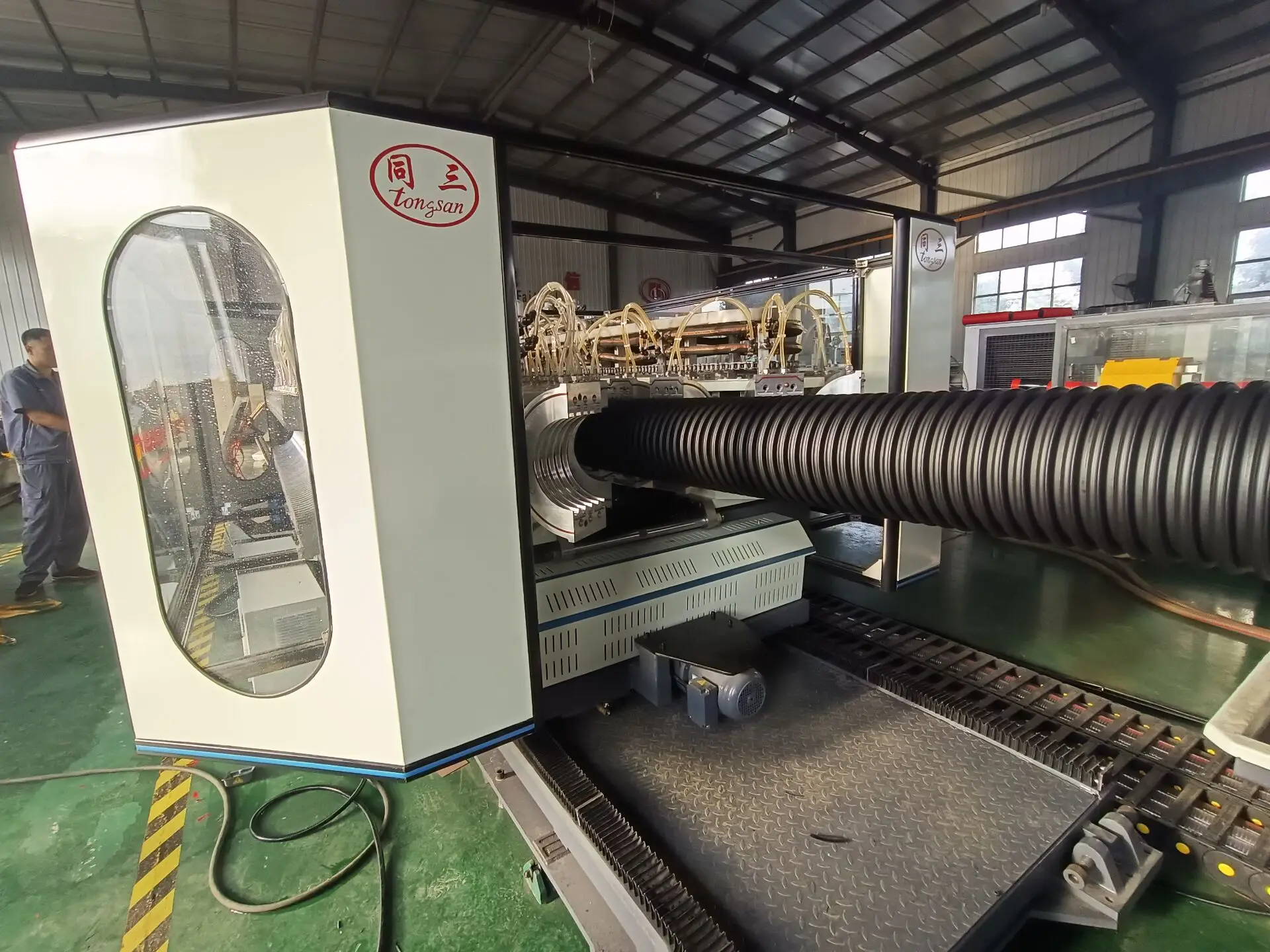

high speed forming machine
high speed water and cooling forming machine
water cooling tank
water cooling tank

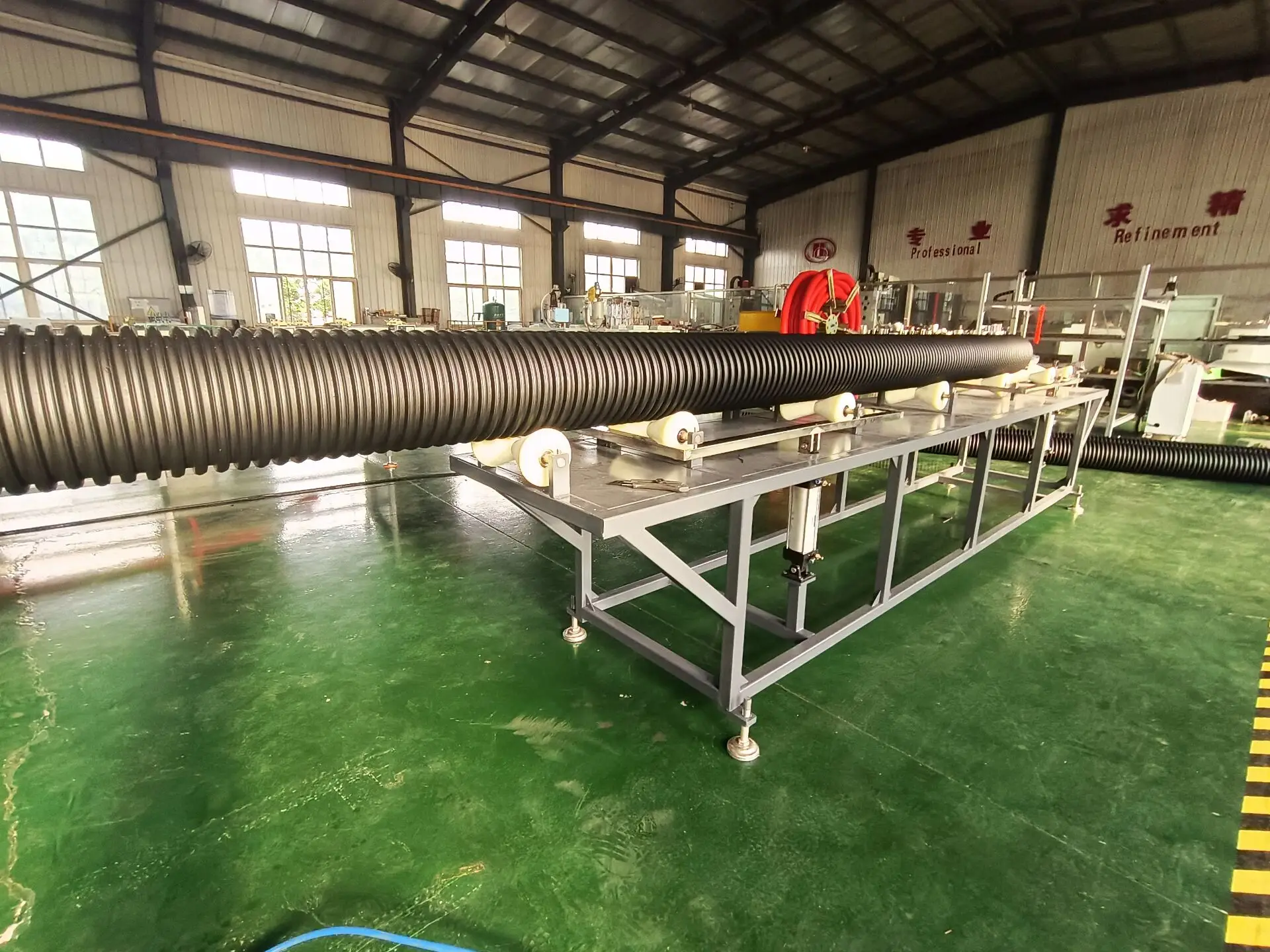

Product stacker
made by stainless steel
corrugated pipe stacker:
6meter length
Auto cutter machine
cutting machine automatically fixed length cutting

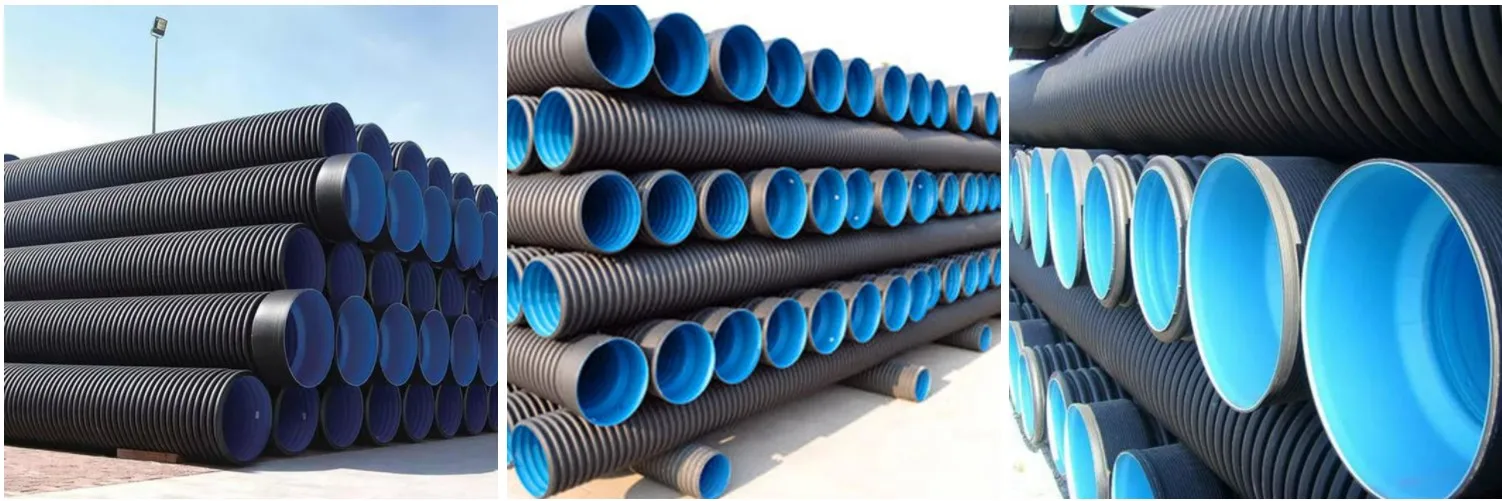

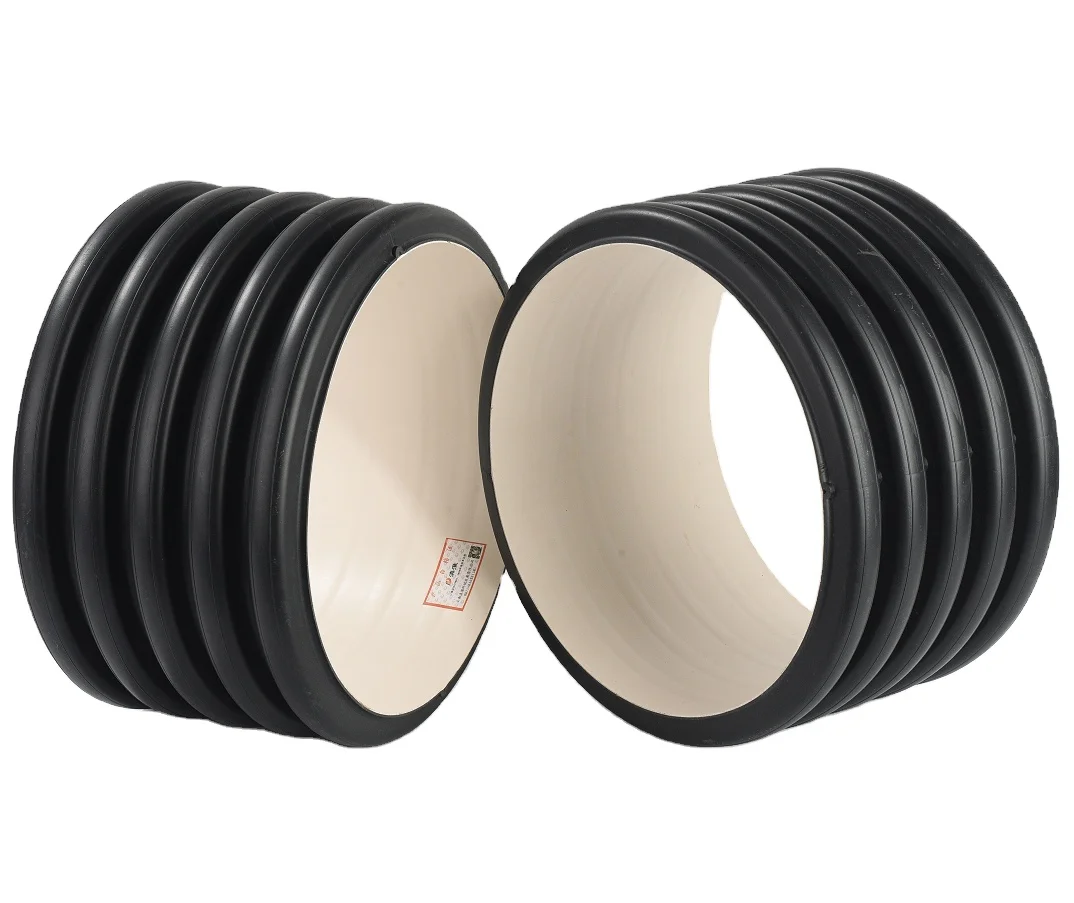

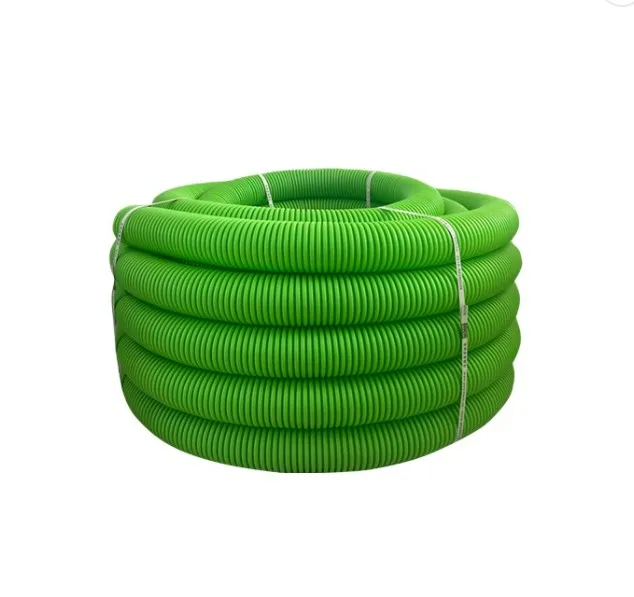

Double wall corrugated pipe
The surface is wavy, inside is smooth,uniform in thickness and strong in impact resiatance.
Forming machine/Corrugated for 110-350mm
Water cooling system
Vacuum forming system
High speed model .
High speed model .
Molds
aluminium casting material
Online pipe-expanding joint
SALES AND SERVICE NETWORK
Company
If you are interested in single wall corrugated pipe machine,please let me know.
We will be always online for service.
