Long Reading Range Passive EPC C1 GEN2 Passive RS232 WG26 34 RJ45 interface Vehicle Access Control UHF RFID integrated reader
- Category: >>>
- Supplier: Arcreat Technology Co. Ltd.
Share on (1600519248792):
Product Overview
Description
Long Reading Range Passive EPC C1 GEN2 Passive RS232 WG26 34 RJ45 interface Vehicle Access Control UHF RFID integrated reader
Features:

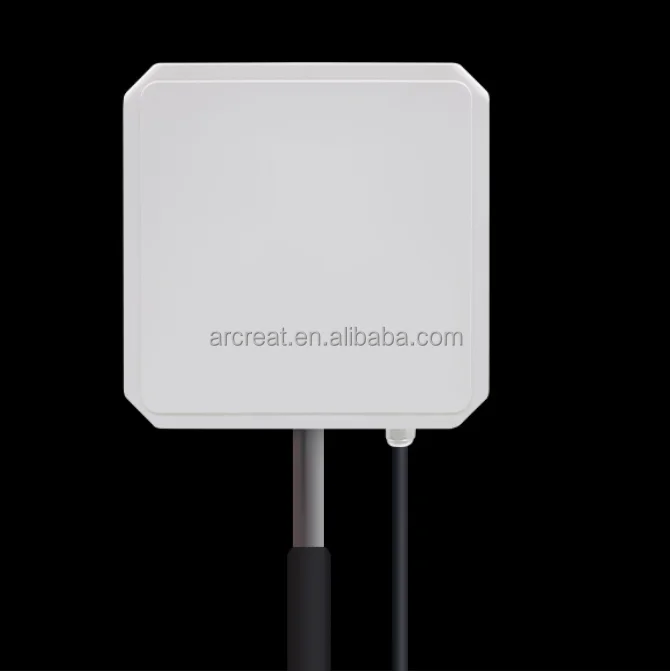

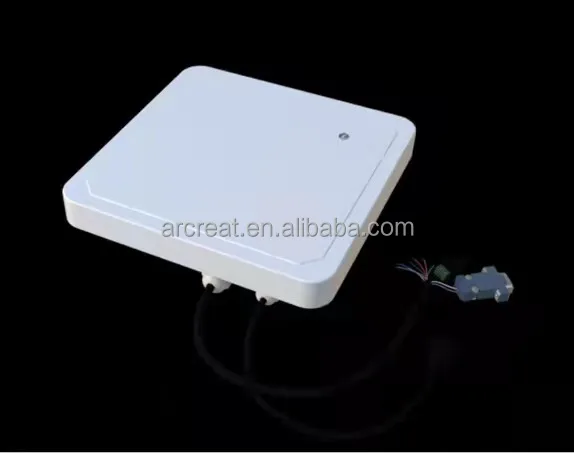

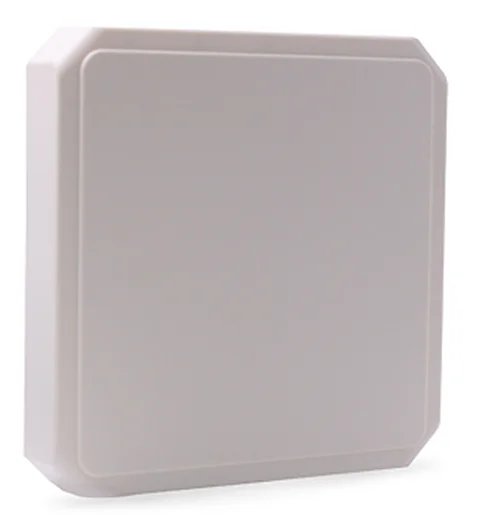

This device is a UHF RFID integrated reader.
It is designed based on independent intellectual property rights and appearance patent.
It features integrated RF reader antenna, small in size, light in weight, IP65, industrial control joint easy to deploy.
Tag buffer size up to 800pcs /96 bits EPC.
It performs excellent UHF R/W function, adapt to global working frequency.
It supply with multi-language SDK (C#, C++,Delphi,VB,Java,Python) , easy for secondary development integration.
Support ARDUINO, ARM, Linux, Windows, Android, Raspbian development platform.
Application:
- Personnel and Vehicle access control
- Manufacturing production line management
- Warehouse logistic management
- Assets inventory management
Physical Parameter | |

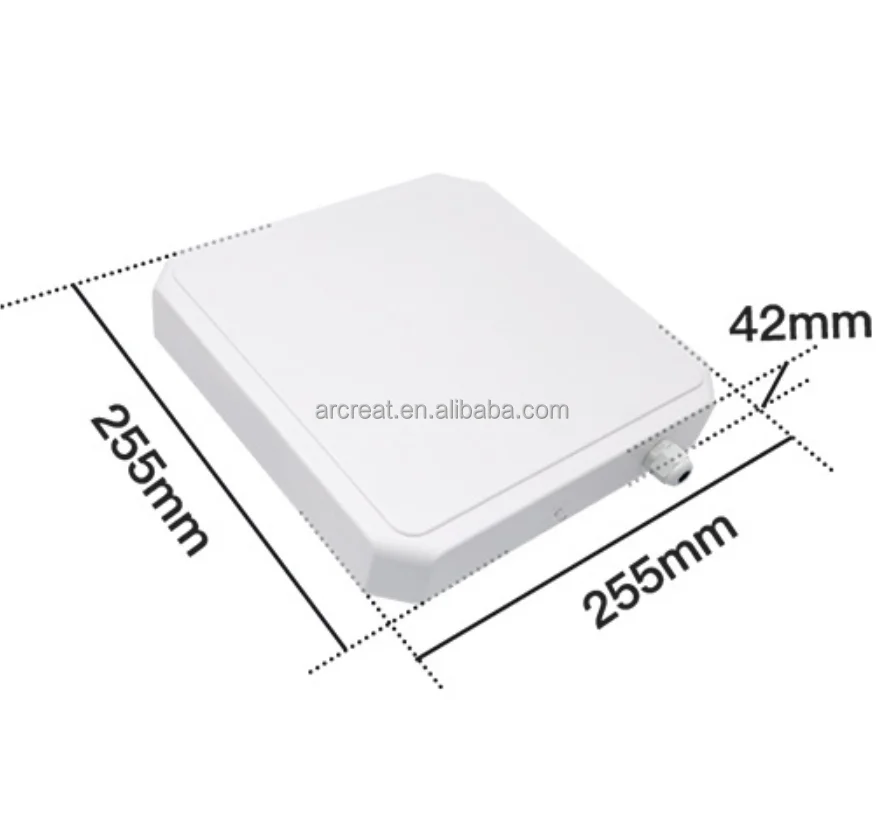

Dimension | 260(L) x 260(W) x 50(H) mm (Exclude bracket and external wires) |
Weight | 2.0kg (include package) |
Shell material | ABS+PC |
Antenna front housing color | Ceramic white |

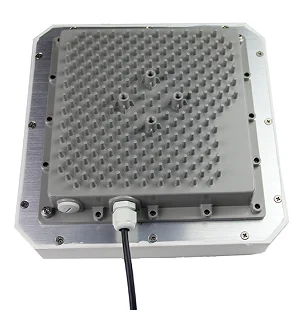

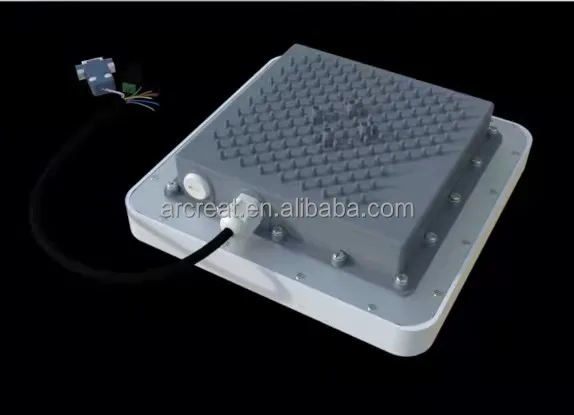

Antenna rear housing | Die-casting aluminium alloy |

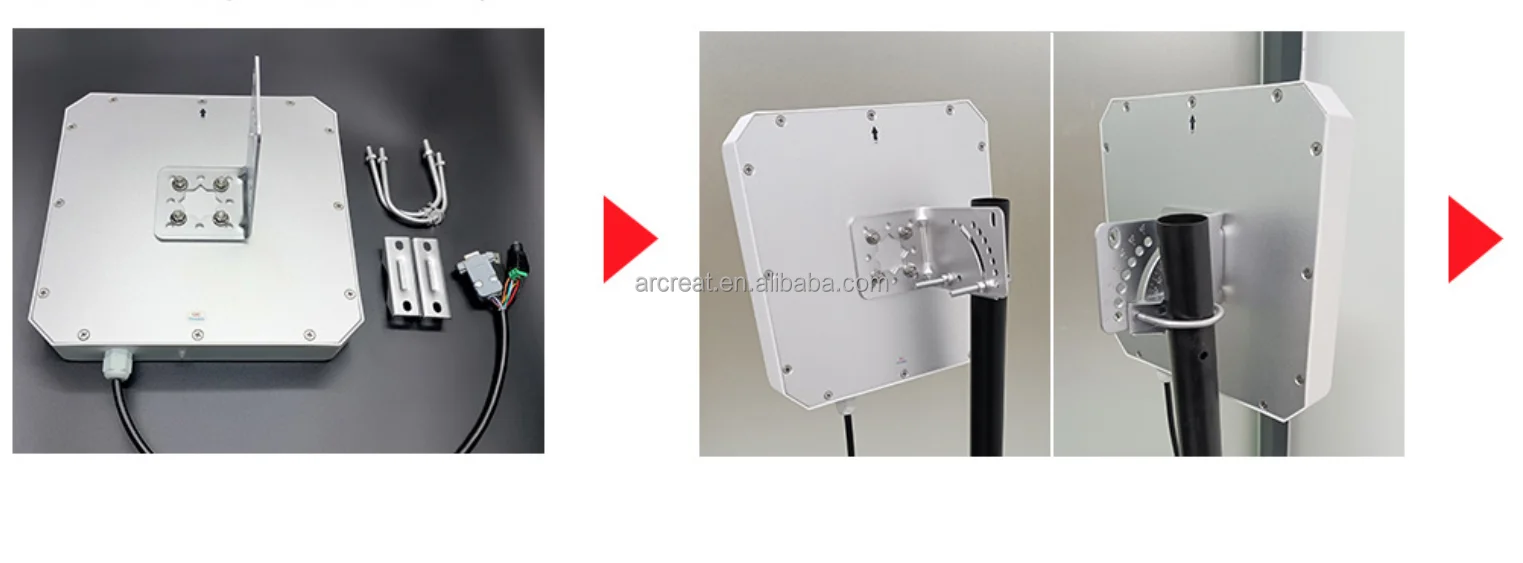

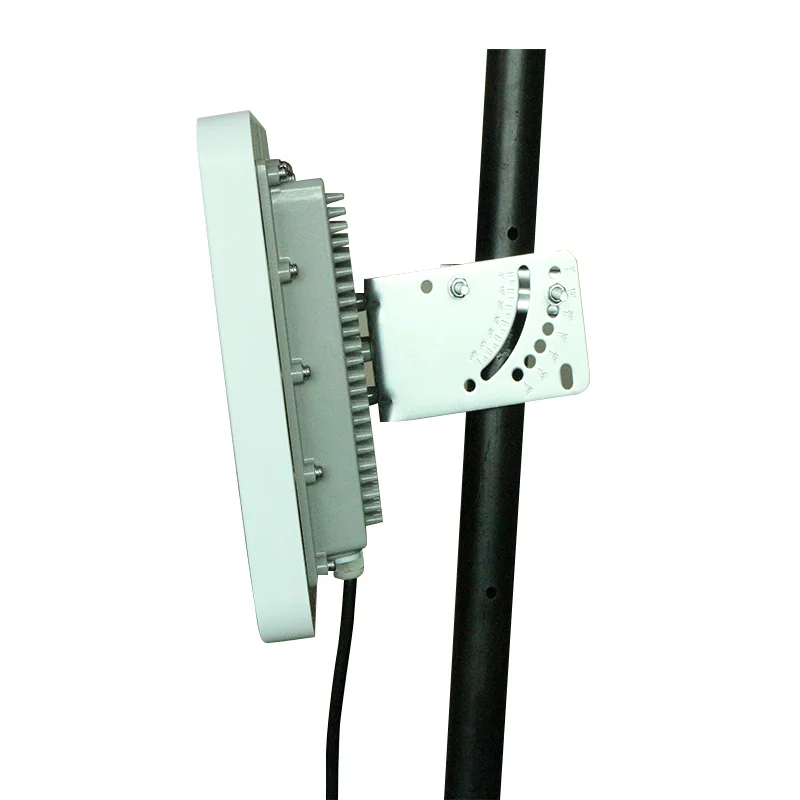

Installation method | Holding pole |
UHF RFID Performance Parameter | |
Radio frequency | WAC independent R&D technology |
Frequency | 865-868MHz/902-928MHz |
Protocol | EPC C1 GEN2 /ISO18000-6C |
Built-in antenna | 9dBi line polarization |
Power | 30dBm (adjustable by 1dBm step with WAC demo software) |

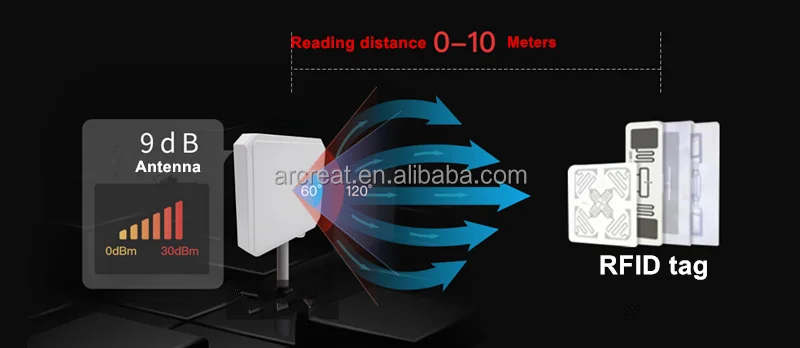

R/W range | Read range 12~15m, write range >5m (test tag: AZ9662Inlay) |
Group read rate | 1~10pcs EPC Tag |
Working areas | US, Canada and other regions following U.S. FCC Part 15 regulation Europe and other regions following ETSI EN 302 208 regulations Mainland China,Japan,Korea,Malaysia,Taiwan |
Electric Parameter | |

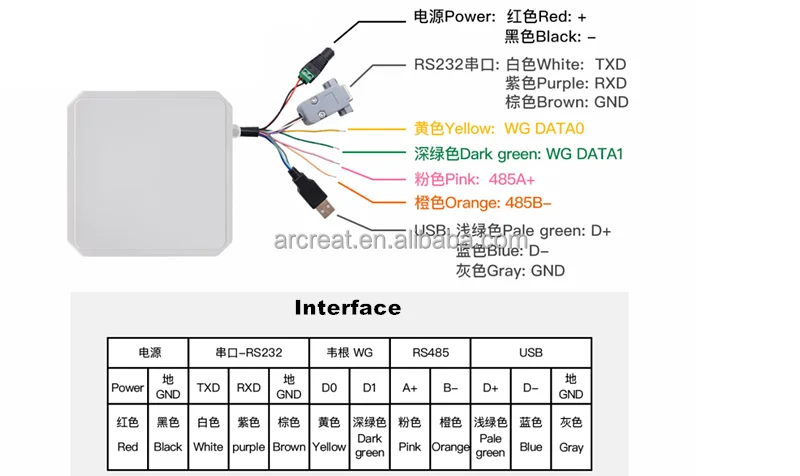

Communication interface | Standard: RS232, RJ45, Wiegand Optional: 4G/WIFI/USB |
Serial rate | 9600~115200bps |
RJ45 rate | 10Mbps |
GPIO(for your optional) | 1 relay output, 1 trigger input |
Reading Indicator | Buzzer |
Power consumption | ~1W |
Power supply | 220V AC input, +9-25V/2A adaptor DC output |
Application Software | API development kit and application routine based on Windows |
SDK | C#, C++, Delphi, VB, Java,Python |
Operating Environment | |
Operating Temperature | -25℃~+70℃ |
Storage Temperature | -30℃~+80℃ |
Humidity | 5%~95% RH, non condensing |
Lighting protection | DC ground |
Protection Level | IEC IP65 |

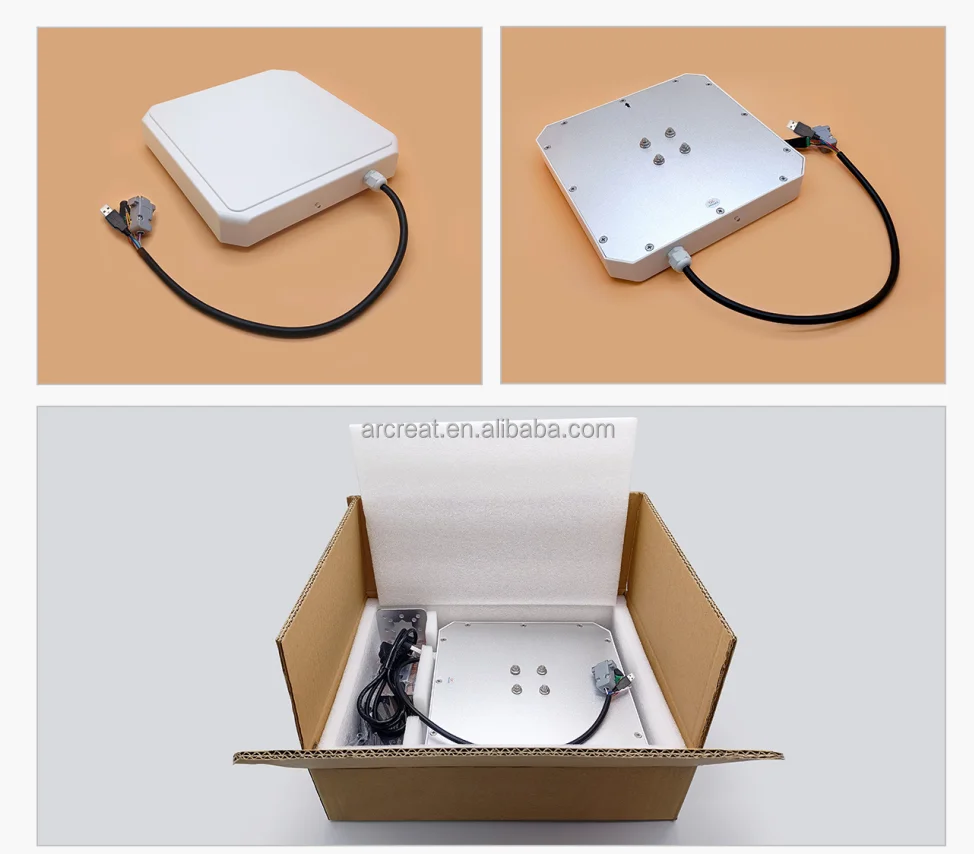

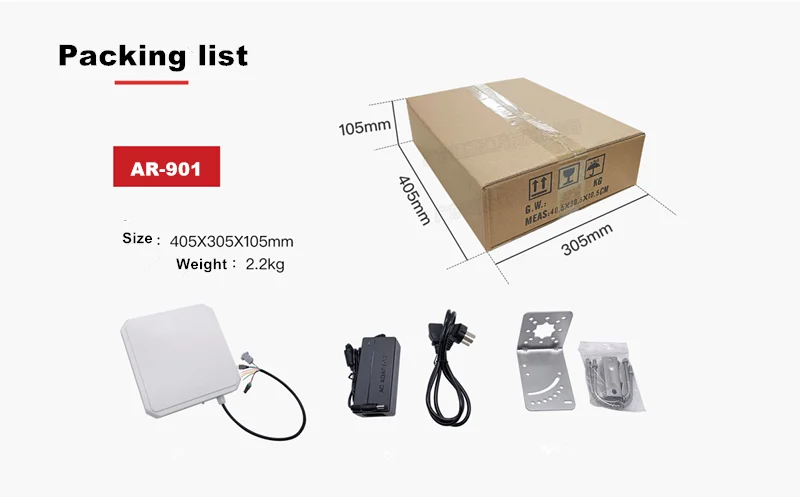

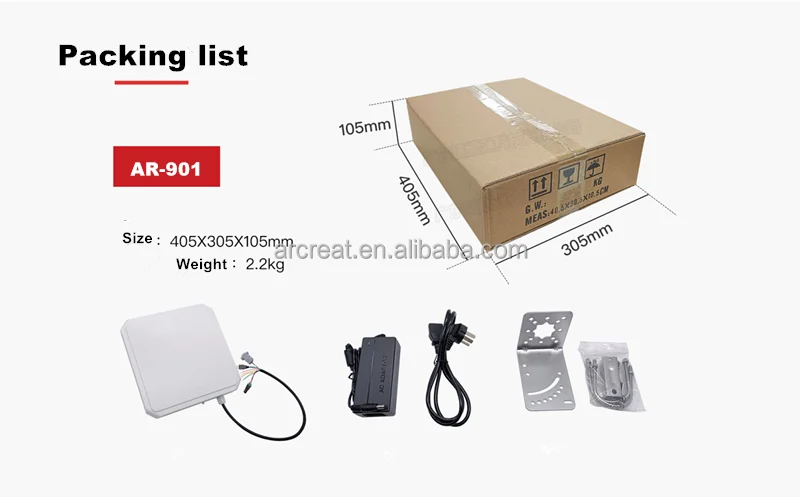

Accessories | |
Standard | Bracket,Power supply |
FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-20 days for order less than 5000 pcs. Time is negotiable.
Q: 3. Do you have any MOQ limit?
A: No. 1pc is our MOQ.
Q: 4. How do you ship the goods and how long does it take arrive?
A: Sample order, we usually suggest the shipping by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. To bulk order air
or sea shipping is suggested.
Q: 5. What is the warranty for the products?
A: Yes, we offer 3 year warranty for the products.
Q: 6. How is your after-selling service?
A: We have after-sales technical team, provide 24 hours online technical support.
Q: 7. Do you supply OEM service?
A: Yes, We support OEM like logo printing or box customization on quantity of hundreds.
