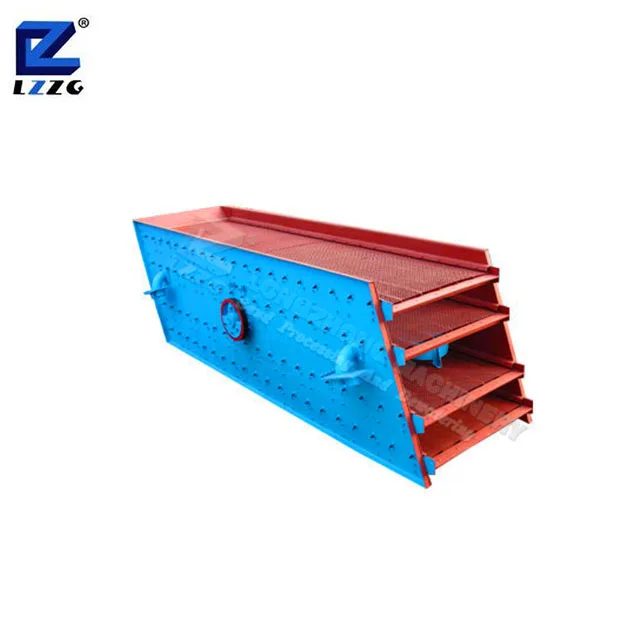

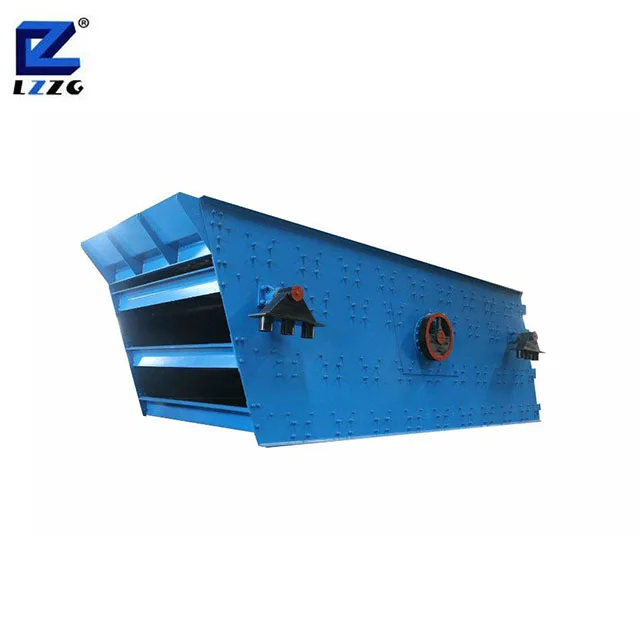

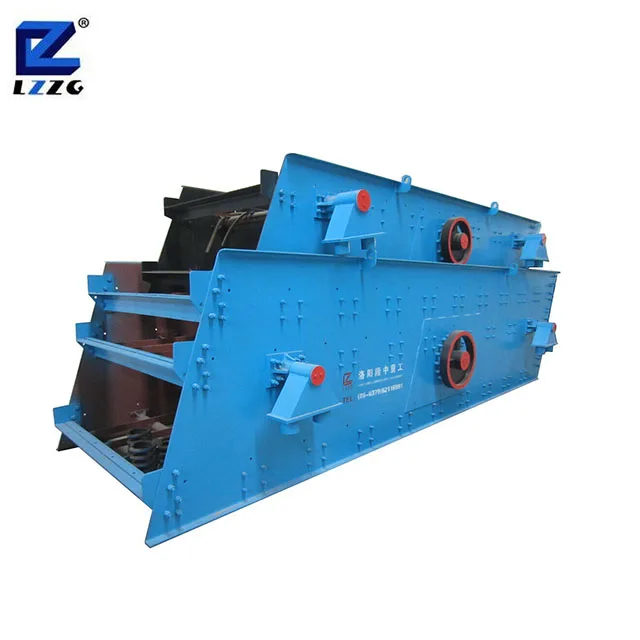

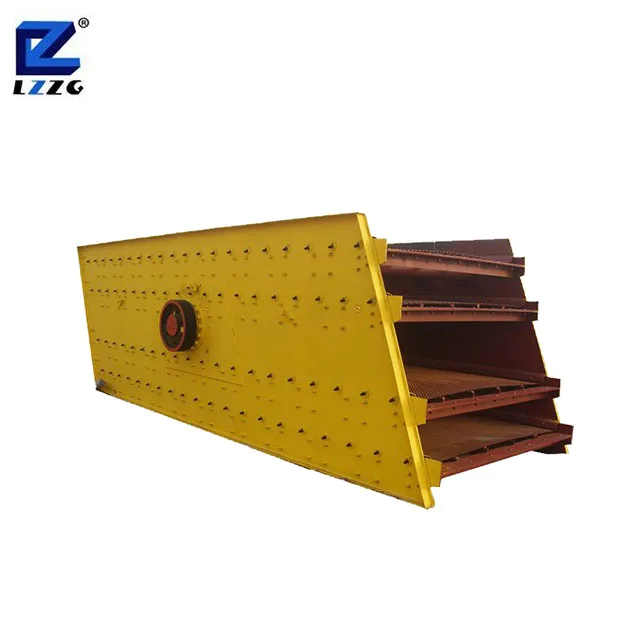

Low Cost Good Quality Vibration Machine Sieve Shaker Big Capacity Circular Vibrating Screen
Low Cost Good Quality Vibration Machine Sieve Shaker Big Capacity Circular Vibrating Screen
Low Cost Good Quality Vibration Machine Sieve Shaker Big Capacity Circular Vibrating Screen
Low Cost Good Quality Vibration Machine Sieve Shaker Big Capacity Circular Vibrating Screen
Low Cost Good Quality Vibration Machine Sieve Shaker Big Capacity Circular Vibrating Screen
Low Cost Good Quality Vibration Machine Sieve Shaker Big Capacity Circular Vibrating Screen

Low Cost Good Quality Vibration Machine Sieve Shaker Big Capacity Circular Vibrating Screen

Share on (1600519275603):


Price:$2,950.00 - $25,000.00

Quantity:


Product Overview

Description



Product Description


High frequency ming sand gravel grading vibrating screening machine




Brief Introduction
Vibrating screening machine is vibrated by the circling motion. It is high efficient screen for filter materials into multiple grades according to the gravel size. For the compact structure and the convenient installation, it is the ideal screening device for prefilter of the feed materials before the primary crushing in the quarry site, it also can be used as separation and filtration solely. The Circular Vibrating Screen adopts cylinder type eccentric shaft vibrator and partial block to adjust the amplitude. The materiel sieve drip line is long and more sieving specifications. The Circular Vibrating Screen can also be used for production classifying in quarry, mine, construction, electricity, chemical industry,etc.

Working Principle
1. The Circular Vibrating Screen uses the motor to drive the eccentric shaft to make the screen body periodically along with the direction of vibration force.
2. The materials make circular movement on the screen to realize sieving.



Model
Layer
Aperture Size(mm)
Max Feed Size(mm)
Capacity
(t/h)
Double Amplitude(mm)
Motor
(kw)
Frequency
(r/min)
2YA1237
2
4-50
60
7.5-80
8
7.5
900
3YA1237
3
4-50
60
7.5-80
8
11
900
2YA1548
2
5-50
100
50-208
8
15
970
3YA1548
3
5-50
100
50-208
8
15
970
2YA1848
2
5-80
200
50-260
8
15
970
3YA1848
3
5-80
200
50-260
8
18.5
970
4YA1848
4
5-80
200
50-260
8
22
970
2YA1860
2
5-100
200
50-350
8
22
970
3YA1860
3
5-100
200
50-350
8
30
970
4YA1860
4
5-100
200
50-350
8
30
970
2YA2160
2
5-150
400
100-500
6
30
730
3YA2160
3
5-150
400
100-500
6
30
730
4YA2160
4
5-150
400
100-500
6
30
730
2YA2460
2
5-150
400
150-700
6
37
730
3YA2460
3
5-150
400
150-700
6
37
730
4YA2460
4
5-150
400
150-700
6
37
730


Main Features

1. Mineral Separating Screen is of several decks whose moving track is round.
2. The moving track of material is very long; the size of material can be separated into several specifications.
3. It adopts cylinder style inspiring vibrator device and eccentric shaft to adjust. It has the features of reliable structure, strong vibrating generation, high screening efficient, low noise, easy maintenance, safe performance, etc.

Contact supplier for specific solution and the latest price

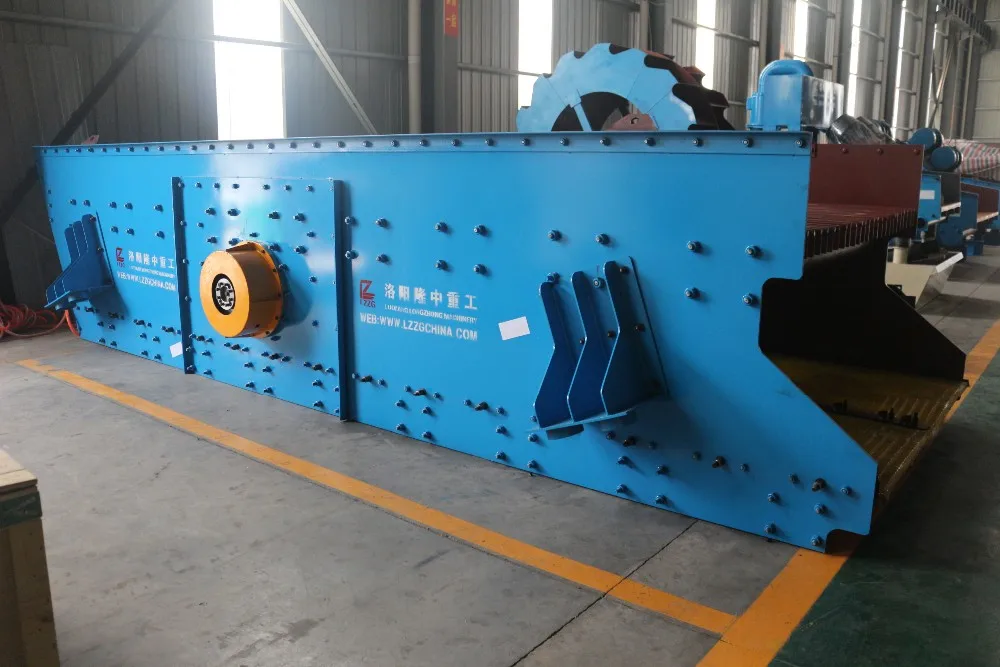

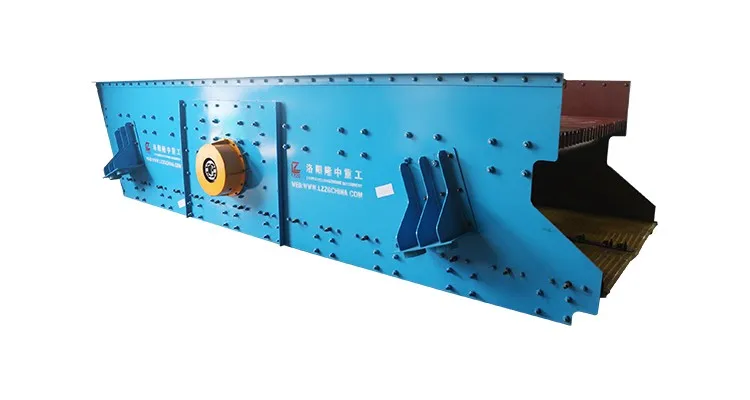

Detailed Images



Machine Parts

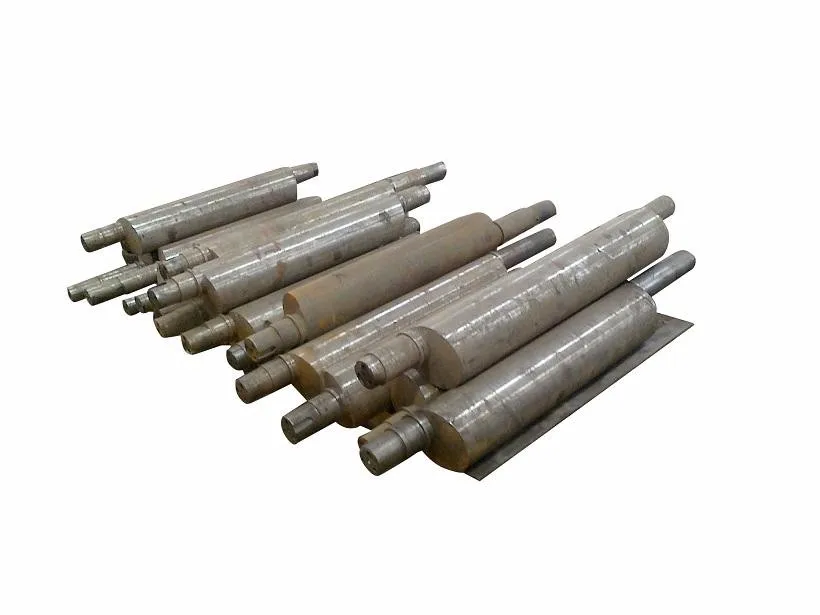

Name: Eccentric Shaft

The motor drive the eccentirc shaft to make the screen body periodically along with the direction of vibrating force.





Machine Parts

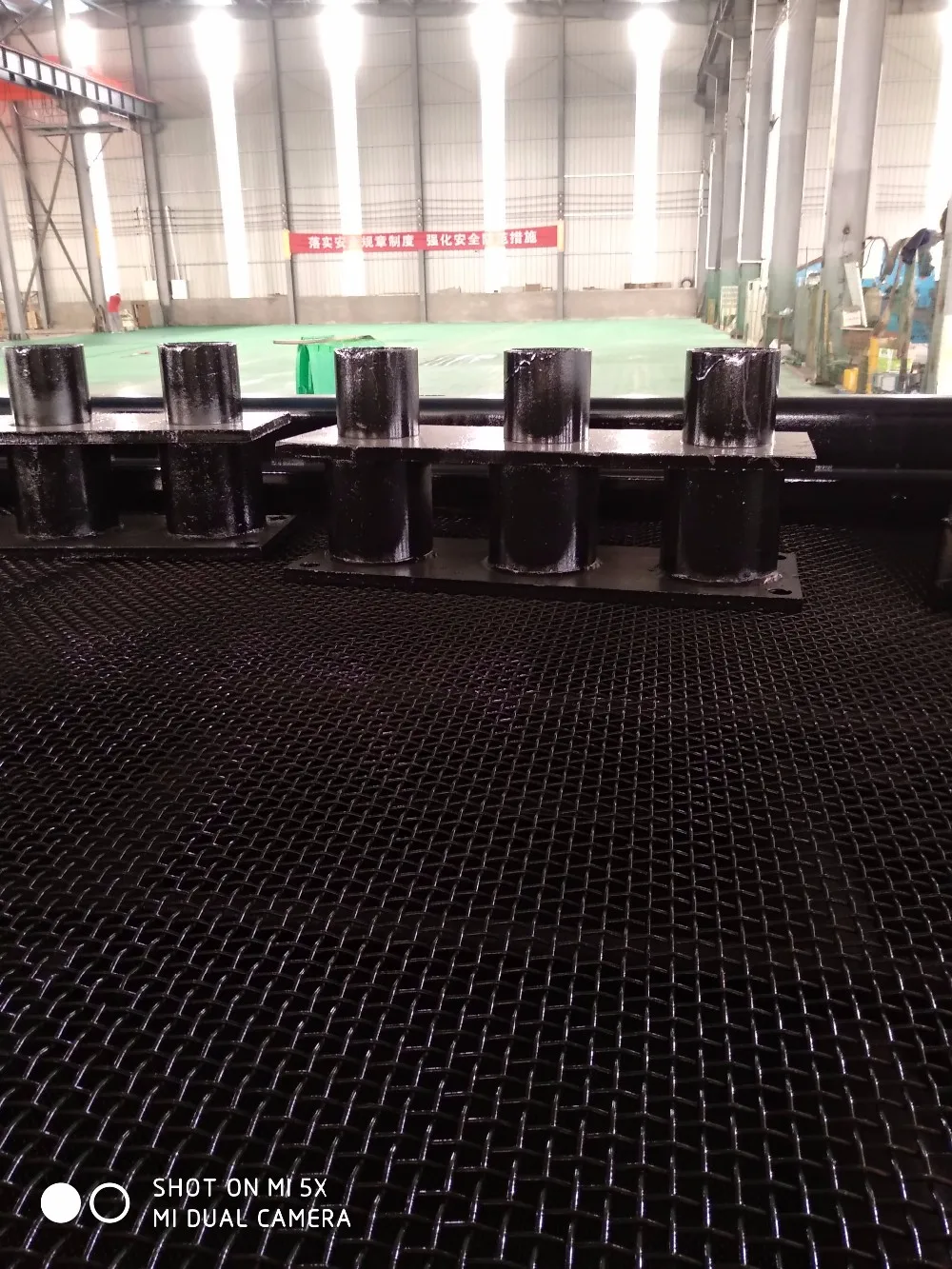

Name: Screen panel
The screen use high manganese steel, which is more wearable.

Aperture size is optional as customer's require. When the screen wears out, we can provide new ones in a cost-price for clients.




Machine Parts

Name: Bearing
Use customed bearing specially for vibrating equipment, and all the bearings are from China's top brand, which is wear-resisting, and in stable performance.




Machine Parts

Name: High Strength Shear Bolt
Domestic famous manufacturer provided, can reach 10.9 level, to connect by these bolts, there don't need weld, which can avoid the breakage of the weld joint.

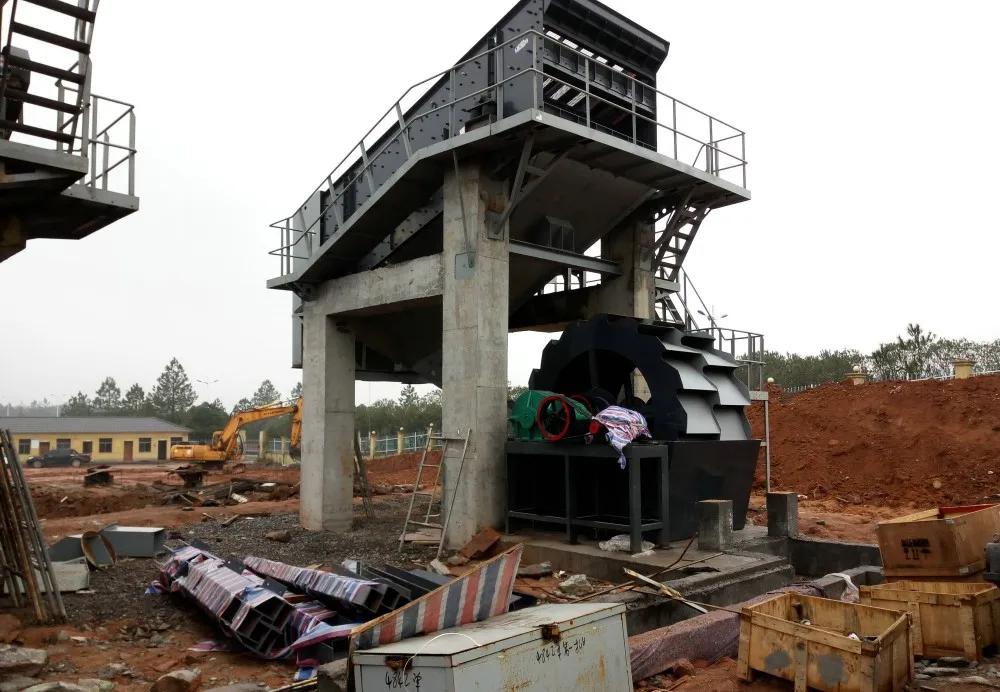

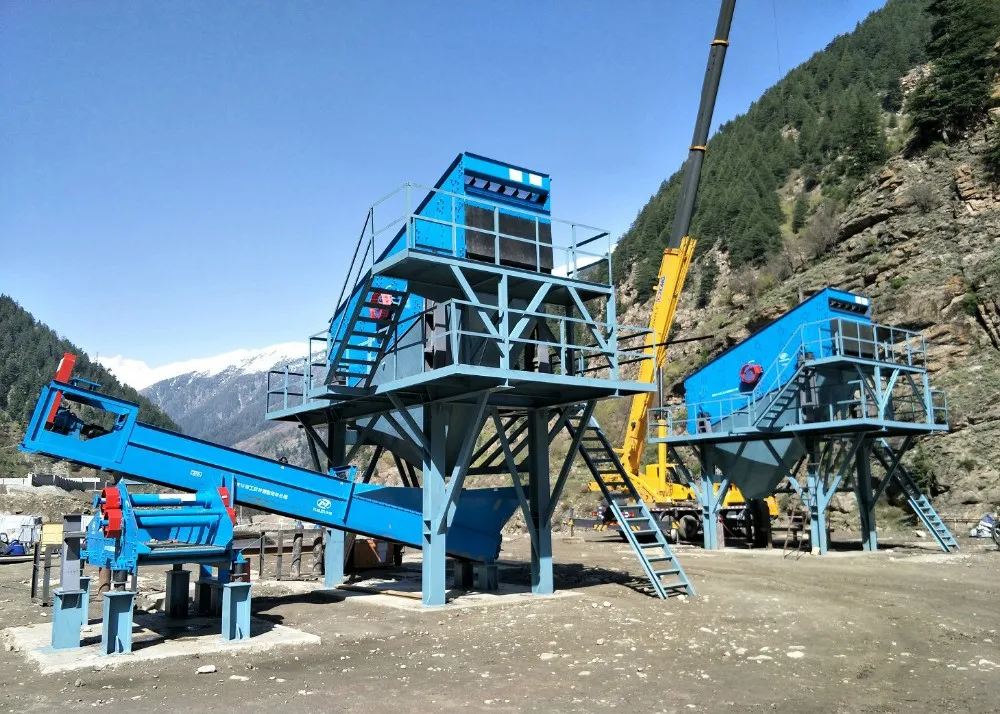

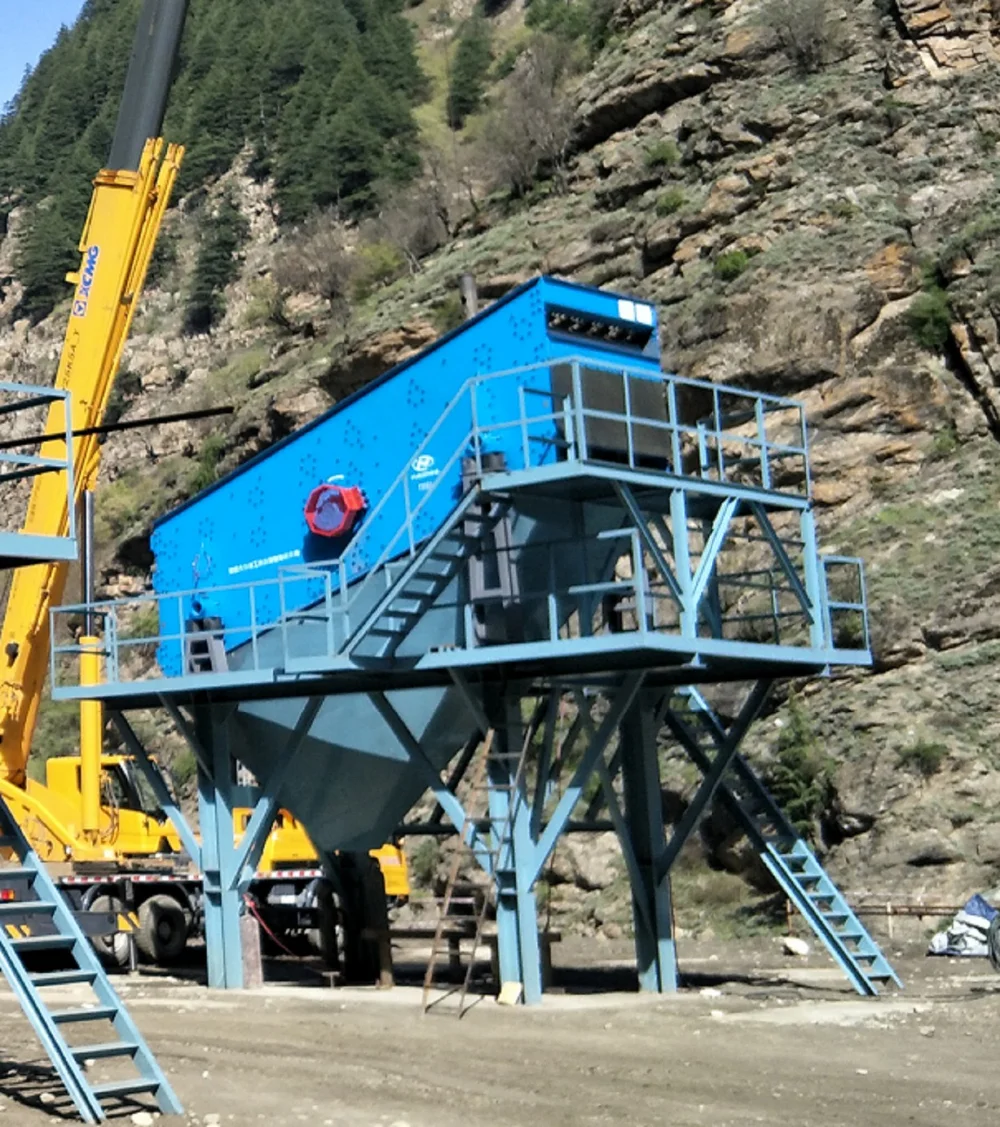

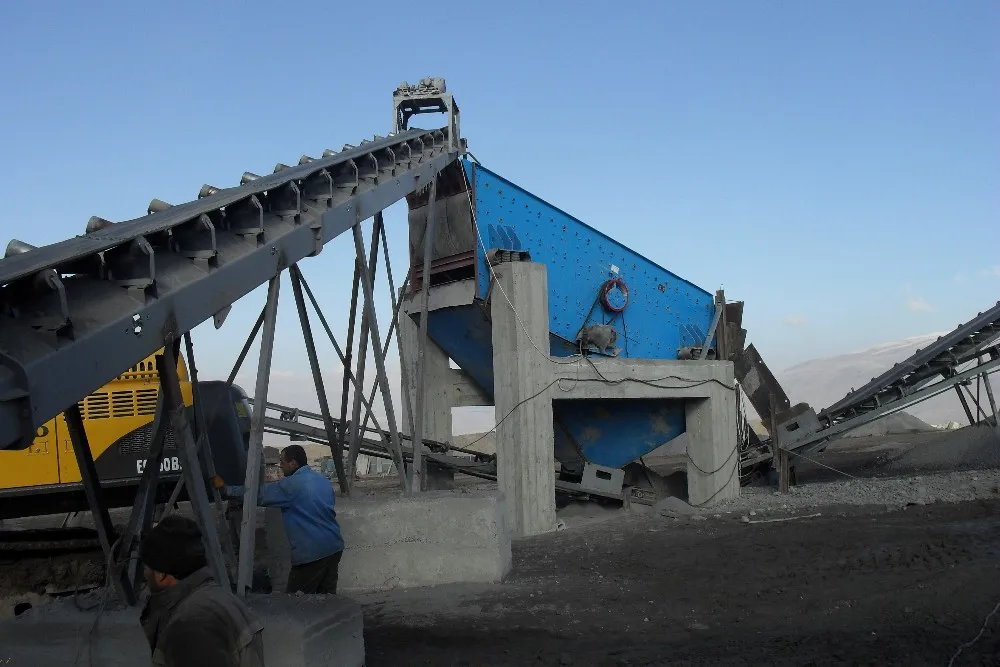

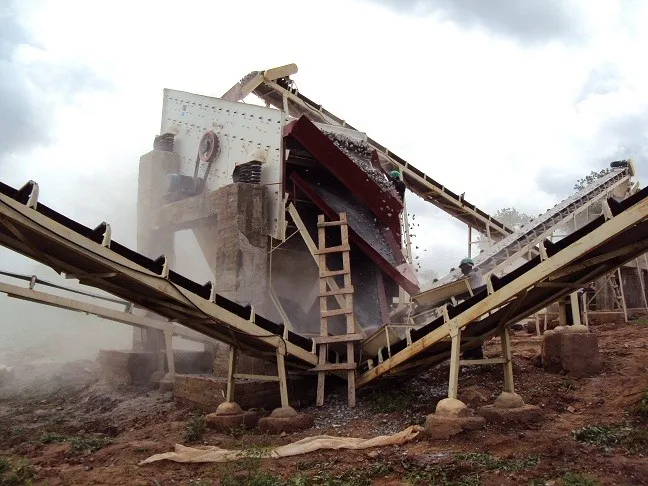

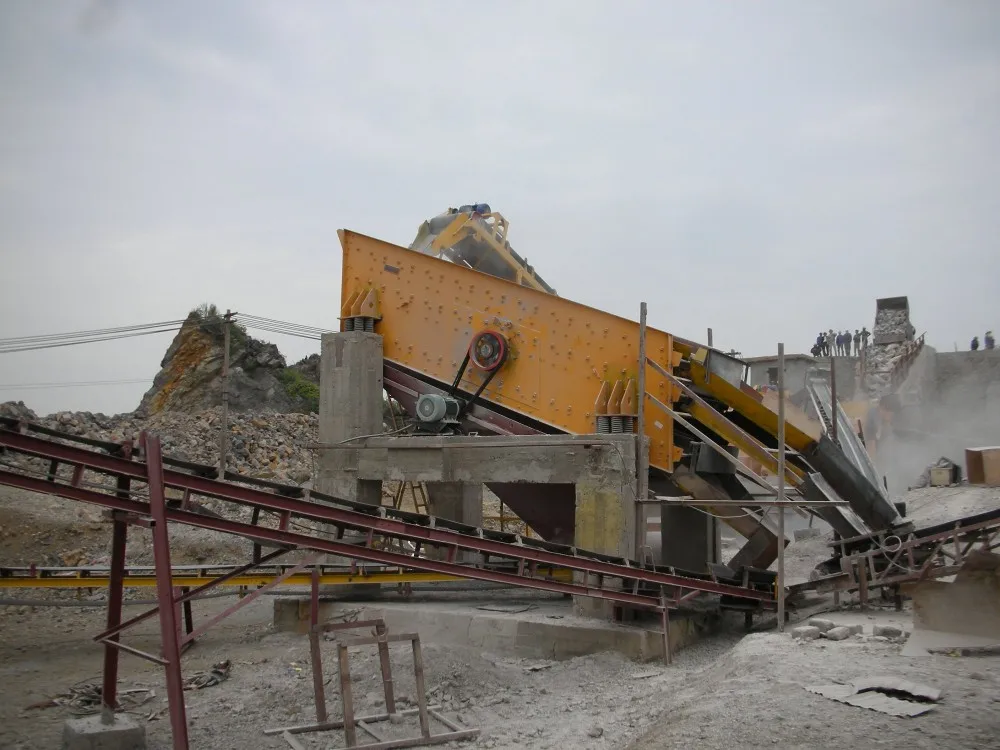

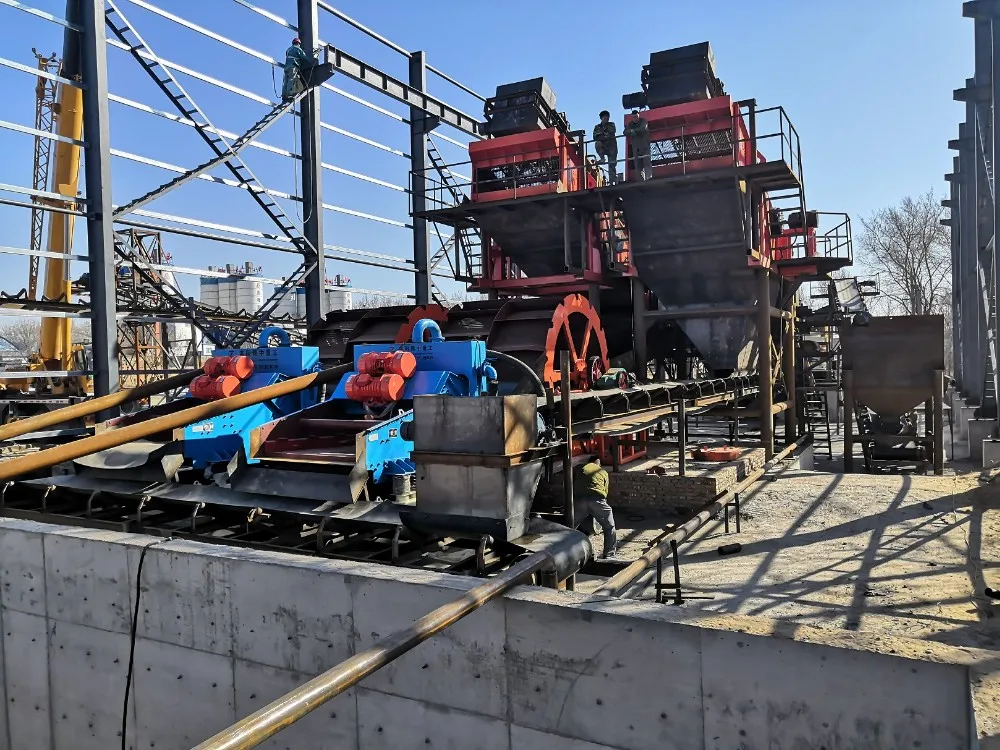

Working Site












Packing & Delivery


Packaging
Size
5750 (L) * 2800 (W) * 3500 (H)
Weight
6.2t



Packaging Details
Waterproof cloth package for main body of YA vibrating screen;
Wooden package for electric motor and parts of YA vibrating screen;
When arrive at the port, will all be loaded with containers.


Certifications




About Us


LZZG is a professional company that committed to the research, design, manufacture and service of washing mechanism sand and gravel, tailings treatment, piling mud purification and waste incinerator slag treatment process. We have a group of senior scientific researchers and engineers, including mechanical design, mechanical manufacturing, electrical control, environmental protection and other professionals.
Besides the professional equipment manufacturing plant, LZZG established a professional team in design, quality inspection and control, installation and commissioning, and after-sales service. Our products are exported to Australia, Malaysia, America, Mexico, Serbia, Vietnam, India, Nepal and more countries, and are highly praised by customers.





Our Team






Exhibition






Our Service


› Pre-sale Service:
  Choice of model
  Designing and manufacturing product according to customer's special requirement
  Company will arrange engineer to customer's site,designing site and discussing project

› On service:
  Product inspection
  Help customer to formulate the construction plan

› After-sale Service:
  Assign special after sale service team to site guiding customer to install and adjust machines
  Training operator on site
