Product Overview

Description



Product Description

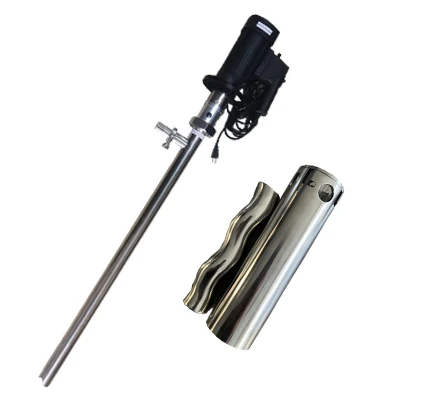

HS Series High Viscosity Screw Drum Pump

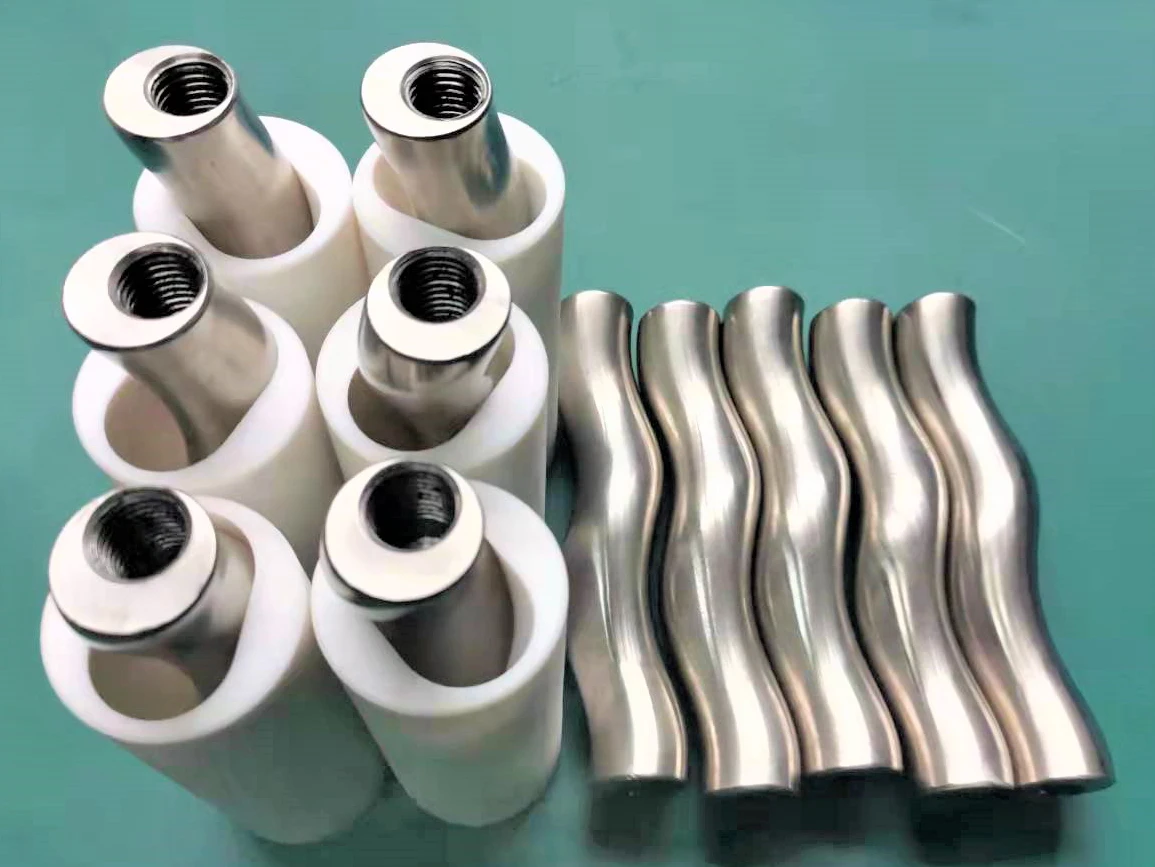

∗ High quality stainless steel 316 screw, acid and alkali corrosion. It is used in conjunction with the stator, which has low
shear force for high viscosity medium, and the effect is remarkable. The output pressure can reach up to 6bar.
∗ Available to deliver all kinds of high viscosity liquid for many fields.
* High-quality motor with CSA/UL certification, available motor specs are below:
* 110v/60hz/1phase, 220v/50hz/1phase(variable speed motor)

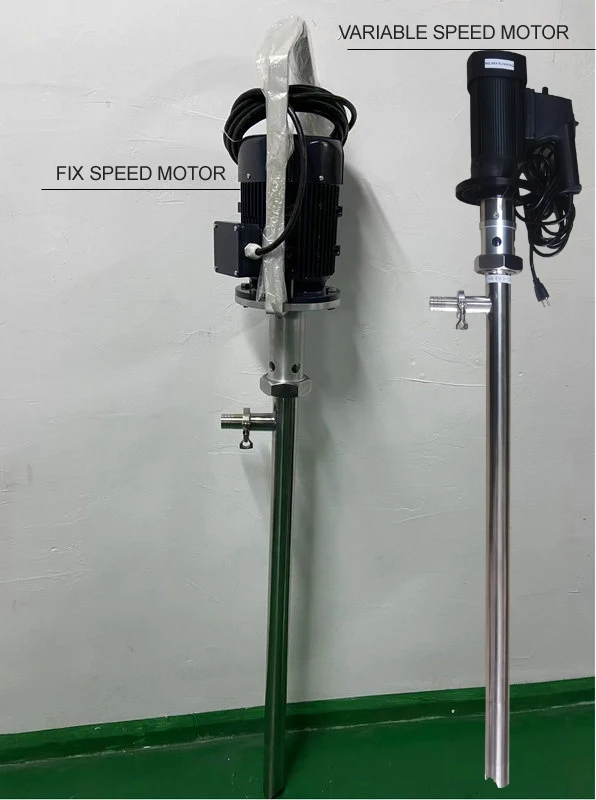

* 220v/60hz/3phase, 380v/50hz/3phase(fixed speed motor)

Applications:
Daily chemical: Cosmetics, shampoo, hair conditioner, toothpaste, hand lotion, cream, etc.
Foodstuff: Honey, cream, ketchup, fruit jam, peanut butter, yoghurt, syrup, juice, wine, beer, etc.


Screw Drum Pump
1. Working Principle: Screw Pump

2. Max temperature: 100℃

3. Casing Parts Material: SS316L

4. Max Viscosity: 100000CPS

5. Power Options: 550W, 750W, 880W, 1100W

6. Speed Range: 0~900RPM

7. Flow Range: 26 -60 L/min
(6.8 - 15.9US.GPM)
8. Max Pressure: 6Bar

9. Main applications: high viscosity food, chemical, ect.


Technical Specification


Model
Flow Rate
(L/min)
Pressure
(Bar)
Power
(W)
Speed
(RPM)
Viscosity
(CPS)
Inlet/OutletDia(mm)
Tube Length
Material
HS-1-1000
45
6



880W



0~625
0~10000












51/25
1000










Pump: SS316




Stator: NBR or Teflon
HS-2-1000
26
6


0~25000

1000

HS-1-1200
45
6


0~10000

1200

HS-2-1200
26
6


0~25000

1200

HS-550W-2-1000
60
6



550W










900
0~25000
1000
HS-550W-4-1000
38
6
0~50000
1000
HS-550W-2-1200
60
6
0~25000
1200
HS-550W-4-1200
38
6
0~50000
1200
HS-750W-3-1000
60
6


750W
0~35000
1000
HS-750-5-1000
38
6
0~70000
1000
HS-750W-3-1200
60
6
0~35000
1200
HS-750W-5-1200
38
6
0~70000
1200
HS-1100W-4-1000
60
6


1100W
0~50000
1000
HS-1100W-6-1000
38
6
0~100000
1000
HS-1100W-4-1200
60
6
0~50000
1200
HS-1100W-6-1200
38
6
0~100000
1200


Details Images
















Related Products




Packing&Shipping

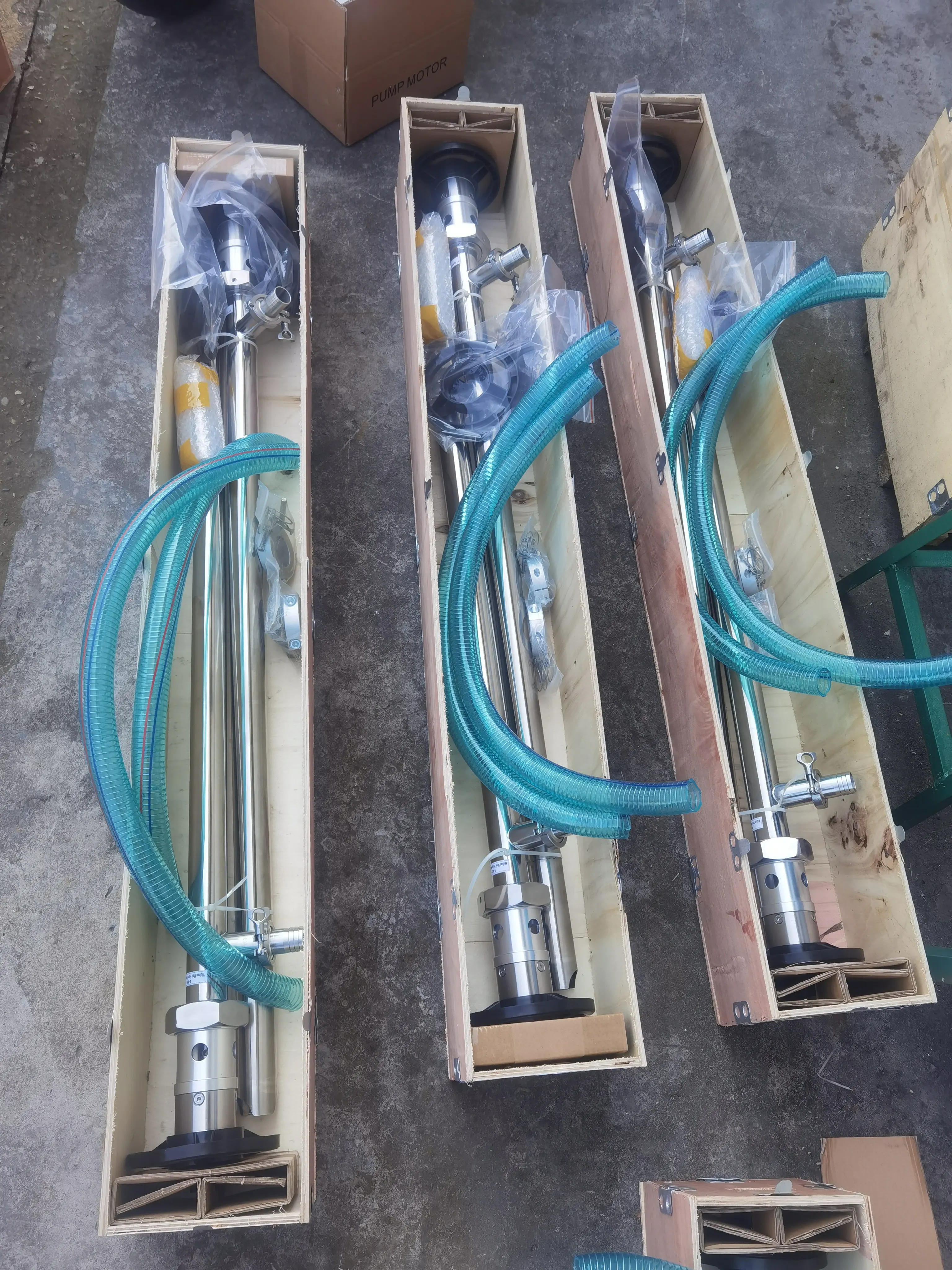

Packing:
 * We have established a well-equipped warehousing facility, which helps us in successfully storing our products as well as procured raw material in an organized manner. Our warehouse is internally segregated into various sections that enable us in storing the products as per their category. This segregation helps us in easy identification and retrieval of products at the time of delivery.
* We pack all the products, using quality packaging material to ensure safe and secure transportation. The packaging is carried out under the supervision of our team of packaging experts, which monitors each & every activity pertaining to this proce.




• Shipping:
 * Trade Terms: FOB China Port, CIF, CNF, DDU, Courier as customer require.
* MOQ: 1pc, sample is available. Sample cost can be deducted from future orders.
* Port: NINGBO, SHANGHAI, SHENZHEN and other Chinese port.
* Delivery time: Sample order will be arrange from stock.
Small quantity order will be arranged in 1-7 days.
Large quantity order will be arranged in 1-2weeks
* Delivery way: Sample order shipped by international express, such as DHL, TNT, UPS, FEDEX
Regular order shipped by air, ship, or others.
* Payment Terms: T/T, LC, Western Union, Paypal, Escrow. Moneygram.
