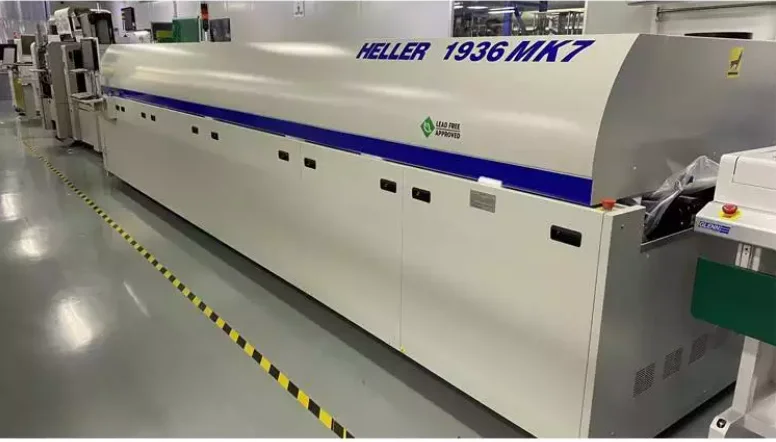

SMT Industries Heller reflow oven 1826 1707 1936 MK5 1936 MK7 air soldering machine

• Highest Yield!


• Maintenance Free Reflow Ovens!

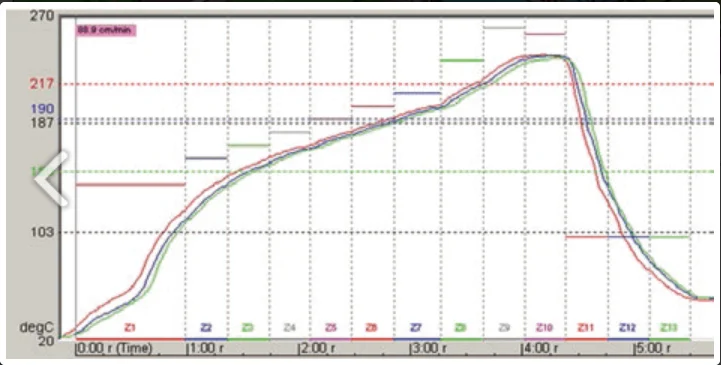

• Lowest Delta T on the board


• Lowest Nitrogen & Electrical Usage!


• VOID Free – with Vacuum option


• INDUSTRY 4.0 Compatibility


• Integrated Cpk software at No Charge!

This new reflow oven platform revolutionizes the industry with several new ground breaking designs and incorporates all of the customer requests for lower Delta T, reduced nitrogen consumption and extended PM into a new low height package that makes it easy to see across the production floor.

We invite you to visit any of our three locations to run profiles and gather DATA for yourself to see the strong advantages of the MK7 reflow oven for your production! Or if you prefer, send us your toughest pcb and we will run reflow soldering profiles and generate the data for you. We are happy to work with you to custom configure your reflow oven machines to suit your needs.

Reflow Oven w/New Low Height Top Shell

The new low height top shell provides much easier access for

reflow oven operators. All skins have double insulation to save up to 10-15% in reflow soldering energy loss.

Internet of Manufacturing (IoM) — Smart factories, intelligent machines and networked processes through the use of cyber-physical systems.

Enhanced low height heater module provides the lowest Delta Ts on the reflow oven with better air flow and uniformity! The Uniform Gas Management system eliminates “net flow” which results in nitrogen consumption reductions of up to 40%! New semi-circular heater is more robust and efficient with much longer lifetime.

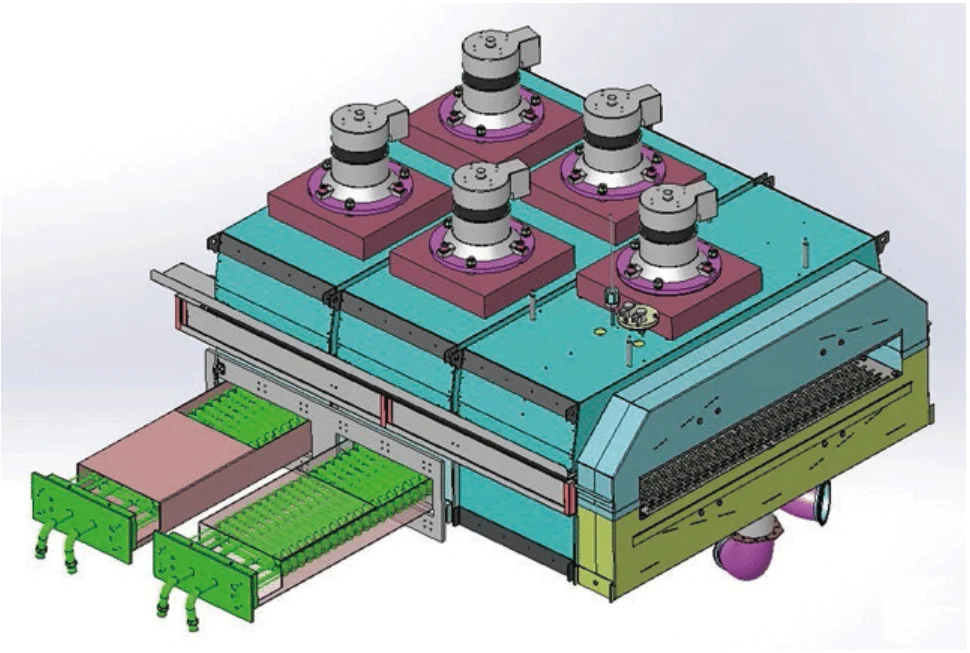

Our reflow oven has a revolutionary flux collection system that traps the flux in collection jars which can be easily removed and replaced while the reflow soldering oven is running – saving time consuming P.M. The new flux filtration box also has no risk of flux clogging for a longer-term P.M. interval. Additionally, our proprietary Flux-Free Grill system limits the flux residue on the cooling grills giving the Heller reflow oven system the highest production yields of any oven!

Reflow Oven With Programmable Cooling

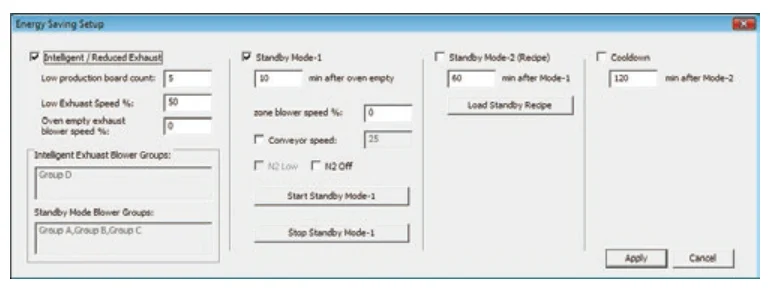

Reflow Oven Energy Management Software

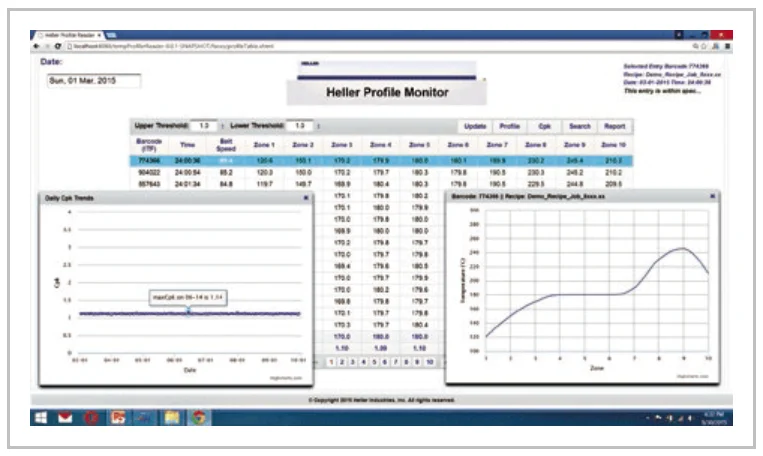

Reflow Oven CPK

Heller provides a dynamic 3 tiered system (Tier 1: Reflow Oven CPK, Tier 2 Process CPK, Tier 3 Product Traceability) enabling customers to quickly improve product quality and yield while reducing costs. And the additional benefits of automatic record keeping and recall provide customers with the peace of mind that all reflow soldering process parameters are under control and within spec.  Customize your reflow oven.

Reflow Oven Specifications

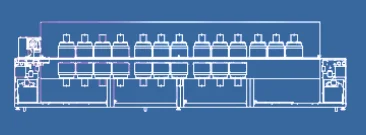

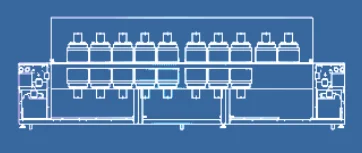

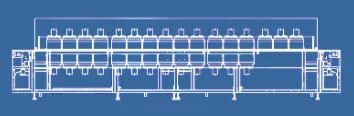

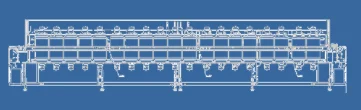

MK7 Reflow Oven	Overall Length	# of Heating Zones	# of Cooling Zones	Max PCB Width
	1826**	465 cm (183″)	8	2 Top (std) Bottom Cool / External Cool optional	22″
	1809*	465 cm (183″)	9	2 Top (std) Bottom Cool / External Cool optional	22″

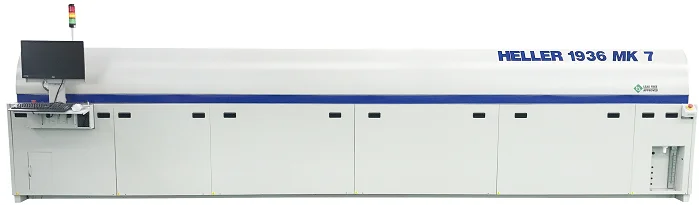

	1936**	590 cm (232″)	10	3 Top (std) Bottom Cool / External Cool optional	22″
	1913*	590 cm (232″)	13	3 Top (std) Bottom Cool / External Cool optional	22″
	2043**	678 cm (267″)	13	3 Top (std) Bottom Cool / External Cool optional	22″
	2049	744 cm (292″)	15	4 Top (std) Bottom Cool / External Cool optional	22″
	2156	869 cm (342″)	17	5 Top (std) Bottom Cool / External Cool optional	22″
*The 1913, 1809 & 1707 Reflow Oven series have 10 inch wide heater modules for reduced liquidus time. **2043, 1936 & 1826 Reflow Oven models have 12 inch modules for profile compatibility with competitor systems. See all of our convection reflow ovens.
