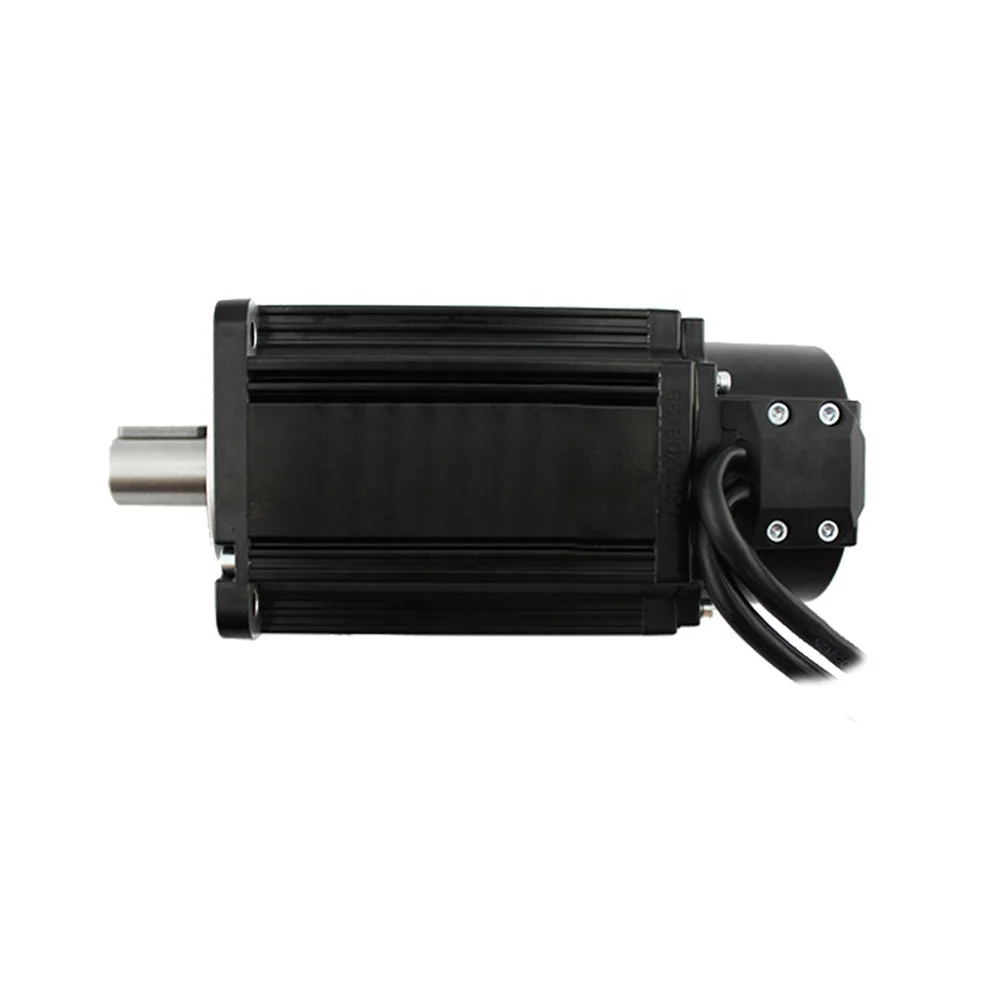

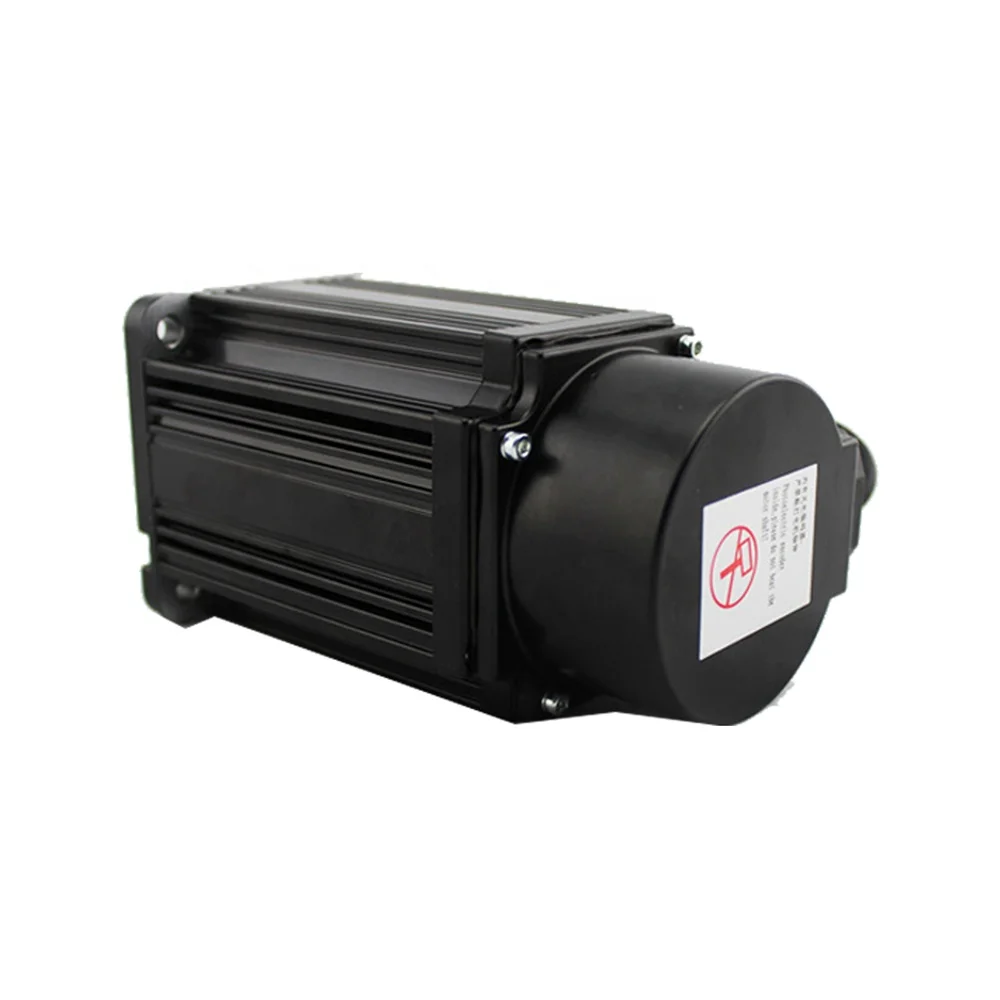

AC Servo Motor 90series 0.73kw CNC Machine Synchronous Motor Servo 730watt 220V 3phase Ie 3 50/60hz Three phase Drip proof

Product Overview

Description



If you need 3D model of the motor, please give us your email address and we will email you it.







Motor model	Rated power(W)	Rated voltage(V)	Rated torque(N.m)	Rated speed(RPM)	Length (L:mm)	Shaft diameter(D:mm)
90ST-M02430	750	220	2.4	3000	150	16
90ST-M03520	730	220	3.5	2000	172	16
90ST-M04025	1000	220	4	2500	182	16





The motor can be assembled with brake, gearbox and absolute encoder as required.

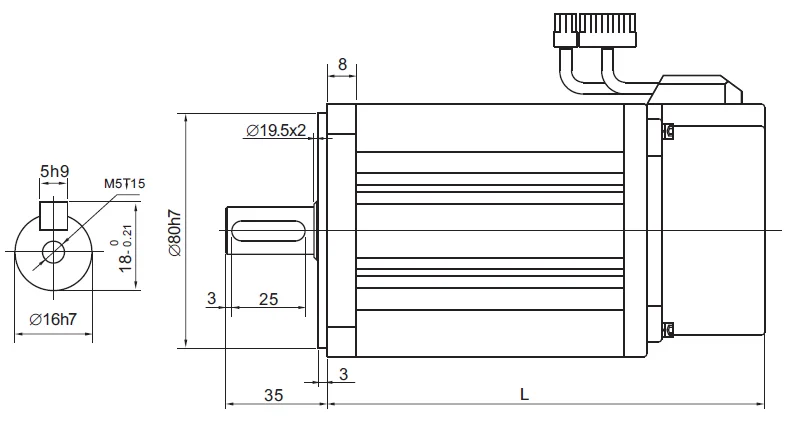

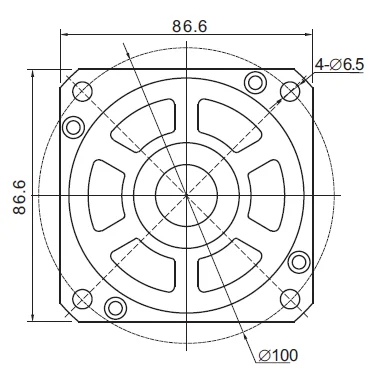

Installation Dimension: unit=mm

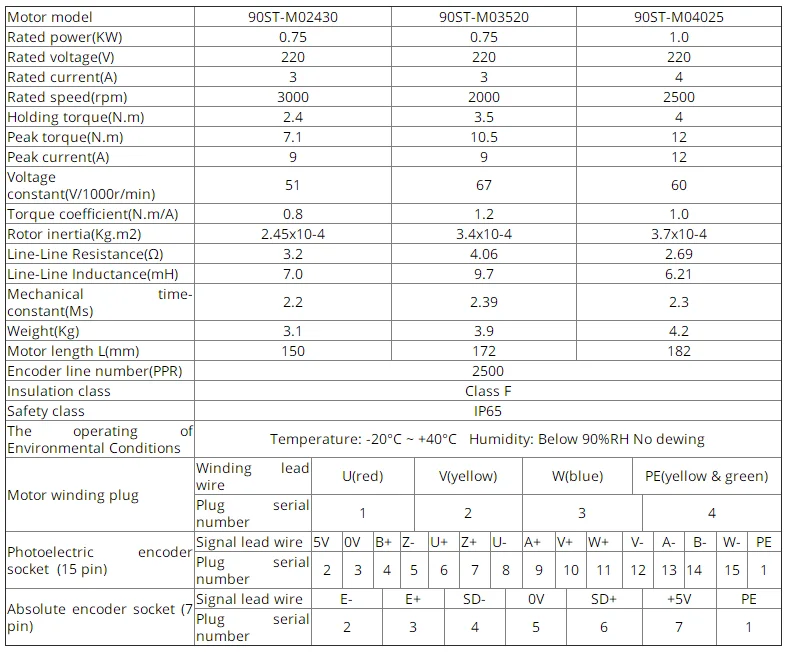

 Specifications







Precautions :

1. When installing/removing parts to the end of the motor shaft, do not hit the shaft hard to prevent the encoder at the other end of the shaft from being knocked bad.

2. Striving to keep the shaft seat from vibration to prevent bearing from being damaged.
