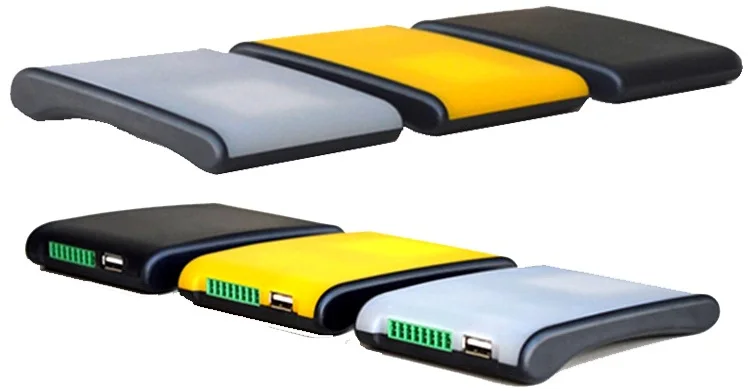

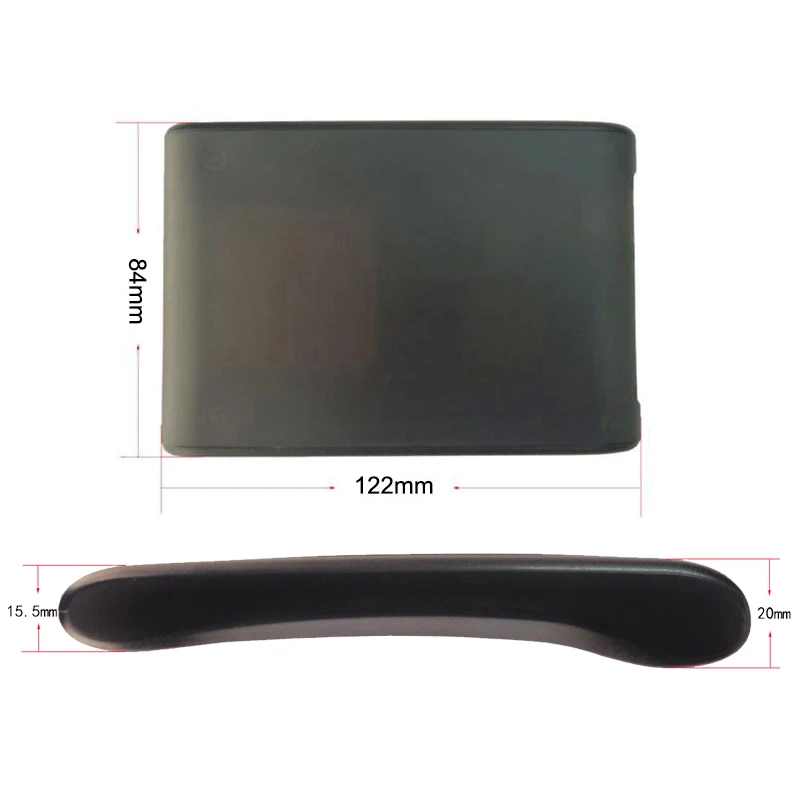

Low power consumption phychips pr9200 epc gen2 860 960mhz rfid card reader/writer module

Phychip PR9200 Inside

      PR9200 has an outstanding performance with a low cost.

Excellent Performance of Reading Tags

Identifying Tags sensitively and stably.

Stable read distance is 2-3m with Microstrip ceramics antenna.

8dBi Circular Polarization Planar Antenna: >10m.

12dBi Linear polarization antenna: >15m.

Performance of multi-tags identification: >50pcs.

Read rate: >50pcs/s.

Completely Solve the Problem of Heat

Don’t need any cooling devices.

No heat during long-term continuous full load working at room temperature.

Continuous Current <200mA @26 dBm Output (3.5V Power Supply).

Peak pulse current <260mA @26 dBm Output (3.5V Power Supply).

Excellent Stability

24 hours X 365 days continuous working without Crash.

Less influence by shell, electromagnetic environment, etc.

Wide temperature design. Temperature Coefficient is very low.

Excellent Consistency

A model of design consistency.

Every indicators are calibrated rigorously, ensure consistency.

Simple and Efficient Interface

Communication interface is compatible with our INDY R2000 series.

Peripheral circuits are very simple, single power, don’t need to connect Ta capacitor externally (See figure 1: Circuit Design Reference).

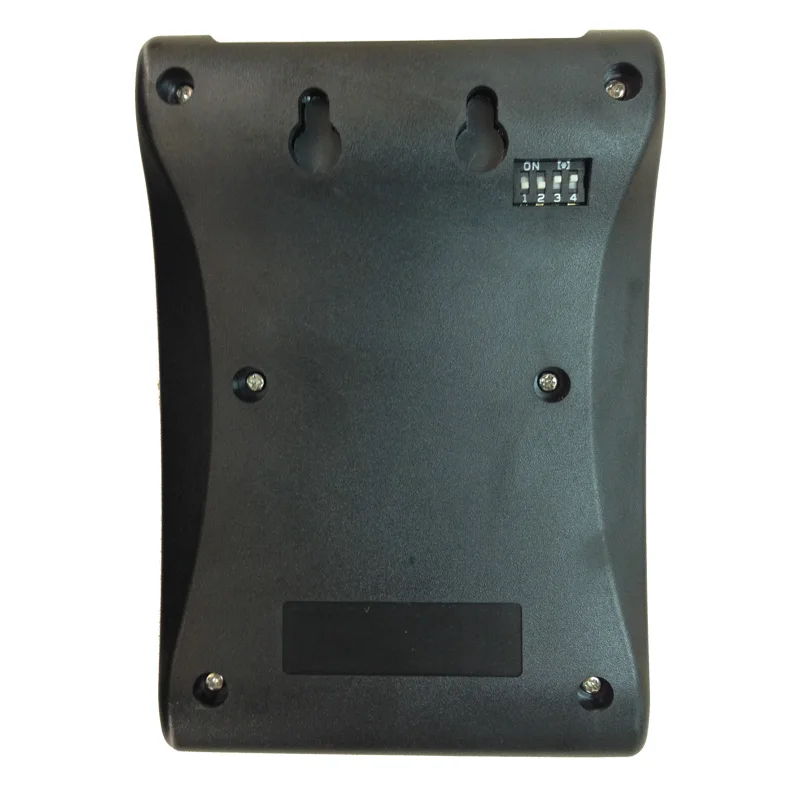

Supports Two Installation Methods

Supports RF connector + FPC connector installation method.

Supports Surface Mount Solder.

Input Voltage

DC 3.5V – 5 V

Standby Mode Current

<80mA (EN High Level)

Sleep Current

<100uA (EN Low Level)

Operating Current

180mA @ 3.5V (26 dBm Output,25°C).

110mA @ 3.5V (18 dBm Output,25°C).

Starting Time

<80mS

Operating Temperature

- 20 °C  -  + 70  °C

Storage Temperature

- 20 °C  -  + 85  °C

Operating Humidity

< 95% ( + 25 °C)

Air Interface Protocol

EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

Spectrum Range

902Mhz – 928Mhz

865MHz – 868MHz(Optional)

Supported Regions

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208

Mainland China

Japan

Korea

Malaysia

Taiwan

Output Power

18-26 dBm

Output Power Precision

+/- 1dB

Output Power Flatness

+/- 0.2dB

RF Connector

I-PEX

Receive Sensitivity

< -70dBm

Peak Inventory Speed

> 50 pcs/s

Tag Buffer Size

200 pcs @ 96 bit EPC

Tag RSSI

Supported

Host Communication

TTL Uart port

Wiegand 26

Wiegand 34

GPIO

2 input 2 output (3.3V TTL Level)

Baud Rate

115200 bps (Default and Recommended)

38400bps

Cooling

Air cooling (Don’t need external Heatsink).
