New ALLWINNER S3 Processors Electronic Integrated Circuit Chips For Car accessories and Home Digital Integrated Circuits
- Category: >>>
- Supplier: Shenzhen Sochip Technology Co. Ltd.
Share on (1600519321470):
Product Overview
Description
Product Description

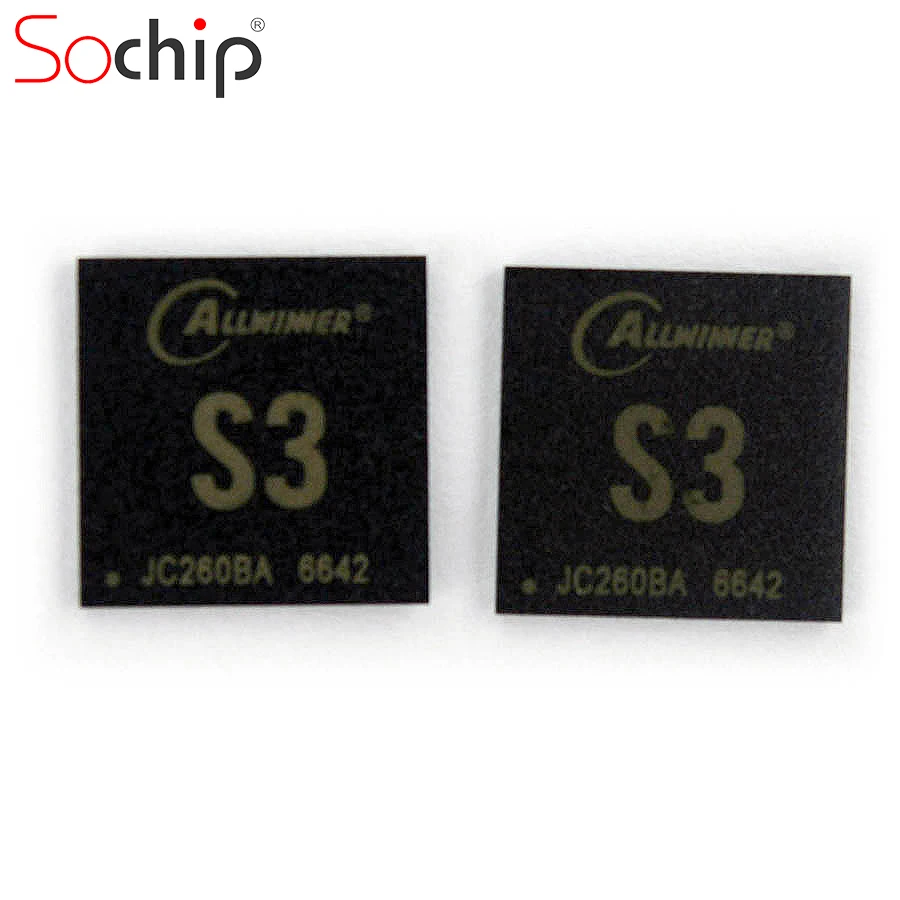

The S3 processor represents Allwinner's latest achievement in video encoding processors, which integrates a single CPU that operates at speed up to 1.2GHz with supporting numerous peripherals. H.264 encoder by 1080p@60fps enables the S3 to capture superior shots in motion with the fine details.
To enrich camera feature and enhance image quality, S3 equips an 8M HawkViewTM ISP with advanced features like spatial de-noise, chrominance de-noise, zone-based AE/AF/AWB statistics, black level correction, lens shading correction, color correction and anti-flick detection statistics. Audio subsystem includes audio codec with dedicated hardware, and supports I2S/PCM interface for connecting to an external audio codec.
The S3 processor includes one built-in DDR3, and external memory interfaces to SPI NAND/Nor flash an SD/MMC. Designed to be a connected solution, the S3 supports WiFi or 3G/4G connectivity to enable to be controlled wirelessly from a smartphone or other remote device. Time lapse photography is also supported by the S3 processor.
To reduce total system cost and enhance overall functionality ,the S3 has a broad range of hardware peripherals such as UART, SPI, USB HS/FS OTG , TWI, EMAC etc. Applications: Action Camera CDR

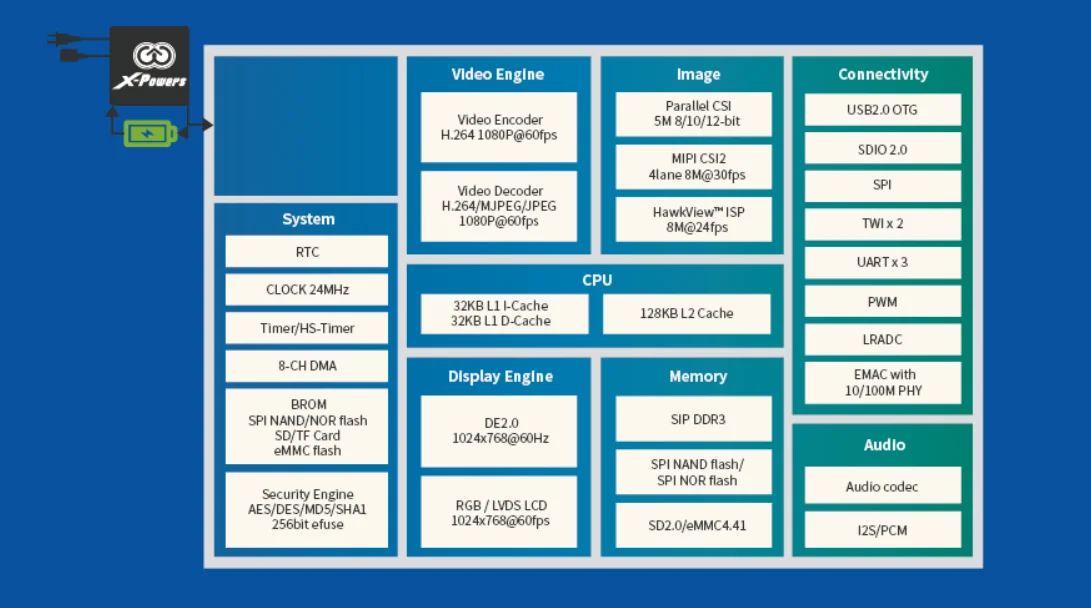

Specification
CPU | • ARM® Cortex™-A7 @1.2GHz |
Video Capture | •1080P@60fps |
Video Input/Output | • Supports 8/10/12-bit parallel CSI and 4-lane MIPI CSI2 • Supports BT1120 input • Supports up to 8M CMOS sensor • Supports RGB/i80/LVDS LCD up to 1024x768 resolution • Supports Allwinner's next-gen SmartColor display technology for better visual effects for images & videos |
ISP | • Integrated ISP up to 8M pixels • Supports two channel outputs for display and encoding respectively • Supports various input and output formats • Supports AE/AF/AWB • Supports saturation adjustment/ noise reduction/ defect pixel correction/distortion correction |
Memory | • SIP 16-bit DDR3, up to 1333Mbp |
OS | • Supports Camdroid OS, an Android-lite operating system • Supports Linux OS |
Display | •RGB/LVDS |
Connectivity | • 3 x SD card controllers • LRADC/SPI/TWI/UART/PWM • USB, EMAC+PHY |

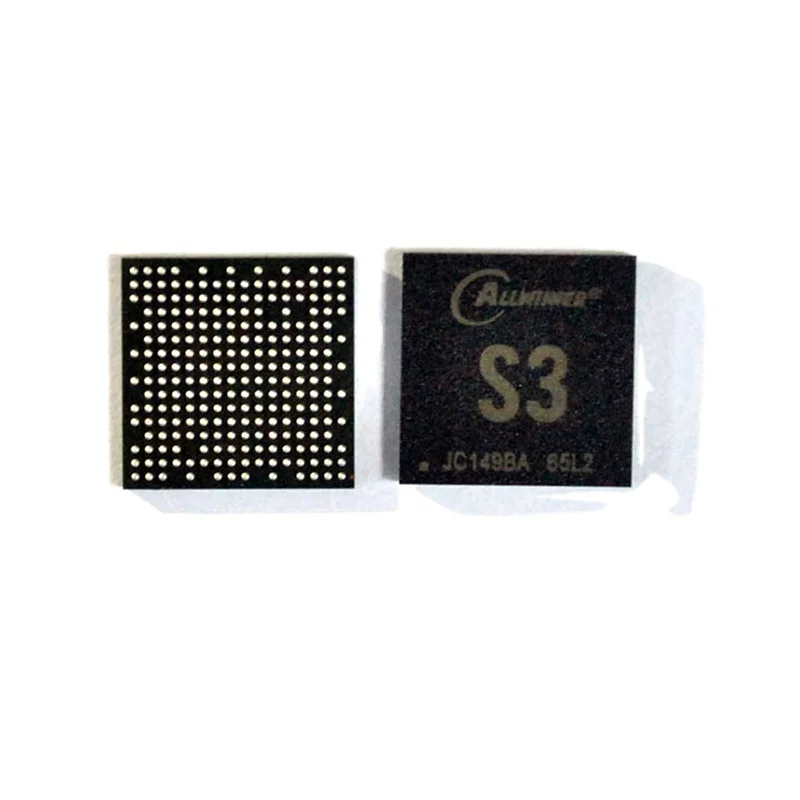

Package | • FBGA 234 balls, 11mm x 11mm size, 0.65 pitch |
Product Description
The S3 processor represents Allwinner’s latest achievement in video encoding processors, which integrates a single ARM CortexTM-A7 CPU that operates at speed up to 1.2GHz with supporting numerous peripherals.
It SIP 128MB DDR3 , it is one of our best sellers of allwinner ic
H.264 encoder by 1080p@60fps enables the S3 to capture superior shots in motion with the fine details.
To enrich camera feature and enhance image quality, S3 equips an 8M HawkViewTM ISP with advanced features like spatial de-noise, chrominance de-noise, zone-based AE/AF/AWB statistics, black level correction, lens shading correction, color correction and anti-flick detection statistics.
Audio subsystem includes audio codec with dedicated ardware, and supports I2S/PCM interface for connecting to an external audio codec
Designed to be a connected solution,the S3 supports WiFi or 3G/4G connectivity to nable t be controlled wirelessly from a smartphone or other remote device.
Time lapse photography is also supported by the S3 processor. To reduce total system cost and enhance overall functionality ,the S3 has a broad ran of ha dware peripherals such as UART, SPI, USB HS/FS OTG ,TWI, EMAC etc
To know more about the processor, please feel free to contact us for full datasheet
2.1.1. CPU Architecture
ARM CortexTM-A7 MPCoreTM Processor
Thumb-2 Technology
Support NEON Advanced SIMD(single instruction multiple data)instruction for acceleration of media and signal
processing functions
Support Large Physical Address Extensions(LPAE)
VFPv4 Floating Point Unit
32KB L1 Instruction cache and 32KB L1 Data cache
128KB L2 cache
2.1.2. Memory Subsystem
2.1.2.1. Boot ROM
On-chip memory
Size:32KB
Support system boot from the following devices:
SPI Nor flash
SPI Nand flash
SD/TF card
eMMC flash
Support system code download throu USB TG
2.1.2.2. SDRAM
One uilt-in 128MB DDR3
2.1.2.3. SD/MMC Interface
Up to three SD/MMC controllers
1/4/8-bit SD,SDIO,MMC mode
Complies with eMMC standard specification V4.41, SD physical layer specification V2.0, SDIO card specification
V2.0
Support hardware CRC generation and error detection
Support block size from 1 to 65535 bytes
2.1.3. System Peripheral
2.1.3.1. Timer
Three on-chip timers with interrupt-based operation
One watchdog to generate reset signal or interrupts
S3 Datasheet(Revision 1.0)
Copyright©2017 Allwinner Technology Co.,Ltd. All Rights Reserved
ARM CortexTM-A7 MPCoreTM Processor
Thumb-2 Technology
Support NEON Advanced SIMD(single instruction multiple data)instruction for acceleration of media and signal
processing functions
Support Large Physical Address Extensions(LPAE)
VFPv4 Floating Point Unit
32KB L1 Instruction cache and 32KB L1 Data cache
128KB L2 cache
2.1.2. Memory Subsystem
2.1.2.1. Boot ROM
On-chip memory
Size:32KB
Support system boot from the following devices:
SPI Nor flash
SPI Nand flash
SD/TF card
eMMC flash
Support system code download throu USB TG
2.1.2.2. SDRAM
One uilt-in 128MB DDR3
2.1.2.3. SD/MMC Interface
Up to three SD/MMC controllers
1/4/8-bit SD,SDIO,MMC mode
Complies with eMMC standard specification V4.41, SD physical layer specification V2.0, SDIO card specification
V2.0
Support hardware CRC generation and error detection
Support block size from 1 to 65535 bytes
2.1.3. System Peripheral
2.1.3.1. Timer
Three on-chip timers with interrupt-based operation
One watchdog to generate reset signal or interrupts
S3 Datasheet(Revision 1.0)
Copyright©2017 Allwinner Technology Co.,Ltd. All Rights Reserved
