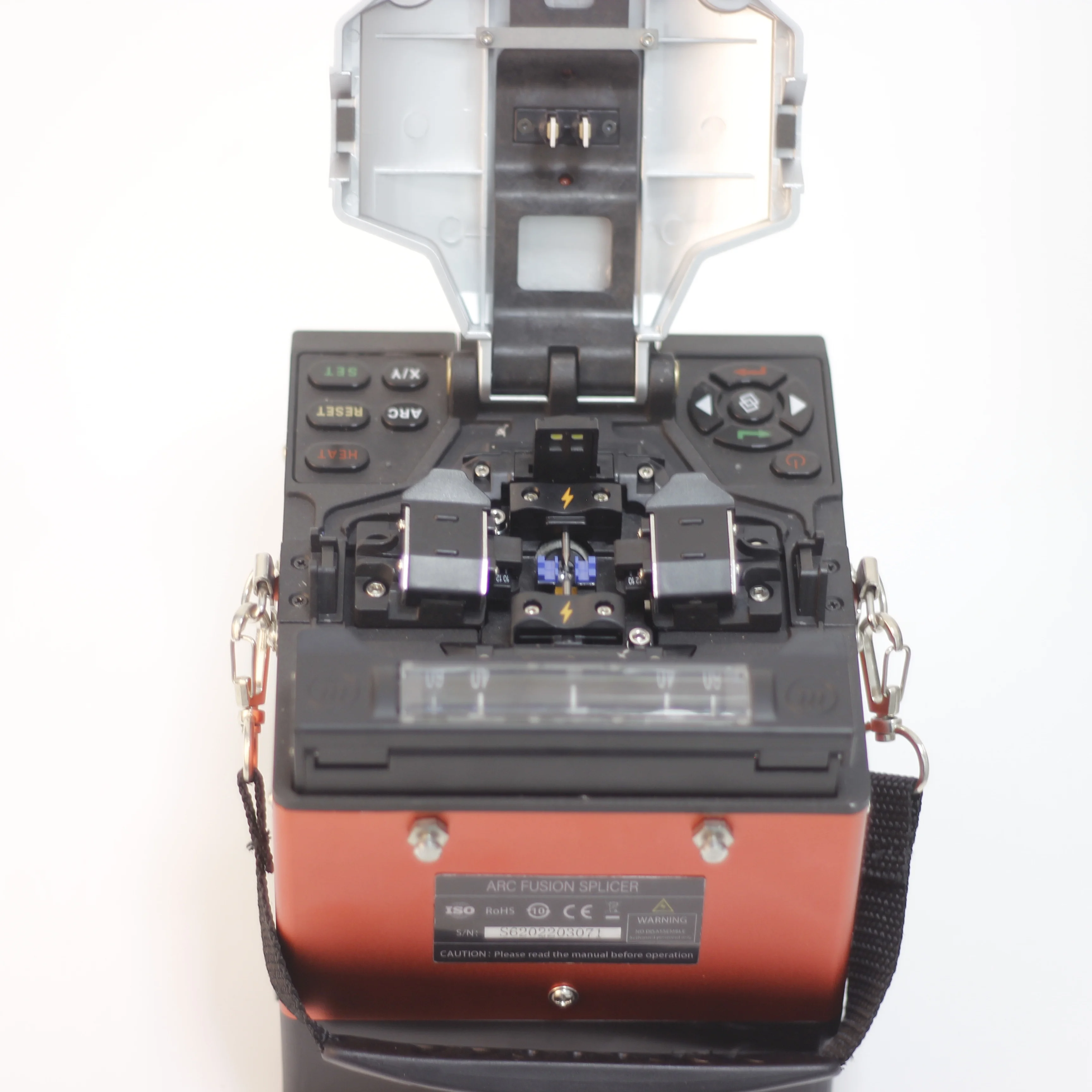

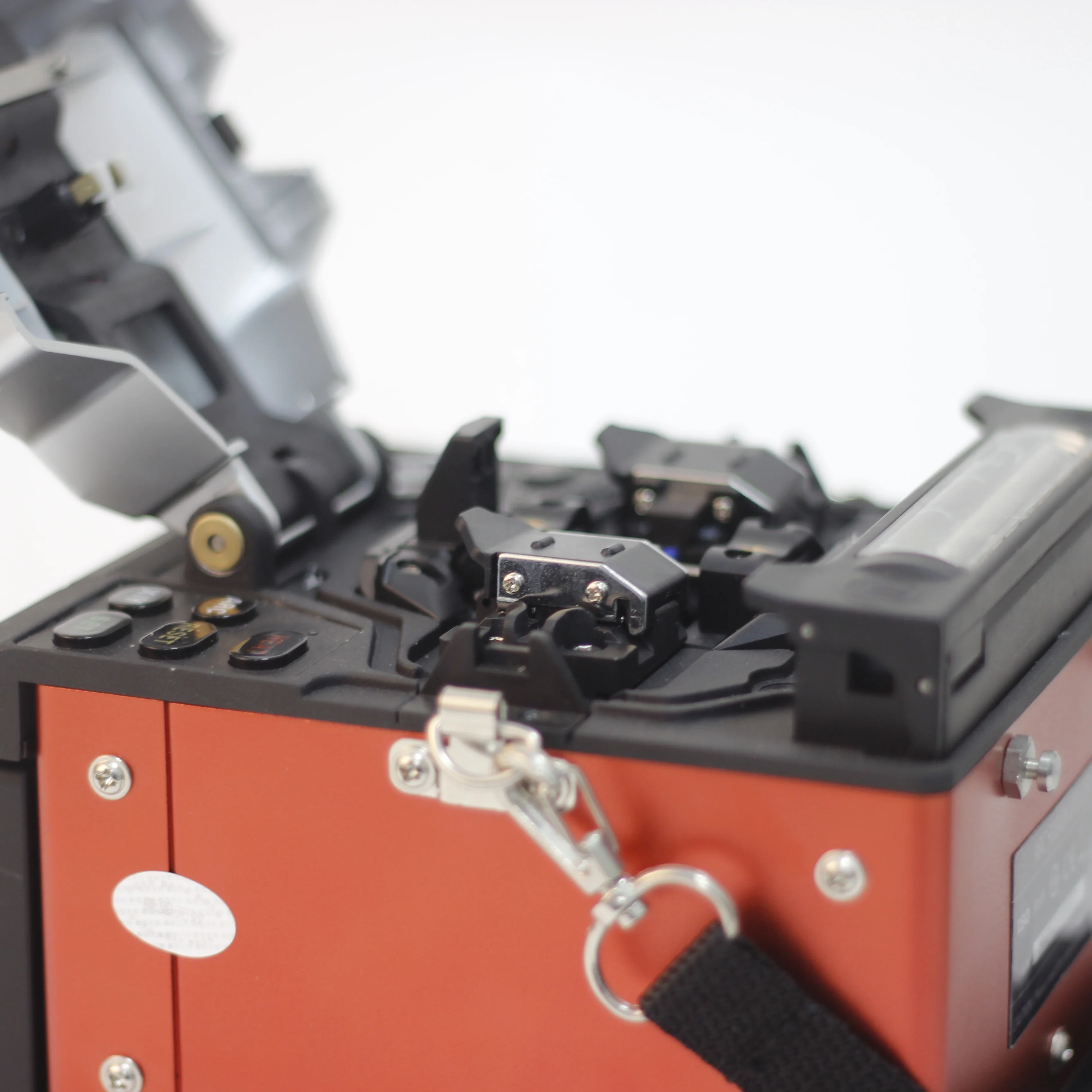

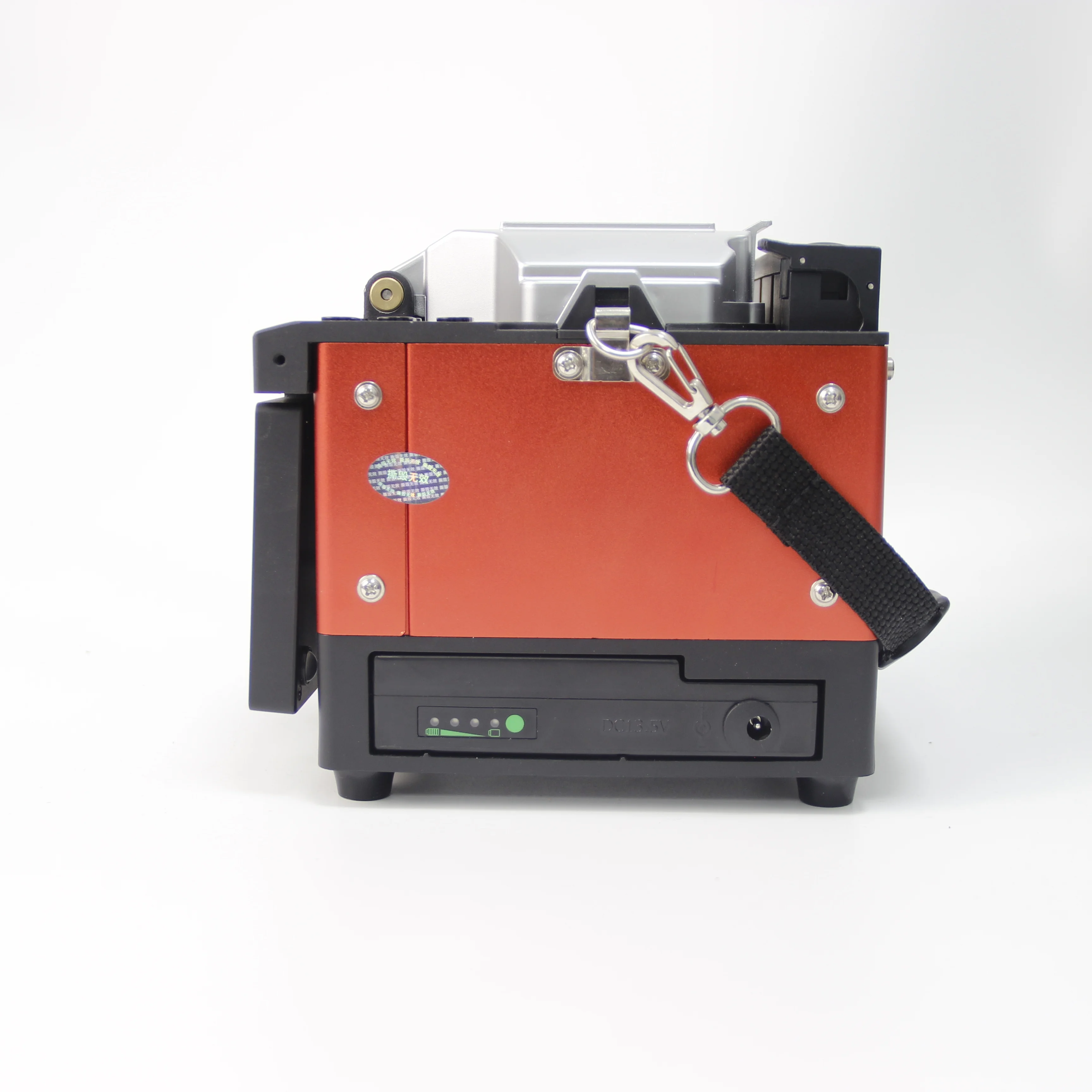

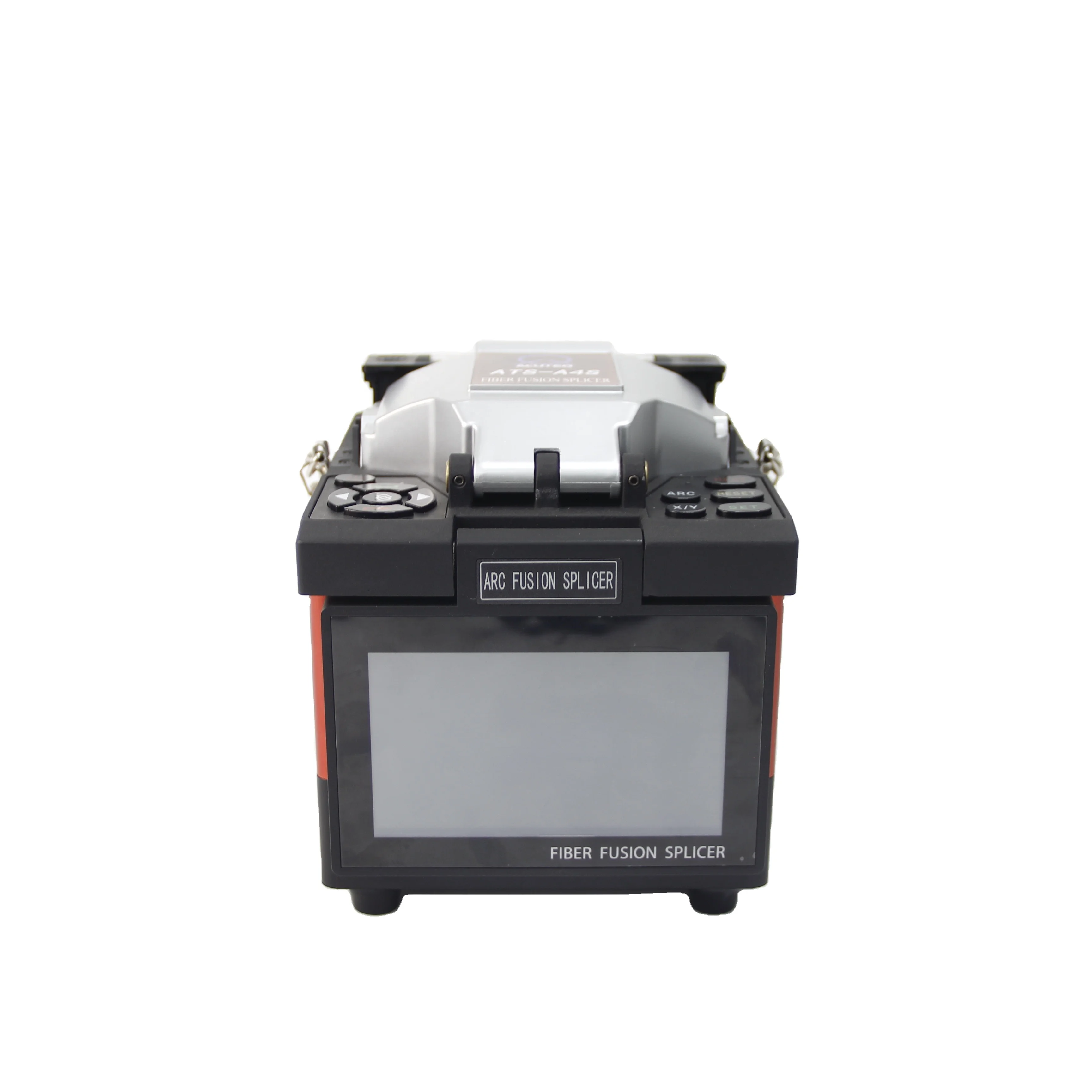

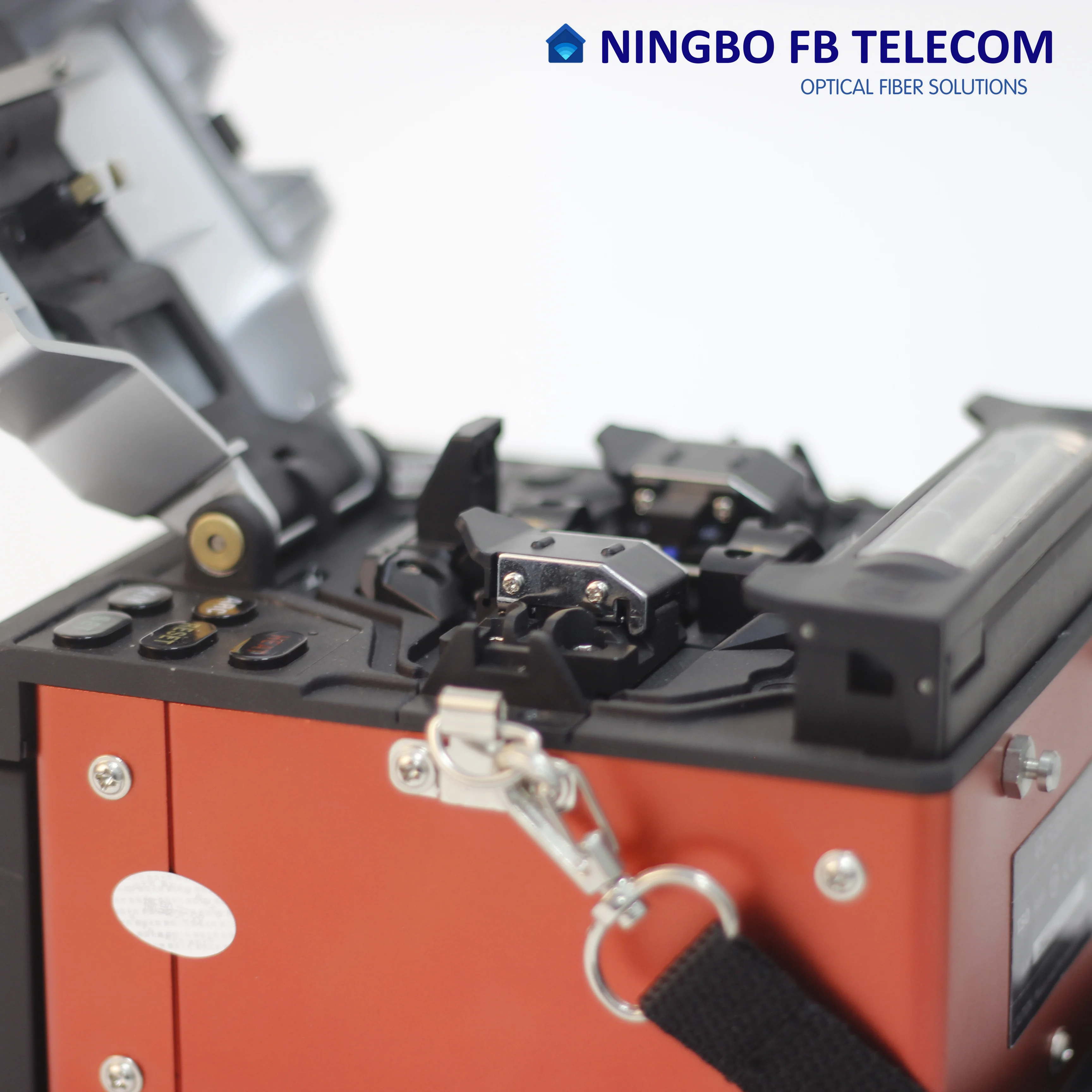

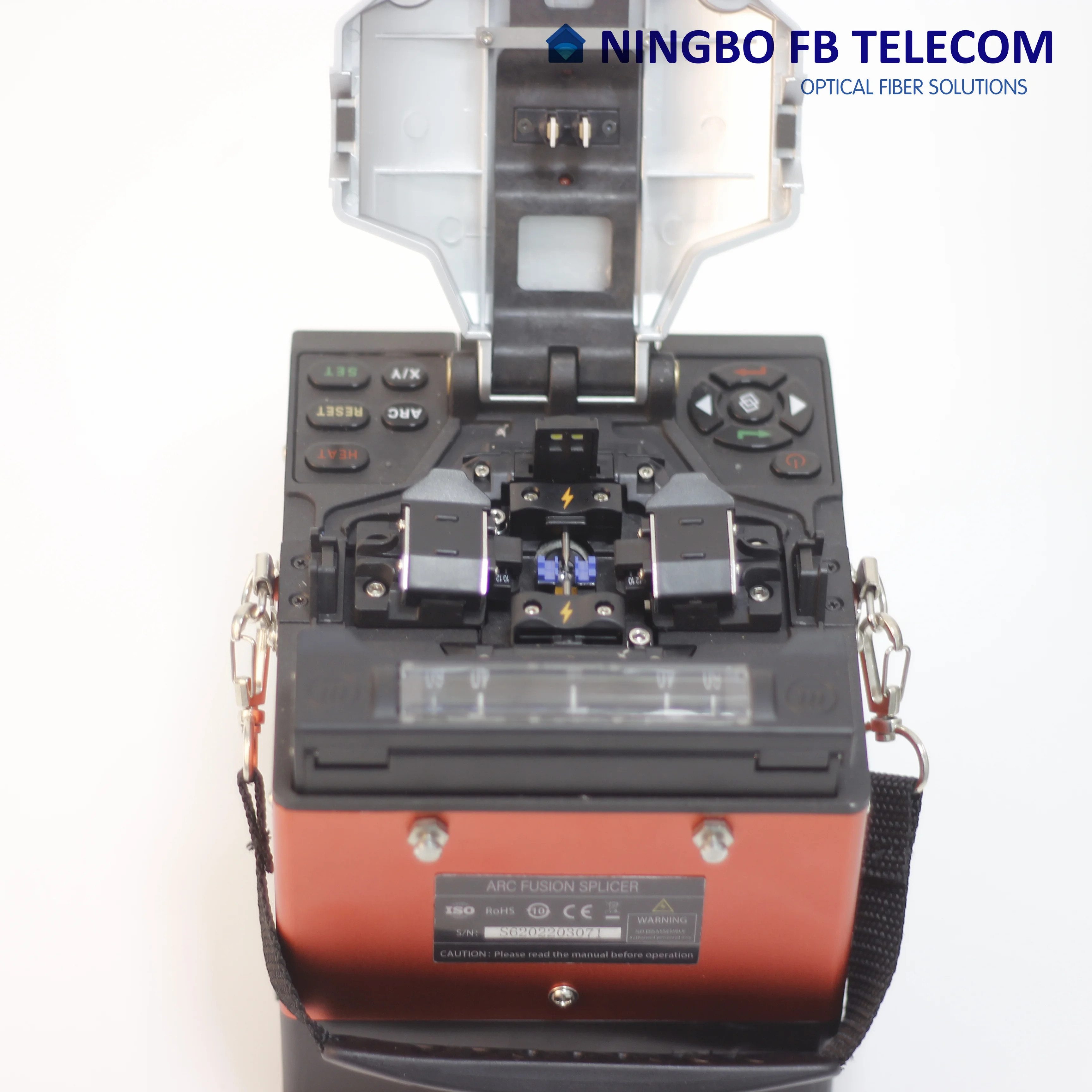

4 Motors FTTH Fiber Optic Automatic Intelligent Splicing Machine SM MM Fiber Fusion Splicer
- Category: >>>
- Supplier: Ningbo FB Communication Technology Co. Ltd.
Share on (1600519321474):
Product Overview
Description
Product Description
Product performance description
1.The arc discharge is adjusted by air pressure,enviroment ,and temperature, etc accordingly.
2. Standard heating and preheating are avaiable.
3. Equipped with two USB and two 12V power interfaces， battery and external power supply direct.
4 Apply to bare fiber, pigtal, patch cords, drop cable.
5 Fiber alignment: cladding to cladding
6 X/Y fibers can be shown by the 4.3 inch HD touch screen more clearly
Specifications
Model | Fusion Splicer |
Splicing Type | SM, MM, DS, NZDS |
Splicing Loss | 0.02dB(SM), O.OldB(MM), 0.04dB(DS), 0.04dB(NZDS) |
Return Loss | >60dB |
Splicing Mode | Manual, Semi Auto, Auto |
Fiber Alignment | Clad to Clad |
Applicable Fiber | Bare fiber, Pigtail, Patch cords, Drop cable, etc. |
Splicing Time | typical 8s |
Heating Time | typical 20s |
Cleaved Length | 8 〜16mm |
Magnification | 300X(X or Y view)/100X(X and Y view) |
View Display | 4.3 inch high-quality LCD touch screen |
Tension Test | 2N |
Heat Shrinkable Tube | 60mm, 40mm |
Battery Capacity | 5200mAh, continuous splicing and heating about 280 times |
Electrodes Life | More than 5000 ARC discharges, can be replaced conveniently |
Fiber Diameter | Fiber diameter Cladding Diameter 80-150 卩 m. Coating Diameter 100-1000 卩 m |
Interface | USB Convenient data download and software update |
Flashlight | Dual LED,easy for night operation |
Power supply | Input AC100-240V 50 /60HZ, output DC13.5V/4.8A |
Operating Condition | Temperature-15 ~ +50 °C, humidity: <95% RH (no condensation) Working altitude: 0 〜5000m. Resist max. wind speed: < 15m / s |
Weight | 1.95 KG (including battery) |
Dimension (LxWxH) | 130mm(L) X 154mm(W) Xl32mm(H) |
Details Images
Standard Accessories
No | Items | Qty | No | Items | Qty |
1 | Fusion Splicer | 1 | 7 | Fiber Stripper | 1 |
2 | Battery | 1 | 8 | Drop Cable Stripper | 1 |
3 | Fiber Cleaver | 1 | 9 | Cooling Tray | 1 |
4 | Spare Electrodes | 1 | 10 | Case | 1 |
5 | AC Adaptor | 1 | 11 | Calibration certificate | 1 |
6 | User Manual CD | 1 | 12 | P.S Cord | 1 |
