ZTE GTGH Service board 16ports C C SFP module for zte Gpon olt C300 C320

Product Overview

Description

ZTE GTGH Service board 16ports C+ C++ SFP module for zte Gpon olt C300 C320



Functional Feature

GPON features:Secure authentication mode: SN, password or SN+password,Upstream/downstream FEC
Voice features:SIP or H.248 protocols,Media stream and signaling stream separation
Multicast features:
IGMP V2&V3 Snooping,GMP Proxy
Wi-Fi features:
802.11b/g/n certified by the Wi-Fi Alliance ,Routing features,8 WAN interfaces,NAT function,Internet, IPTV and VoIP services are automatically bound to ONT ports,Virtual Server, Port Trigger,DMZ and DDNS
Security features:
SMAC/IP/URL filter,Anti-DOS Attack,IPv6 features(for HSI and IPTV),IPv6/IPv4 dual stack,DS-Lite,MLD snooping
Maintenance features:
Web local management,Remote management through OMCI,Remote management through TR069,Optical power monitoring,Loop-line test of POTS ports,Call emulation,PPPoE dialup emulation,DHCP emulation

Features:
(1)In compliant with IEEE802.3ah Standard and CTC2.1/3.0
(2)Up to 20KM transmission Distance
(3)Support VLAN and IGMP
(4)Support port isolation between different ports
(5)Integrated OAM remote configuration and maintenance function
(6)Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology
(7)EMS network management based on SNMP ,convenient for maintenance
(8)Full speed non-blocking switching.
(9)Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
(10)Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
(11)Support auto polarity detection of Ethernet ports (AUTO MDIX).
(12)Integrated IEEE802.1p QoS with four level priority queues.
(13)Support IPv4 IGMP snooping and IPv6 MLD snooping.
(14)CATV Specification



Product Application





Product Specification

Products Name	Gpon ONU
Pon TYPE	G/EPON ONU or GPON ONT
Fuction optional	FE/GE Lan port ,WIFI/ FXS/POTS/,CATV/RF..Ect..
Lan PORT	10/100/1000base-tx;  Interface:  RJ45
PORTs	PON: SC/PC
ETHERNET	•10/100/1000M  auto-negotiation •Full/half duplex mode •RJ45 connector •Auto MDI/MDI-X •100m distance
Business	•Layer 2 wire speed switching •Support VLAN TAG/UNTAG,VLAN conversion •Support Port-based speed limitation •Support Priority classification •Support storm control of broadcast •Support RSTP
Network Management	•Support IEEE802.3 QAM, ONU can be remotely managed by OLT •Support Remote management through SNMP and Telnet •Support Be Remote updated by OLT
Physical	Dimension: 130mm X 100mm X 37mm;
	Weight: 250g
	Temperature: 0~60°C;   Relative Humidity: 10~90%
Power Adapter	Input: AC 110V~ AC 265V;  Output: DC12V/0.5A
Consumption	<5W

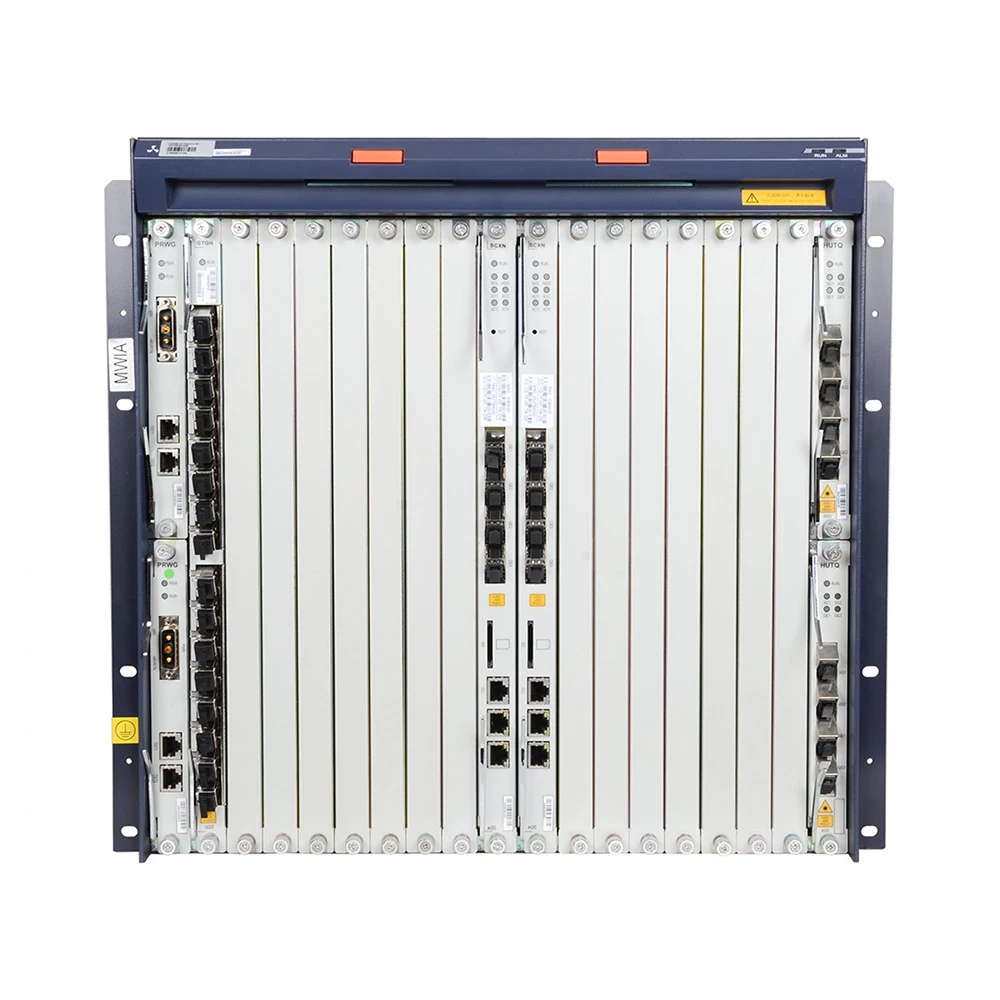

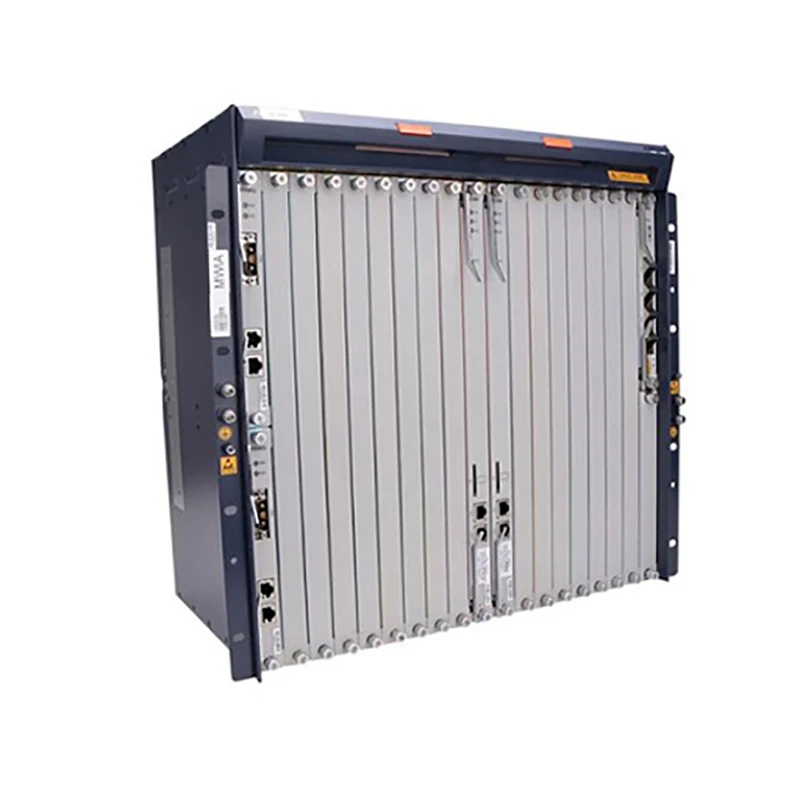

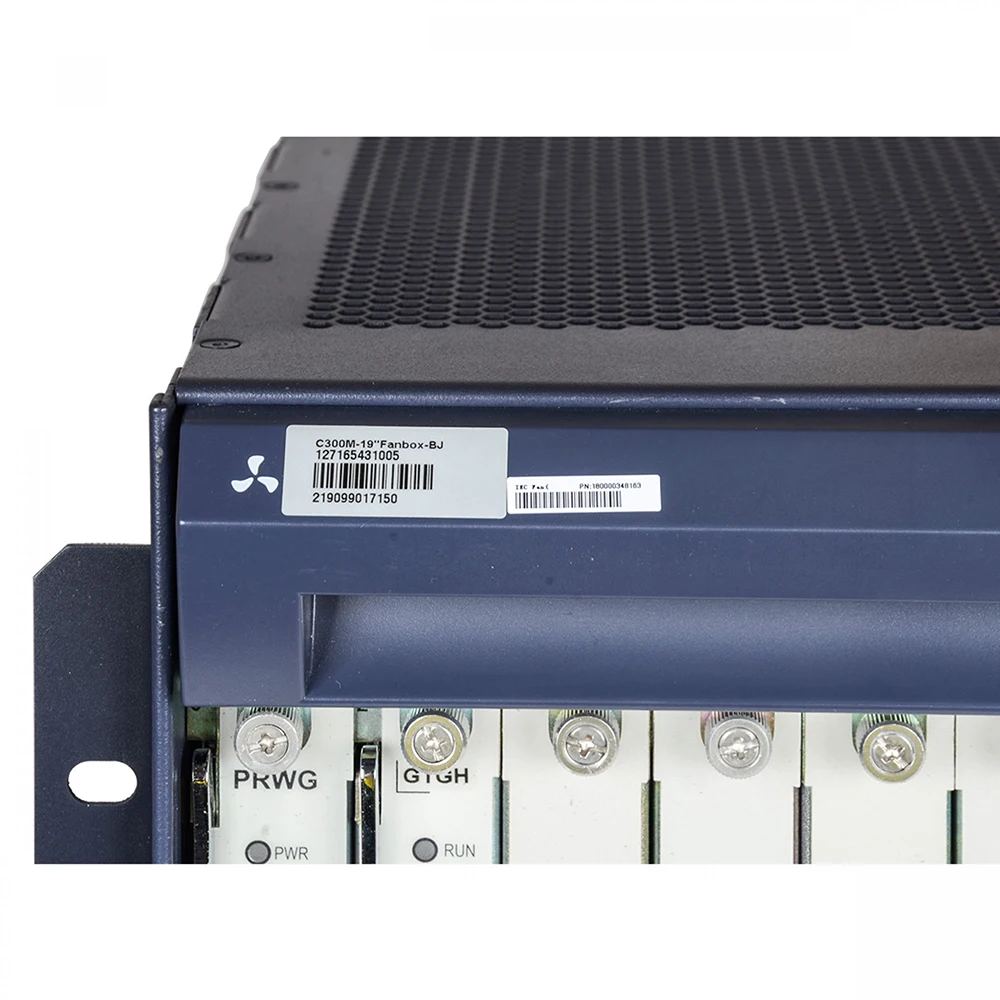

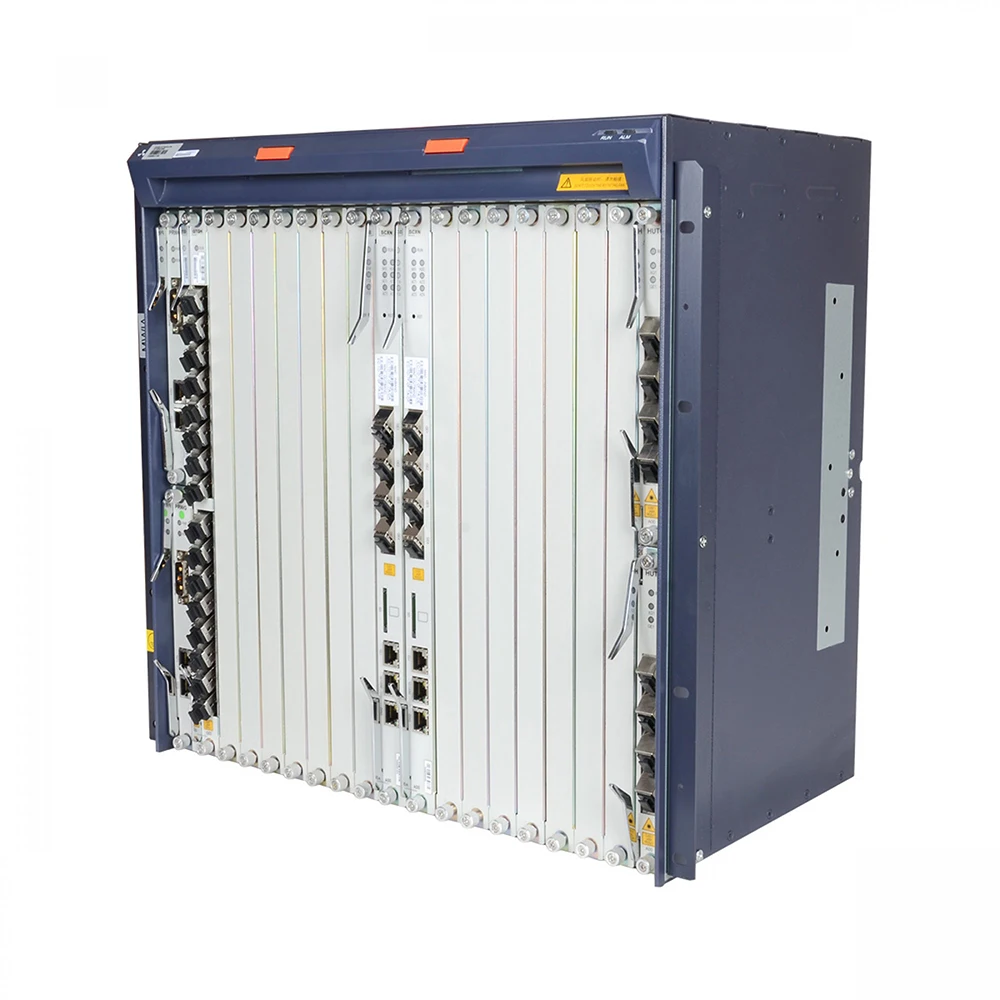

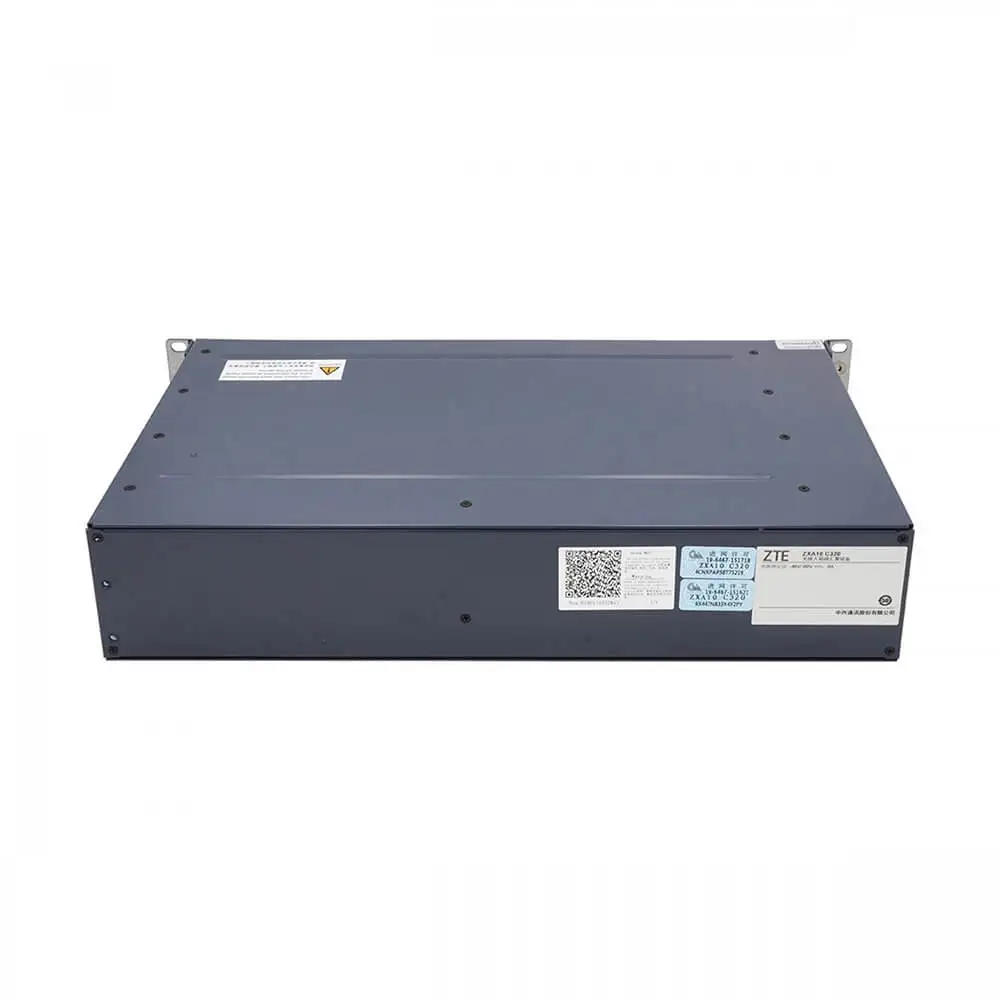

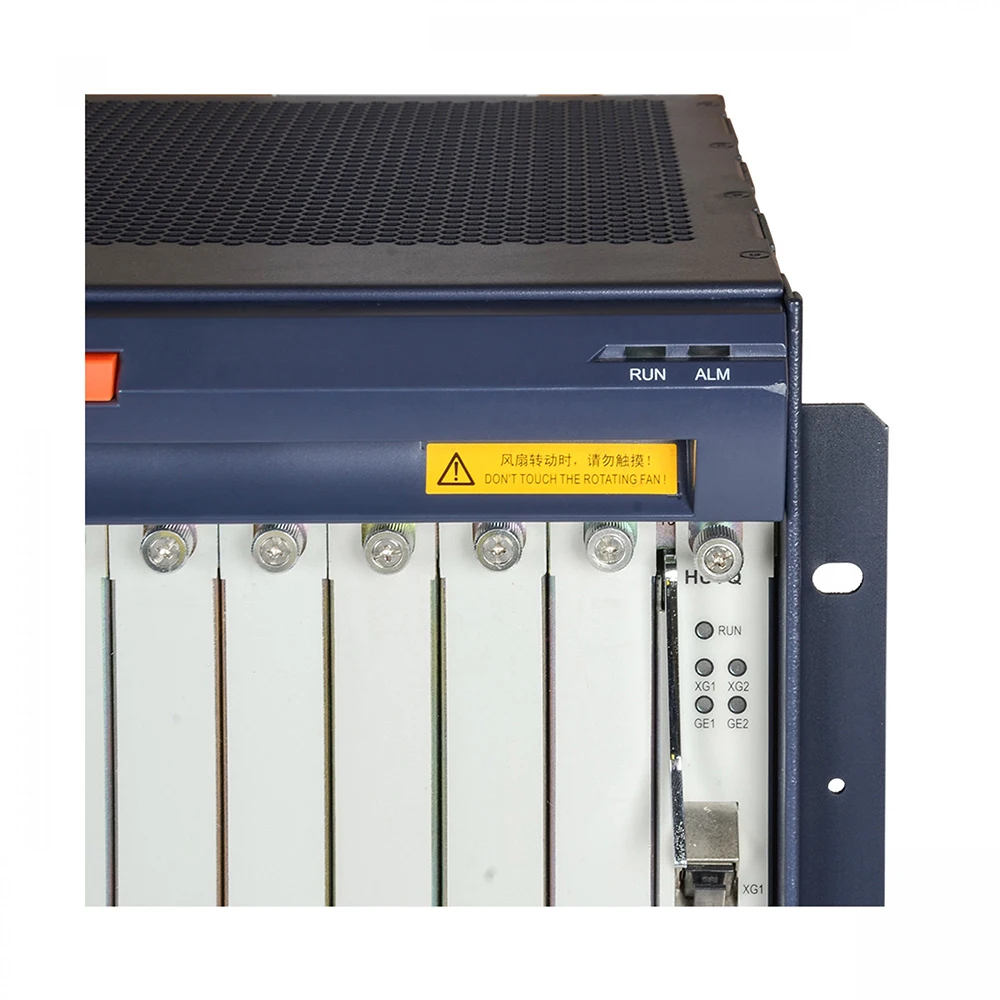

Detail Picture











1.What is your MOQ?
Foclink: Normally is 1pcs/item,could be coordinated if you have detail requirements.
2.How about your delivery date?
Foclink: Delivery date is about 3-5days, it depends on the order quantity.
3.Can you supply sample for customers?
Foclink: of course, however the delivery cost will be charged on customer's account
4.How about your price?
Foclink: We are supplying products with very competitive price based on good performance.
5.Do you offer OEM Service ?
Foclink: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce according to your requirment and description;
