New 2022 Wifi Low Frequency 24v 1kw 2kw 3kw 1kva 1000w Mppt Off Grid Hybrid Solar Inverter Price
- Category: >>>
- Supplier: Guangzhou Tuoyueneng Electronics Co. Ltd.
Share on (1600519339086):
Product Overview
Description
Product Description
MODEL | 1012 | 1512 | 2012 | 3024 | 5024 | ||||
Input | |||||||||
Voltage(DC) | 12V/24V | 12V/24V | 12V/24V | 24V/48V | 24V/48V | ||||
Nominal Voltage | 220VAC/110VAC | ||||||||
Voltage Range | 154-265VAC/77-135VAC | ||||||||
Frequency | 50-60Hz Auto sensing | ||||||||
PV Input Voltage Range (MPPT/PWM Controller) | 12V:MPPT 15V-150VDC / PWM 15V-30VDC 24V:MPPT 30V-150VDC / PWM 30V-60VDC 48V:MPPT 60V-150VDC / PWM 60V-105VDC | ||||||||
Output | |||||||||
Rated Power | 800W | 1200W | 1600W | 2400W | 4000W | ||||
Voltage | 220VAC/110VAC(±10% ups mode) | ||||||||
Frequency | 50/60Hz | ||||||||
Waveform | Pure sine wave | ||||||||
Transfer Time（AC to DC） | <8ms | ||||||||
Transfer Time（DC to AC） | <8ms | ||||||||
Output Voltage Regulation | 10%rms | ||||||||
Bypass Mode | Yes | ||||||||
Saver Mode | Yes | ||||||||
Efficiency | >98% | ||||||||

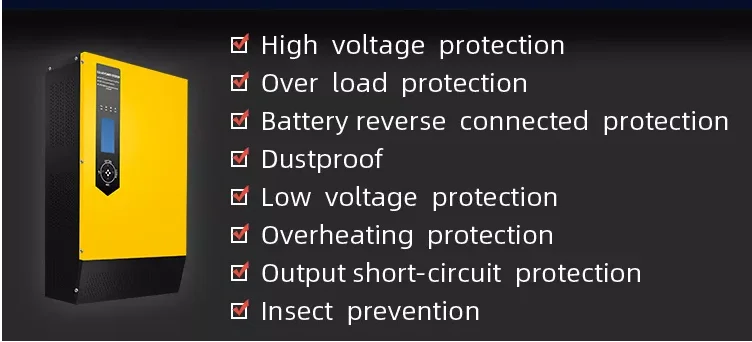

Protection | |||||||||
Input Protection | Circuit Breaker | ||||||||
Output Protection | Circuit Breaker | ||||||||
Battery | |||||||||
Battery Type | AGM-Deep Cycle, GEL | ||||||||
Up to 500Ah | |||||||||
Charging Current | 20/10A | 30/15A | 35/18A | 30/15A | 40/20A | ||||
Low Level Disconnect（Selectable） | (10V or 10.5V)✖N N means the number of batteries in series | ||||||||

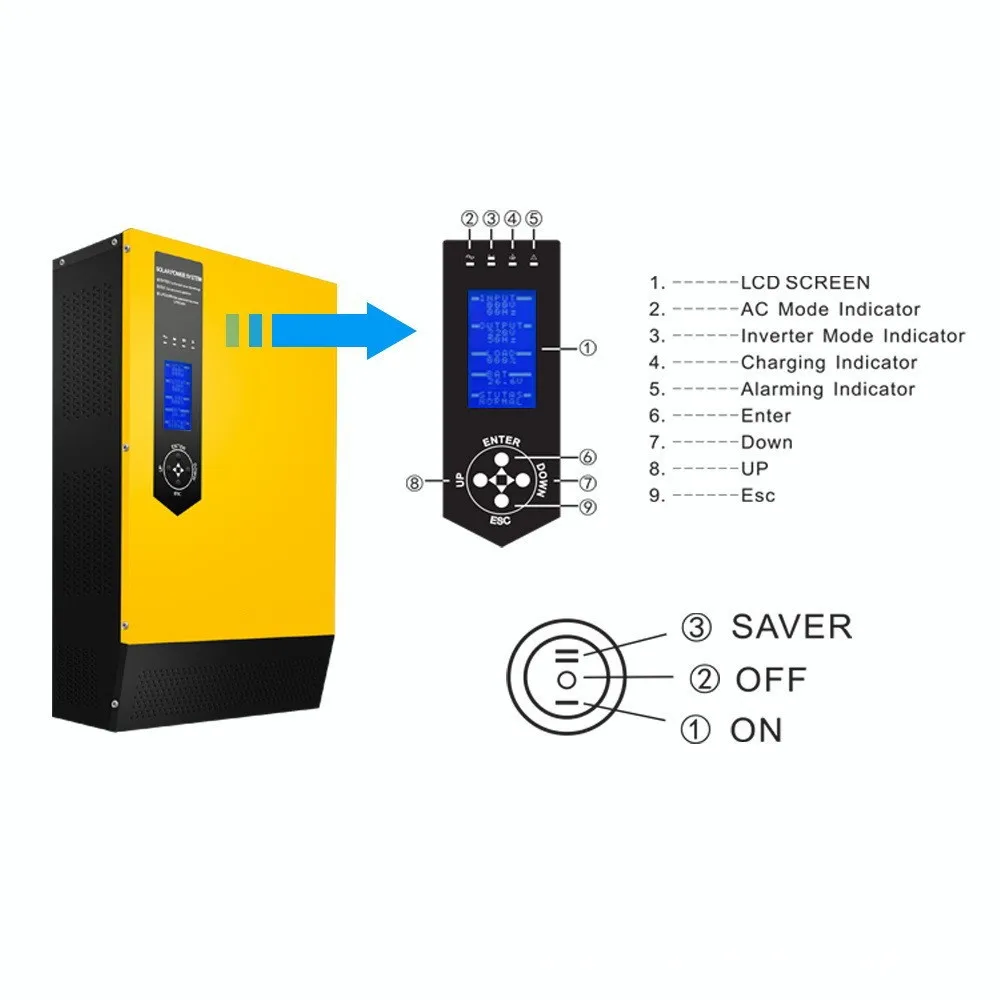

LCD Indicator Status | Input AC, Output AC | ||||||||
Battery DC, Output Load | |||||||||
Alarm, Fault | |||||||||
Battery Charge Level | |||||||||
Output Frequency | |||||||||
LED Indicator Status | AC Line In: Green | ||||||||
Inverter: Green | |||||||||
Charging: Yellow | |||||||||
Alarm: Red | |||||||||
Alarm | |||||||||
Low Battery Alarm | Audible alarm-1 beeping per second | ||||||||
Overload Alarm | Audible alarm-continuous beeping | ||||||||
Fault | Audible alarm-continuous beeping | ||||||||
Environment | |||||||||
Temperature | 0-40°C | ||||||||
Humidity | C0-95%, Non condensing | ||||||||
Accoustic Noise(db) | <45dB | ||||||||

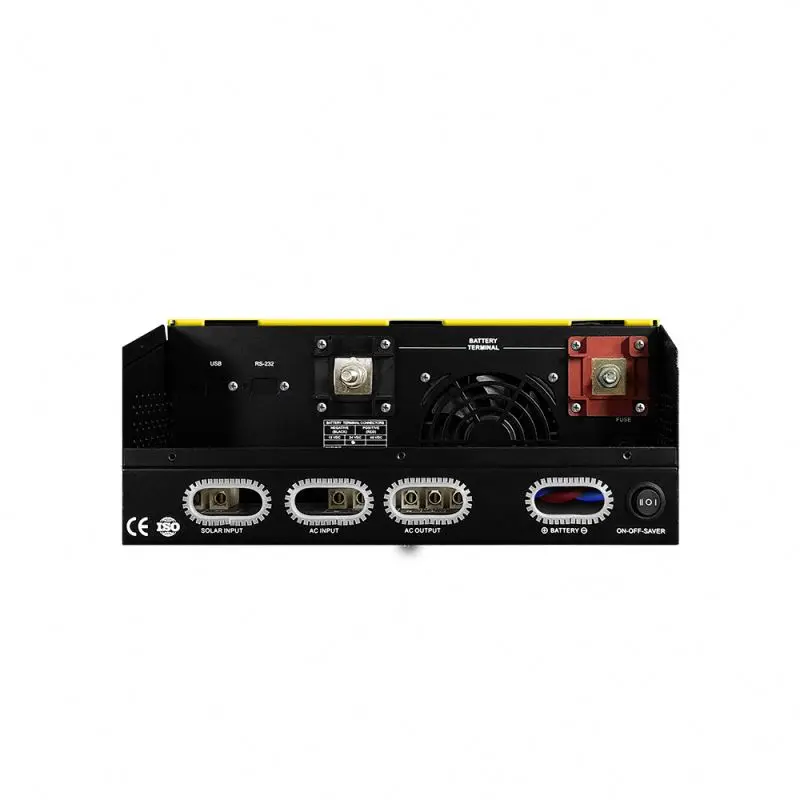

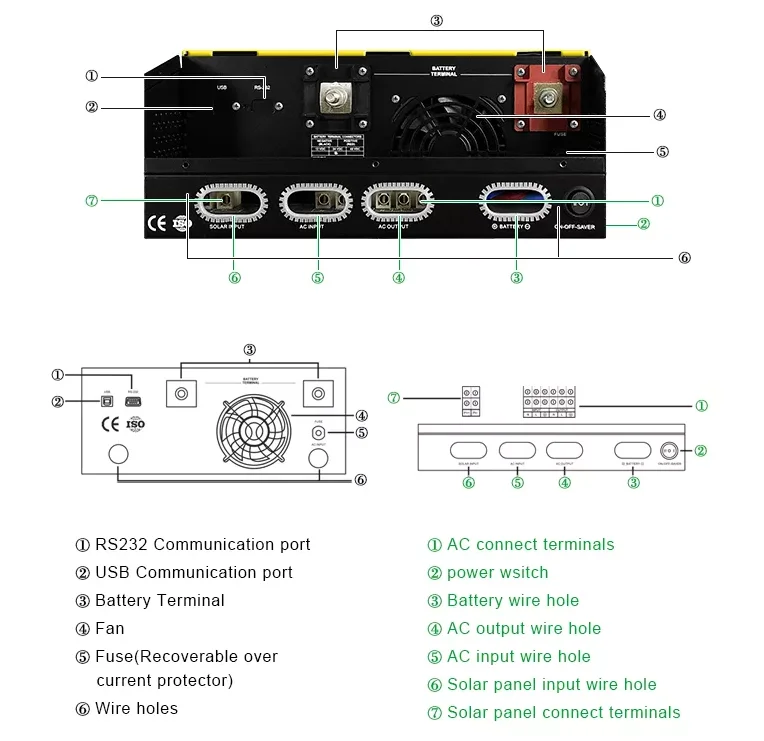

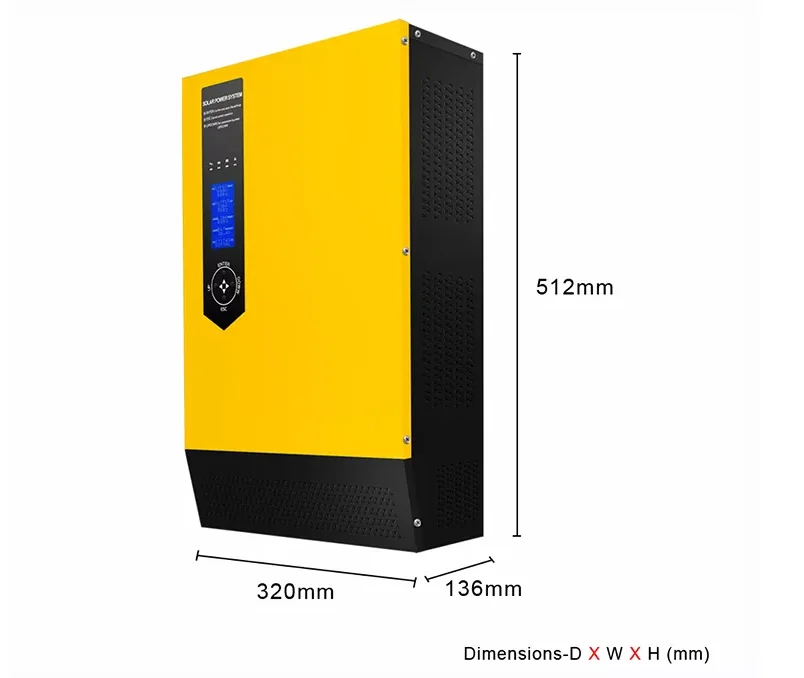

Details Images

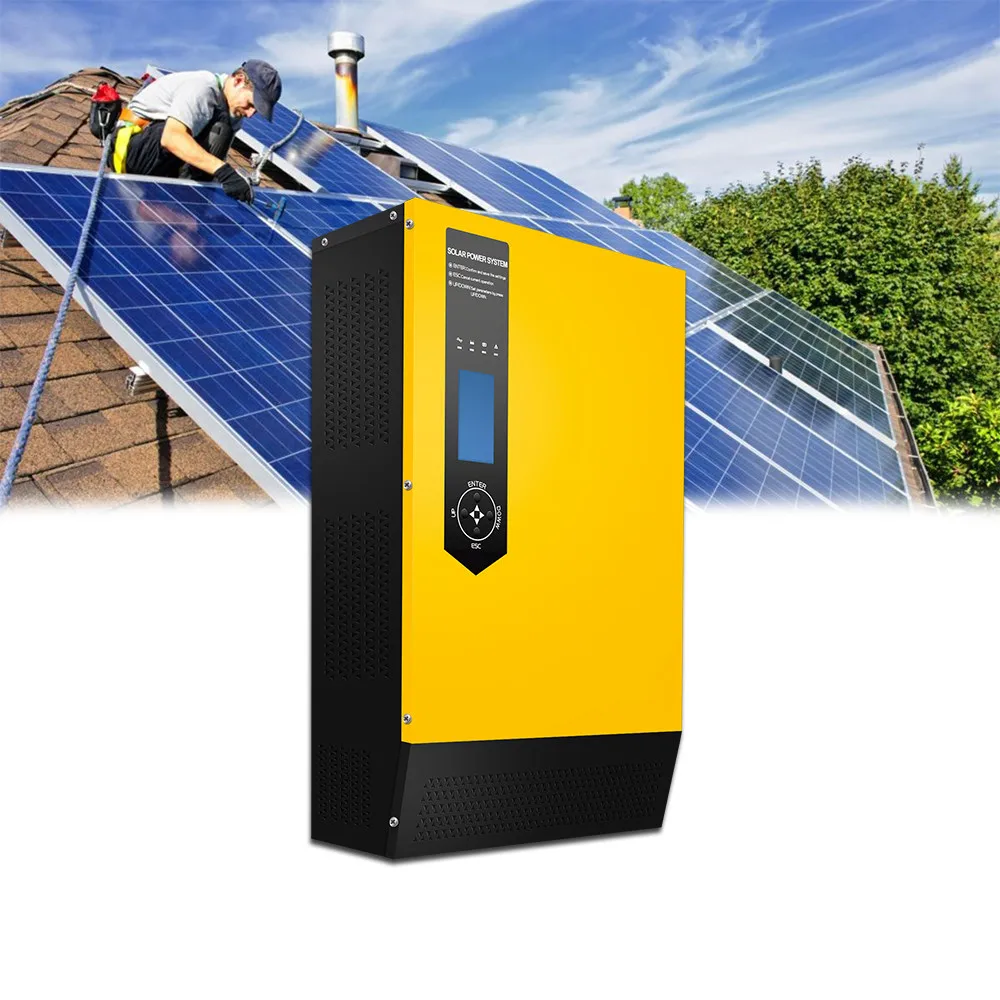

Factory Pure Sine Wave Solar System 24v 1000w Solar Inverters

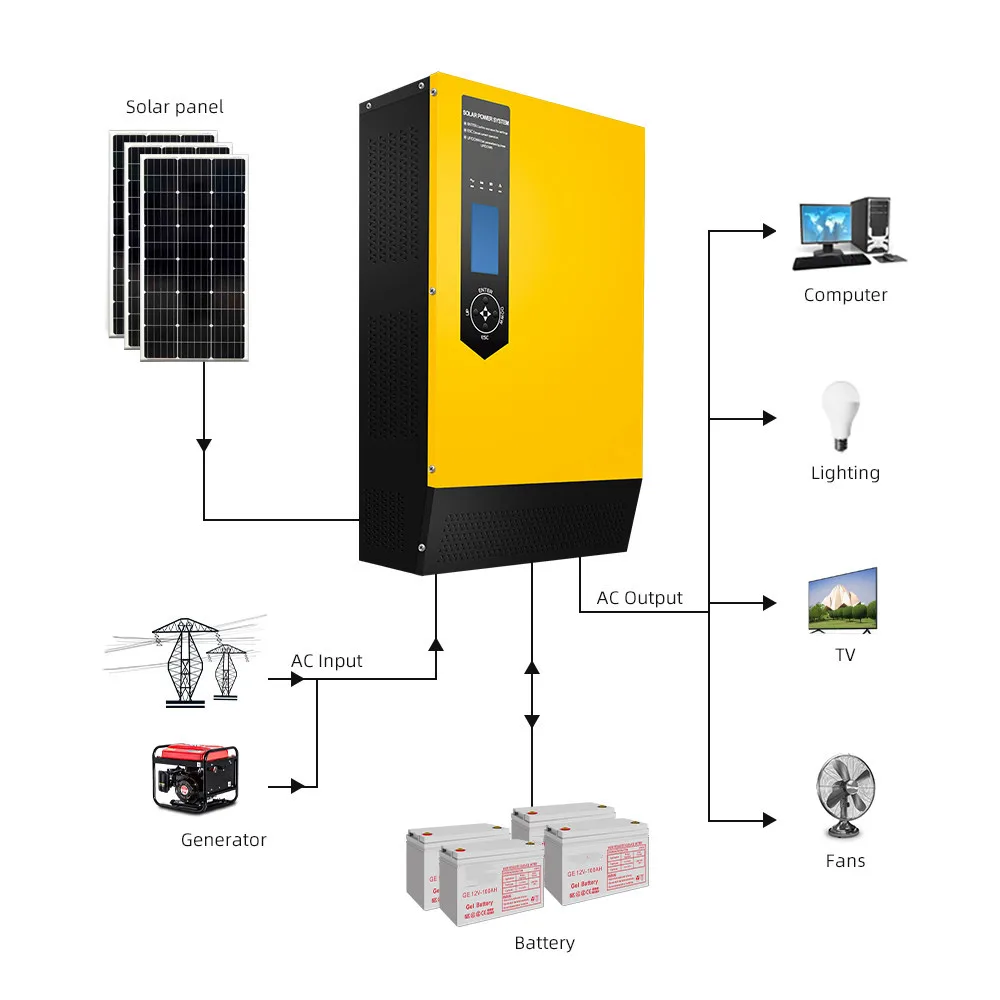

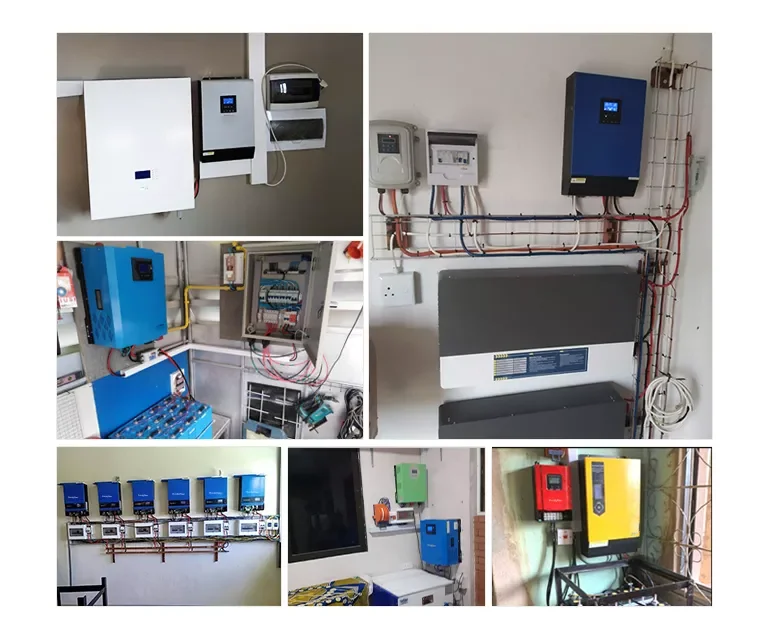

Product Usage
Related Products
Certifications

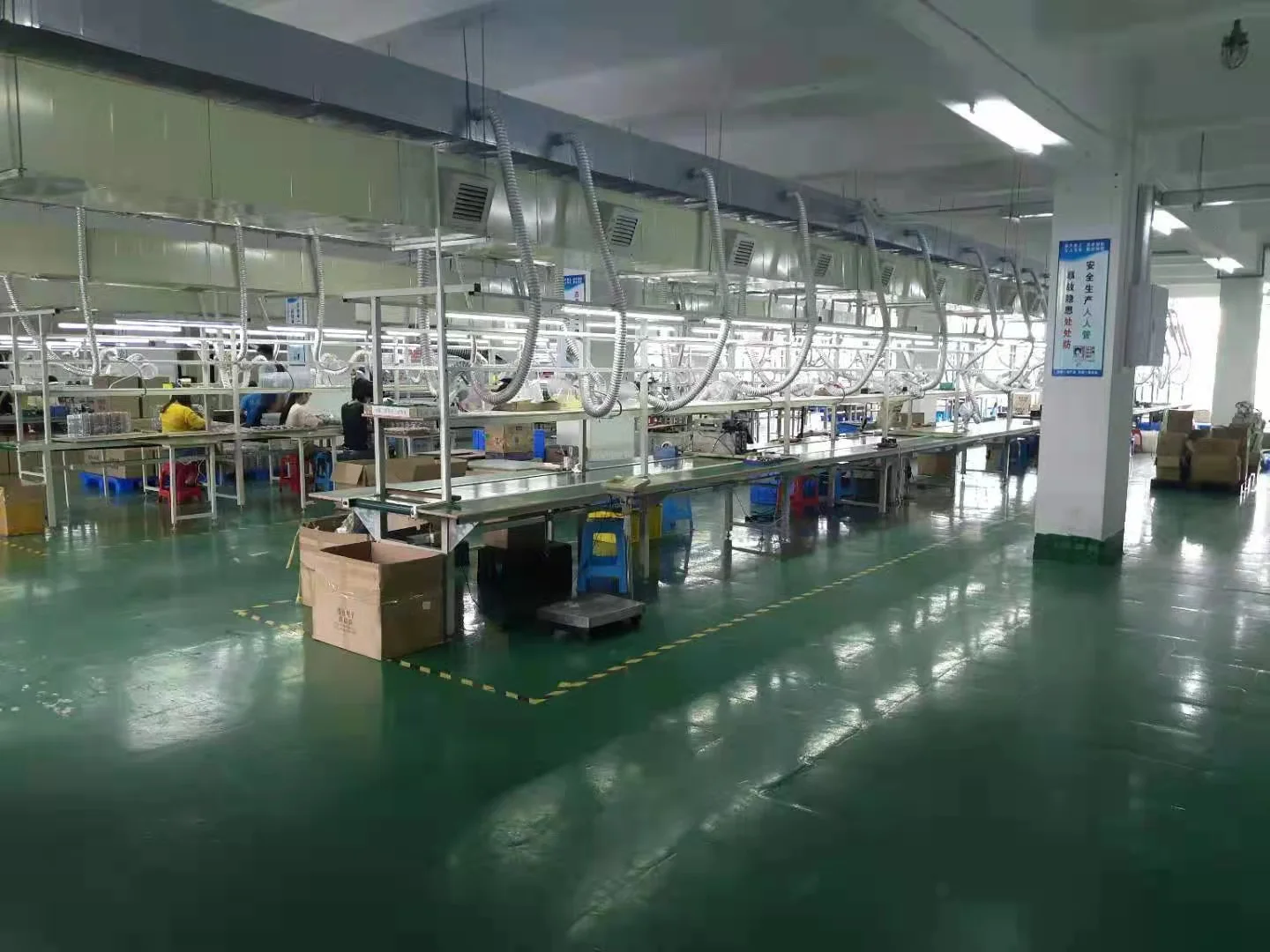

Factory
FAQ
Q1. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. How about your delivery time?
A: Generally, most of items we keep stock for all season. It will take 7 to 10 days after receiving your advance payment. If we didn’t have stock, the delivery time depends on the items and the quantity of your order. Normal 30 to 60 days.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. Do you inspect all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5. How do you make our business long-term and good relationship?
1.Meet small quantity orders and seasonal orders by our sufficient safety stock.
2.Assure best quality with our complete inspection system before shipment.
3.Ensure timely delivery to customer’s designated site by our professional management of warehouse and van fleet.
4.Provide in time Feedback tracking and after-sales services to maximize the customer satisfactory.
Q2. How about your delivery time?
A: Generally, most of items we keep stock for all season. It will take 7 to 10 days after receiving your advance payment. If we didn’t have stock, the delivery time depends on the items and the quantity of your order. Normal 30 to 60 days.
Q3. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. Do you inspect all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5. How do you make our business long-term and good relationship?
1.Meet small quantity orders and seasonal orders by our sufficient safety stock.
2.Assure best quality with our complete inspection system before shipment.
3.Ensure timely delivery to customer’s designated site by our professional management of warehouse and van fleet.
4.Provide in time Feedback tracking and after-sales services to maximize the customer satisfactory.
