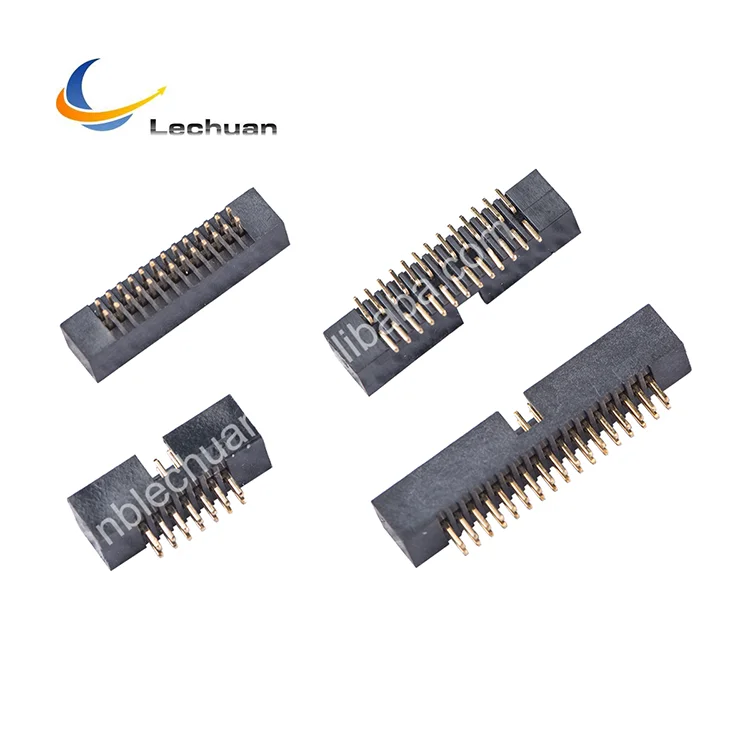

1.27mm Pitch 2*10P 180 Degrees Straight Right angle DIP Brass Gold Plated Male Box Header PCB Connector
1.27mm Pitch 2*10P 180 Degrees Straight Right angle DIP Brass Gold Plated Male Box Header PCB Connector
1.27mm Pitch 2*10P 180 Degrees Straight Right angle DIP Brass Gold Plated Male Box Header PCB Connector

1.27mm Pitch 2*10P 180 Degrees Straight Right angle DIP Brass Gold Plated Male Box Header PCB Connector

Share on (1600519341163):


Price:

Quantity:


Product Overview

Description







Product Name
BOX HEADER

Material
Insulator:Glass filled PBT UL94V-0

Contacts: Brass

Plating:Contact Gold and Weld Tin over Nickel


Electrical Characteristic
Contact Resistance: 30mΩmax. at DC 100mA

Insulator Resistance: 1000MΩmin. at 500V DC

Withstanding Voltage: 1000V AC/rms 50Hz For 1 minute

Current Rating: 2AMP
Environment
Operating Temperature: -40℃～+105℃
