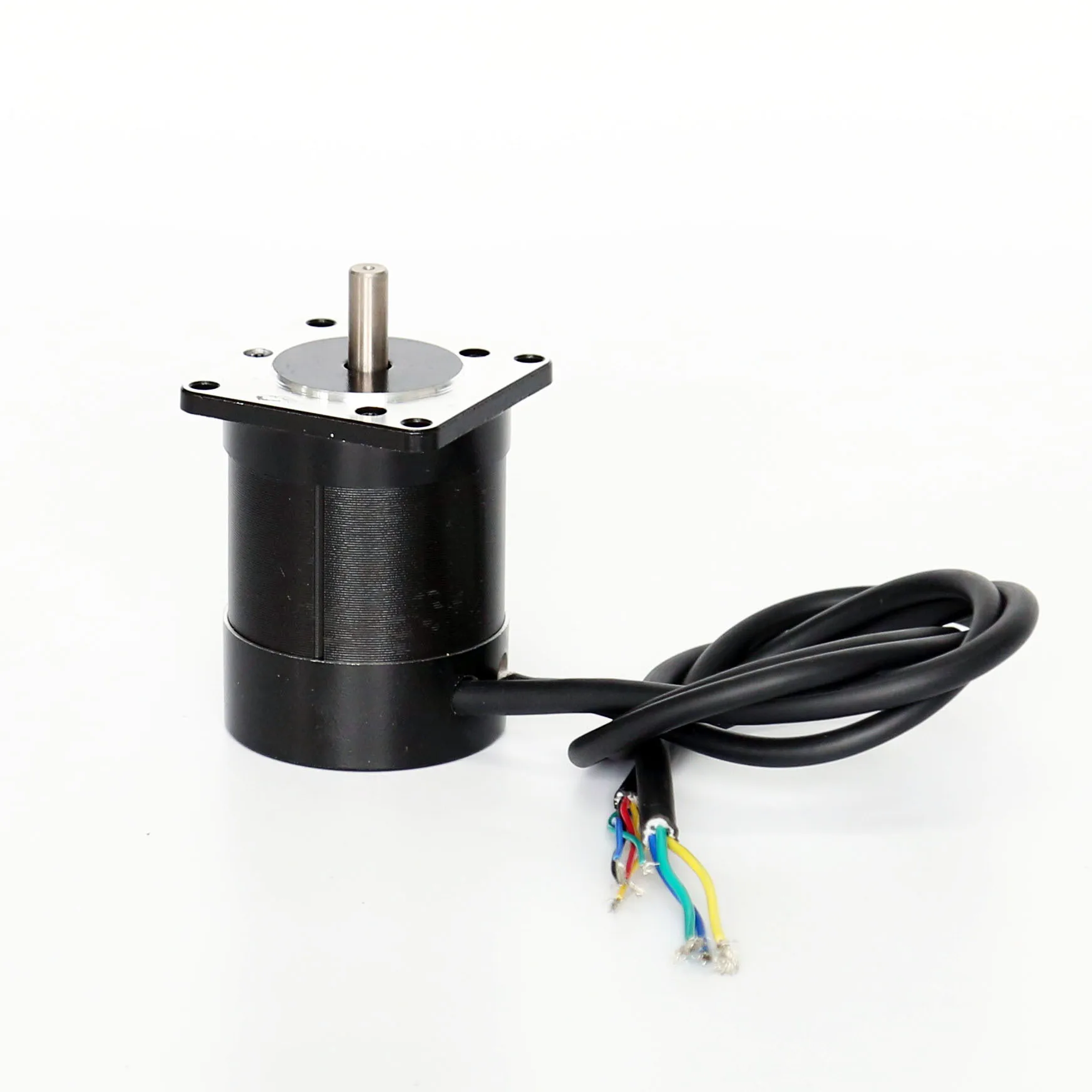

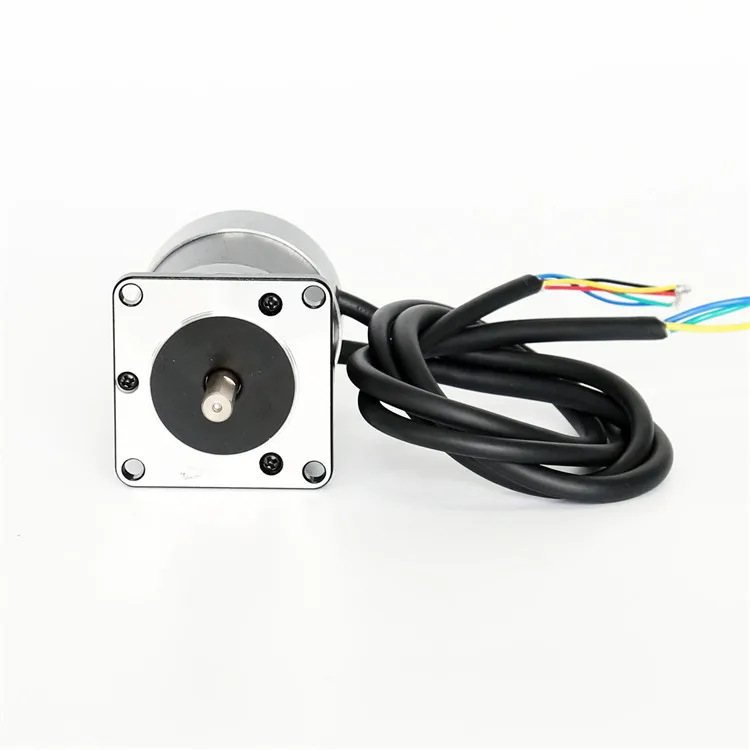

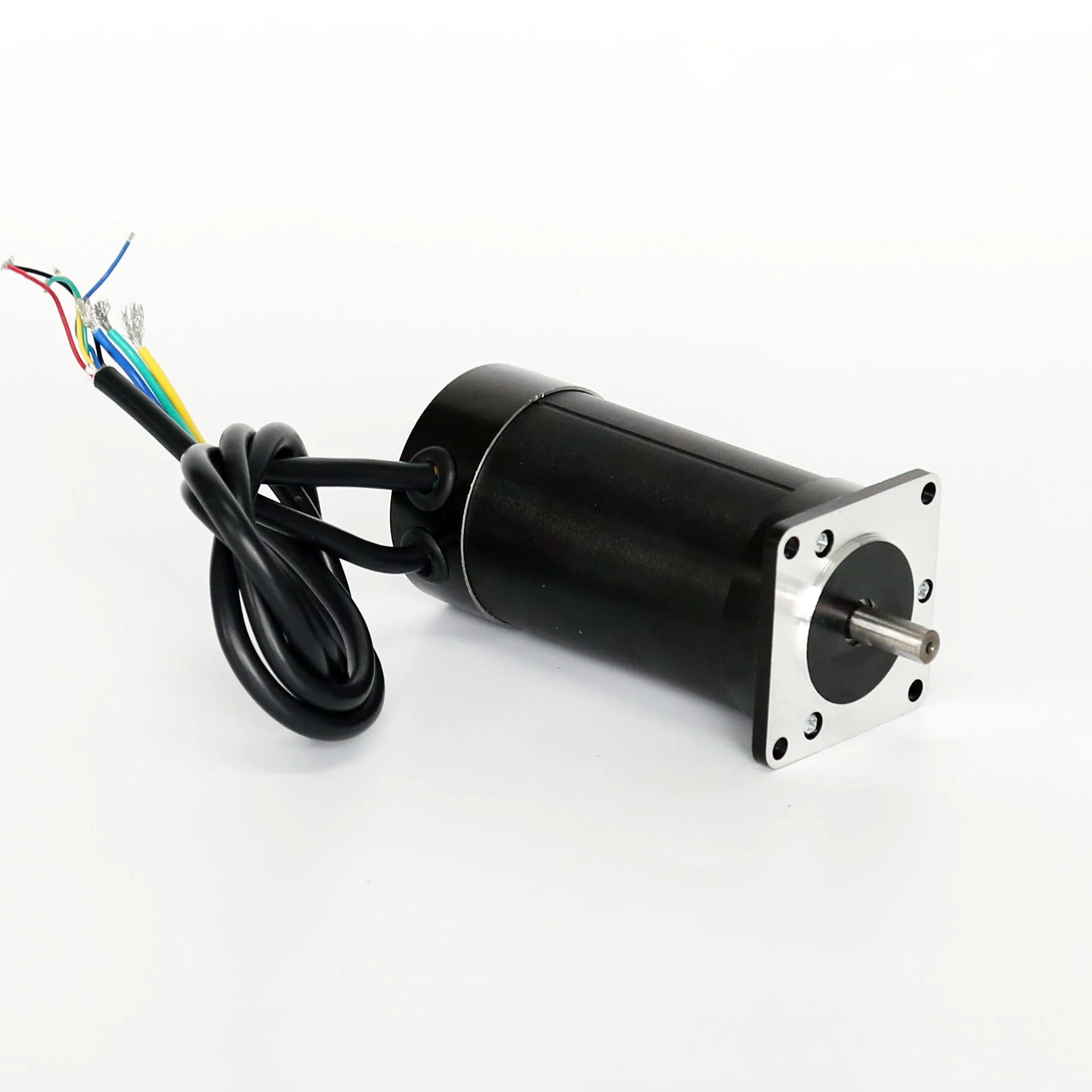

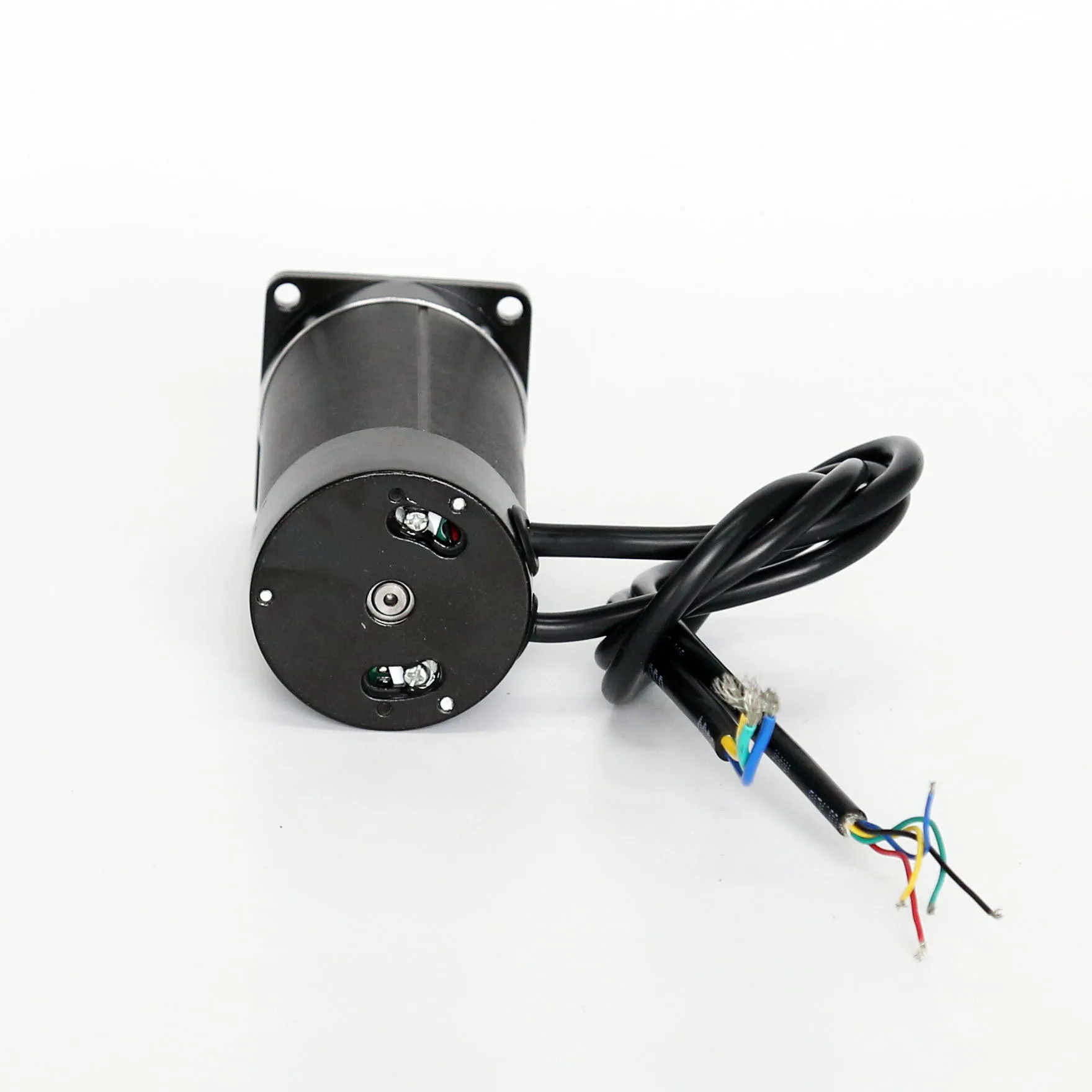

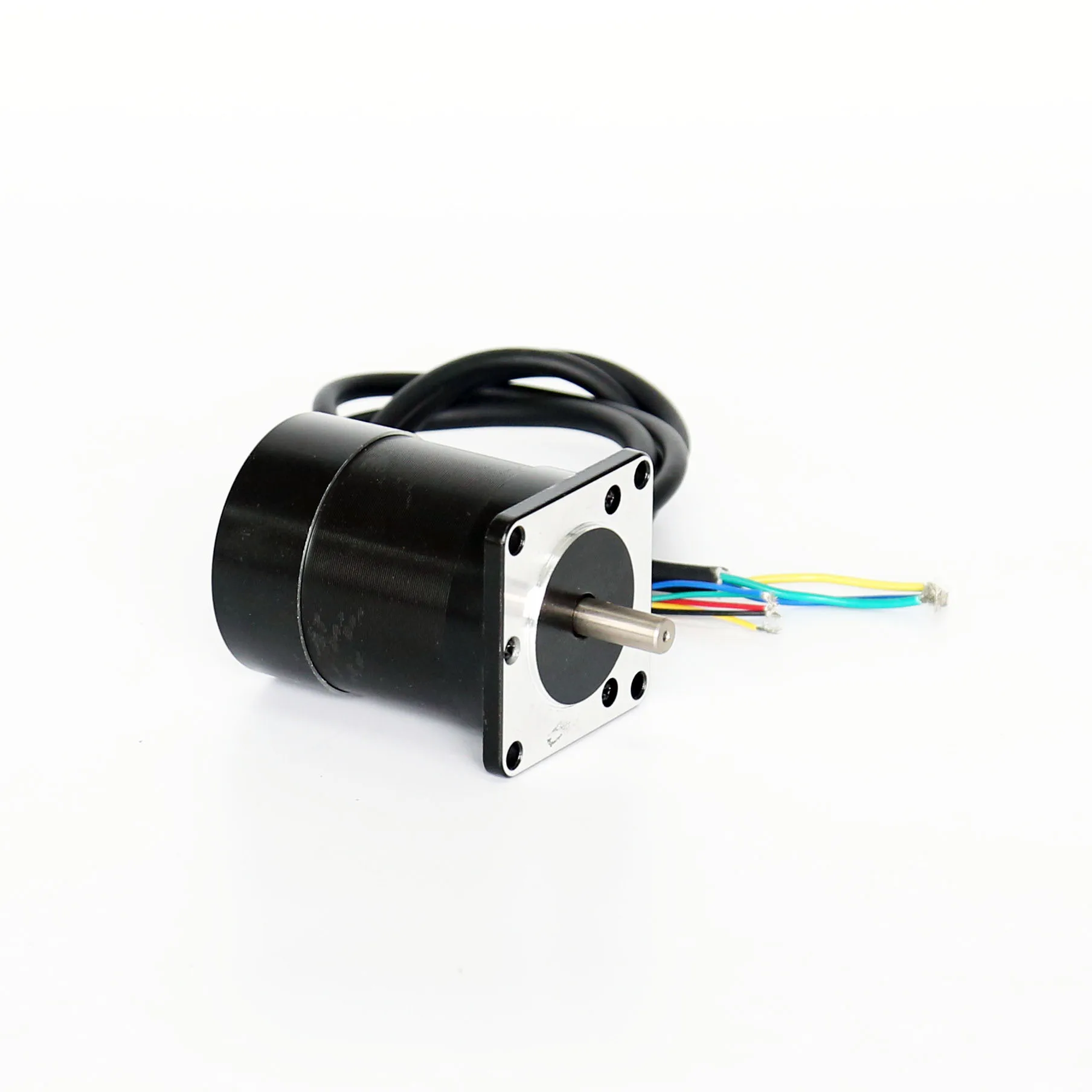

57bl 24v 3000rpm Brushless Dc Motors 24 Volt Bldc Motor For Auto Machine And Robot 15w 30w 70w 100w 150w

Winding Type

Star

Hall Effect angle

120°

Insulation Class

B

Ambient Temperature Range

-20℃~+50℃

Insulation Resistance

100MΩMin 500VC DC

Dielectric Strength

700V AC 1 minute

Model

S57BL45-230

S57BL55-230

S57BL75-230

S57BL95-230

S57BL115-230

Number of Poles

4

Number of Phases

3

Nominal voltage VDC

24

24

24

24

24

Rated speed RPM

3000

Rated Torque N-m

0.055

0.11

0.22

0.33

0.45

Rated Current Amps

1.16

2.4

4.8

6.6

8.6

Output Power Watts

17

35

70

105

140

Peak Torque N-m

0.165

0.33

0.66

0.99

1.35

Peak Current Amps

3.48

7.2

14.4

19.8

25.8

Torque constant N-m/A

0.06

0.06

0.06

0.06

0.06

Back EMF V/k RPM

6.3

6.3

6.3

6.3

6.3

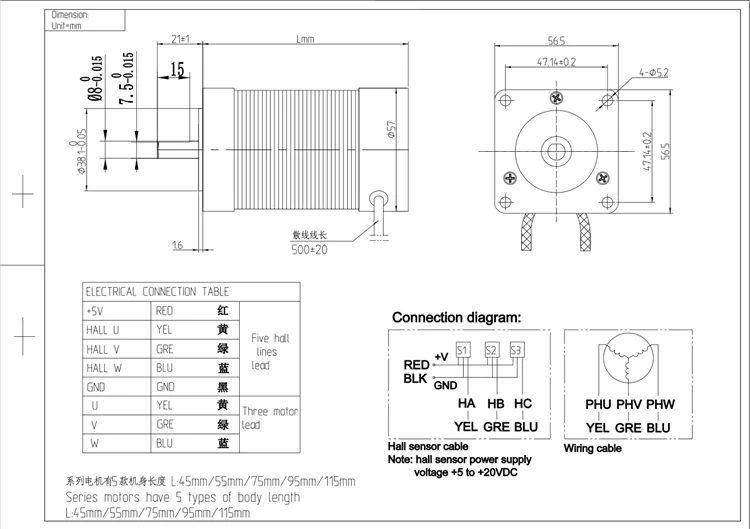

Body Length (L) mm

45

55

75

95

115

weight kg

0.33

0.44

0.75

1.0

1.25
