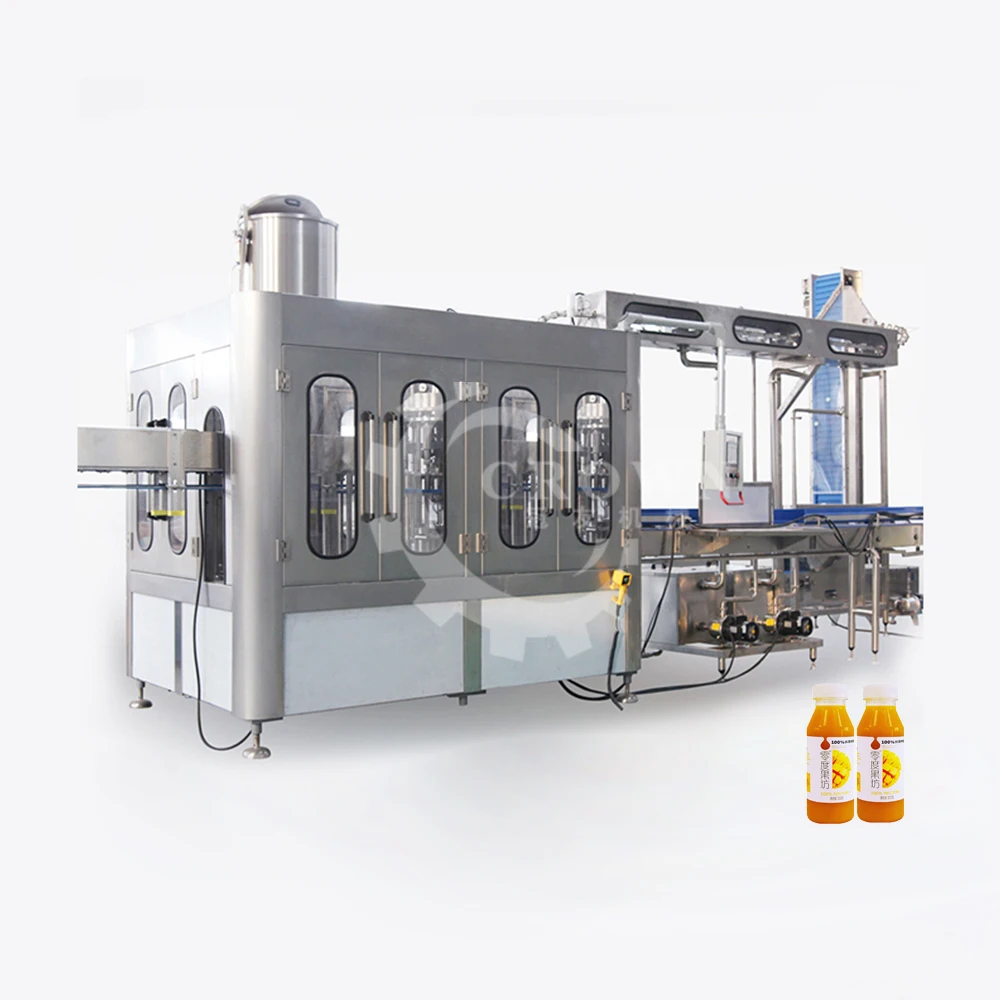

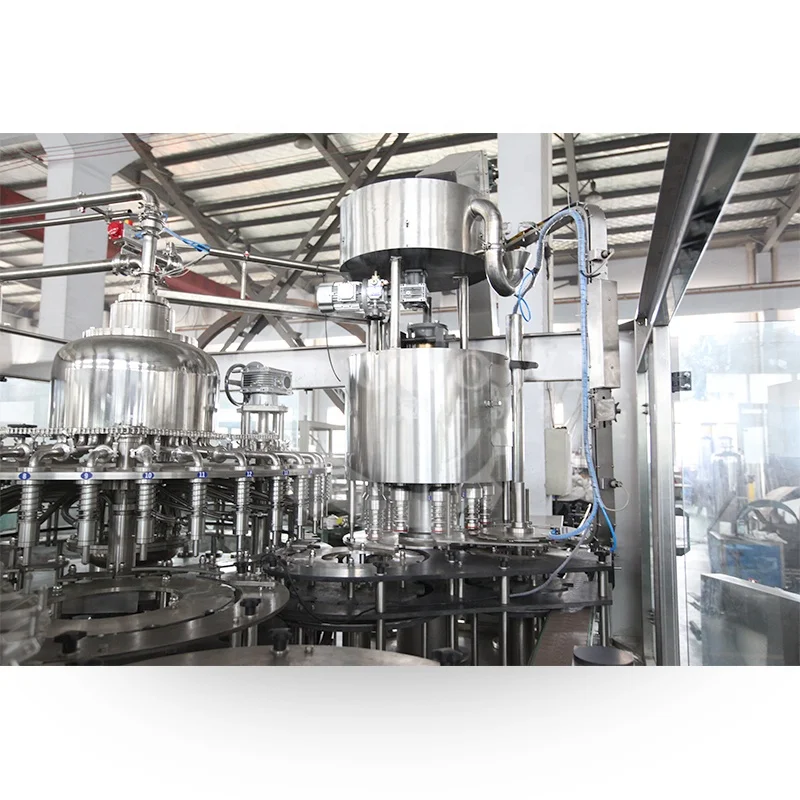

automatic filling coffee production line hot fill beverage fruit juice machine
- Category: >>>
- Supplier: Zhangjiagang Crown Machinery Co. ltd
Share on (1600519369023):
Product Overview
Description
Solution Preview

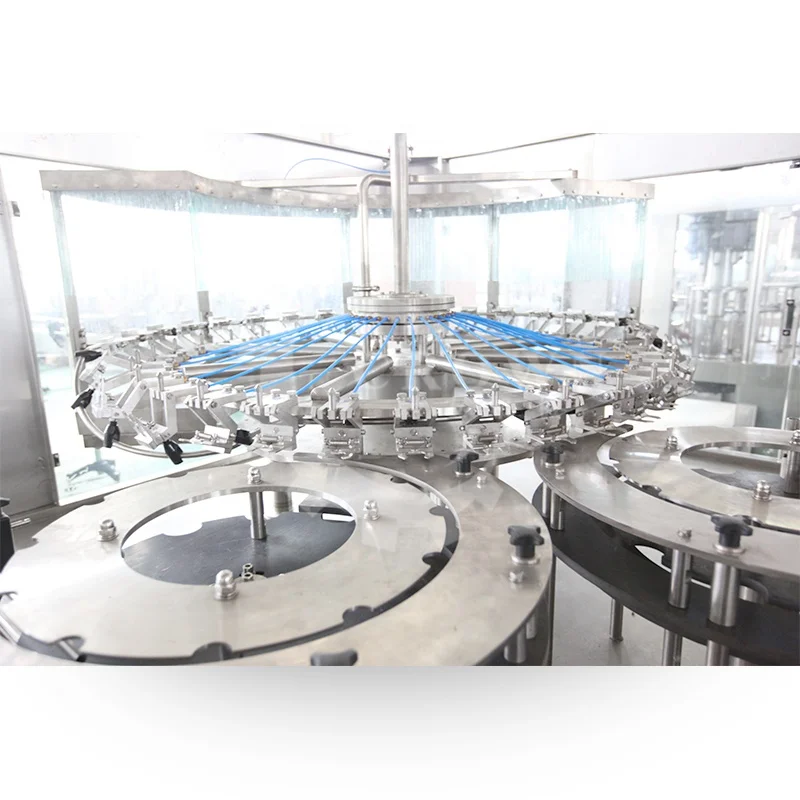

Washing Heads
1)Into bottle way is air conveyor direct connection with Bottle dial
2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4)304/316 stainless steel washing pump make the machine more durable
3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4)304/316 stainless steel washing pump make the machine more durable

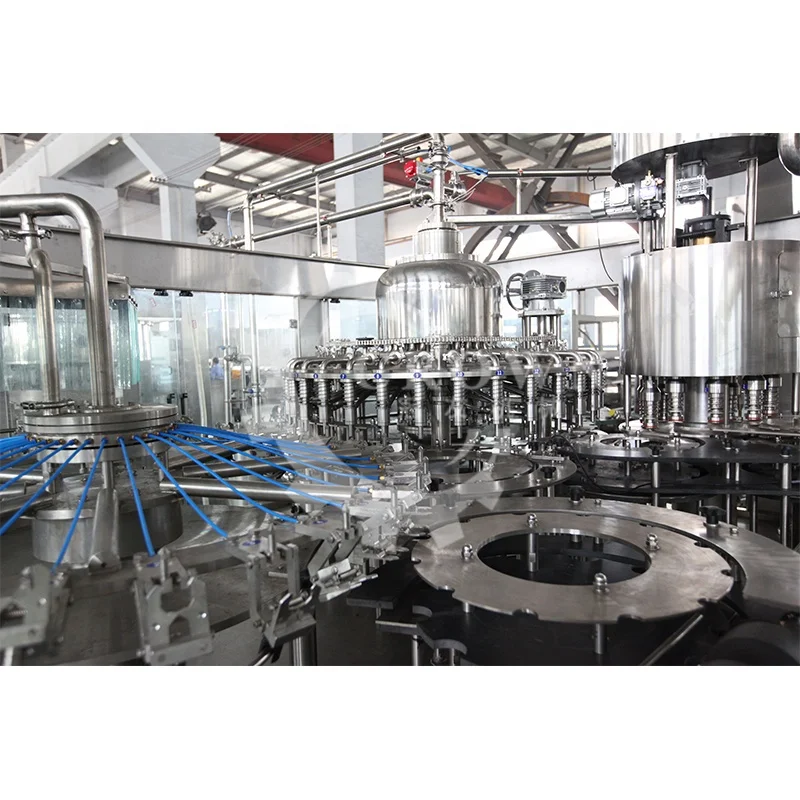

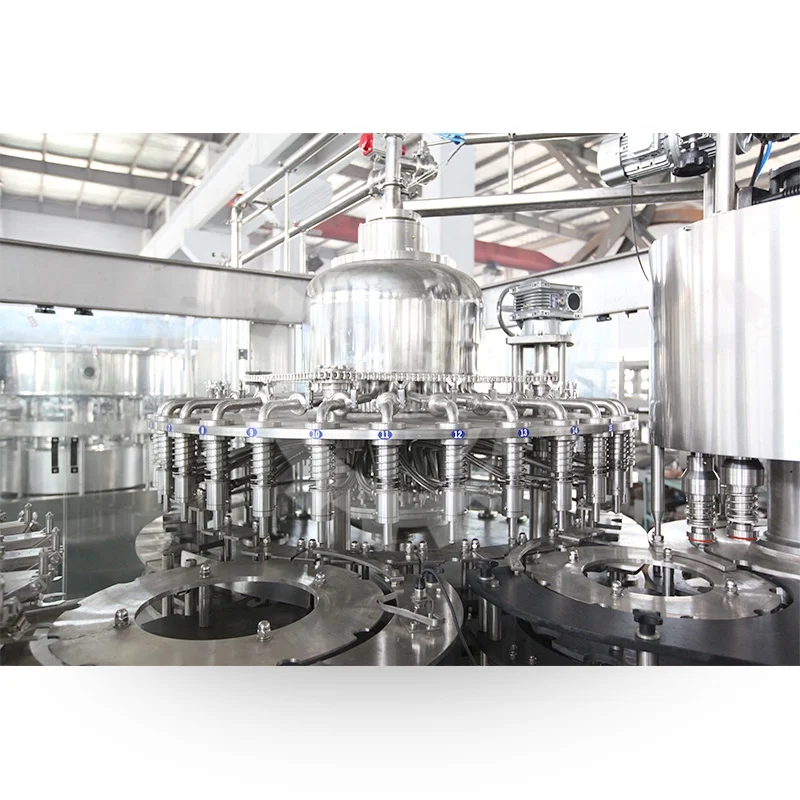

Filling Heads
1)304/316 Stainless steel high precision filling nozzle2) Filling volume adjustable in fine rank, same liquid level after filling
3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5)Efficient spray nozzle rinse thoroughly and save water for flushing
3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5)Efficient spray nozzle rinse thoroughly and save water for flushing

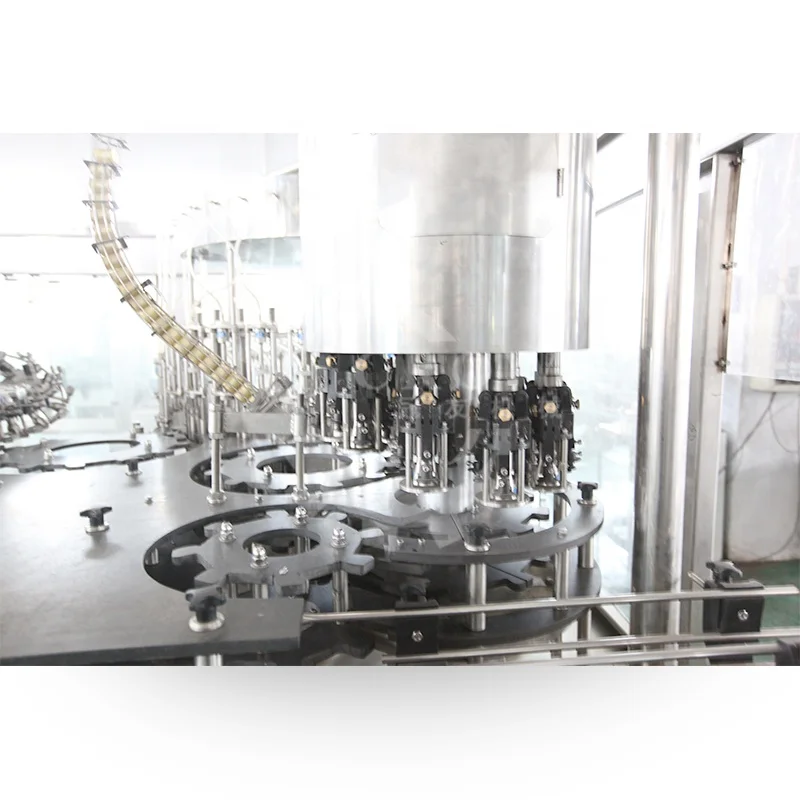

Capping Heads
1) Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2)All 304/316 stainless steel construction
3)No bottle no capping
4)Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2%
2)All 304/316 stainless steel construction
3)No bottle no capping
4)Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2%
Flat conveyor
(1) Energy saving. High efficient. Adapt to customer factory layout
(2) Special lubrication system, keep products clean, health, safety
(3) Extended service life
(4) Electric eyes design keep whole line running safety and quickly
(2) Special lubrication system, keep products clean, health, safety
(3) Extended service life
(4) Electric eyes design keep whole line running safety and quickly
Model | RCGF14-12-5 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 | RCGF50-50-12 | RCGF60-60-15 | RCGF72-72-18 |
Washing heads | 14 | 18 | 24 | 32 | 40 | 50 | 60 | 72 |
Filling heads | 12 | 18 | 24 | 32 | 40 | 50 | 60 | 72 |
Capping heads | 5 | 6 | 8 | 10 | 12 | 12 | 15 | 18 |
Capacity (B/H) | 3000 | 5000 | 8000 | 12000 | 15000 | 18000 | 25000 | 28000 |
Power （kw） | 2.2 | 3.5 | 4.5 | 6 | 7.5 | 9.5 | 11.2 | 15 |
Dimensions (mm) | 2300*1600*2500 | 2600*1920*2550 | 3100*2100*2800 | 3850*3000*2850 | 4850*3800*2750 | 5750*3550*2750 | 6500*5500*2750 | 6800*4800*2850 |
Weight (KG) | 2600 | 3650 | 4800 | 6800 | 8500 | 10000 | 12000 | 15000 |

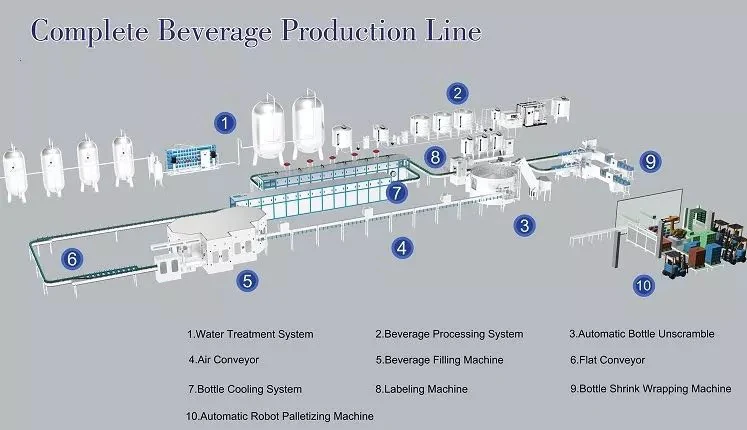

The Flow Chart of Juice Filling Machine Production Line
Other Projects
Crown Service
What Crown Machine Can Do For You ?
Good after-sales service
We will debug the equipment repeatedly before delivery to ensure that there is no problem after arriving at the customer's
factory.
The equipment will be packed in wooden cases, and we will track the whole process of delivery to ensure that the equipment will not be damaged in the process of transportation.
After the equipment arrives at the customer's factory, we will send professional engineers to the customer's factory to help the
customer install and debug, as well as train the staff. If there are some special reasons why the engineer cannot come, we will
set up a professional team to answer customers' questions online at any time.
factory.
The equipment will be packed in wooden cases, and we will track the whole process of delivery to ensure that the equipment will not be damaged in the process of transportation.
After the equipment arrives at the customer's factory, we will send professional engineers to the customer's factory to help the
customer install and debug, as well as train the staff. If there are some special reasons why the engineer cannot come, we will
set up a professional team to answer customers' questions online at any time.
company introduction
Zhangjiagang Crown Machinery Co.,Ltd
is located at the new port city -zhangjiagang,was founded at 1995,and starting with beverage machinery. Our company have fixed assets over RMB 10million and covers an area of 10000m2,We are a leading enterprise in research and production of liquid food and beverage packing and filling industry.All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force,advanced equipment,scientific management system and perfect after-sales service.
