cnc wood router manufacturer wood cabinet door making atc cnc router wood engraving machine


Part details

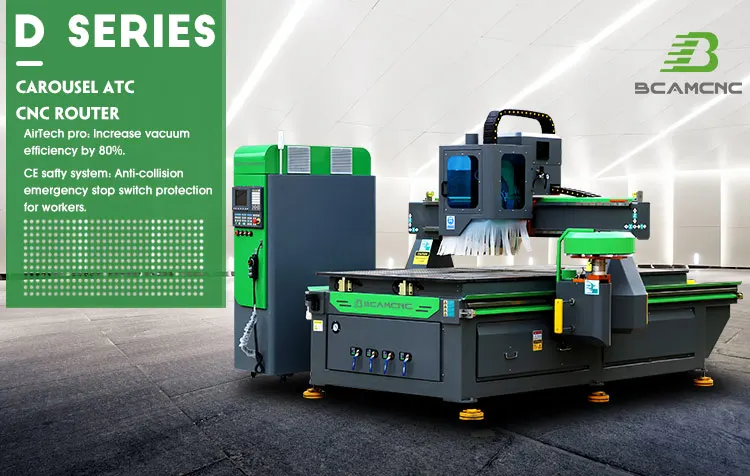

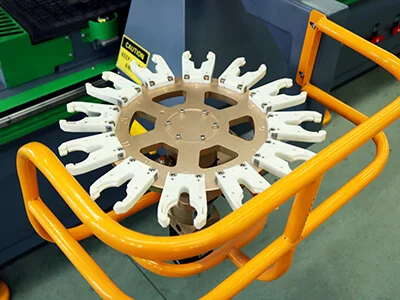

BCM1325D series is a cnc router designed by BCAM for automatic disc changer. This series is more automatic than BCM1325S manual
tool change series. It is faster than BCM1325C series tool change, eliminating manual The cumbersome tool change shortens the tool
change time and makes the cnc router more precise.



Product Paramenters


Parameters
Standard Specifications BCM1325D Plus
X,Y,Z Working Area
1300*2500*200mm|4*8ft
Optional Working Area
1300*1300*200mm|4*4ft
Optional Working Area
1500*3000*200mm|5*10ft
Optional Working Area
2000*3000*200mm|6*10ft
Optional Working Area
2000*4000*200mm|6*13ft
Optional Working Area
2000*6000*200mm|6*20ft
Spindle Power
Italy HSD ES951 9.5kw Air cooling spindle
Table Surface
Vacuum table+T-solt table
Max. Rapid Travel Rate
120m/min
Max. Working Speed
70m/min
Drive Motors
Japanese Yaskawa Servo motor and drivers
Working Voltage
AC380v/50HZ/3 phase
Command Language
G Code
Operating System
Taiwan Syntec 6MB control system
Interface
USB
Software Compatibility
Option:Alphacam/Solidworks/Vcare Pro/Artcam,etc.
Running Environment
Temperature: 0℃~45℃ Relative Humidity: 30%~75%


Samples




Product packaging




We use wooden box packaging, which can effectively prevent moisture, and at the same time ensure that the machine is stable and can be safely delivered to your destination


Company Profile








customer visit




Certifications




FAQ


1. How to use the machine after receiving the machine
Firstly , when you got machine , you need to contact with us ,our engineer will work together with your to deal with it ,Secondly,we send user manuals and CD to you before you get the machine .Thirdly, Our professional technician online teach you until you can use it well by yourself.
2.Payment terms,There are 2 ways to pay money .
1)T/T, means international bank transfer. 50% deposit, we produce the machine for you. 50% before shipping.It is convenient and fast.
2)Alibaba Secure payment. Reliable and safe, Alibaba will charge a little handling fee. 3)Other kinds of payment we can consider if acceptable for us.
3.How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
4.Do you have a setup and equipment commissioning service?
Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug the machine.
5. What is the warranty period for the equipment?
Three years warranty and 24 hours online professional technical support.
