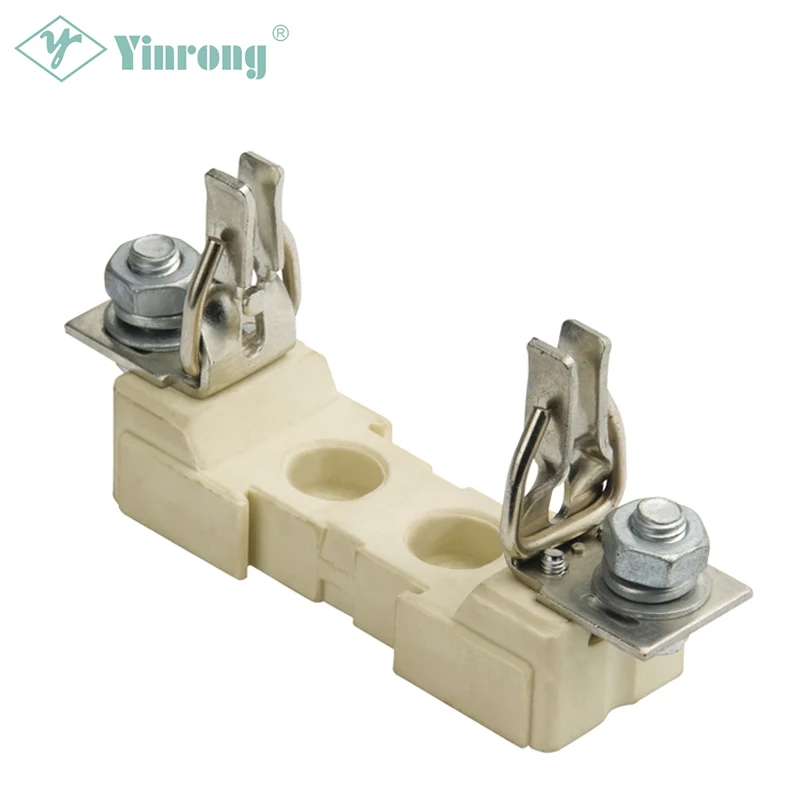

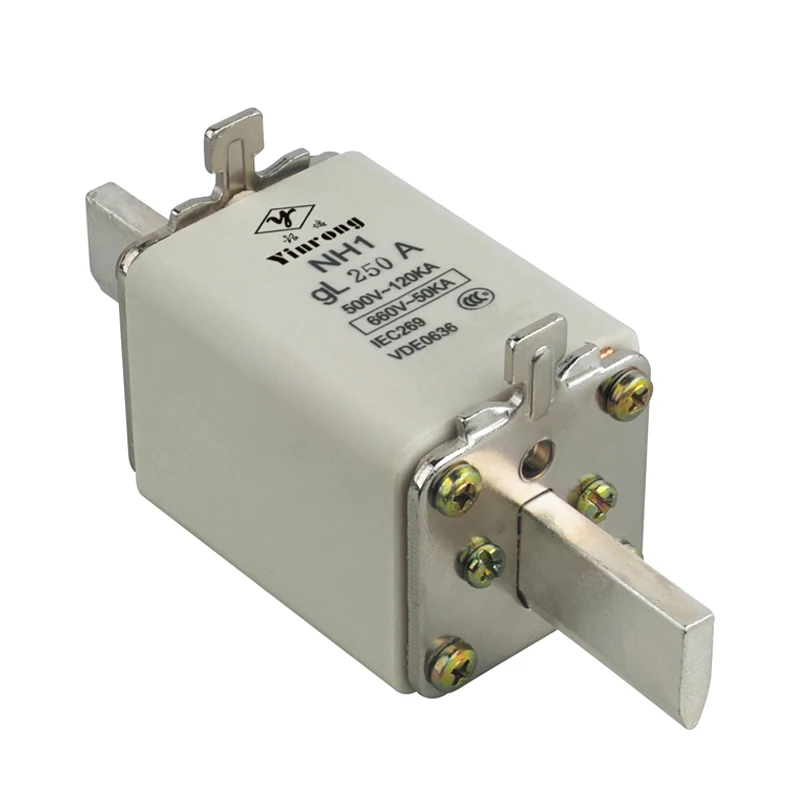

Yinrong Low Voltage NH DIN Fuse Link
- Category: Fuses >>>
- Supplier: Zhejiang Galaxy Fuse Co. Ltd.
Share on (1600519412669):
Product Overview
Description
Product Description

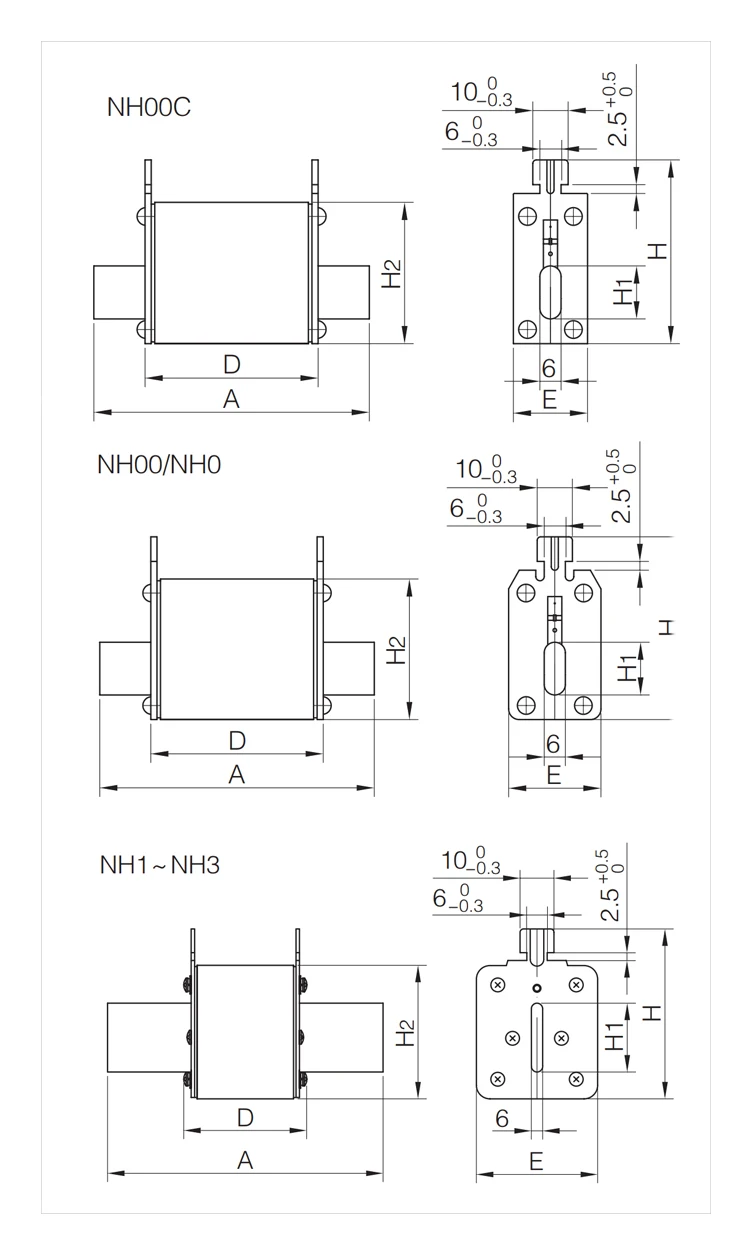

| Model/Size | Rated Voltage(V) | Rated current Specifications(A)
| Overall dimension | |||||
| A | D | E | H | H1 | H2 | |||

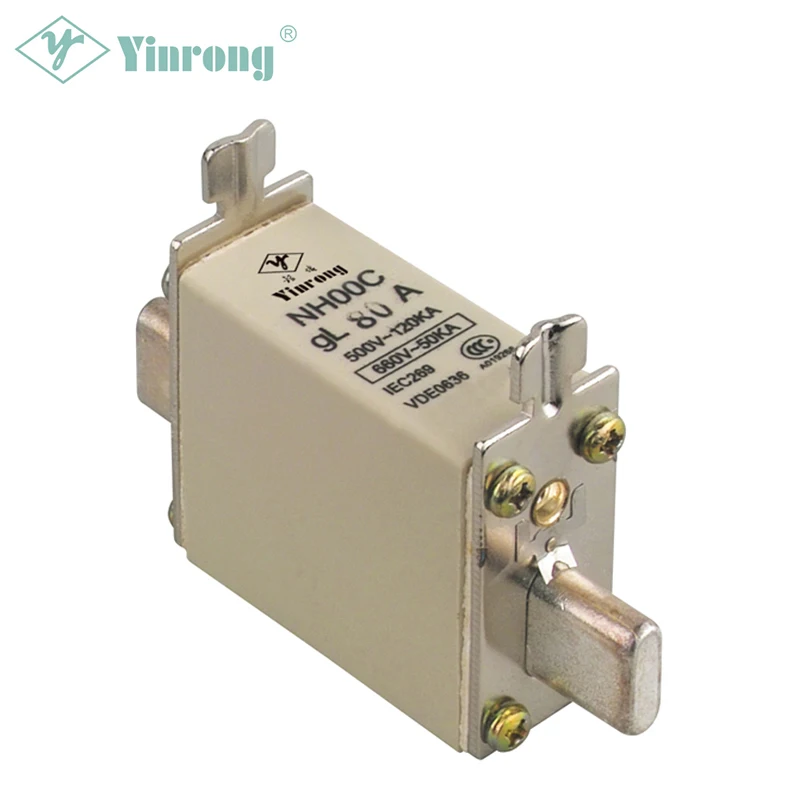

| NH00C | 500/690 | 4,6,10,20,25,32,40,50,63,80,100 | 78 | 52 | 21 | 53 | 15 | 35 |

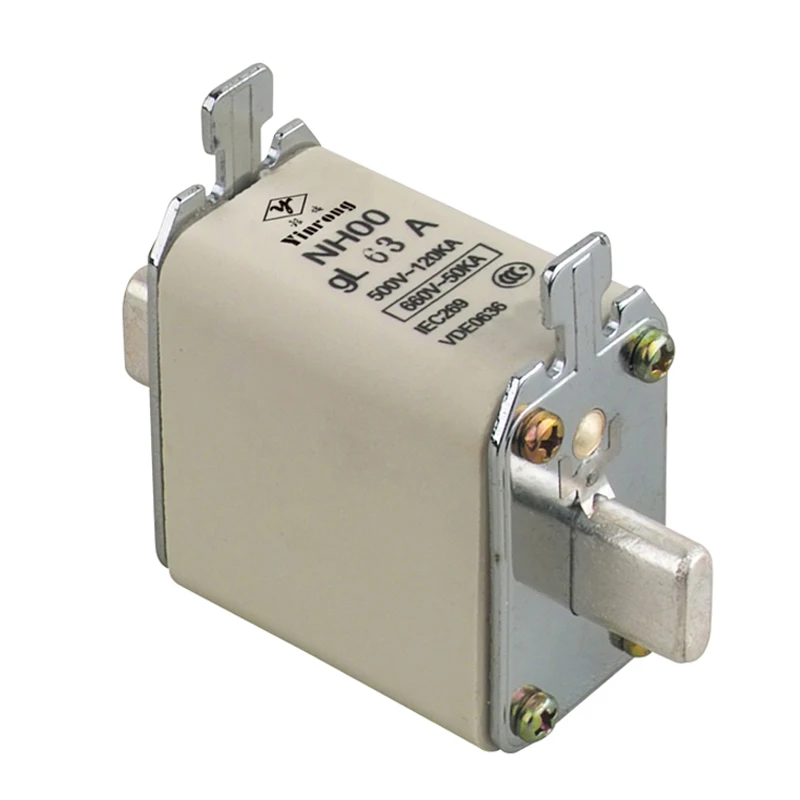

| NH00 | 500/690 | (4-100),125,160 | 78 | 53 | 30 | 60 | 15 | 48 |
| NH1 | 500/690 | 80,100,125,160,200,224,250 | 135 | 72 | 48 | 65 | 20 | 48 |
| NH2 | 500/690 | 125,160,200,224,250,300,315,355,400 | 150 | 72 | 58 | 72 | 25 | 58 |
| NH3 | 500/690 | 315,355,400,425,500,630 | 150 | 74 | 67 | 82 | 32 | 71 |
