Product Overview
Description

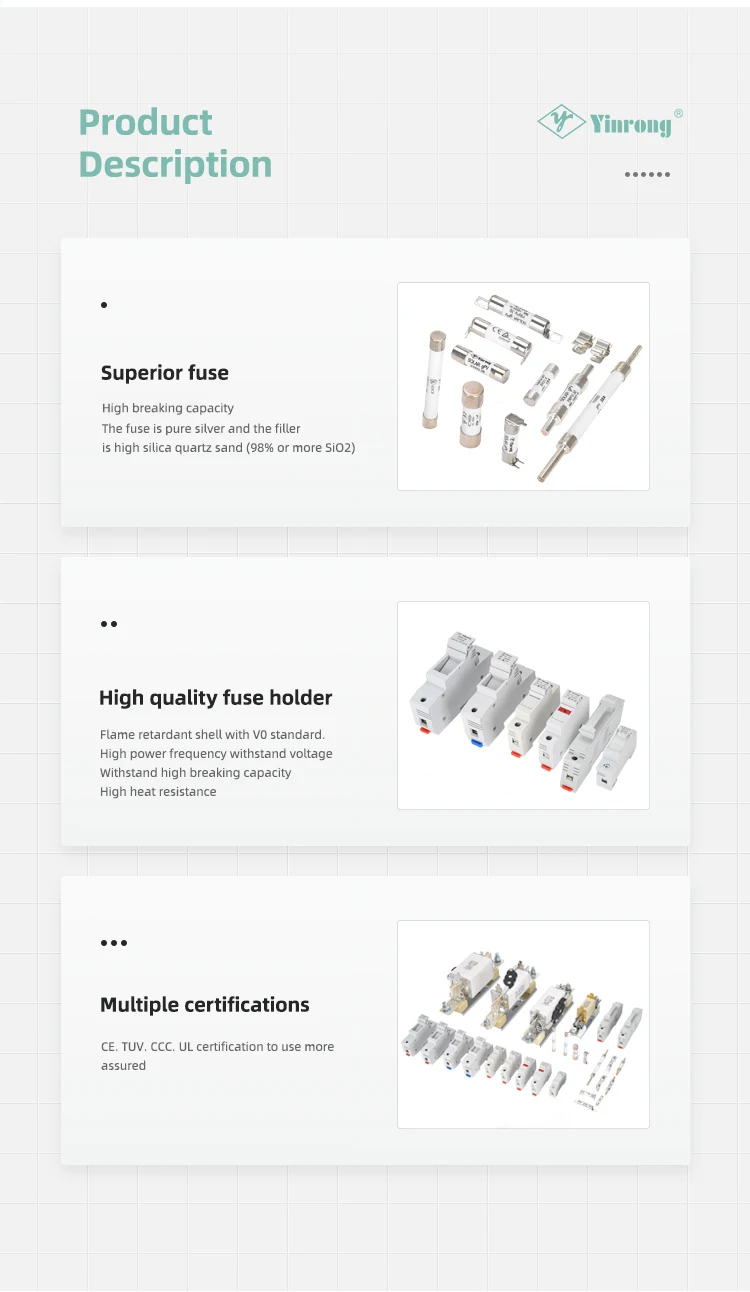

Product Description
| Fuse Model | Rated Voltage(V) | Rated breaking capacity | Rated current(In/A) | ||||||||||||||
| 2 | 3 | 3.15 | 3.5 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | 16 | 20 | 25 | 30 | |||

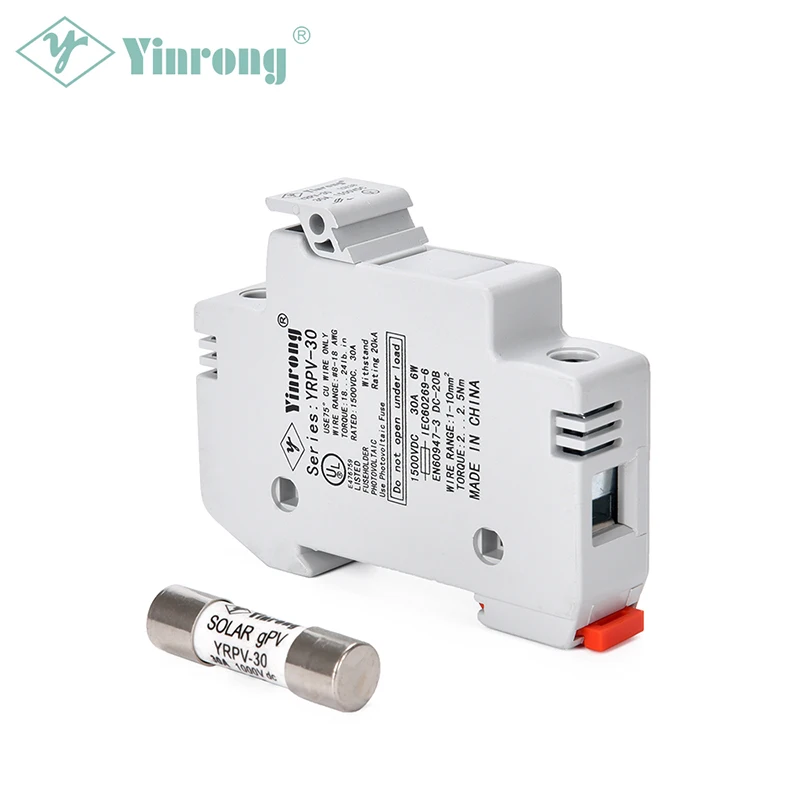

| YRPV-30 | DC 1000 |  40/ 20 | Power consumption (In/W) | ||||||||||||||
| YRPV-30S | DC 1500 | 20/15 | 0.85 | 0.99 | 1 | 1.15 | 1.2 | 1.3 | 1.48 | 1.76 | 2.2 | 2.3 | 2.6 | 2.7 | 3.2 | 3.8 | 4.25 |
| Holder Model | Rated Voltage(V) | Rated current(In/A) | Fuse block available:model | ||||||||||||||
| YRPV-30/30X | DC:1500 | 32 | YPRV-30,YPRV-30S | ||||||||||||||

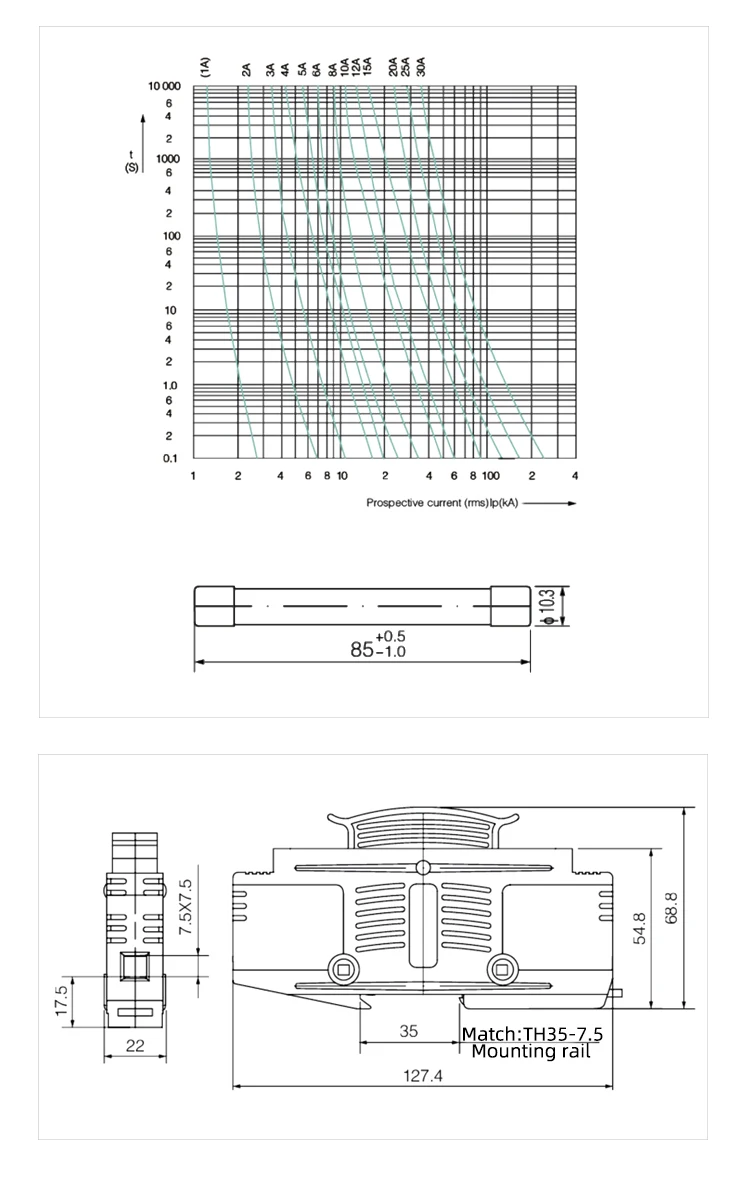

| Fuse model | Rated Voltage(V) | Rated breaking capacity(kA) | Rated current(In/A) | |||||||
| YRPV-30L | DC:1500 | 20/25 | 2 | 3 | 3.15 | 3.5 | 4 | 5 | 6 | 8 |
| Power consumption(In/W) | ||||||||||
| 10 | 12 | 15 | 16 | 20 | 25 | 30 | - | |||
| holder model | Rated Voltage(V) | Rated current(In/A) | Fuse block available:model | |||||||
| YRPV-30L | DC:1500 | 30 | YRPV-30L | |||||||

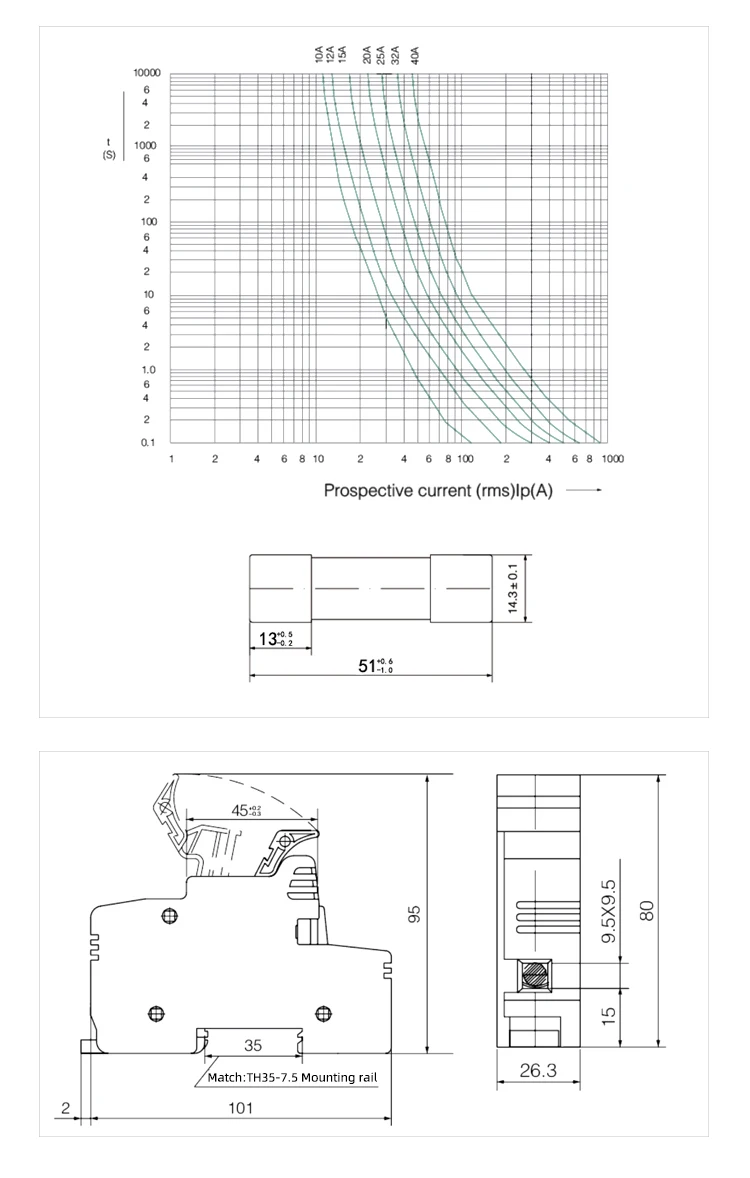

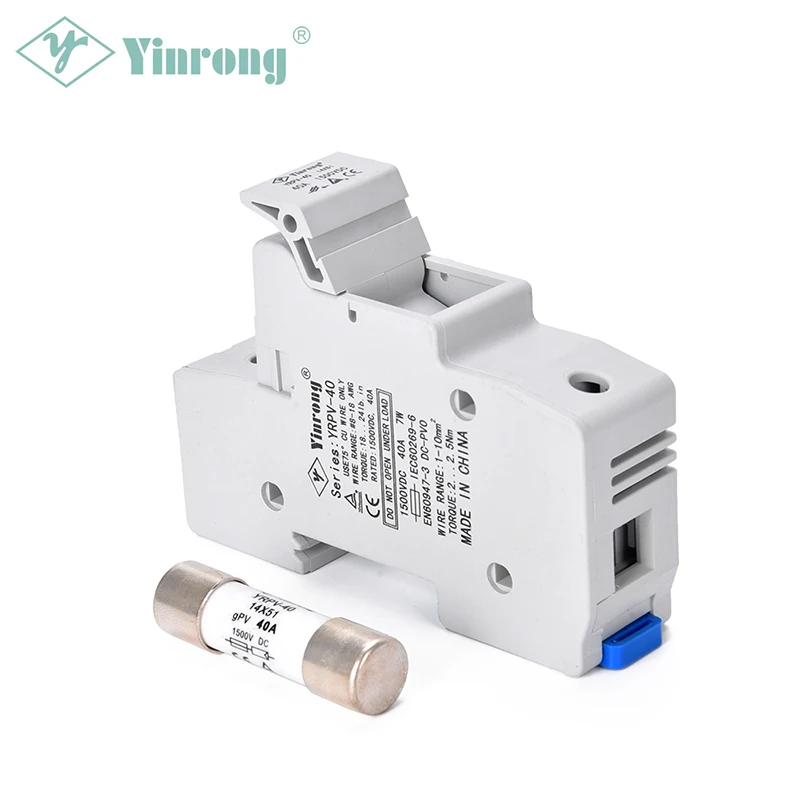

| Fuse Model | Rated Voltage(V) | Rated breaking capacity(kA) | Rated current(In/A) | ||||||
| YRPV-40/14X51 | DC:1500 | 25 | 10 | 12 | 15 | 20 | 25 | 32 | 40 |
| Power consumption(In/W) | |||||||||
| 1.65 | 1.95 | 2.36 | 2.93 | 3.9 | 4.98 | 6.3 | |||
| Holder Model | Rated Voltage(V) | Rated current(A) | Fuse block available:model | ||||||
| YRPV-40 | DC:1500 | 40 | YRPV-40/14X51 | ||||||

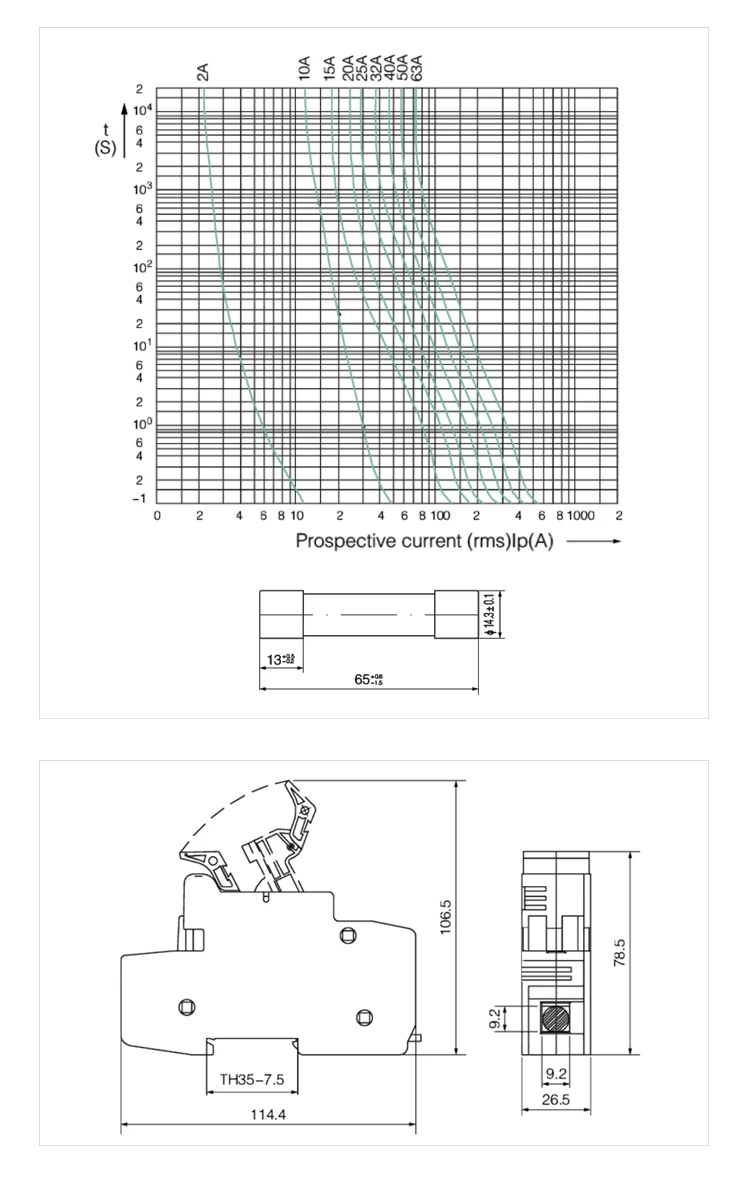

| Fuse Model | Rated Voltage(V) | Rated breaking capacity(kA) | Rated current(In/A) | ||||||||
| YRPV-63/14X65 | DC:1500 | 25 | 2 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 63 |
| Holder Model | Rated Voltage(V) | Rated current(In/A) | Fuse blockavailable:model | ||||||||
| YRPV-63 | DC:1500 | 63 | YRPV-63/14X65 | ||||||||
