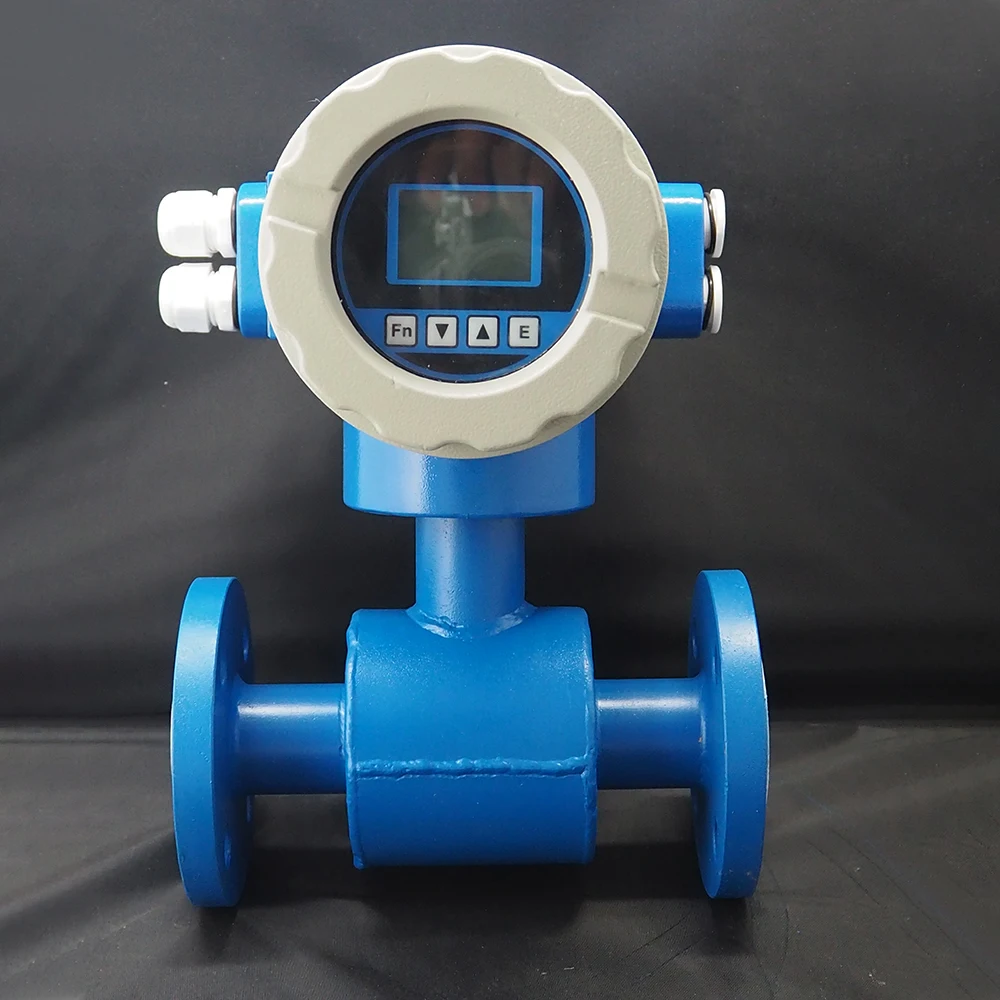

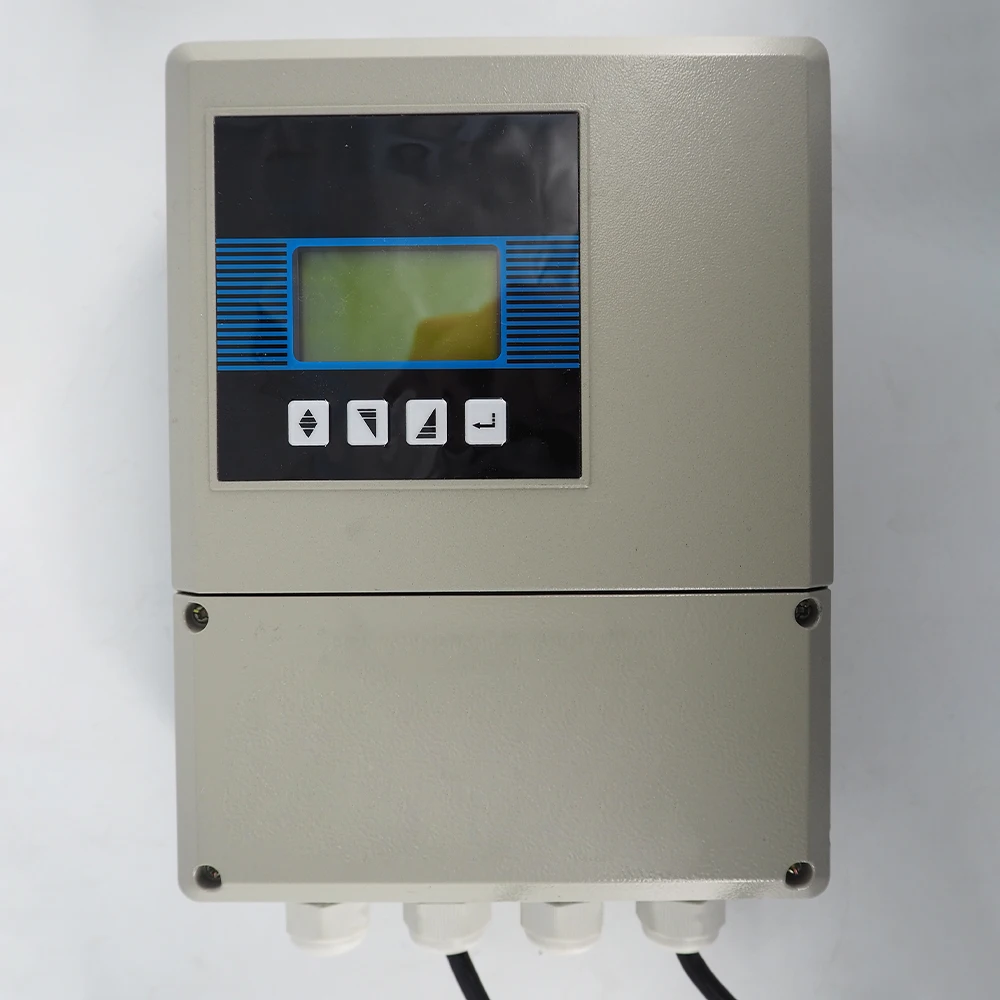

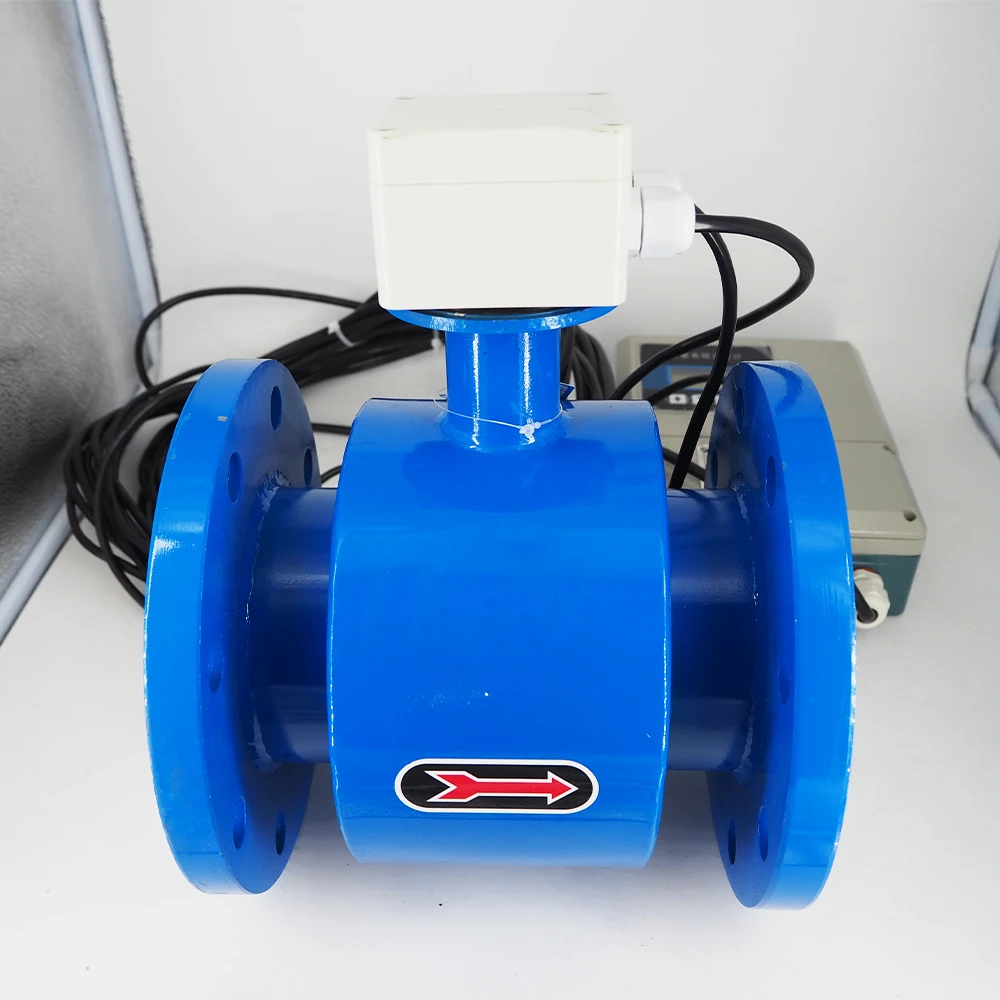

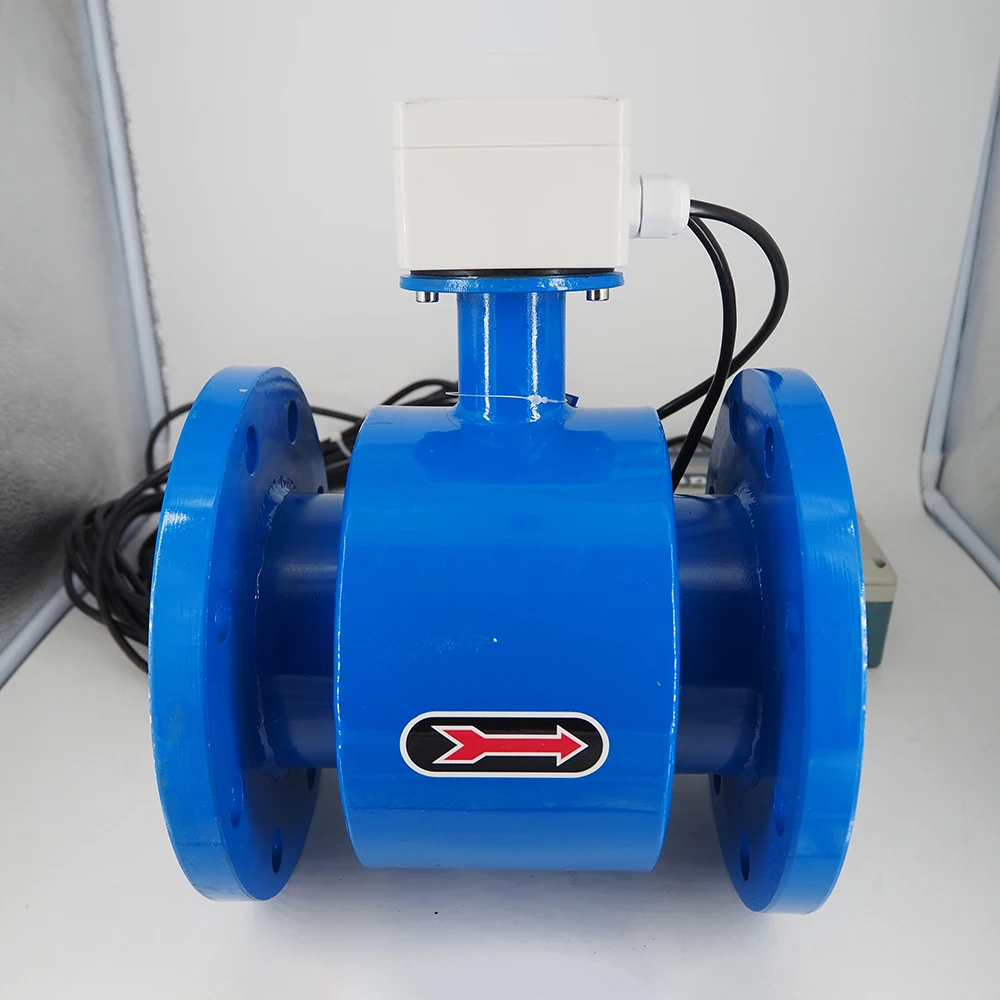

Low cost Industrial Chemical Wastewater Magnetic Sewage Flow Meter Liquid Control Digital Water Electromagnetic Flowmeter

Nominal through ND(mm)

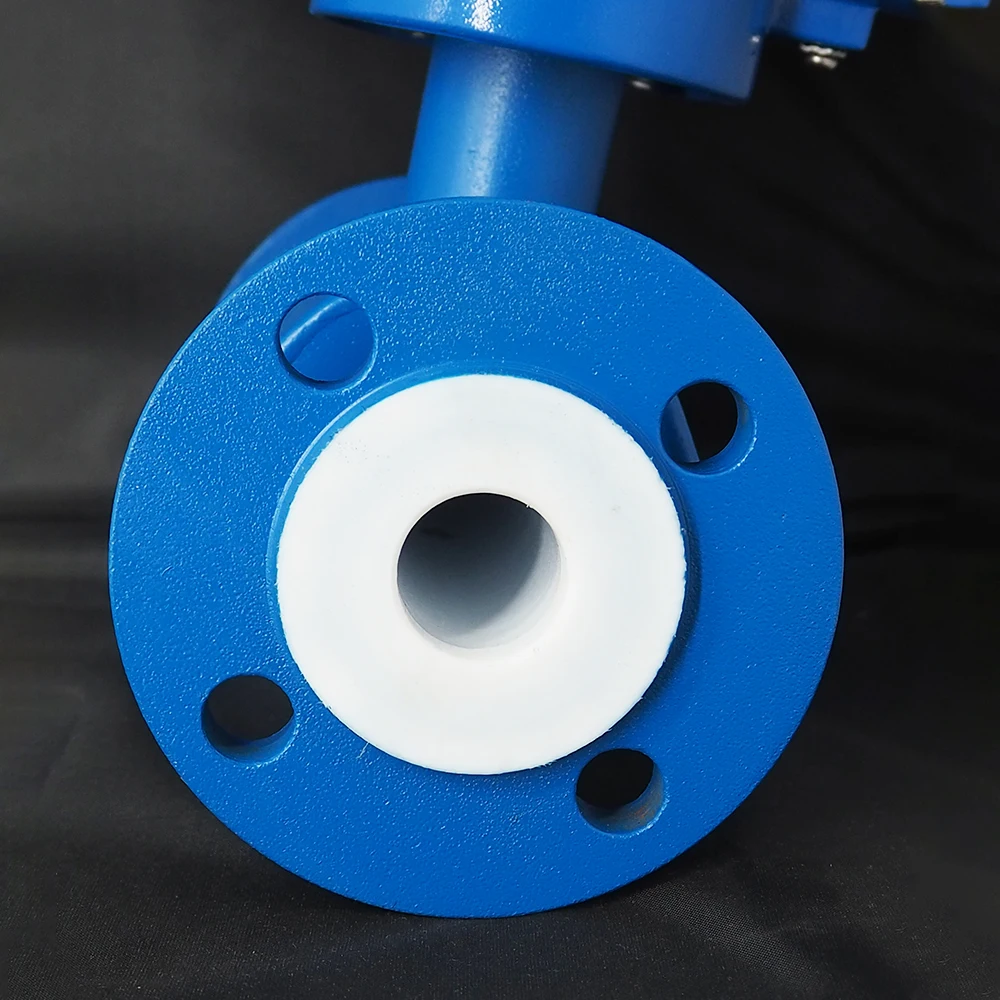

In-line PTFE lining:
10/15/20/25/32/40/50/65/80/100/125/150/200
300/350/400/450/500

Ducted rubber lining:
40/50/65/80/100/125/150/200/300/350/400/450
500/600/700/800/900/1000/1100/1200

Note: Special specifications can be customized

Flow direction

Positive, negative, net flow

Turndown ratio: 150:1

Repeatability error: ±0.1% of measured value

Accuracy class

Pipeline: Class 0.5, Class 1.0

Measured medium temperature

Ordinary rubber lining: -20~60℃, high temperature rubber lining: -20~90℃

PTFE lining: -20~100℃, high temperature PTFE lining: -20~180℃

Rated working pressure pipeline type

DN6~DN80:≤1.6MPa, DN10O~DN250:≤1MPa, DN30O~DN1200:≤0.6MPa High pressure can be customized

Flow measurement range

The flow measurement range corresponds to the velocity range of 0.1-15m/s

Conductivity range

The conductivity of the fluid to be measured is ≥5us/cm (integrated), and most of the media with water as the component has a
conductivity in the range of 200-800us/cm. Electromagnetic flowmeters can be used to measure their flowmeters.

Current output

Load resistance: 0~1.5kΩ at 0~10mA; 0~750kΩ at 4~20mA

Digital frequency output

The upper limit of the output frequency can be set within 1-5000HZ, the open-collector bidirectional output of the transistor with
photoelectric isolation, the maximum collector current is 250mA when the external power supply ≤35V is turned on

Power supply

85~265V, 45~63HZ

Straight pipe length

Pipeline type: upstream ≥ 5DN, downstream ≥ 2DN

Connection method

Flange connection is adopted between the flowmeter and piping, and the flange connection size shall comply with the provisions of
GB11988

Explosion-proof mark

MDIIBT4

Ambient temperature and humidity

-25C~60℃, 59%~95%

Total power consumption

less than 20W
