Gigabit Ethernet Media Converter, Multi Mode Dual SC Fiber to Ethernet Converter, 550m 2km
- Category: >>>
- Supplier: Shenzhen Silink Technology Co. Ltd.
Share on (1600519422834):
Product Overview
Description
Products Description
Gigabit Ethernet Media Converter, Multi Mode Dual SC Fiber to Ethernet Converter, 550m-2km
What This Product Does
MC-G112M-xx (xx is the distance: 550m, 2km) is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC-G112S-xx is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC-G112M-xx supports longwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Feature
◈ Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab.
◈ Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.
◈ LEDs Indicate Ethernet and Fiber Link Status at a Glance.
◈ Plug-and-play, Used as a Standalone Unit on a Desktop or Shelf.
◈ Extends fiber distance up to 20-80km.
Hot-swappable
Installation requires no manual configuration, simple operation
Heat Dissipation
Porous heat dissipation mode, efficient heat dissipation
Auto-MDI/MDIX
Automatically detects cable connection type and configures the connection appropriately.

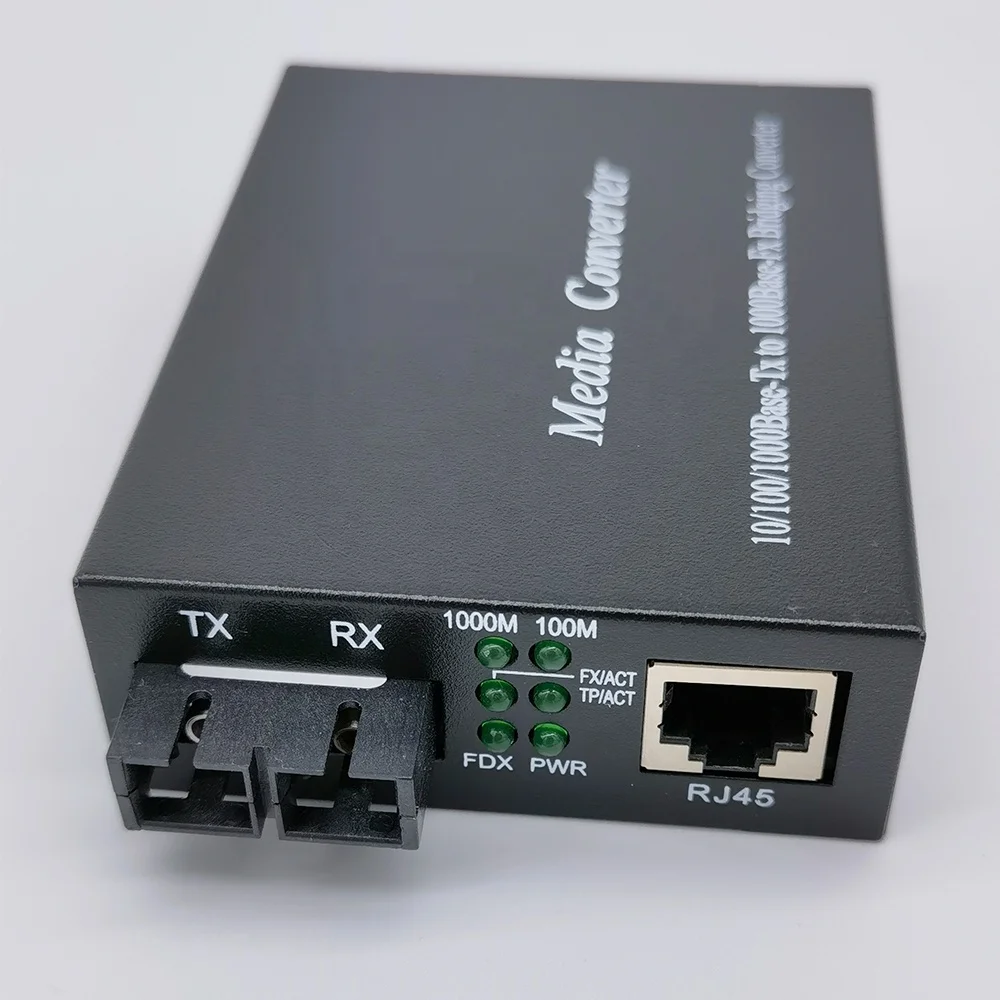

LED Show Link Status
LEDs Indicate Ethernet and Fiber Link Status at a Glance for network diagnose and quick installation.
Switch Power Pupply
Flame retardant housing, overcurrent and overvoltage protection, short circuit protection.
DIP Switches
Optional DIP switches for control the signal/electricity transmission

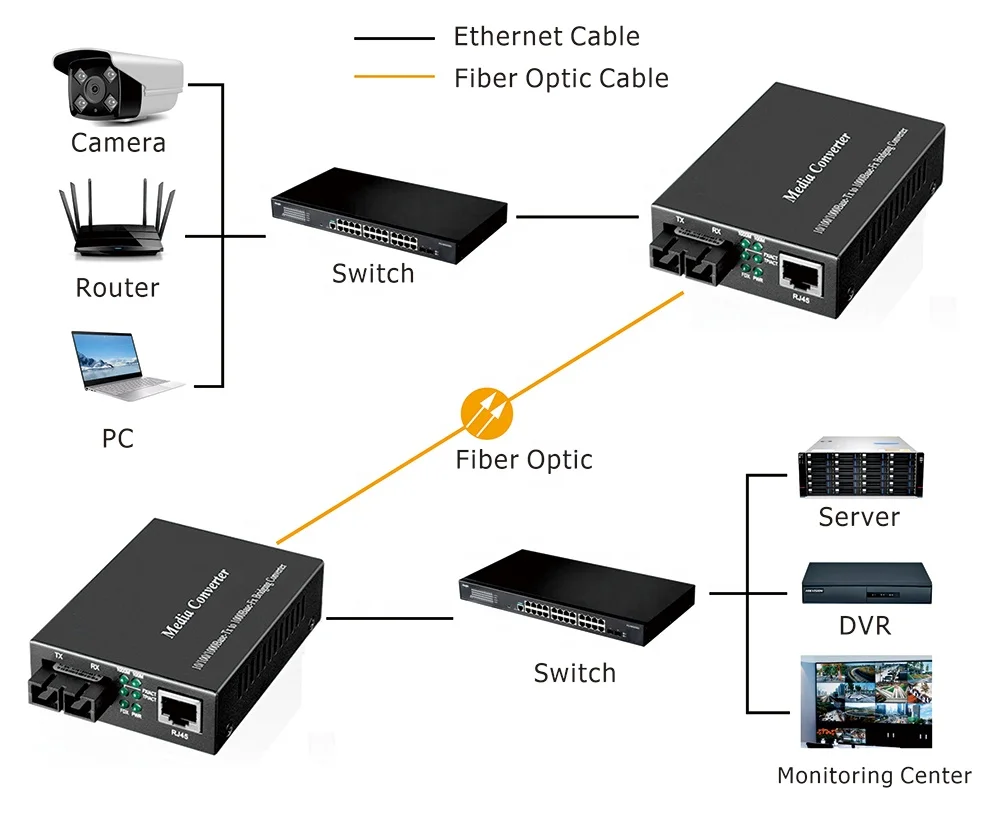

Convert and Extend Signals within your Ethernet Network
The Converter extends links over greater distances with fibre optic cable, making it perfect for IT professionals and secure setups in government, business, or educational applications.
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Interface | 1× 1000 Mbps SC Fiber Port 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
wavelength | 850nm |
Distance | 550M/2km |
Cable Type | Fiber: Multimode Copper: Cat5/5e/6 |
Power Supply | 5 V/1.0 A |
Operating Temperature | 0˚C to 50˚C |
Dimensions | 94*71*26.5 mm |

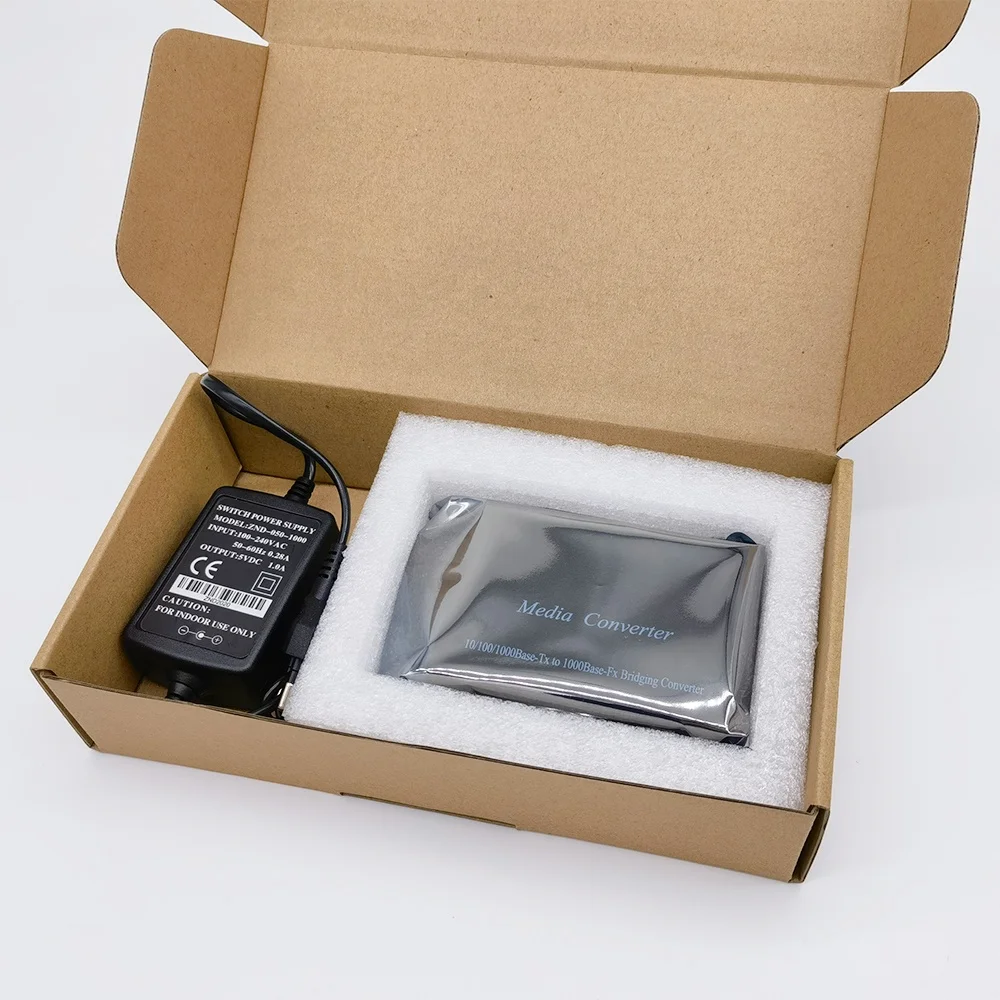

Packing & Delivery
Delivery
◈ International Express: DHL, FedEx, UPS, TNT, Aramex and so on.
◈ You also can choose your own shipping forwarder, please notify us in advance.
◈ Shipments are usually dispatched in 2-5 working days after received payment.
◈ You also can choose your own shipping forwarder, please notify us in advance.
◈ Shipments are usually dispatched in 2-5 working days after received payment.
Our Service
OEM:
We can provide OEM services, and can design packaging, Logo, and labels according to customer requirements.
We can provide OEM services, and can design packaging, Logo, and labels according to customer requirements.
Warranty:
2 year warranty
2 year warranty
Our Advantages:
1. Advanced production and testing equipment.
2. Professional manufacturer, 100% tested.
3. Full compliance with ISO 9001 quality management system.
4. Our company has experienced professional R&D and Sales team.
5. Provide reliable solutions and satisfactory services.
6. Warmly services with careful attentions.
1. Advanced production and testing equipment.
2. Professional manufacturer, 100% tested.
3. Full compliance with ISO 9001 quality management system.
4. Our company has experienced professional R&D and Sales team.
5. Provide reliable solutions and satisfactory services.
6. Warmly services with careful attentions.
Ordering Information
100M Single Fiber | ||
MC-M111S-Axx | 10/100Base-Tx to 100Base-Fx, WDM 20-80Km | |
MC-M111S-Bxx | 10/100Base-Tx to 100Base-Fx, WDM 20-80Km | |
MC-M121S-A20 | 2 x 10/100Base-Tx to 100Base-Fx ,WDM 20Km ,Tx1310 | |
MC-M121S-B20 | 2 x 10/100Base-Tx to 100Base-Fx ,WDM 20Km ,Tx1550 | |
MC-M141S-A20 | 4 x 10/100Base-Tx to 100Base-Fx ,WDM 20Km ,Tx1310 | |
MC-M141S-B20 | 4 x 10/100Base-Tx to 100Base-Fx ,WDM 20Km ,Tx1550 | |
MC-M181S-A20 | 8 x 10/100Base-Tx to 100Base-Fx ,WDM 20Km ,Tx1310 | |
MC-M181S-B20 | 8 x 10/100Base-Tx to 100Base-Fx ,WDM 20Km ,Tx1550 | |
100M Dual Fiber | 40G QSFP+ Passive Direct Attach Cable, x=1~7m | |
MC-M112M-2 | 10/100Base-Tx to 100Base-Fx, Multi Mode, 2Km | |
MC-M112S-xx | 10/100Base-Tx to 100Base-Fx, Single Mode, 20-120Km | |
MC-M122M-2 | 2 x 10/100Base-Tx to 100Base-Fx ,Multi Mode ,2Km | |
MC-M122S-20 | 2 x 10/100Base-Tx to 100Base-Fx ,Single Mode ,20Km | |
MC-M142M-2 | 4 x 10/100Base-Tx to 100Base-Fx ,Multi Mode ,2Km | |
MC-M142S-20 | 4 x 10/100Base-Tx to 100Base-Fx ,Single Mode ,20Km | |
MC-M182M-2 | 8 x 10/100Base-Tx to 100Base-Fx ,Multi Mode ,2Km | |
MC-M182S-20 | 8 x 10/100Base-Tx to 100Base-Fx ,Single Mode ,20Km | |
100M SFP | ||
MC-M112-SFP | 10/100Base-Tx to 100Base-Fx, FE SFP Port | |
Gigabi (1000M) Single Fiber | 25G SFP28 Active Optical Cable, x=0.5~100m | |
MC-G111S-Axx | 10/100/1000Base-Tx to 1000Base-Fx, WDM 20-80Km | |
MC-G111S-Bxx | 10/100/1000Base-Tx to 1000Base-Fx, WDM 20-80Km | |
Gigabi (1000M) Dual Fiber | 100G QSFP28 Active Optical Cable, x=1~100m | |
MC-G112M-05 | 10/100/1000Base-Tx to 1000Base-Fx, Multi Mode, 550m | |
MC-G112M-2 | 10/100/1000Base-Tx to 1000Base-Fx, Multi Mode, 2Km | |
MC-G112S-xx | 10/100/1000Base-Tx to 1000Base-Fx, Single Mode, 20-80Km | |
Gigabi (1000M) SFP | ||
MC-G112-SFP | 10/100/1000Base-Tx to 1000Base-Fx, GE SFP Port | |
MC-G242-SFP | 4 x 10/100/1000Base-Tx to 2 x 1000Base-Fx ,GE SFPPorts | |
MC-G282-SFP | 8 x 10/100/1000Base-Tx to 2 x 1000Base-Fx ,GE SFPPorts | |
Our Company
Shenzhen Silink Technology Co., Ltd. is a leading manufacturer and exporter specializing in fiber optical communications equipments,optical transceiver modules and network cabling products.
Optical transceiver modules: SFP, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM,Media Converter and other special transceiver modules,which are compatible with Cisco, 3COM, H3C, HP, Alcatel-Lucent, Allied Telesis, Nortel, Juniper, Huawei,etc.
Fiber optical communications equipments: Fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc.
These products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
FAQ
1, Can I have a sample order? What is your MOQ?
Answer: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.
2, Are your transceivers compatible?
Answer: Yes,our OEM compatible optical module all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP , Huawei, Alcatel, H3C and more.
3, How does your company do regarding quality control?
Answer: We have professional testing equipment and QC team. Every unit will be double tested with perfect performance before shipping.
4, What is your warranty time ?
Answer: We promise 3 years warranty for all products shipped from us.
5, Could I use our own logo, label and package?
Answer: Yes,we could provide a OEM service and according to your requirements, design products label, logo, PN, SN, package.
6, What is the lead time?
Answer: For usual products,We keep stock,could ship 1-3 days after PO.For big quantity and special products,Please check lead time with our sales representative.
7, What is your payment terms?
Answer: T/T, Western union, Paypal.
8, What is the shipping terms?
Answer: We usually ship by Aramex, Fedex, DHL, UPS, TNT and EMS. If you have another preferred carrier, please notify us in advance.
