Growatt Power Wall All In One 20kWh 15kWh 10kWh 200Ah 48V Lifepo4 Home Inverter Rosen Solar Battery For Powerwall
- Category: >>>
- Supplier: Batterlution Ltd.
Share on (1600519437535):
Product Overview
Description

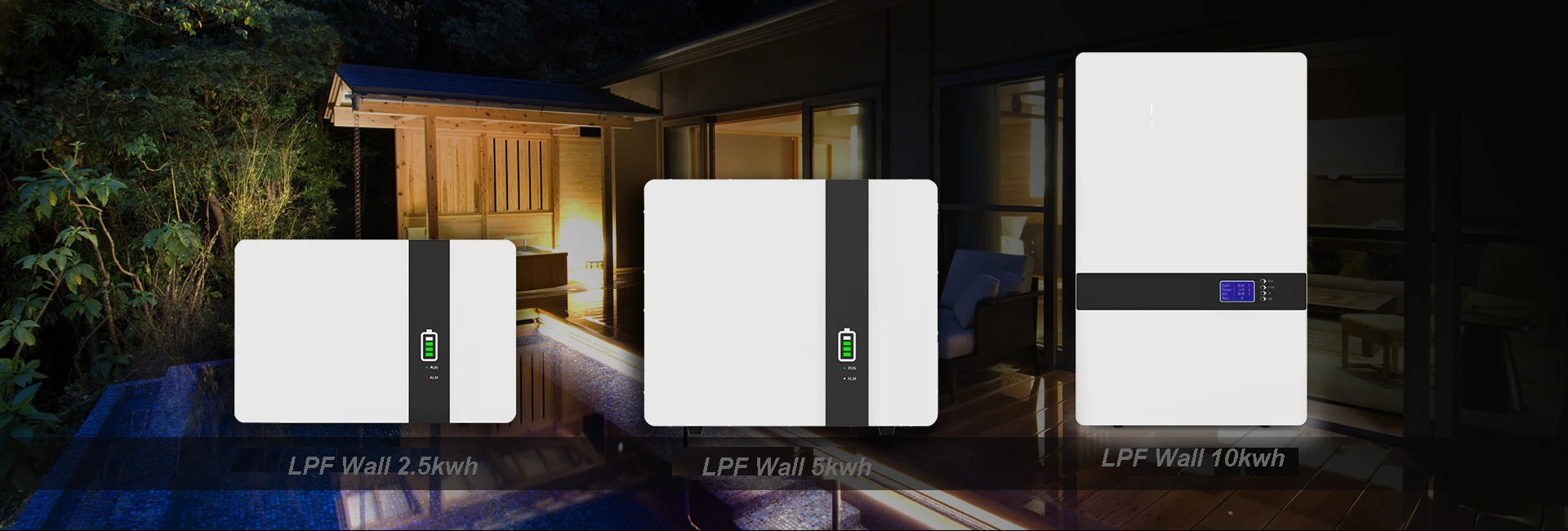

Home Battery Packs
Lithium Battery AA Solar Storage Power Supply 48v 100Ah 200 ah 10kWh Lithium Ion Battery For Household Solar System Wholesale
OSM lithium battery aa 48v is a great dynamic possibility which can be expanded in parallel, according to the battery energy requirement. The 200ah lithium ion battery modular design of battery cabinets makes it useful to meet higher energy storage capacities for household. Add more modules will able to support higher kWh requirement . This deep cycle battery is based on various standard modules & comes with optimum flexibility to design customized modules & comes with optimum flexibility to design customized modules to fit different environment in door. It proves to be the safest battery with modular design in a true sense.

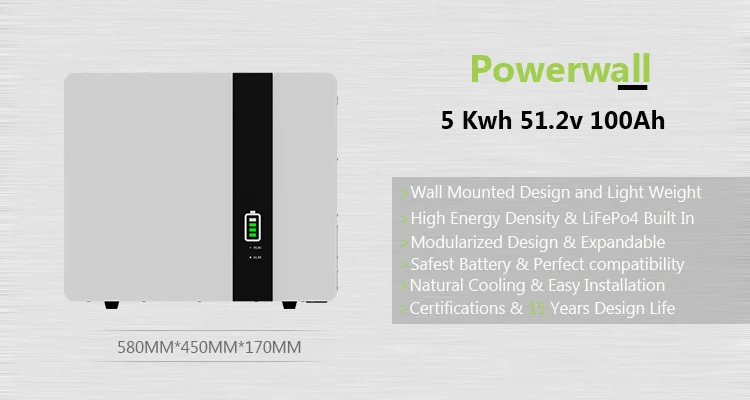

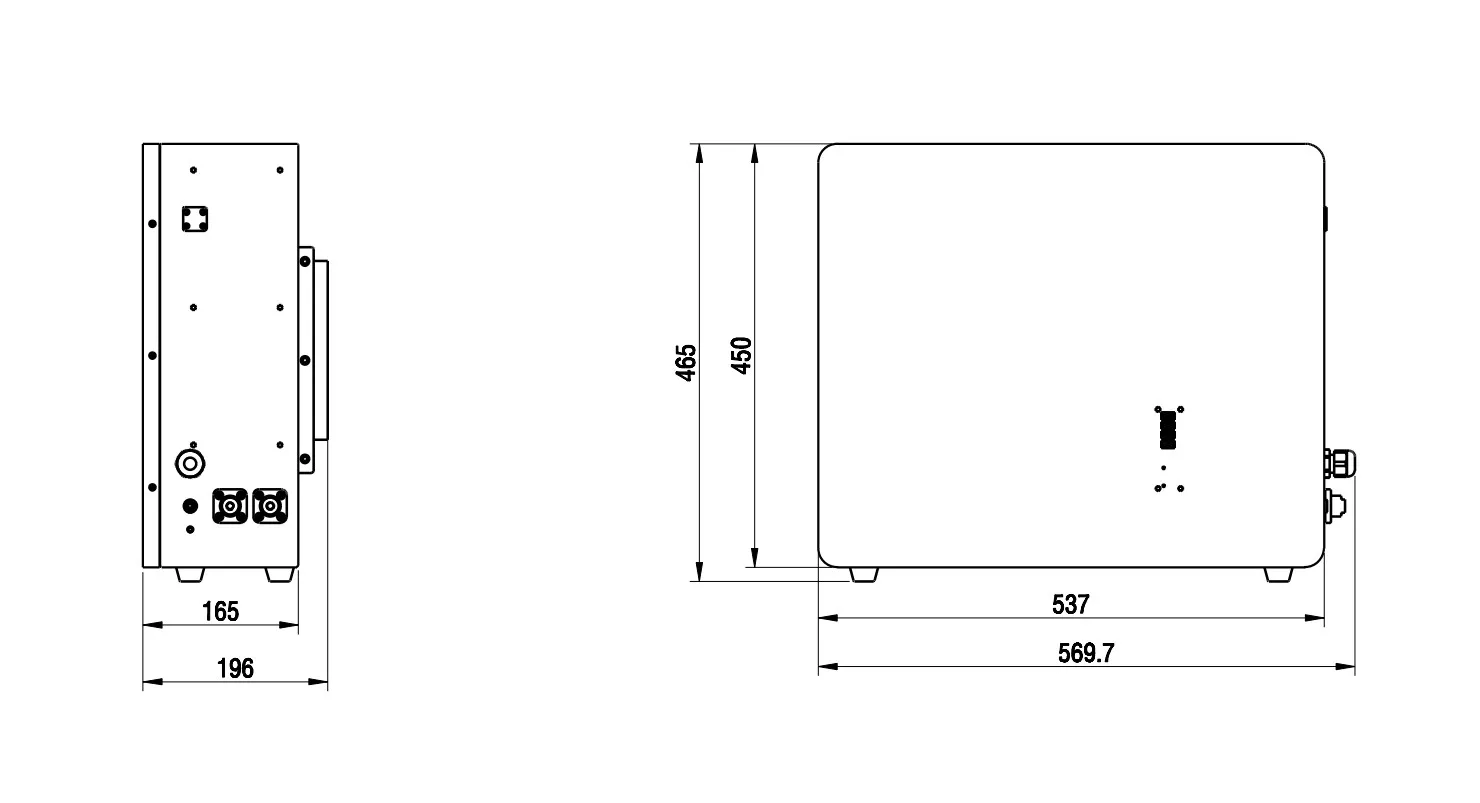

Dimensions for LFPWALL 5K battery
Specifications
Model | LFPWall-5000 | LFPWall-10K | |
Capacity Energy | 5.12kWh | 10.24kWh | |
Capacity Ah | 100Ah | 200Ah | |
Suggested SOC | 10~100% | ||
Usable Capacity | 4.8kWh | 9.7kWh | |
Nominal Voltage | 51.2V | ||
Operation Voltage | 44.8V – 57.6V | ||
Maximum Charging/ Discharging Current | 70A/100A | 100A/150A per Pack | |
Life Cycling (0.5C 25℃) | 6000 cycles @ 0.5C | ||
BMS | Parallel function, single cell voltage and temperature measurement, protections, display optional, heating function optional | ||
Communication | CAN, RS485 | ||
Scalable | Yes, maximum 15 packs | ||
Design Lifespan | more than 10 years | ||
Operation Temperature | Chrage : 0 ~ 45℃, Dischrage : -20 ~ 45℃ | ||
Storage Temperature | -20 ~ 45℃ | ||
Weight | 52kG | 100kG | |
Dimensions | 480x520x165 mm | 866x537x180 mm | |
Certifications | MSDS, UN38.3, RoHS, IEC62619, UL, CE | ||
IP Grade | IP54 | ||
Warranty | 10 years | ||

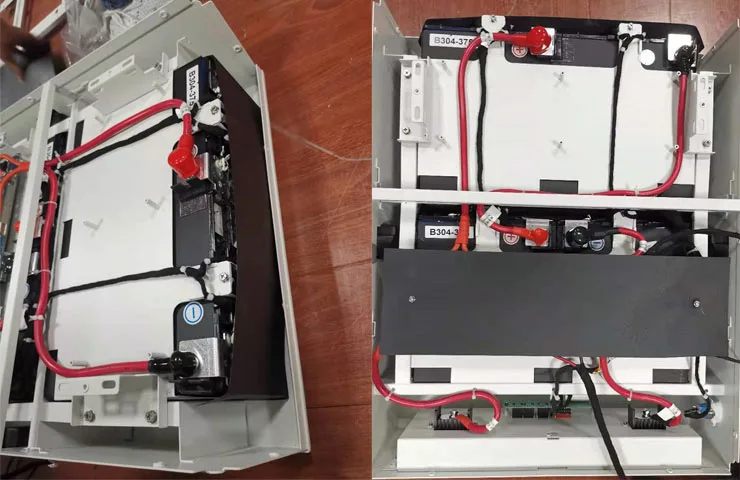

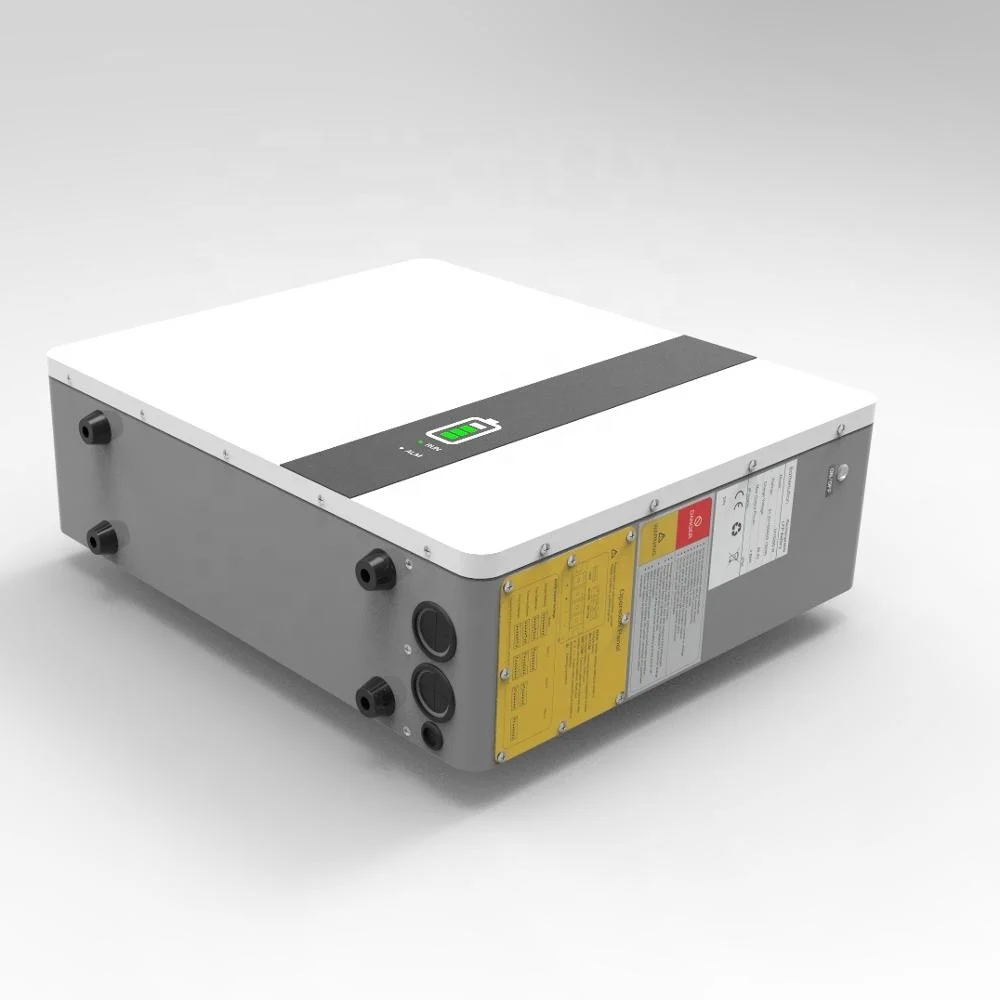

Product Quality

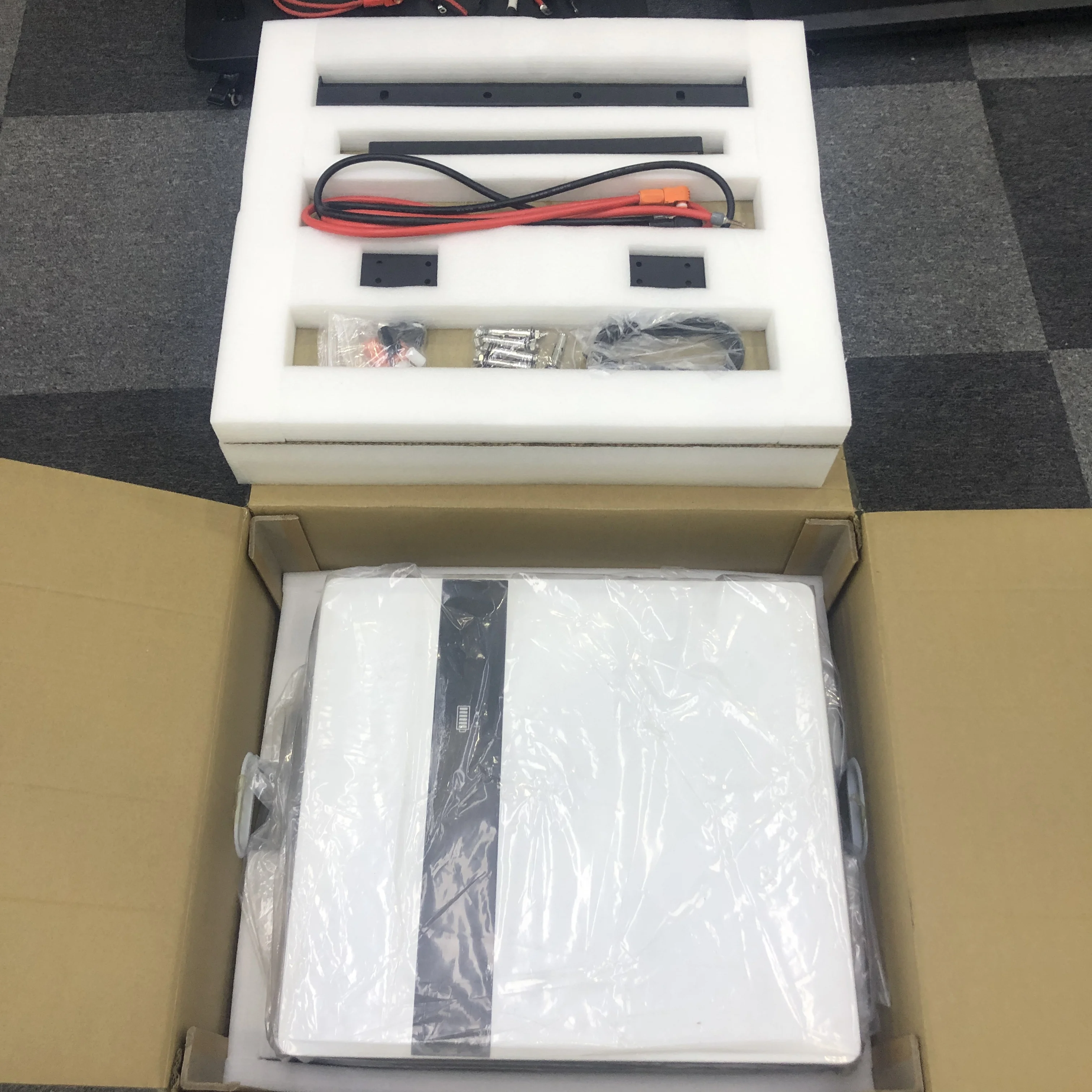

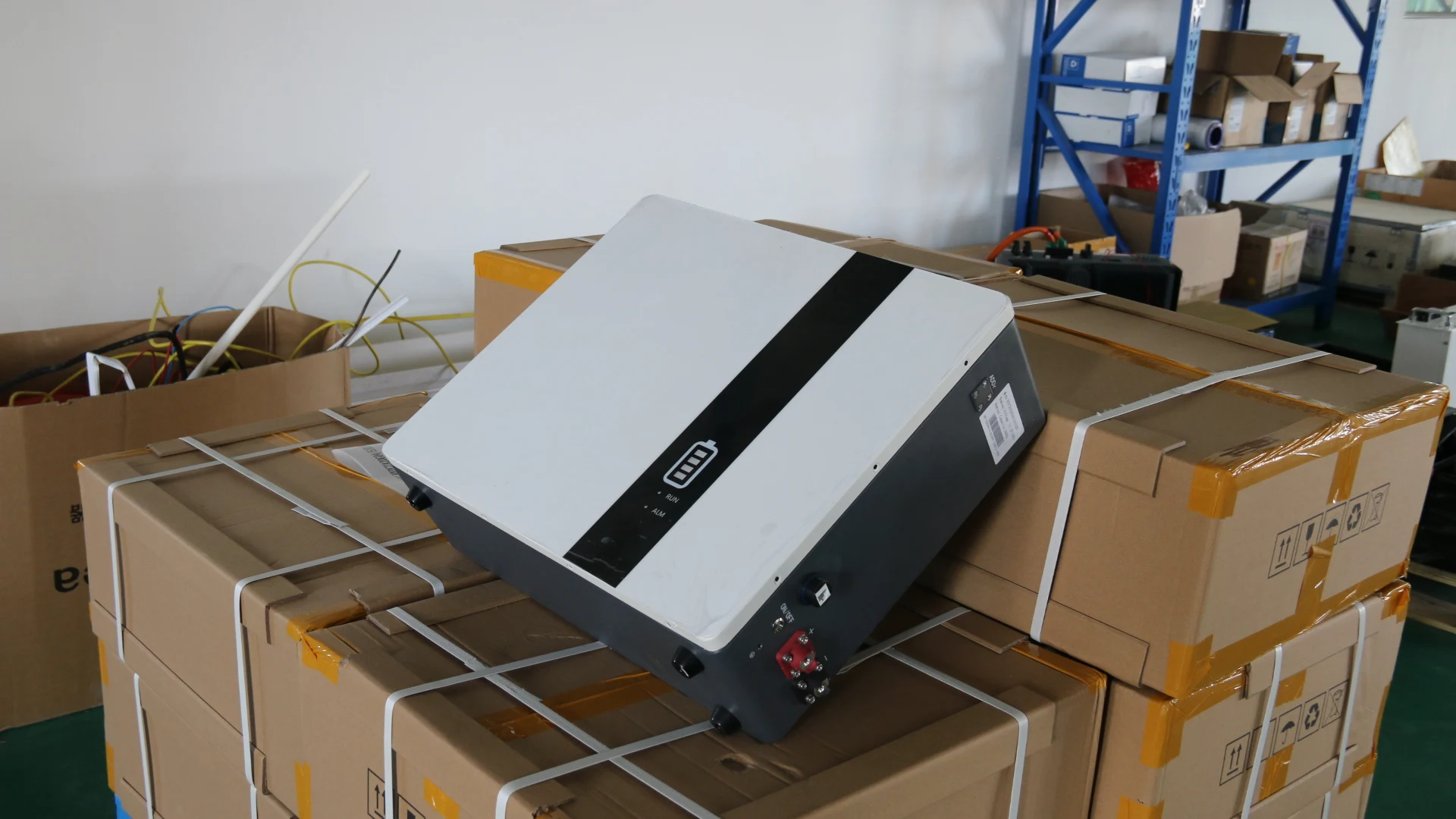

Package
There are more home solar battery options please see links below
LiFePO4 BATTERY CELL

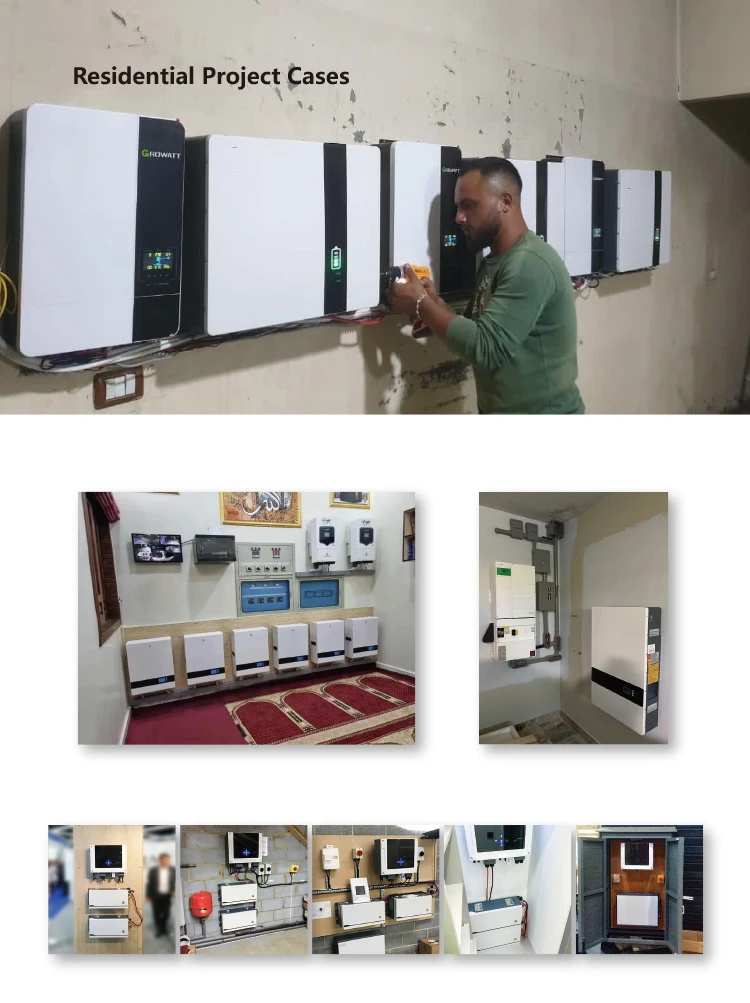

Case show
Why choose us

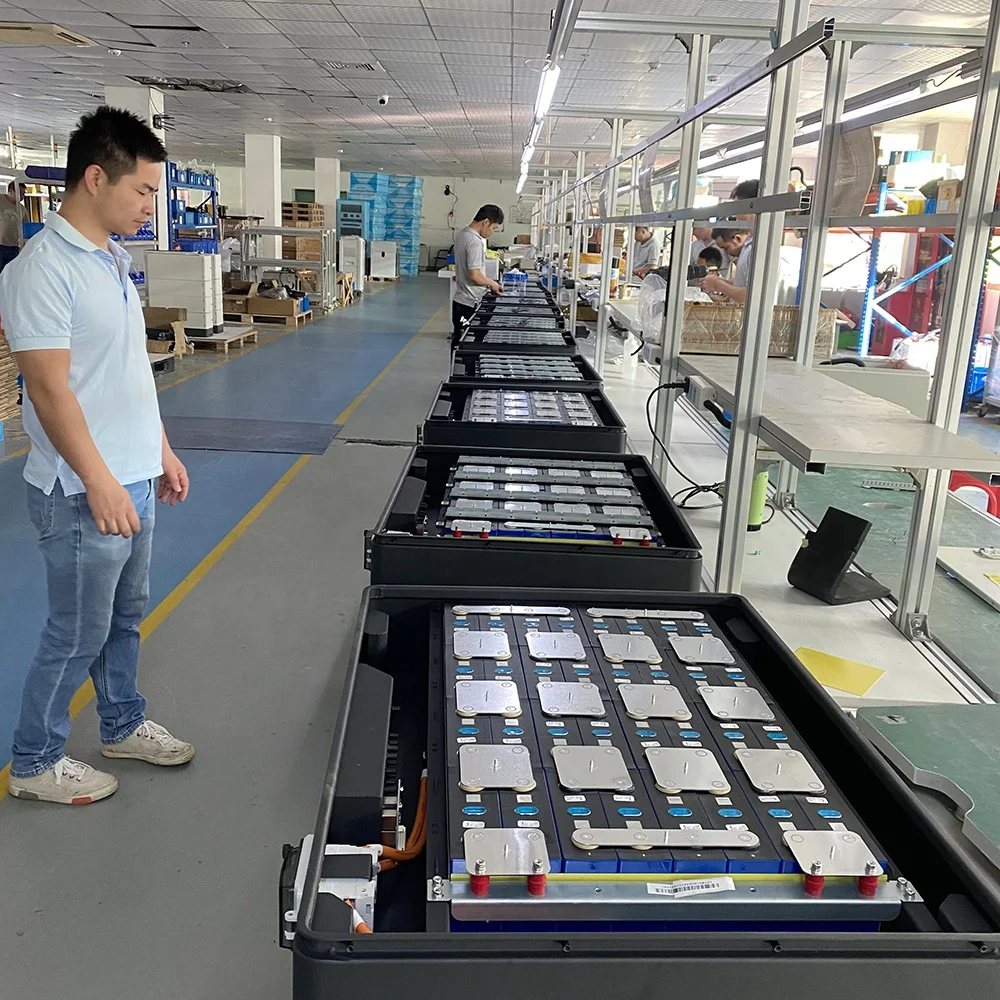

Factory introduction
FAQ
Battery Cell\t\t\t
\t1：\tWhat battery cell you are using?\t
\t1：\tWhat battery cell you are using?\t
We are using BYD or Gotion brand new prismatic cell. If necessary, please contact us for battery cell specifications.
\t2：\tHow many cycles can achieve for your battery cells?
\t2：\tHow many cycles can achieve for your battery cells?
\tBYD and GOTION brand new cells can achieve 6000 cycles @ 25℃, 0.5C conditions. Also please know usually 1C condition is about 3500 cycles.
Low Voltage Battery
1：Which hybrid inverter your battery BMS has been communicated\t
Low Voltage Battery
1：Which hybrid inverter your battery BMS has been communicated\t
Our BMS has built protocol communication with most of inverter brands in market. You can please find the brnad information above picture.
\t\t\t
High Voltage Battery\t
1：Which hybrid inverter your high voltage battery BMS has been communicated
\t\t\t
High Voltage Battery\t
1：Which hybrid inverter your high voltage battery BMS has been communicated
\tOur high voltage battery BMS has built protocol communication with Growatt, Sofarsolar, Goodwe, INVT, Megarevo etc brand three phase hybrid inverters.
\t2：\tWhy we use high voltage battery?\t
\t2：\tWhy we use high voltage battery?\t
High voltage battery always works with three phase hybrid inverters, which need a higher battery output. So we need high voltage battery solution to achieve a bigger kW power.
\t3：\tHow much total voltage I need?
\t3：\tHow much total voltage I need?
\tThis depends on inverter battery side specifications. For three hybrid inverter, it is always around 150V to 600V. We just need to consider this HV battery system volatge is in this range.
Warranty\t\t\t
\t1：What's your warranty years?
\t1：What's your warranty years?
\tWe offer standard factory warranty which is valid 10 years for battery product, from the date of installation or no more than 10 and a half years from the delivery date from factory. The battery capacity will be no less than 70% within 10 years or 10MWh battery through put per kWh of the initial installation date by conditions charge rate is no more than 0.5C, and environment temperature should be in the range of 0℃ to 30℃.
\t2：If battery has issues, how you proceed for warranty?
\t2：If battery has issues, how you proceed for warranty?
\tOur engineer will remotely check the issues by software, this need local installer assistance. If it is software issue, the battery can be repaired by firmware update. If it is battery hardware issue, we will send the battery module or BMS to customer as the replacement.
\t\t\t
Service\t\t\t
\t1：Can you offer OEM or ODM?
\t\t\t
Service\t\t\t
\t1：Can you offer OEM or ODM?
\tYes, we are LFP battery specialized solution provider mianly in energy storage field. You can please inform us your applications, inverter brand and model name. We will select or customize LFP battery system for you.
