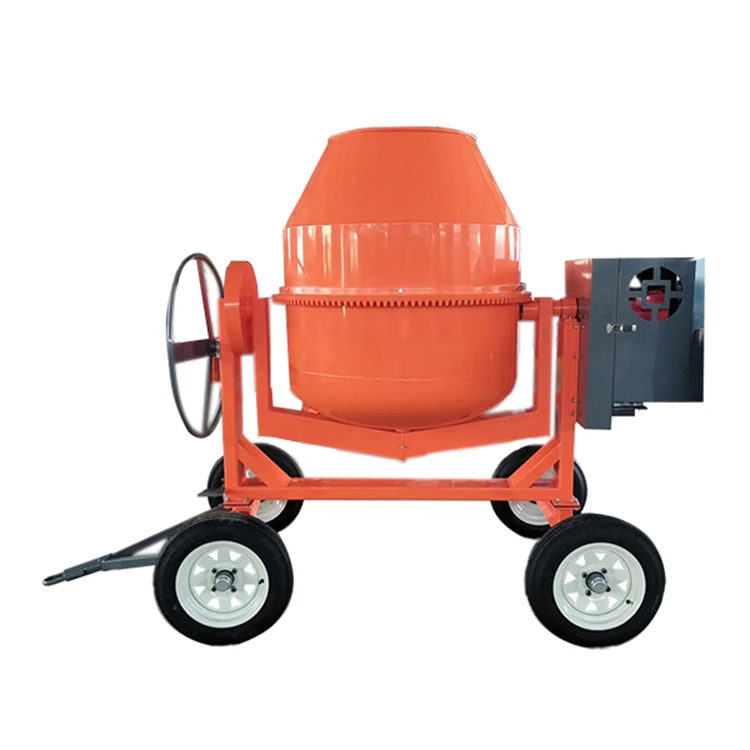

New design mesin molen beton JQ 600L mini concrete mixer diesel concrete cement mixing machine for home use building
- Category: Concrete Machinery >>>
- Supplier: Shandong,Laizhou,Jinquan,Rocker,Arm,Co.,Ltd.
Share on:
Product Overview
Description
MODEL | Specification | Engine |
JQC260L | Feed Capacity: 260L | Gas engine:5.5HP Electricengine:1.5kw |
Drum Mouth:450mm | ||
Drum Diameter:700mm | ||
Drum Height:687mm | ||
RPM of Drum:18 | ||
Upper drum thickness: 3.0mm | ||
Lower drum thickness: 4.0mm | ||
Productivity:6-10m³/h | ||
Ring Gear: Cast Iron | ||
Handle type: Swivel handle | ||
Wheel: pneumatic wheel | ||
JQC300L | Feed Capacity: 300L | Gas engine:5.5HP Electric engine:1.5kw |
Drum Mouth:450mm | ||
Drum Diameter:700mm | ||
Drum Height:777mm | ||
RPM of Drum:20 | ||
Upper drum thickness: 3.0mm | ||
Lower drum thickness: 4.0mm | ||
Productivity:8-12m³/h | ||
JQC350L | Feed Capacity: 350L | Gas engine:6.5HP Electric engine:2.2kw |
Drum Mouth:516mm | ||
Drum Diameter:800mm | ||
Drum Height:766mm | ||
RPM of Drum:20 | ||
Upper drum thickness: 3.0mm | ||
Lower drum thickness: 4.0mm | ||
Productivity:10-14m³/h | ||
JQC400L | Feed Capacity: 400L | Gas engine:6.5HP Electric engine:2.2kw |
Drum Mouth:516mm | ||
Drum Diameter:800mm | ||
Drum Height:851mm | ||
RPM of Drum:20 | ||
Upper drum thickness: 3.0mm | ||
Lower drum thickness: 4.0mm | ||
Productivity:12-16m³/h | ||
JQC450L | Feed Capacity: 450L | Gas engine:6.5HP Electric engine:2.2kw |
Drum Mouth:516mm | ||
Drum Diameter:800mm | ||
Drum Height:936mm | ||
RPM of Drum:20 | ||
Upper drum thickness: 3.0mm | ||
Lower drum thickness: 4.0mm | ||
Productivity:14-18m³/h | ||
JQC500L | Drum Mourh:566mm | Gas engine:9HP Electric engine:3kw |
Drum Diameter:900mm | ||
Drum Height:920mm | ||
RPM of Drum:17 | ||
Upper drum thickness: 3.0mm | ||
Lower drum thickness: 4.0mm | ||
Productivity:16-20m³/h | ||
JQC600L | Drum Mouth:566mm | Gas engine:9HP Electric engine:3kw |
Drum Diameter:900mm | ||
Drum Height:1040mm | ||
RPM of Drum:17 | ||
Upper drum thickness: 3.0mm | ||
Lower drum thickness: 4.0mm | ||
Productivity:20-24m³/h | ||
JQC700L | Drum Mouth:600mm | Gas engine:9HP Electric engine:3kw |
Drum Diameter:1000mm | ||
Drum Height:1075mm | ||
RPM of Drum:17 | ||
Upper drum thickness: 3.0mm | ||
Lower drum thickness: 4.0mm | ||
Productivity:24-28m³/h | ||
JQC800L | Drum Mouth:600mm | Gas engine:9HP Electric engine:3kw |
Drum Diameter:1000mm | ||
Drum Height:1205mm | ||
RPM of Drum:17 | ||
Upper drum thickness: 3.0mm | ||
Lower drum thickness: 4.0mm | ||
Productivity:28-32m³/h |
