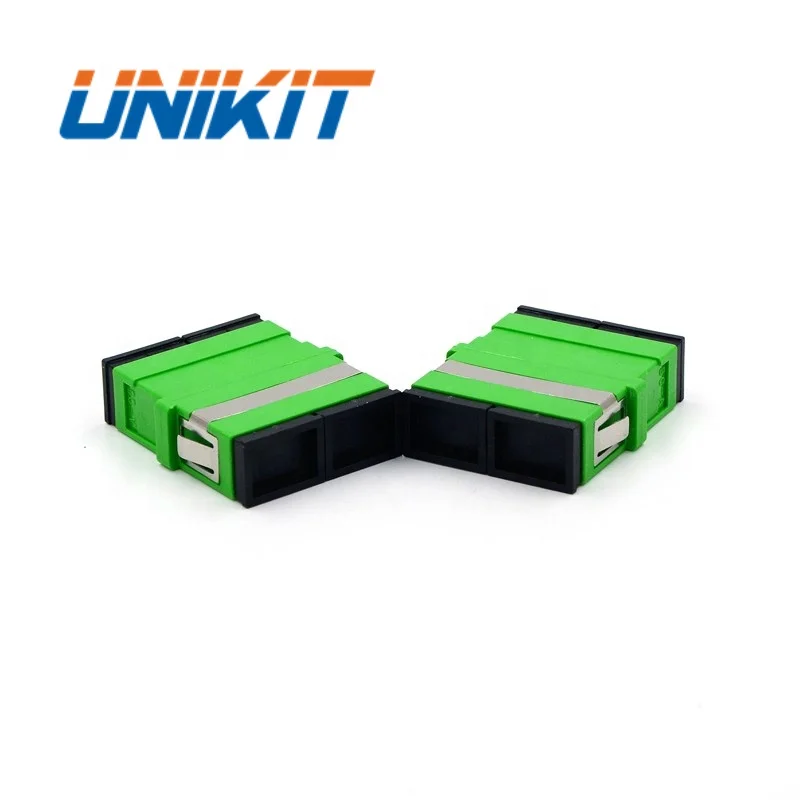

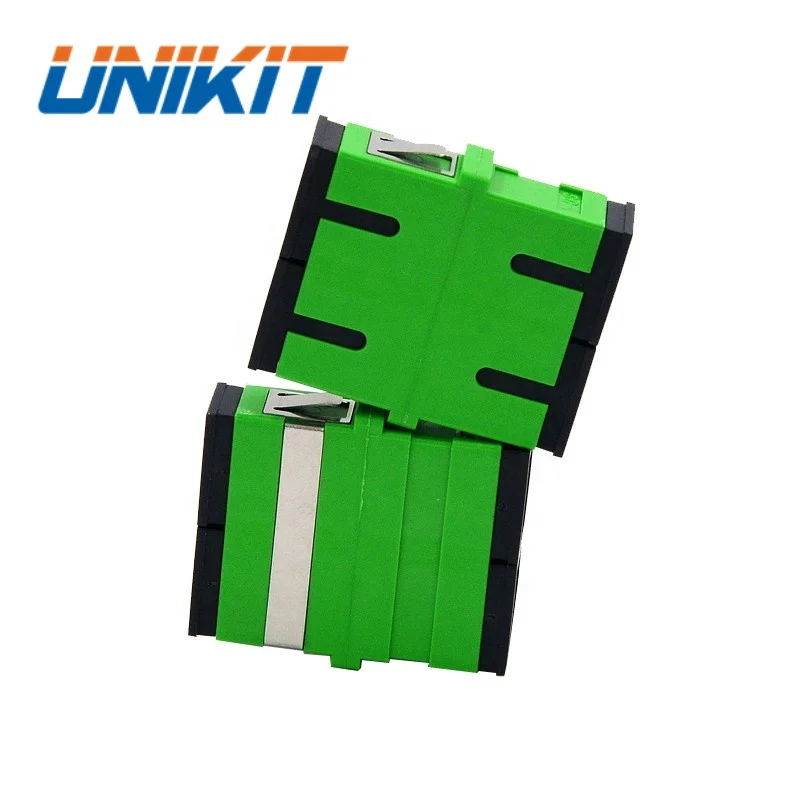

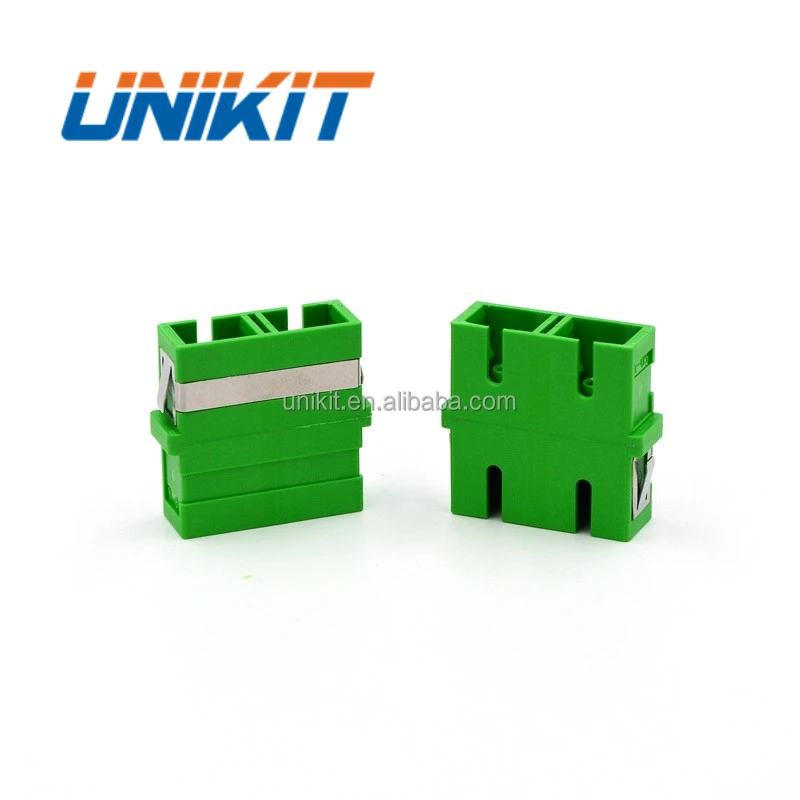

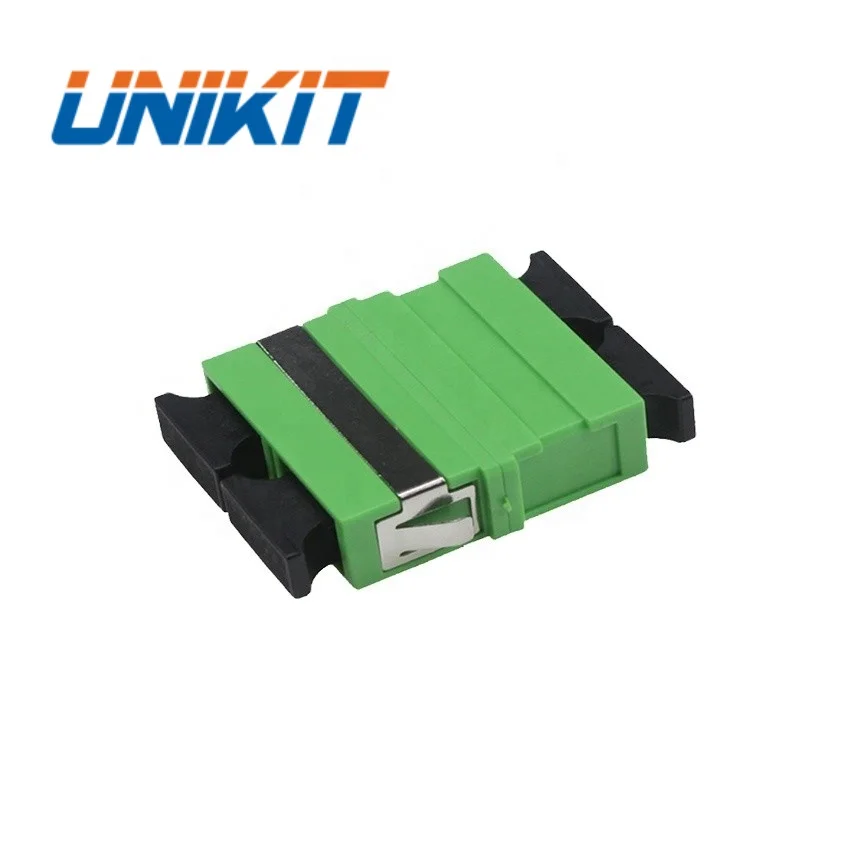

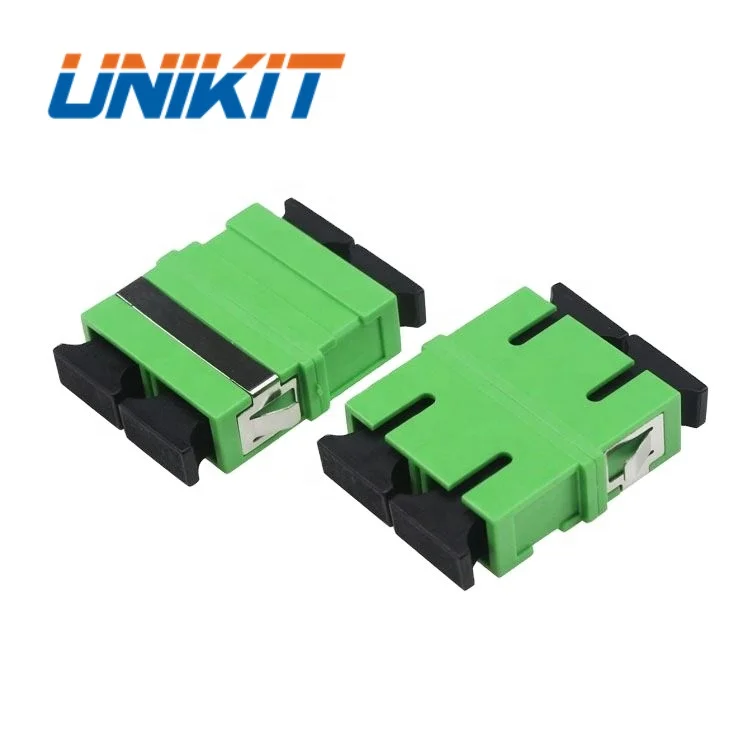

FTTH Accessories Flangeless Duplex SM Fiber Optic Coupler without Flange for Fast Connector 2 Port SC APC Fiber Optic Adapter
FTTH Accessories Flangeless Duplex SM Fiber Optic Coupler without Flange for Fast Connector 2 Port SC APC Fiber Optic Adapter
FTTH Accessories Flangeless Duplex SM Fiber Optic Coupler without Flange for Fast Connector 2 Port SC APC Fiber Optic Adapter
FTTH Accessories Flangeless Duplex SM Fiber Optic Coupler without Flange for Fast Connector 2 Port SC APC Fiber Optic Adapter
FTTH Accessories Flangeless Duplex SM Fiber Optic Coupler without Flange for Fast Connector 2 Port SC APC Fiber Optic Adapter
FTTH Accessories Flangeless Duplex SM Fiber Optic Coupler without Flange for Fast Connector 2 Port SC APC Fiber Optic Adapter
FTTH Accessories Flangeless Duplex SM Fiber Optic Coupler without Flange for Fast Connector 2 Port SC APC Fiber Optic Adapter

FTTH Accessories Flangeless Duplex SM Fiber Optic Coupler without Flange for Fast Connector 2 Port SC APC Fiber Optic Adapter

Share on (1600519463086):


Price:$0.05 - $0.25

Quantity:


Product Overview

Description



Product Description



Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility.




Specification


Item
Parameter
Model Number
SC/APC SM DX w/o flange
Brand Name
UNIKIT/OEM
Operating Wavelength
1310/1500nm
Fiber Type
Singlemode or Multimode
Connector Type
SC FC LC ST MU
Ferrule Polish Endface
PC/APC/UPC
Function
Fiber Coupling
Adapter Type
with Flange/without Flange
Insertion Loss
≤0.2dB
Return Loss
≥50dB
Plug and Unplug Force
200-600(g/f)
Durability
≥1000 Times








Feature

Low insertion loss, high return loss
Good in repeatability and exchangeability
High temperature stability
Excellent endface geometry
Various fiber cable length, jacket color, connector type and label, etc.
All products undergo 100% strict quality inspection before shipment.

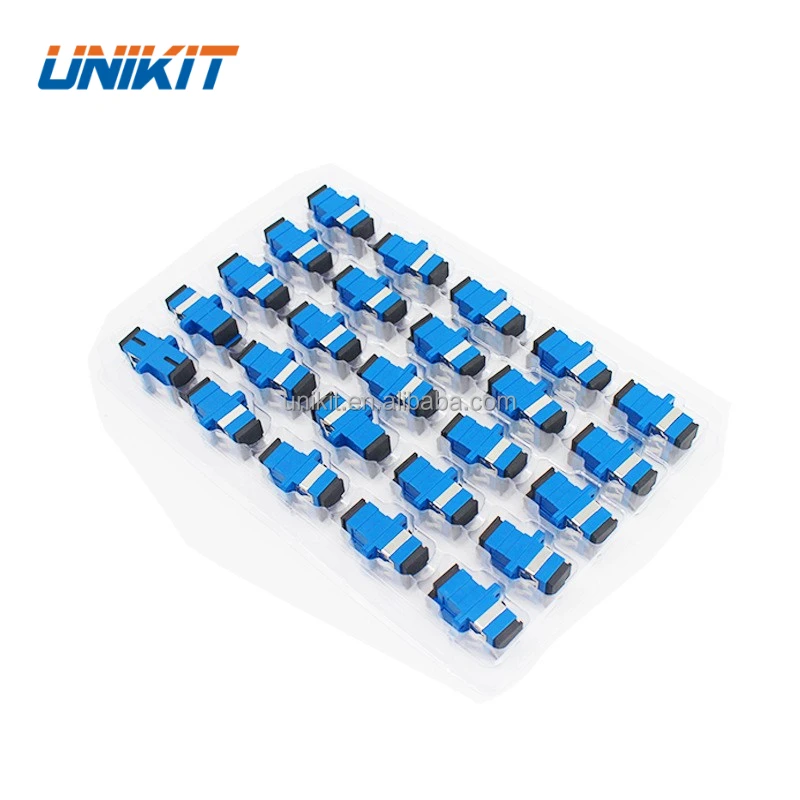

Packing & Delivery








Company Profile




Jiangsu UNIKIT Optical Technologies Co., Ltd founded in 2006, as a state-level high-tech manufacturer, we focus on supplying the whole solution of fiber connection, R&D components, provide production service for telecom operator, system integrator, optoelectronic device company and internet company. As leading manufacturer of field assembly fiber connector, we have obtainedmore than 100 patents, participated in drafting Domestic Standard of Telecommunications Industry, developed the whole set
of ground-breaking theory and design solution for Single Optical Fiber Mechanical Splice.
