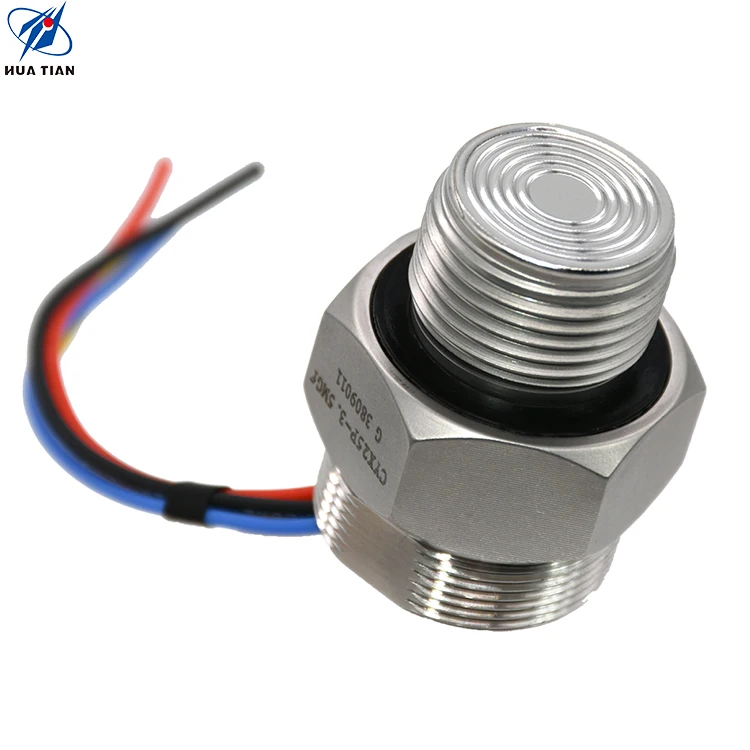

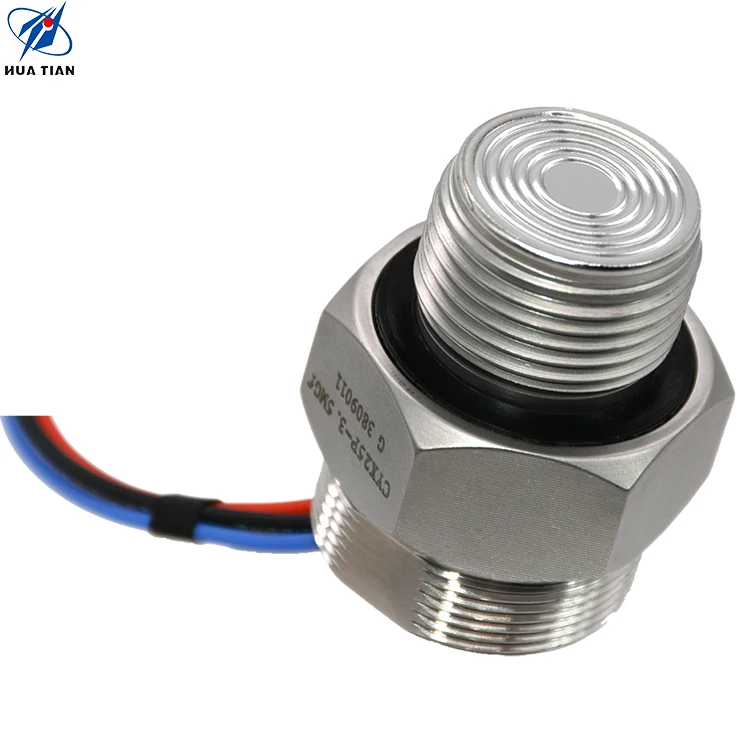

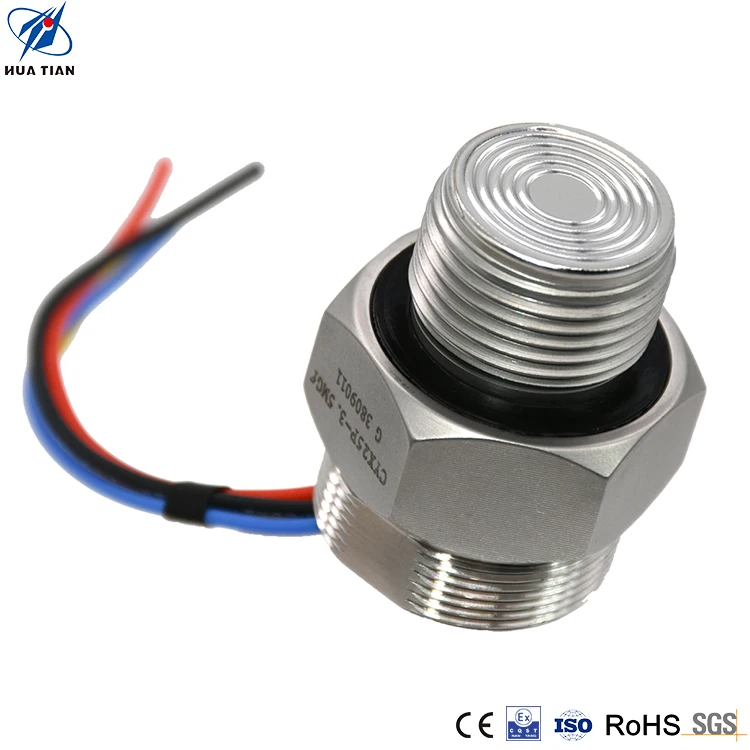

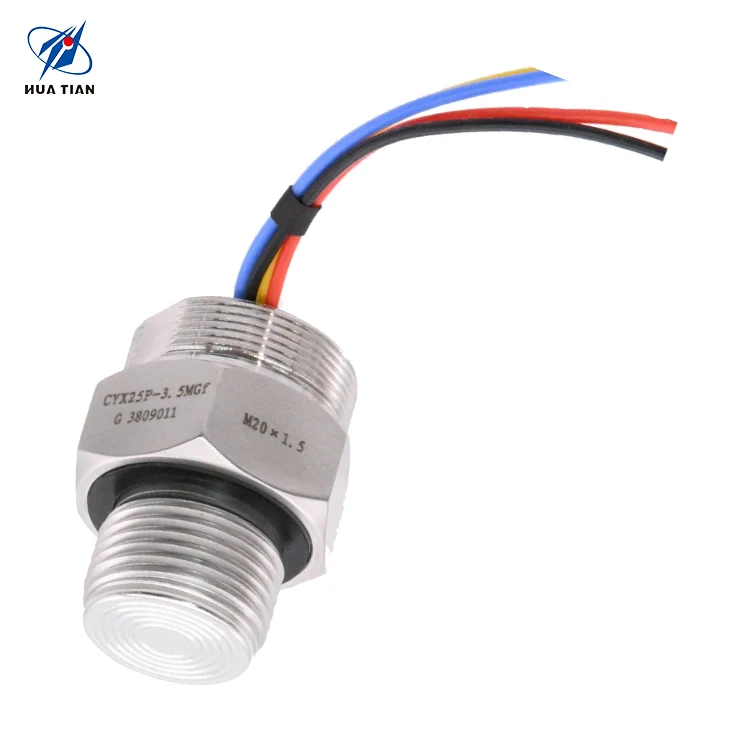

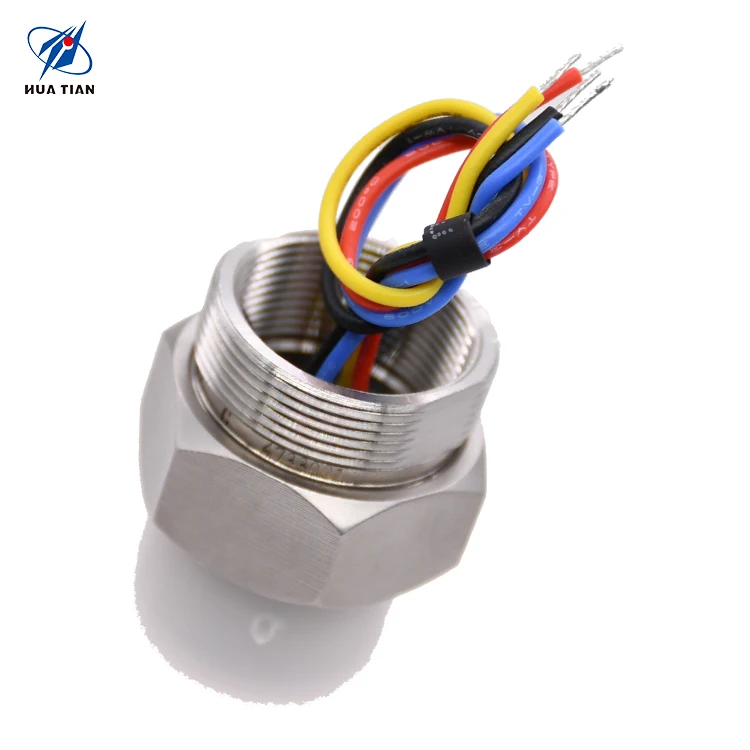

CYX25P 100 mm silicone rubber flexible conductor small 10v oil pressure sensor for concrete pump
- Category: >>>
- Supplier: Tianshui Huatian Sensor Co. Ltd.
Share on (1600519480695):
Product Overview
Description
CYX25P High precision silicon tire monitoring syste flat film intake air fuel pressure sensors
Products Description
CYX23/25 series oil filled pressure sensor is a joint type flat film sensitive device. It is produced by selecting international advanced highly stable and high precision silicon pressure chip, adopting stress-optimized design of sintering base, through SMD, gold wire bonding, diaphragm welding, high vacuum oil injection, pressure cycle stress relief, high temperature aging, temperature compensation and other processes. More than 30 years of development, production experience and process innovation have given the product excellent stability and excellent performance, which has been widely recognized by users.

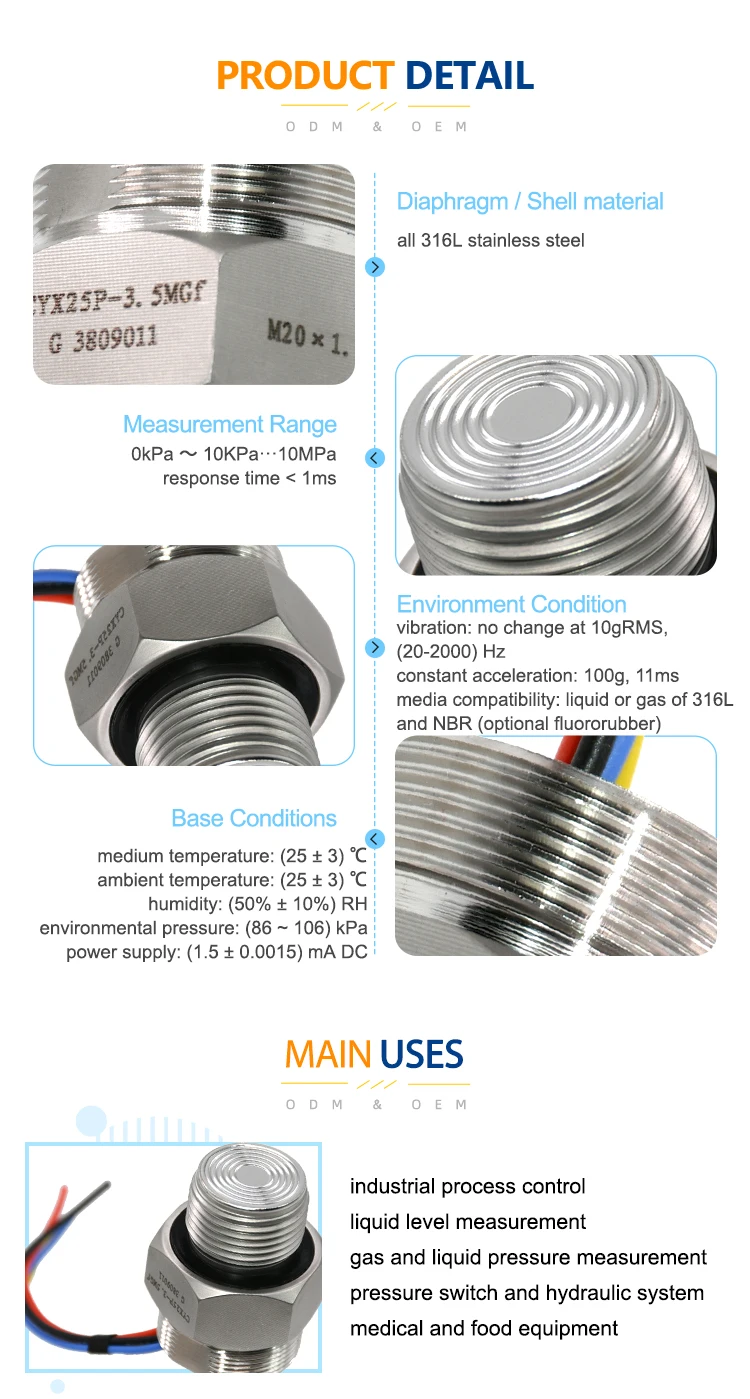

Details Images

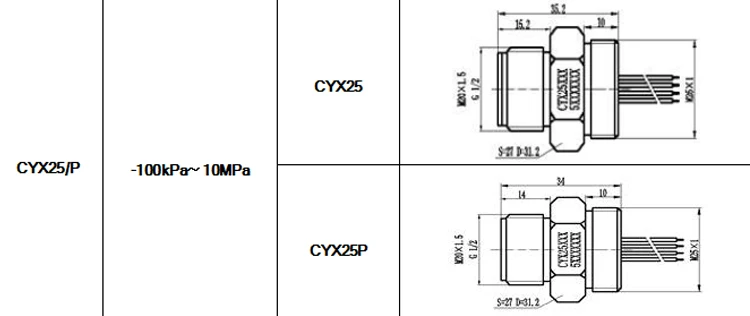

CYX23/25 series pressure sensor: Recommended thread
The recommended standard thread connection is M20 × 1.5 and G1/2. The product is used for pressure detection of media compatible with stainless steel 316L, NBR or fluororubber.
Gauge type CYX23/25 series pressure sensor model + Y for negative pressure measurement
The negative pressure type is produced by negative pressure special process, which can reliably detect the pressure lower than atmospheric pressure. The range is between – 100kPa and 3MPa.
The negative pressure type is produced by negative pressure special process, which can reliably detect the pressure lower than atmospheric pressure. The range is between – 100kPa and 3MPa.
Product Paramenters
Parameters | Typical value | Maximum | Unit | |
Zero output | + 1 | + 2 | MV | |
Nonlinearity | 0.2 | 0.5 | %FS | |
Hysteresis | 0.05 | 0.08 | %FS | |
Repeatability | 0.05 | 0.08 | %FS | |
Input / output impedance | 2.6 | 5.0 | K Ω | |
Zero temperature drift note 1 | ±0.4 | ±1.0 | %FS, @25℃ | |
Sensitivity temperature drift note 2 | ±0.4 | ±1.0 | %FS, @25℃ | |
Long term stability | 0.2 | 0.3 | %FS / year | |
Exciting current | 1.5(the maximum input voltage can be 10V) | mA | ||
Insulation resistance | 500 (100VDC) | M Ω | ||
Compensation temperature note 3 | 0～50; -10℃～70℃ | ℃ | ||
Working temperature | -40～+125 | ℃ | ||
Storage temperature | -40～+125 | ℃ | ||
Response time | ≤1 | ms | ||
Housing and diaphragm material | 316L stainless steel | |||
Ed seal ring | 18.5× 23.9 × 1.5mm Fluororubber note 4, nitrile rubber | |||
Measuring medium | Fluids compatible with 316L, nitrile rubber or fluoroelastomer | |||
Life (25 ℃) | > 1 × 108 pressure cycle (80% FS) | times | ||
Filling medium | silicone oil | |||
Features:
the measuring range is 0kPa ～ 10KPa···10MPa
the measuring range is 0kPa ～ 10KPa···10MPa
it has the form of gauge pressure G, absolute pressure A and sealing gauge pressure S
constant current / constant voltage power supply
isolated structure, suitable for a variety of fluid media
M20 × 1.5, G1/2 thread optional
all 316L stainless steel
isolated structure, suitable for a variety of fluid media
M20 × 1.5, G1/2 thread optional
all 316L stainless steel
Application
The products are widely used in coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry and other fields.
Main uses:
industrial process control
liquid level measurement
gas and liquid pressure measurement
pressure switch and hydraulic system
medical and food equipment
industrial process control
liquid level measurement
gas and liquid pressure measurement
pressure switch and hydraulic system
medical and food equipment
