Mine drilling machine 100m Depth Portable Rock Drilling Rig Water Well Drilling Rig
- Category: >>>
- Supplier: Shandong Relak Machinery Co. Ltd.
Share on (1600519487697):
Product Overview
Description
Product Description

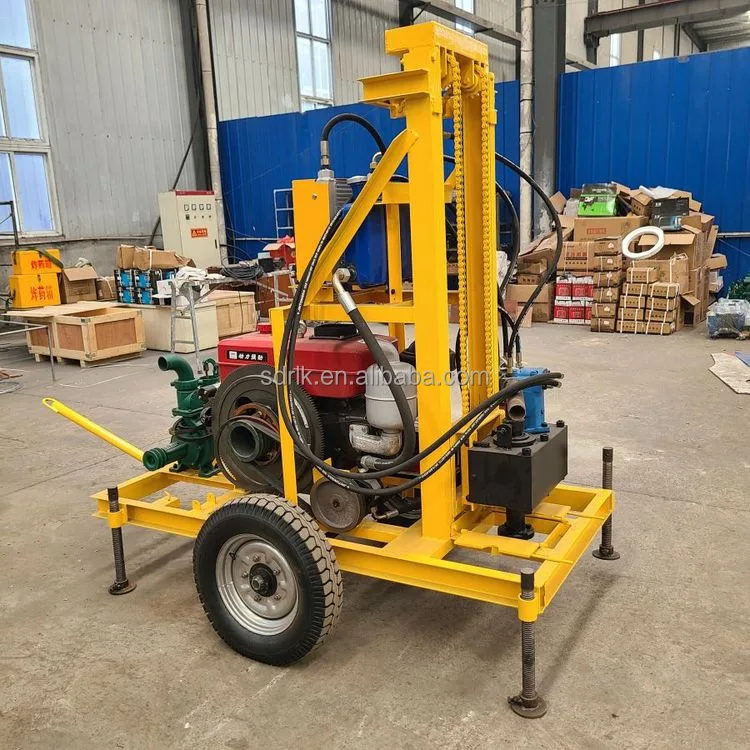

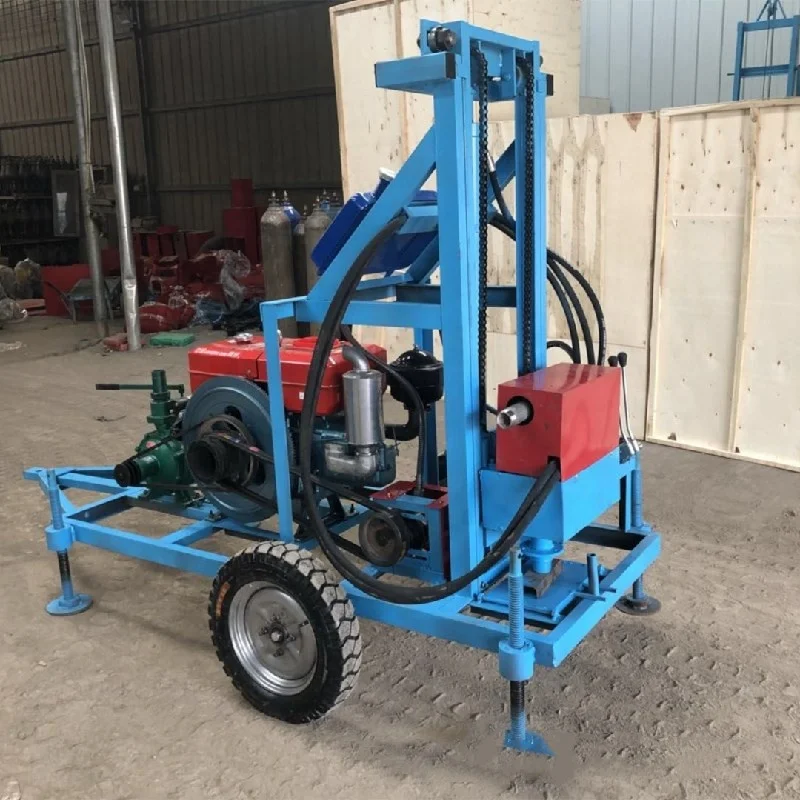

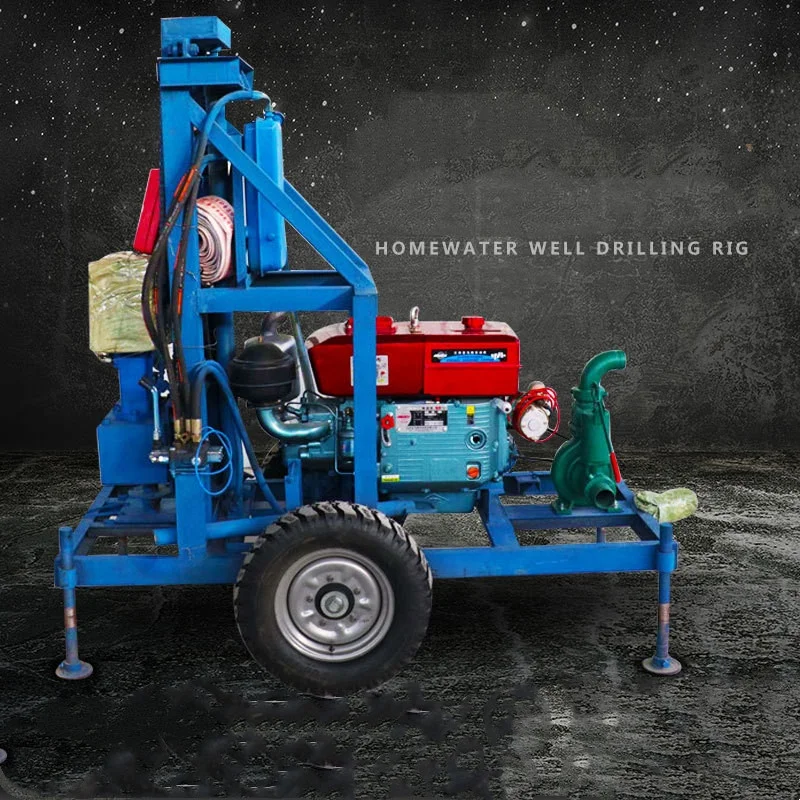

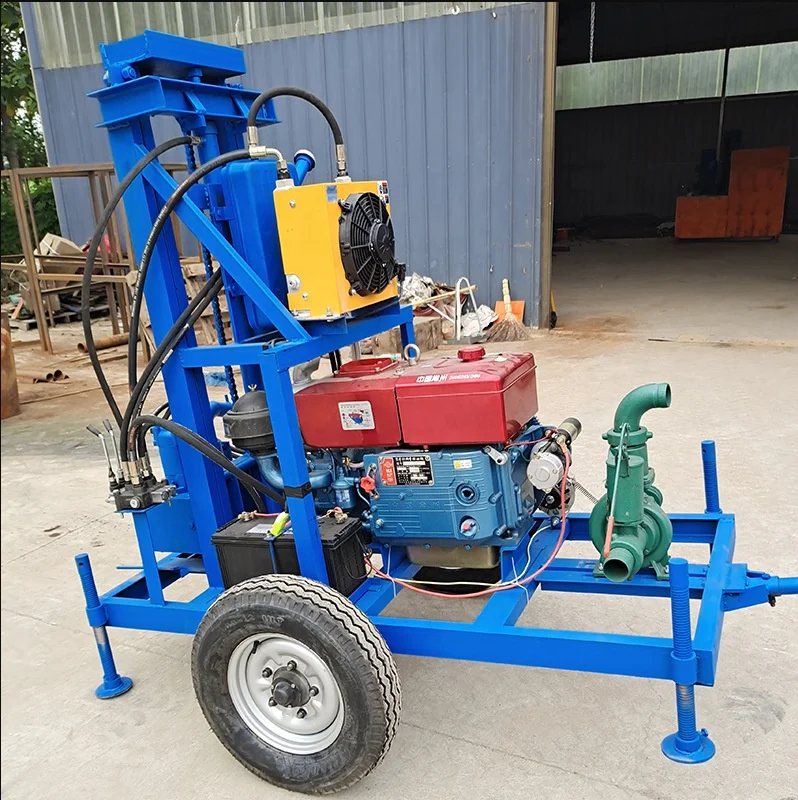

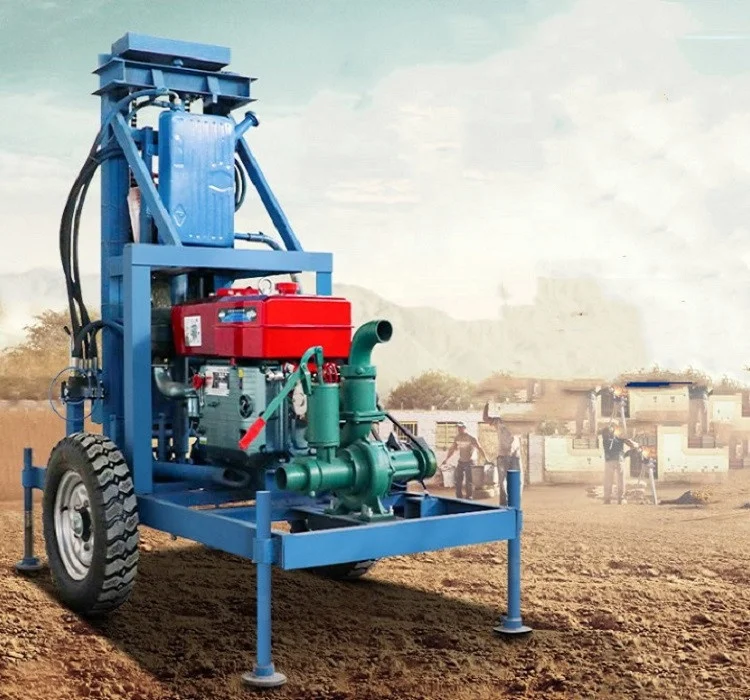

100m Small Portable Diesel Hydraulic Water Well Rotary Drilling Rig/Borehole Water Well Drilling machine
This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 70-350mm, and drilling depth is 80-150m. It also can be used in small building piling, like farmhouse or factory and so on, the drilling diameter can reach 300mm and depth less than 10m.
Features:
1. Light weight. The main engine is only weighted 150kg ;
2. Unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum with diamond bit, unless rock layer ;
5. Can drill deep. Equipped with raser, reduce the labor intensity ;
6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area ;
7. Assure easily operation and long life span to save more labors and money for you;
8.The packing of the machine is wood box, the CBM is about 2.0m³, the total weight (complete set) is about 850KG .
Features:
1. Light weight. The main engine is only weighted 150kg ;
2. Unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum with diamond bit, unless rock layer ;
5. Can drill deep. Equipped with raser, reduce the labor intensity ;
6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area ;
7. Assure easily operation and long life span to save more labors and money for you;
8.The packing of the machine is wood box, the CBM is about 2.0m³, the total weight (complete set) is about 850KG .
Specification
Model | RK-150 |

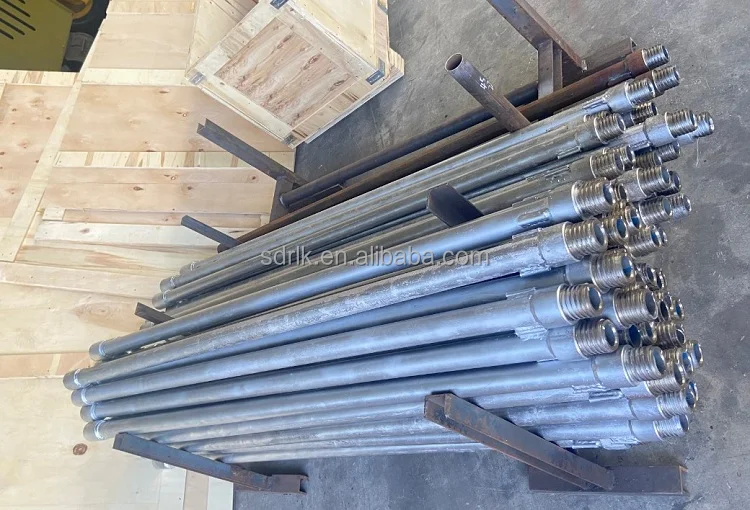

Drill rod diameter | 51mm |
Size | 1400*750*2200 |
Drill rod length | 1.5 meters |
Rig weight | 200KG |
Drill rod replacement method | automatic rod unloading, manual rod replacement |
Drilling and crushing method | impact rotary |
Drilling depth | 120 meters |
Drilling diameter | within 280mm |
Lifting height | 2.5 meters at the highest point of the machine |
Lifting force | 1000KG |
