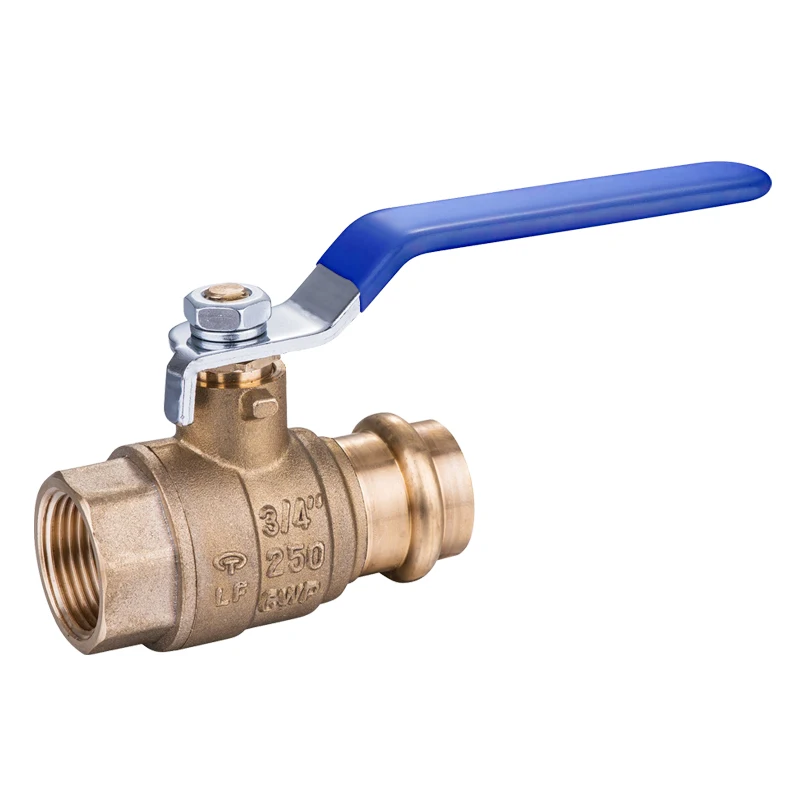

Long Handle Shut Off Valves Controller Press End Female Npt Full Port Brass Ball Valve With Vinyl Grip
- Category: >>>
- Supplier: Ningbo Texoon Brass Works Co. Ltd.
Share on (1600519489116):
Product Overview
Description
Products Description
Specification
●Full Port
●Forged Brass Body
●PRESS Conform to IAPMO PS117
●Thread Conform to ANSI B1.20.1
●Blow Out Proof Stem Design
●Packing Nut & O-RING
●Handle With Vinyl Grip
●Forged Brass Body
●PRESS Conform to IAPMO PS117
●Thread Conform to ANSI B1.20.1
●Blow Out Proof Stem Design
●Packing Nut & O-RING
●Handle With Vinyl Grip
Performance Rating
●Valve Pressure Rating 250 psi Non-shock Cold Working Pressure
●Max Working Temperature 250° F
●Max Working Temperature 250° F
Certification
●cUPC、 NSF/ANSI 61 and NSF/ANSI 372 Approved
Model & Structure Dimension
Model | Size | Port |
LF-3PPD050 | 1/2'' | 0.591" |
LF-3PPD075 | 3/4" | 0.748" |
LF-3PPD100 | 1" | 0.984" |
Material List
No. | Name | Material | QTY |
1 | Body | Lead Free Brass | 1 |
2 | Seat | PTFE | 2 |
3 | Ball | Stainless Steel | 1 |
4 | Packing | PTFE | 1 |
5 | O-Ring | EPDM | 1 |
6 | Stem | Brass | 1 |
7 | Handle Nut | Plated Steel | 1 |
8 | Lock Washer | Plated Steel | 1 |
9 | Handle | Plated Steel | 1 |
10 | Packing Nut | Brass | 1 |
11 | O-Ring | NBR | 1 |
12 | Cap | Lead Free Brass | 1 |
13 | O-Ring | EPDM | 1 |
