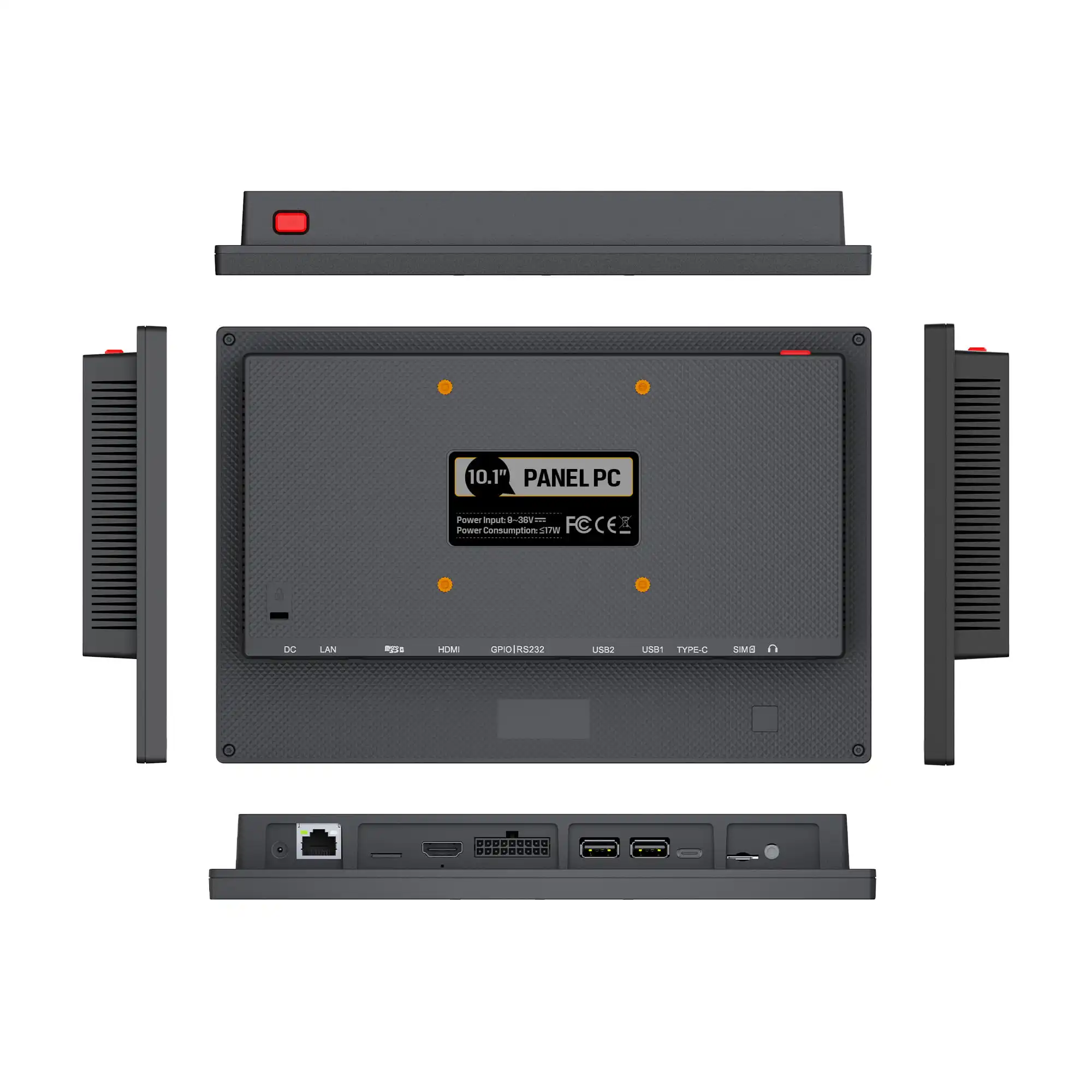

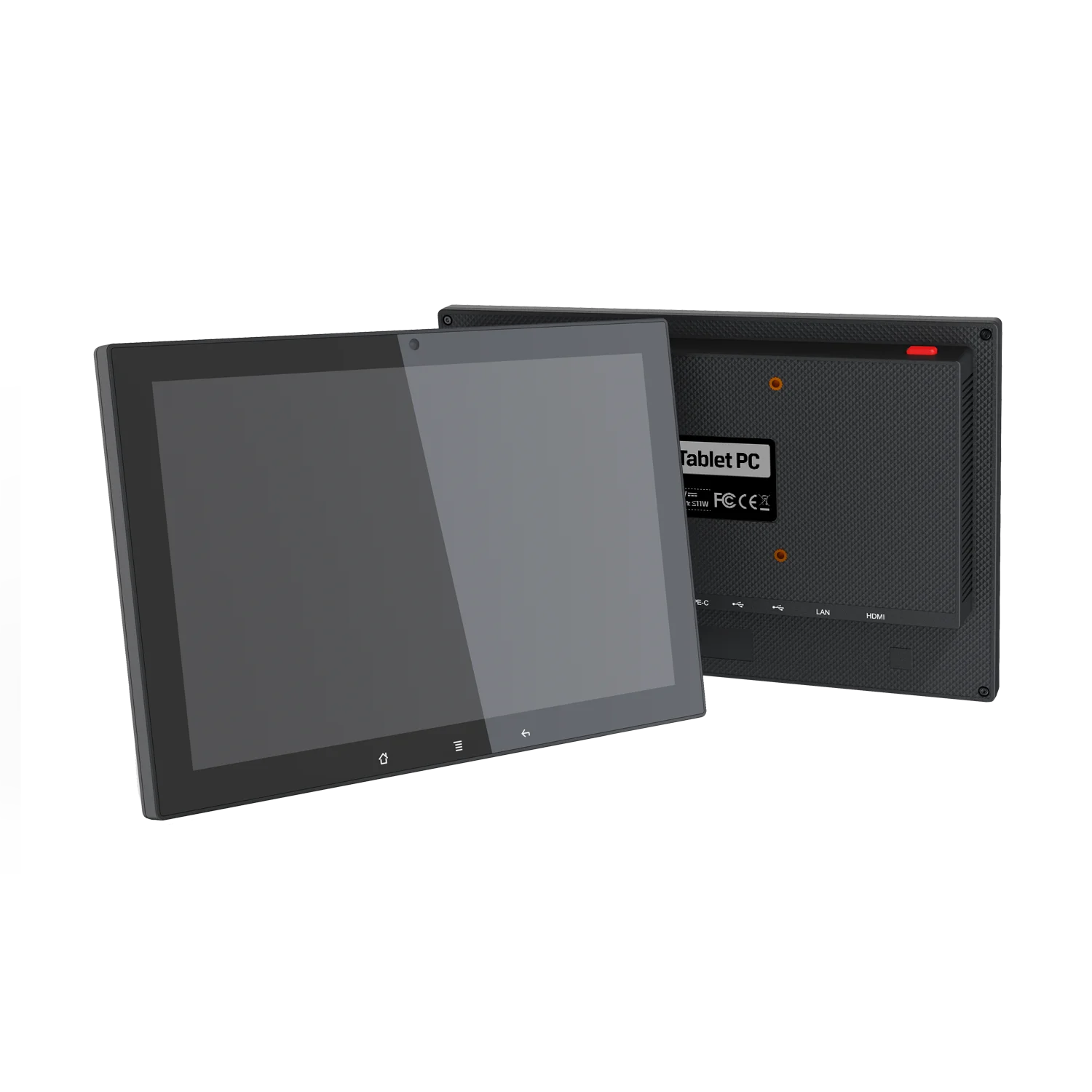

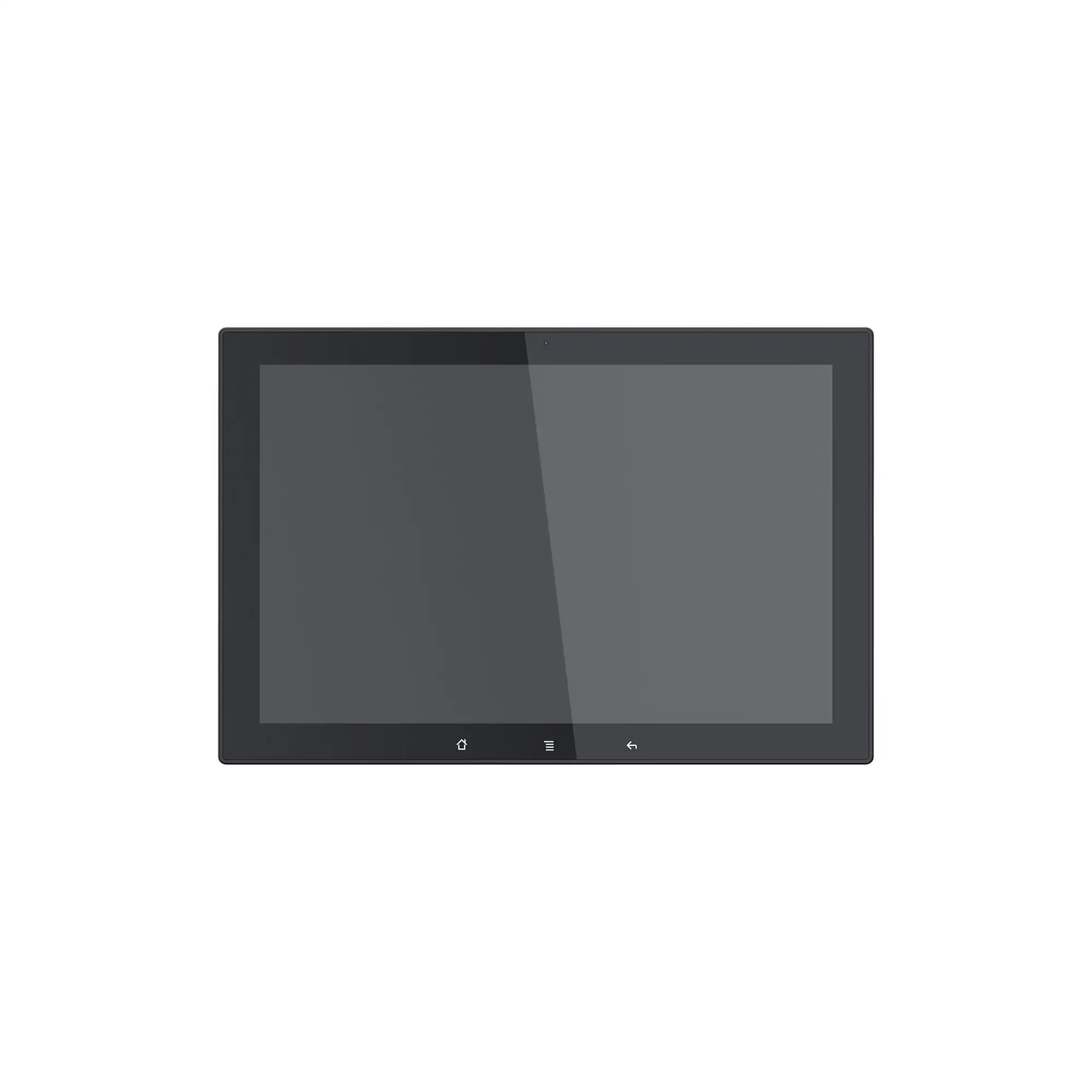

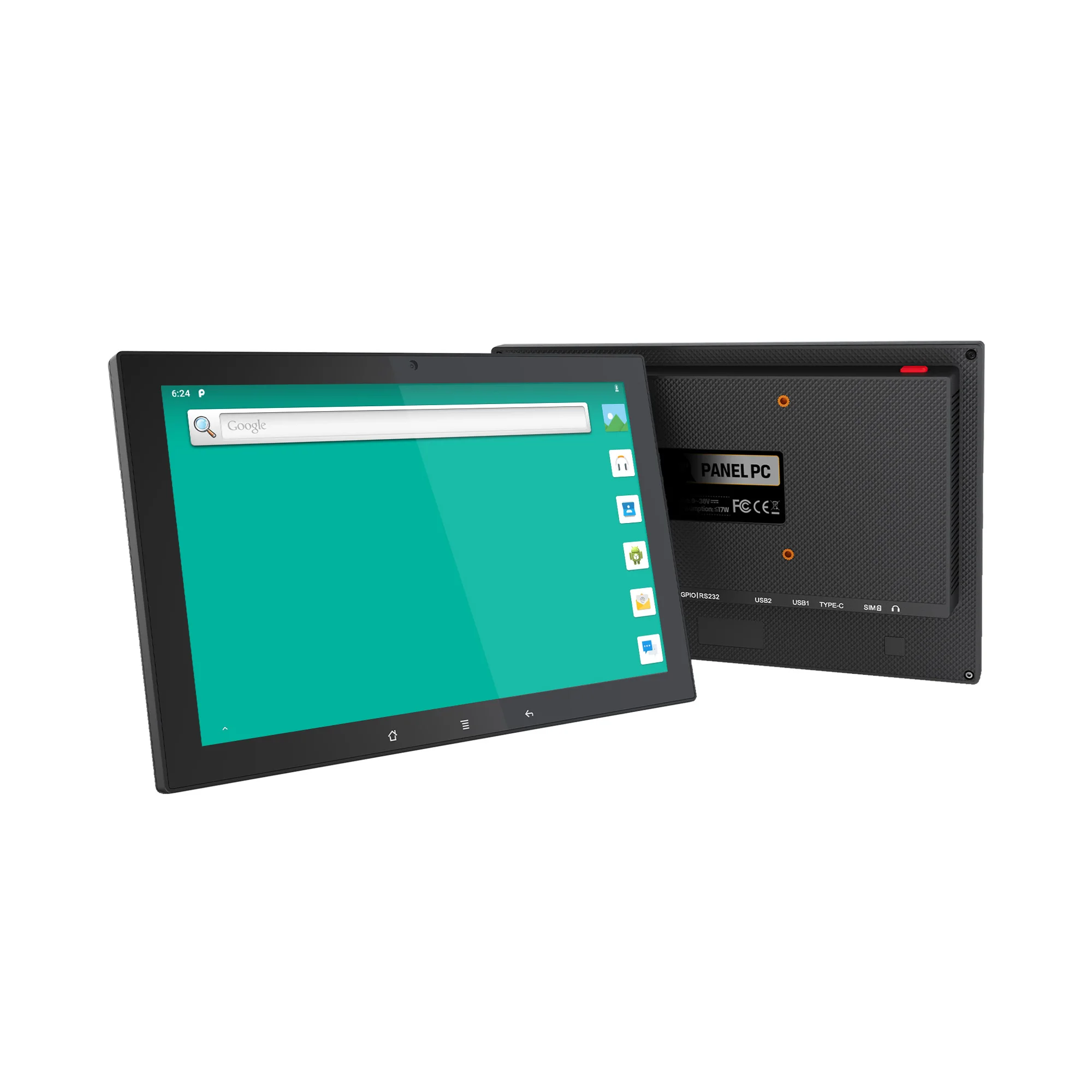

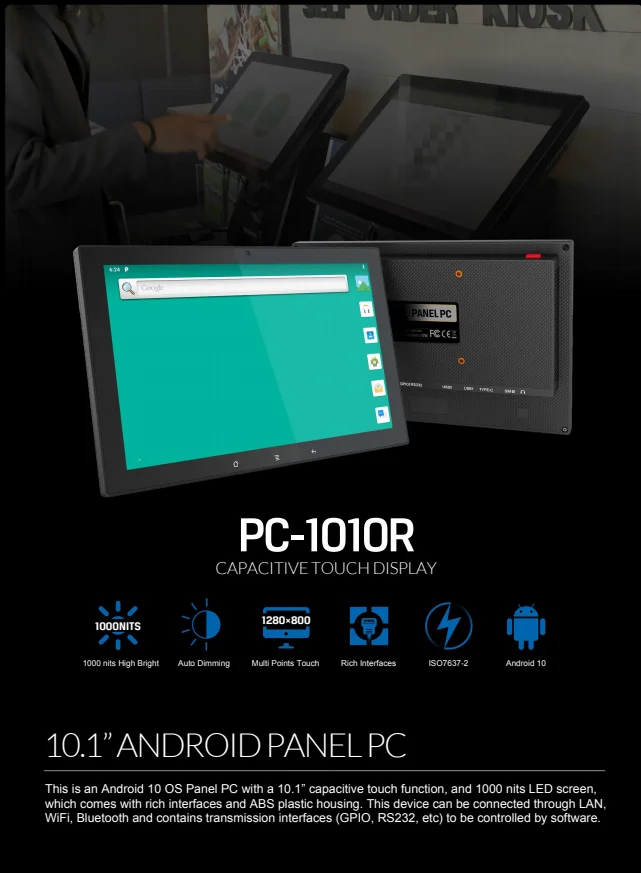

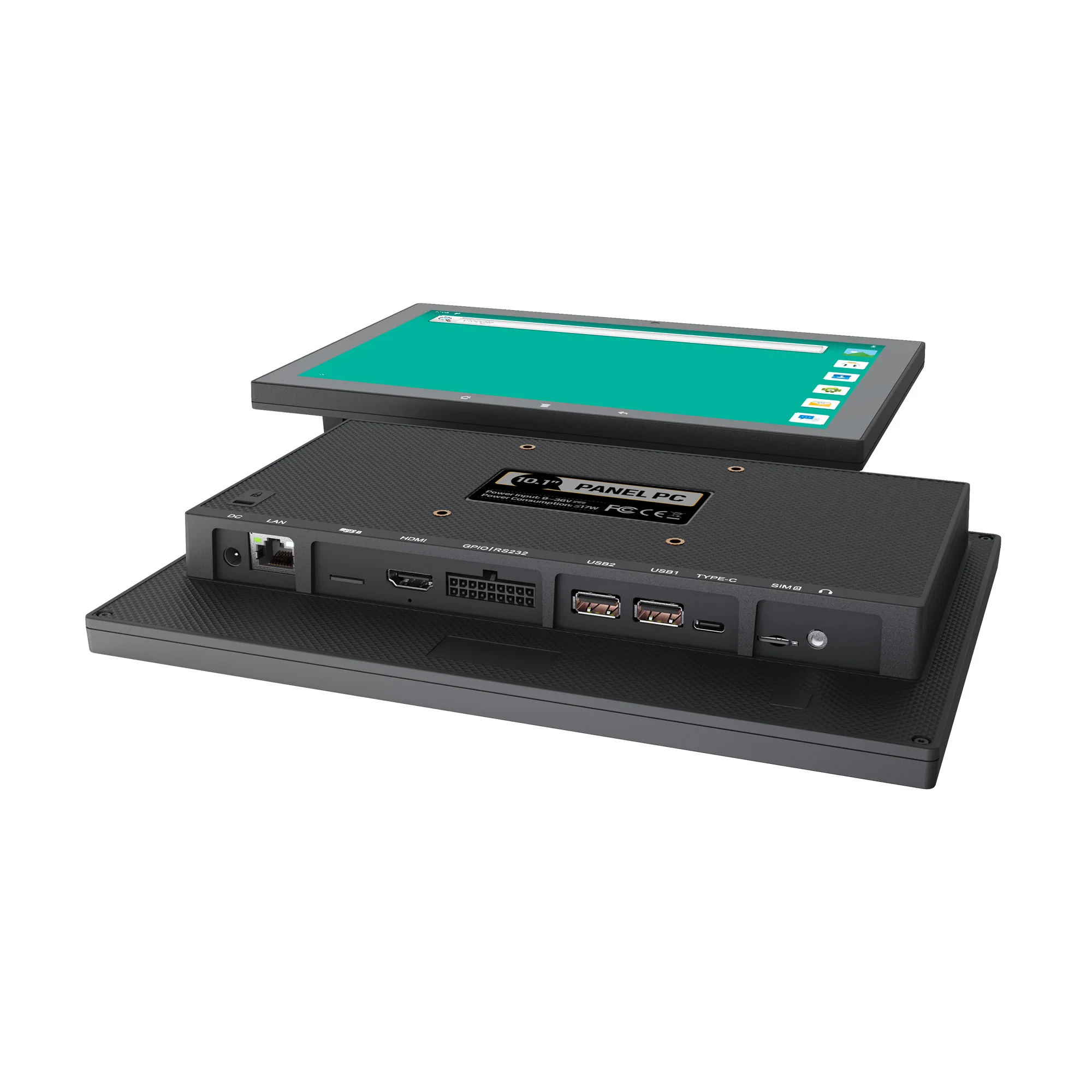

Lilliput Android 10 wall mounted 10.1 inch tablet with RK3288 processor
- Category: >>>
- Supplier: Zhangzhou Lilliput Electronic Technology Co. Ltd.
Share on (1600519491594):
Product Overview
Description
Product Description
-- Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor
-- 10.1 " multi-point capacitive touch screen, with 1280*800 resolution
-- 1000cd/m² brightness, suitable for outdoor applications
-- Android 10 operating system
-- 2GB RAM and 16GB ROM
-- Micro SD card Storage
-- 10.1 " multi-point capacitive touch screen, with 1280*800 resolution
-- 1000cd/m² brightness, suitable for outdoor applications
-- Android 10 operating system
-- 2GB RAM and 16GB ROM
-- Micro SD card Storage
-- Wifi and BT (optional)
-- 3G/4G Cellular Network (Optional)
-- GNSS (Optional)
-- Front Camera (Optional)
-- 3G/4G Cellular Network (Optional)
-- GNSS (Optional)
-- Front Camera (Optional)
Details Images
Model NO. | PC1010R | PC1010 | ||
SYSTEM | CPU | Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor | Qualcomm Cortex®-A53 64-bit Octa-core 1.8GHz processor | |
OS | Android 10 | Android 9.0 | ||
RAM + ROM | 2GB LPDDR3 + 16GB eMMC, 4GB + 64GB are optional | |||
GPU | Mali-T764 | Adreno 506 | ||
PANEL | Sensors | Light and Proximity Sensor (Auto dimming), Gyroscope & Acceleration | Light Sensor (Auto Dimming) | |

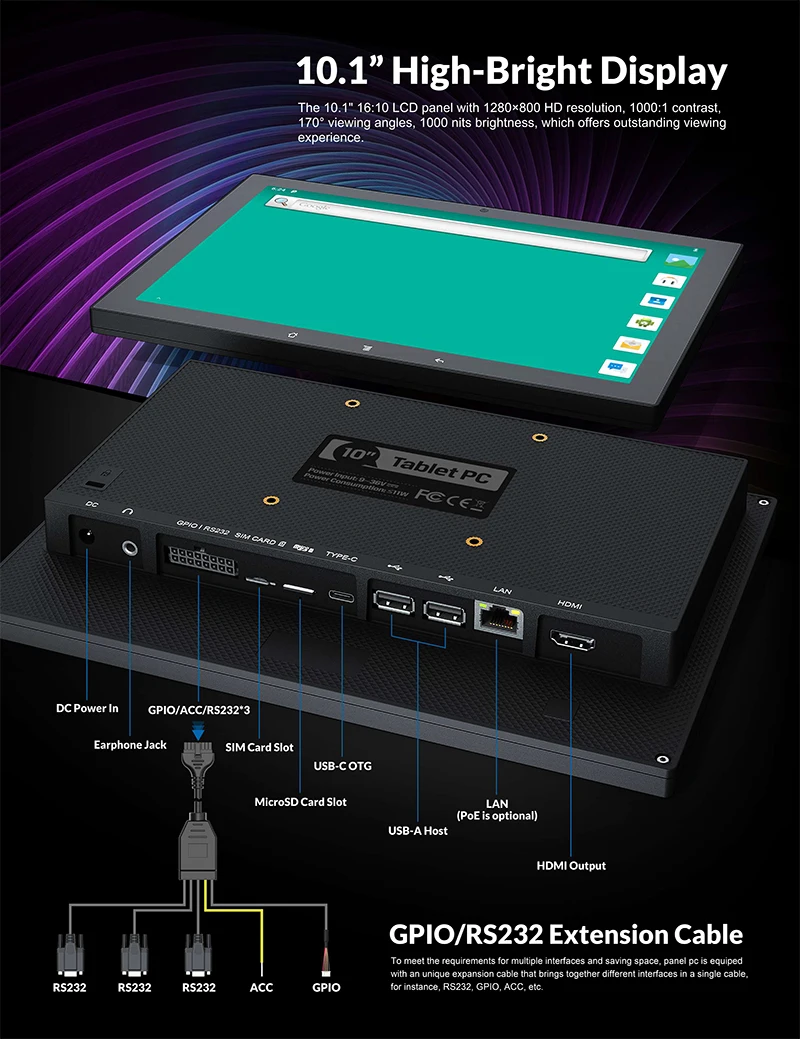

LCD | 10.1” IPS, 1280×800, 1000 nit, 170°/170° viewing angle | |||
Touch Screen | Multi-point capacitive touch screen | |||
INTERFACE | LAN | 1000M×1 | 100M×1 (PoE is optional, 25W) | |
GPIO | ×4 (Input×2, output×2) | |||
COM | RS232×3 | |||
HDMI | ×1 Output, support up to 1080p | |||
SIM | ×1 | |||
Micro SD Card | ×1, support up to 128GB | |||
USB | USB host×2, USB Type-C OTG×1 | |||
Earphone Jack | 3.5mm | |||
WIRELESS | Wi-Fi | Optional 802.11a/b/g/n/ac, 2.4GHZ/5GHZ | 802.11a/b/g/n/ac, 2.4GHZ/5GHZ | |
BT | Optional 5.0, 2402MHz~2480MHz | 2402MHz~2480MHz | ||
Cellular Network | Optional 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM) | |||
GNSS | Optional (GPS, GLONASS) | |||
NFC | Without | Optional | ||
BUILT-IN | Front Camera | Optional, 5.0MP | ||
Speaker | ×1 | |||
POWER | Power Supply | DC 9~36V | ||
Power Consumption | ≤17W | ≤12W | ||

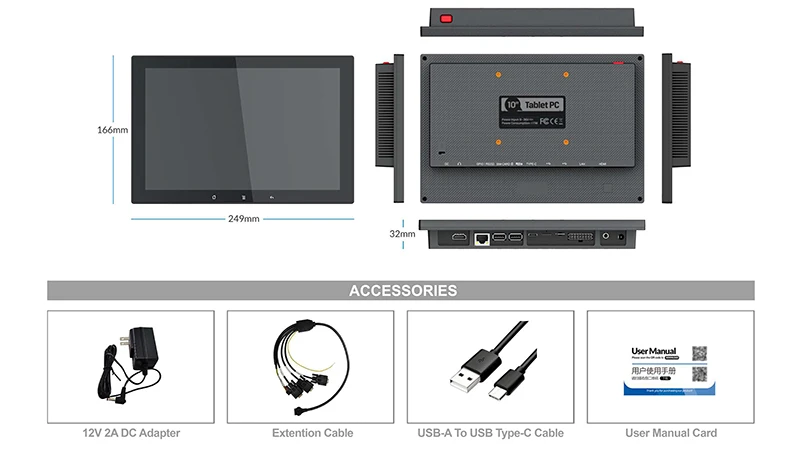

OTHER | Dimension | 249mm×166mm×32mm | ||
Weight | 980g | |||
Environment | Operating Temp: -10°C~60°C (14°F~140°F) | |||
Storage Temp: -20°C~65°C (-4°F~149°F) | ||||
