Hot Sale Double Belt Laminator Machine Flat bed Laminating Machine Fiber Laminating With Heating and Cooling Zone
- Category: >>>
- Supplier: Jiangsu Yuanhua Light Equipment Co. Ltd.
Share on (1600519501318):
Product Overview
Description
Products Description
Width | 1500mm-3400mm/Customized |
Height Adjustment | 0-150m |
Heating Zone | 3000 expandable in 1500mm steps |
Cooling Zone | 1500 expandable in 1500 mm steps |
Control Zones | 18 |
Max Tempeature | 250 |
Speed | 0-15m/min |
Power | 85kw |

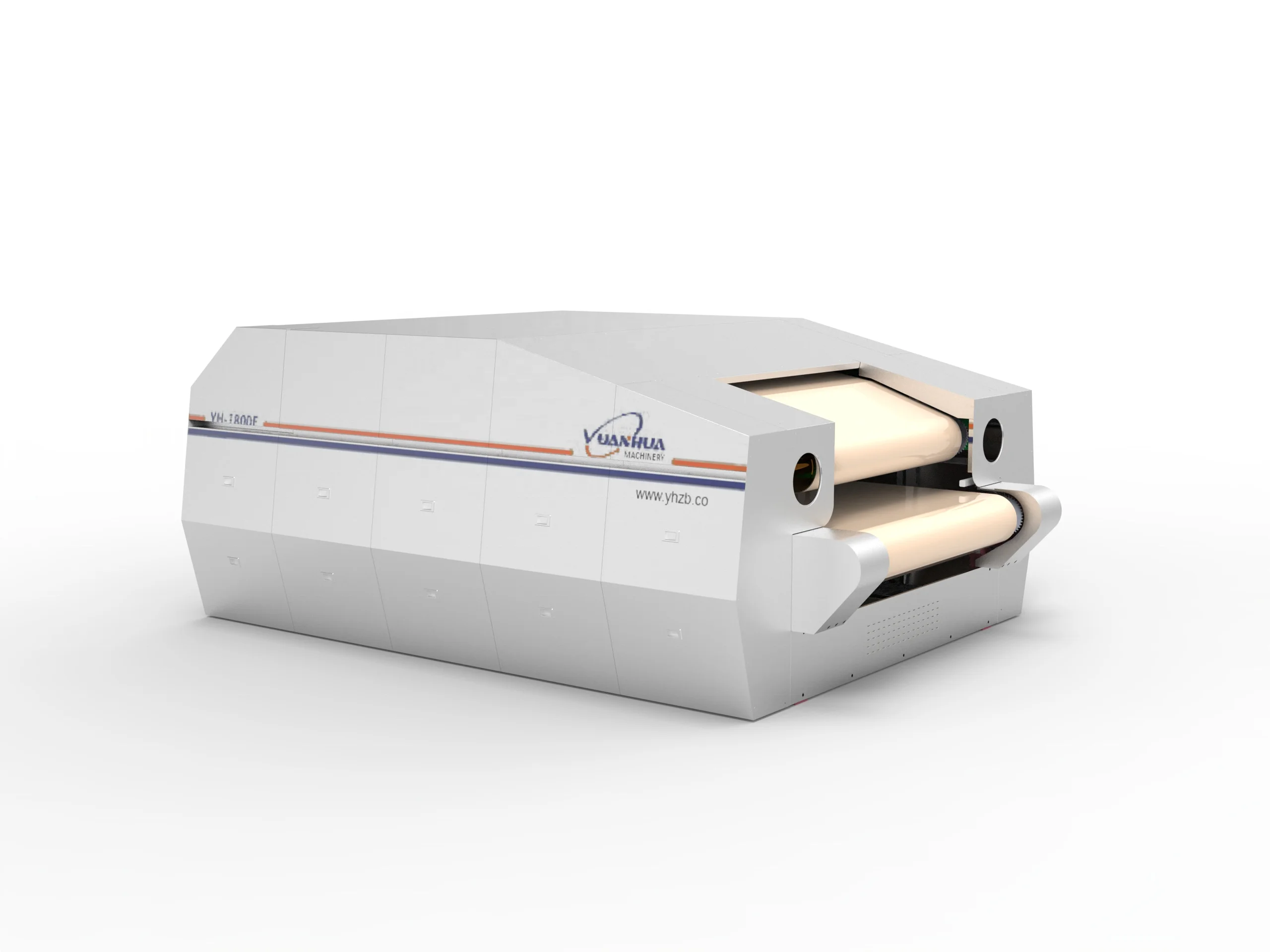

YH-001 Double Belt Press Laminating Machine
Double belt presses laminating machine production lines are the ideal production systems for the continuous production of sheet and plate materials when using the through-feed method. Using various processes, such as continuous laminating, compacting, consolidation and smoothing, they allow different materials to be processed, such as films, fabrics, mats of fibres, granulates or powders.

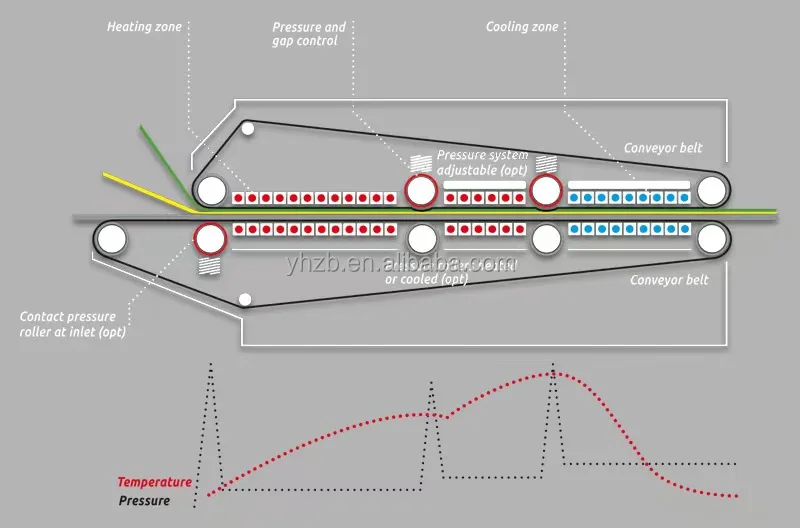

In each case, the respective components are run through the press between two endless steel belts – either individually or together. At the intake and the outlet, these steel belts are looped around heated steel drums. Pressure plates, with which heat and pressure are applied to the conveyed materials, are located between them in the so-called reaction zone. The temperature zones can be individually adjusted.
In each case, the respective components are run through the press between two endless steel belts – either individually or together. At the intake and the outlet, these steel belts are looped around heated steel drums. Pressure plates, with which heat and pressure are applied to the conveyed materials, are located between them in the so-called reaction zone. The temperature zones can be individually adjusted.
Details Images
Heating and Cooling In Perfect Balance
The combination of a reliable and powerful heating system with an effective cooling system allows processing of challenging materials with increased cooling demand.
The height adjustment as well as the level adjustment of the top pressure roller is motorcontrolled by means of a precisely adjustable lifting spindle. All relevant parameters can be set and controlled via proven SIEMENS touch control.
The height adjustment as well as the level adjustment of the top pressure roller is motorcontrolled by means of a precisely adjustable lifting spindle. All relevant parameters can be set and controlled via proven SIEMENS touch control.
Higher energy input for increased demands
Designed in sturdy frame construction, we install separately spring-mounted elements, large roller diameters for precise pressure and combine chain guided, servo-driven conveyor belts. The reliable and powerful heating system can be designed in three different versions of heating capacities.
The 18 control zones are electrically heated. For optimal energy conservation, heating and cooling sections are insulated. The height adjustment as well as the level adjustment of the top pressure roller is motor-controlled by means of a precisely adjustable lifting spindle. All relevant parameters can be set and controlled via proven SIEMENS touch control.
The 18 control zones are electrically heated. For optimal energy conservation, heating and cooling sections are insulated. The height adjustment as well as the level adjustment of the top pressure roller is motor-controlled by means of a precisely adjustable lifting spindle. All relevant parameters can be set and controlled via proven SIEMENS touch control.
With The Size Structure Has Excellent Performance
Based on a special and robust frame, multiple active rollers and pneumatic components combined with chain guidance and servo drive provide excellent stability and accuracy.
Use high power, large size active roller to ensure long heating and cooling distance of material.
Belt tension can be controlled by spring and pneumatic components, up and down belt guide and speed can be independently controlled by the chain and guide device to achieve the purpose of precision and labor saving
Use high power, large size active roller to ensure long heating and cooling distance of material.
Belt tension can be controlled by spring and pneumatic components, up and down belt guide and speed can be independently controlled by the chain and guide device to achieve the purpose of precision and labor saving
Tailor-made comprehensive solutions with superior value for customers
With multiple unwinding, powder sprinkling device, automatic tracking cutting, automatic trimming device, glue melt device, rubber wheel and other independent devices to achieve modular and scalable system solutions. Therefore, customers can manufacture all-purpose solutions with high value based on material requirements.
Automatic Tracking Device
Liquid Glue Coating And Unwingding Device
Optional Configuration Parts Based on Customer's Request
Multiple Material Feeding Device
Recommend Products
Why Choose Us
Certifications
Exhibition
FAQ
Q1.How long it’s gonna take to delivery the machine?
A:The machine will be delivered in 45 days since receiving the deposit payment.
Q2.Do your products have warranty period?
A:Yes, for sure; All of our products have one year warranty period.
Q3.How can you guarantee your products?
A:Our products are verified by CE & ISO, so the machine quality can get fully guaranteed.
A:The machine will be delivered in 45 days since receiving the deposit payment.
Q2.Do your products have warranty period?
A:Yes, for sure; All of our products have one year warranty period.
Q3.How can you guarantee your products?
A:Our products are verified by CE & ISO, so the machine quality can get fully guaranteed.
Q4: Are you factory or trading company?
A: We are factory or manufacturer.
Q5: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time.You can be assured on our production completely.
Q6: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
