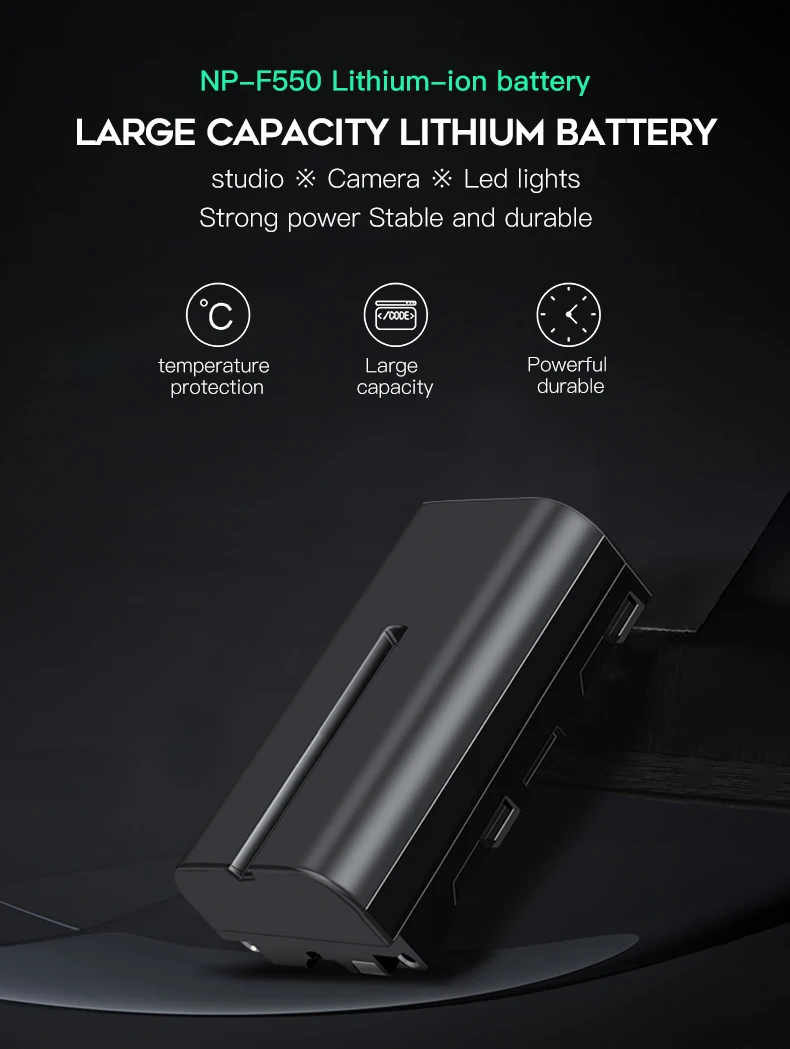

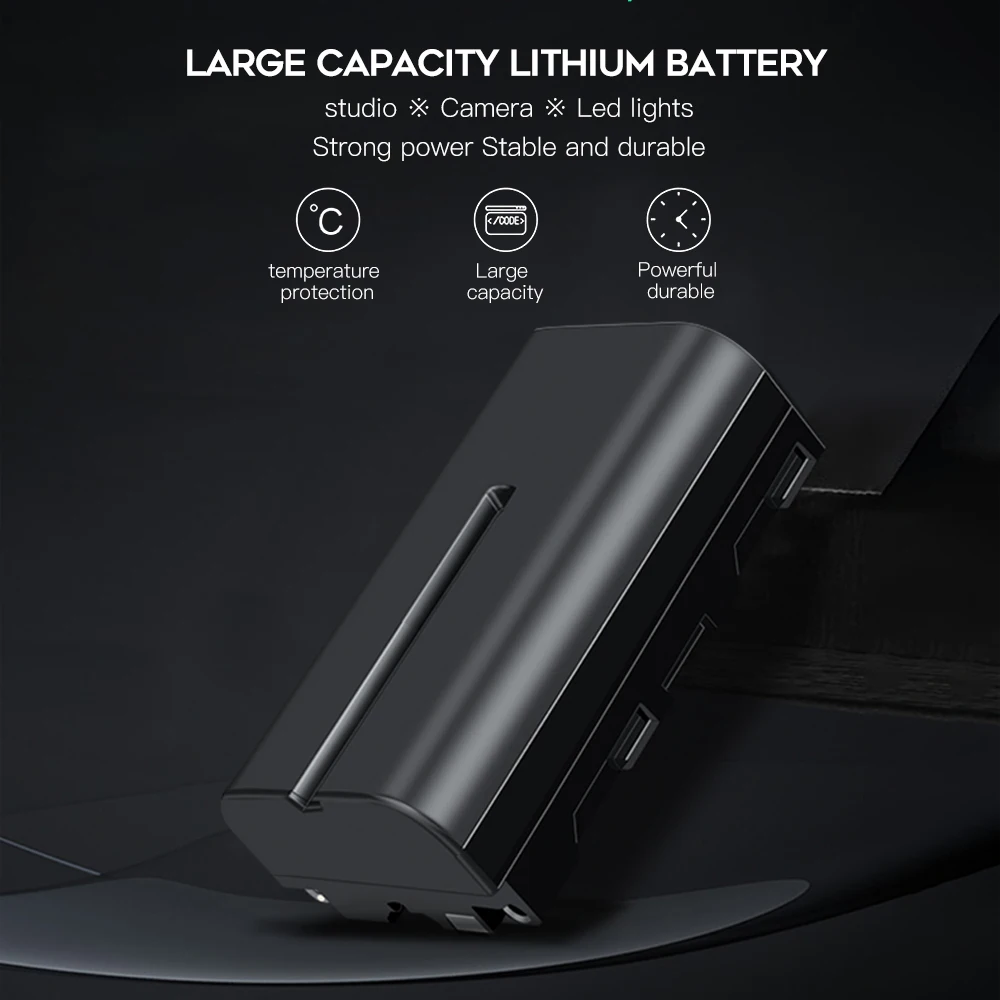

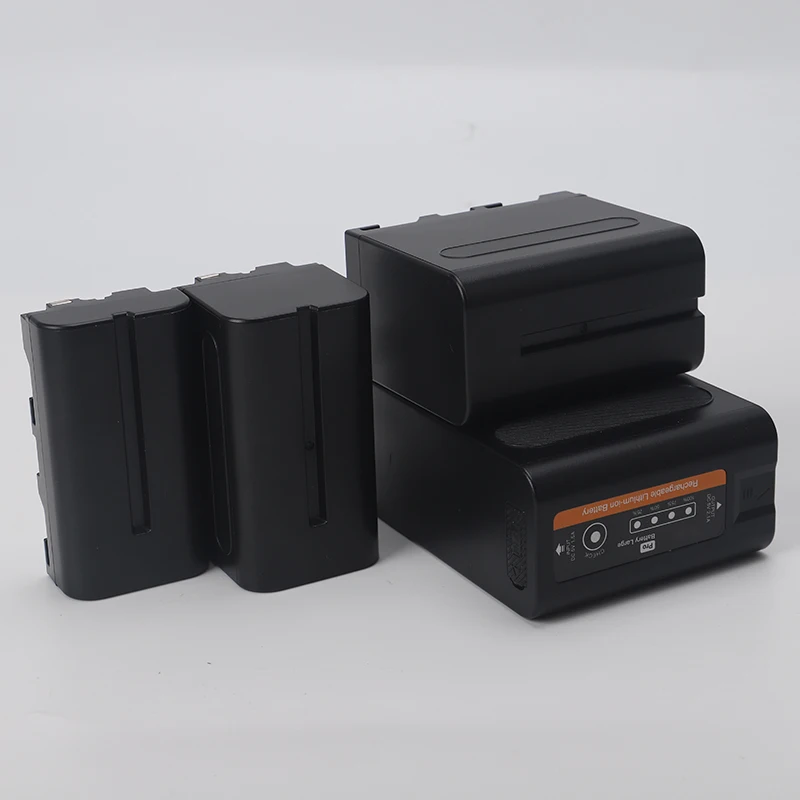

Camcorder Camera lithium ion battery NPF550/F570/F530 7.4V Rechargeable Digital Lithium Li ion battery pack
- Category: >>>
- Supplier: Joy Industrial (Shanghai) Co. Ltd.
Share on (1600519519957):
Product Overview
Description
Product Description
Performance advantages
Item | Performance | Remarks |
Rated Voltage | 7.4V | |
Charge limited voltage | 8.4V | |
Discharge-off voltage | 5.5V | |
Rated Capacity | 3350MAH, Capacity 3350 mAh,2600 mAh,2200 mAh,2000 mAh optional | Discharge at 0.2C |
Minimum Capacity | 3100mAh | Discharge at 0.2C |
Charging Method | (CC-CV) | |
Standard Charging Current | 670mA | 0.2C 0℃-+45℃ |
Standard Discharge Current | 670mA | 0.2C -10℃-+50℃ |
Rapid Charging Current | 1005mA | 0.3C 0℃-+40℃ |
Rapid Discharge Current | 1005mA | 0.3C -10℃-+50℃ |
Total Resistor | ≤230mΩ | AC 1kHz AC Resistor |
Minimum current comsumption | 60μA | |
Individual Battery weight | 280g±10g | Electronic Scale |
Imal External dimension (±0.3mm) | W=38.4mm L= 70.4mm H= 60mm （MAX） | Caliper Scale |
Operating Temperature Range | Charge0˚C ~+45˚C Discharge -10˚C~+50˚C | Humidity 65±20% |
1.Storage time should be counted from the time of Delivery； 2.The battery is charged at ambient temperature(21~25) ℃ ； 3.with a constant current CC/CV at 0.2℃ to charge to 8.4V,and constant voltage; 4.charging to final current to 0.02C,then the battery is discharged with CC 0.2C; 5. to final voltage 5.5V, The discharge time is more than 5 hours. | Less than 1 year | |
TRV1, TRV3, 200, 300, 3000, 500, 517, 910, V119, V15, V25, 820E, 900E, 2000E, 320E, 520E, 720E, 820E, 618E, 250E, VX2100E, PD150P, 100P, 190P, GV-A700, GV-D800, FD85, FD75, FD81, CCD-SC5, SC55, TR3, FX1E, 190P, DCR-TRV9E, 46E, 49E, 66E, 67E, 87E, 98E, 110E, 120E, 130E, 210E, 310E, 317E, 410E, 420E, 900E, 940E, 950E, TRV33E, NP500, V115, 610E, 710E, HVR-Z1C, HVR-V1C, FX7E, Z7 |

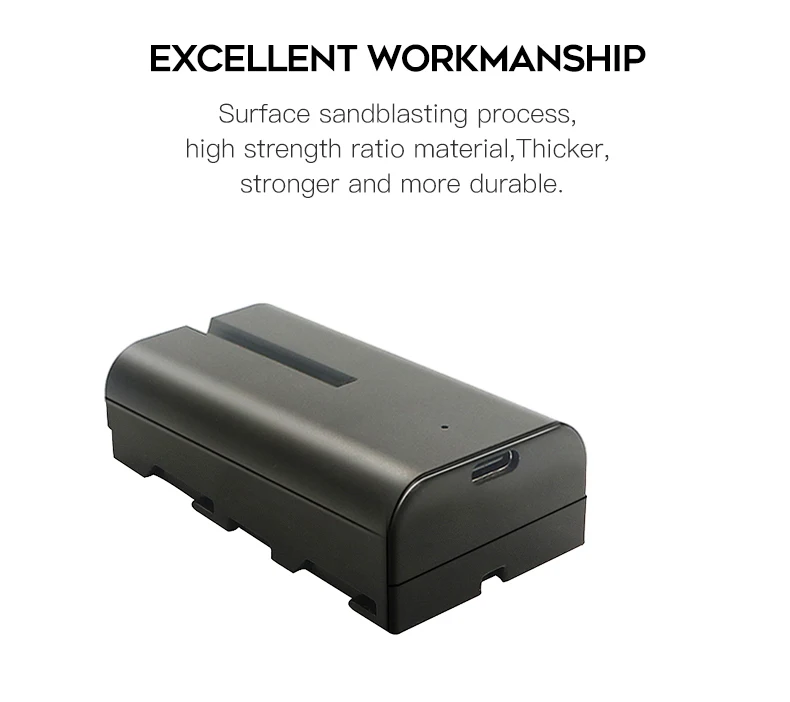

Top quality, excellent workmanship

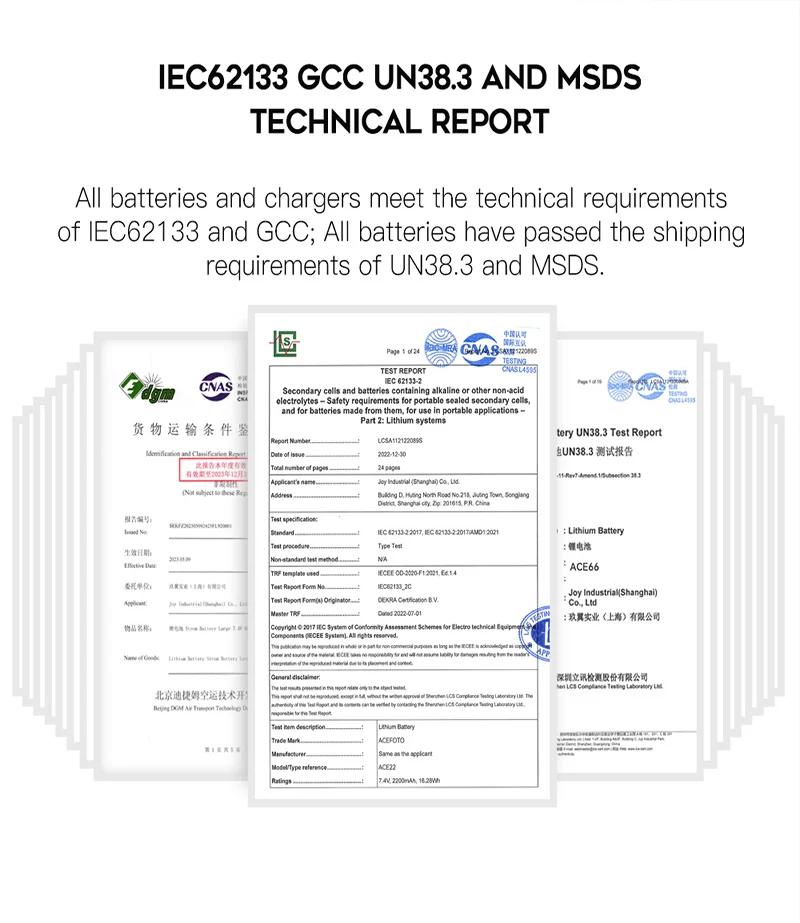

Product certification and report

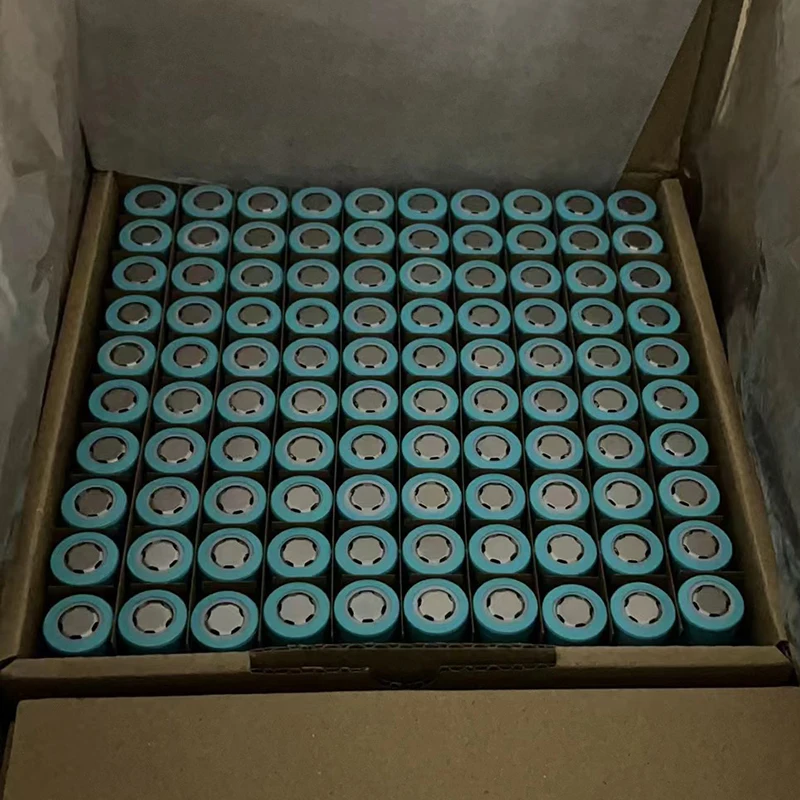

Packing&Shipping
About product inventory
Packaging Information：Gross weight: 110g，Net weight: 280g, Package size:45*75*43mm
1.All led light series production is in stock already .2. we send out package within 24 hours after customers payment and release trucking number
3.Bulk Order , please contact us . we will arrange the order production plan for you .
Five-star after-sales service, worry-free purchase
1. We offer a 0.5-1year warranty to our product.
2. Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with a new order for a small quantity.For defective batch products, we will repair them and resend them to you or we can discuss the solution Including re-call according to real situation.
3. For sample order, 3-5 days. For bulk order, 15-35 days.
4. Normally MOQ 100pcs, but we also accept small sample order for quality clients.
5. Continuous improvement and support of technology, R&D, production, process.
6. Give you market research, expansion, new product development and product selection references and suggestions.
6. Give you market research, expansion, new product development and product selection references and suggestions.

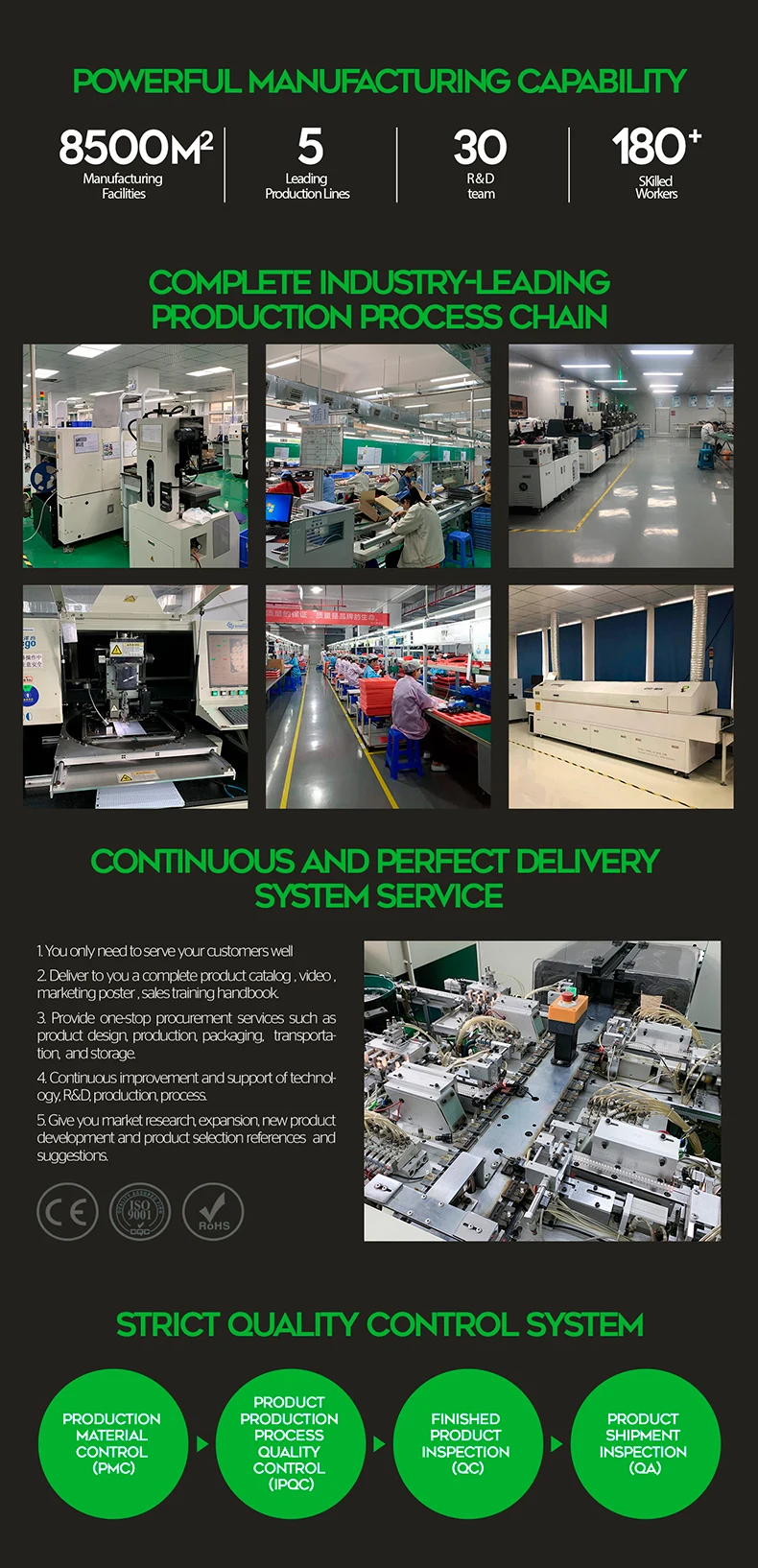

Manufacture advantages
know us better
※How do we ensure our quality ?
1. In the field of photography, well-known brands are our cooperative customers. We have provided them with oem services for 13 years. With their help, we have continuously optimized our quality control system.
4.Normally MOQ 100pcs, but we also accept small sample order for quality clients.
1. In the field of photography, well-known brands are our cooperative customers. We have provided them with oem services for 13 years. With their help, we have continuously optimized our quality control system.
2. JOY is confident to provide customers with top quality products as we have solid flow of Production Material Control (PMC),In-Process Quality Control (IPQC), Finished Product Quality Control (QC) and Delivery Quality Assurance (QA). To provide you with an extra level of protection, we check our items piece by piece prior to shipment.
3. Our products have passed ISO 9001,CE,ROSH, CCC, ROSH and other certification .
※What make our product difference from other factory?
1.Joy clients benefit from lower manufacturing costs and time-to-market volume production through over 180 highly qualified staffs and the 8500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center, 5 product assembling centers , Printing workshop.
2. Thanks to more than 15 dedicated engineers with strong engineering capability and extensive experience in system R & D, we keep developing new products every year to keep up to date with the market. we pride ourselves on our ability to meet our customers' needs. If one of our standard products doesn't meet your requirements, we can custom-design a product for you.
3.We have a complete process chain in the industry, so we can provide you with better customized services
1.Joy clients benefit from lower manufacturing costs and time-to-market volume production through over 180 highly qualified staffs and the 8500 square meters workshop, including a mold development center, a metal and plastic injection center,a hardware processing center, 5 product assembling centers , Printing workshop.
2. Thanks to more than 15 dedicated engineers with strong engineering capability and extensive experience in system R & D, we keep developing new products every year to keep up to date with the market. we pride ourselves on our ability to meet our customers' needs. If one of our standard products doesn't meet your requirements, we can custom-design a product for you.
3.We have a complete process chain in the industry, so we can provide you with better customized services
4.Normally MOQ 100pcs, but we also accept small sample order for quality clients.
Please contact us as soon as possible
