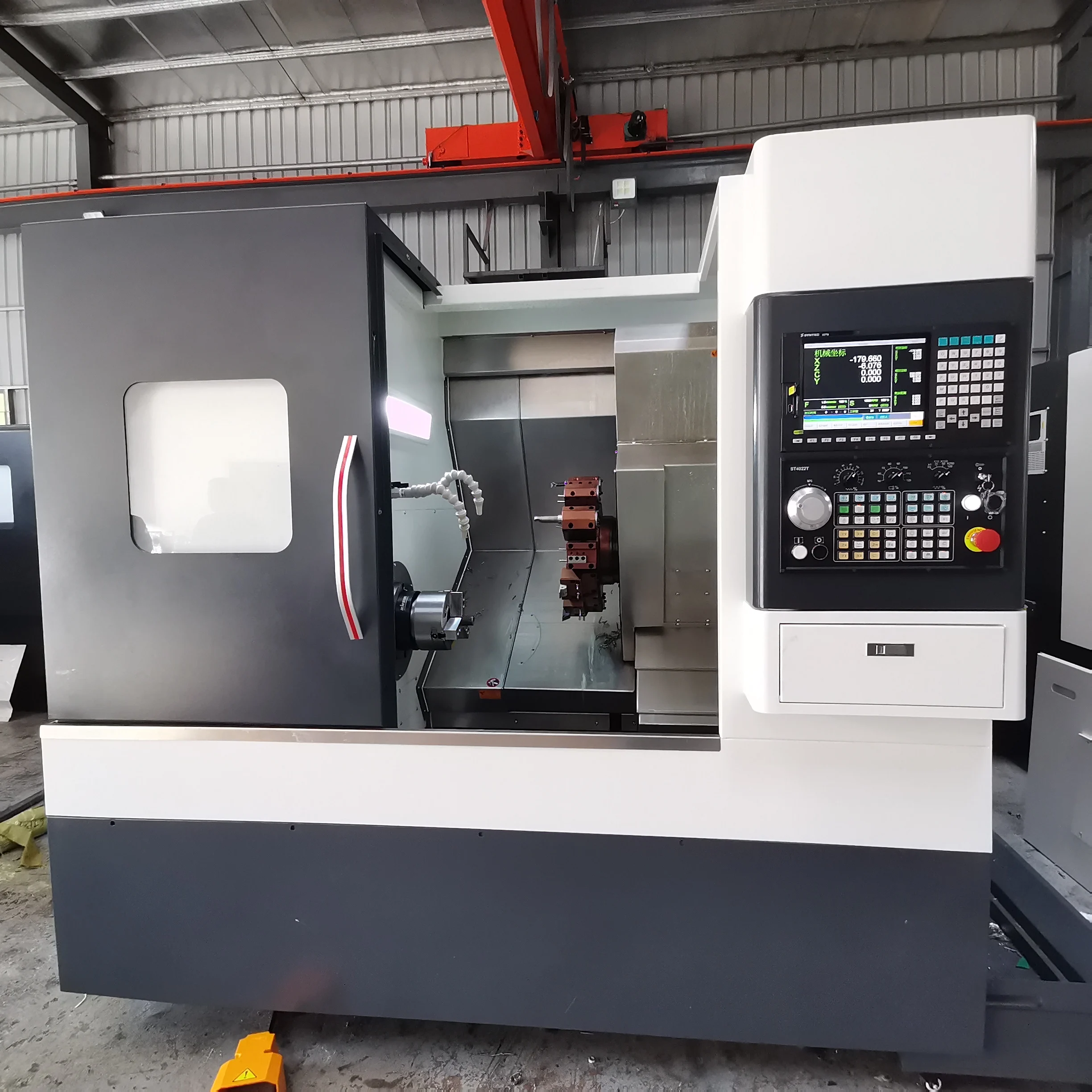

High Quality RL 46MY live tool turret with Y axis turning and milling cnc lathe machine
- Category: >>>
- Supplier: Munzer Technology Co. Ltd.
Share on (1600519529146):
Product Overview
Description

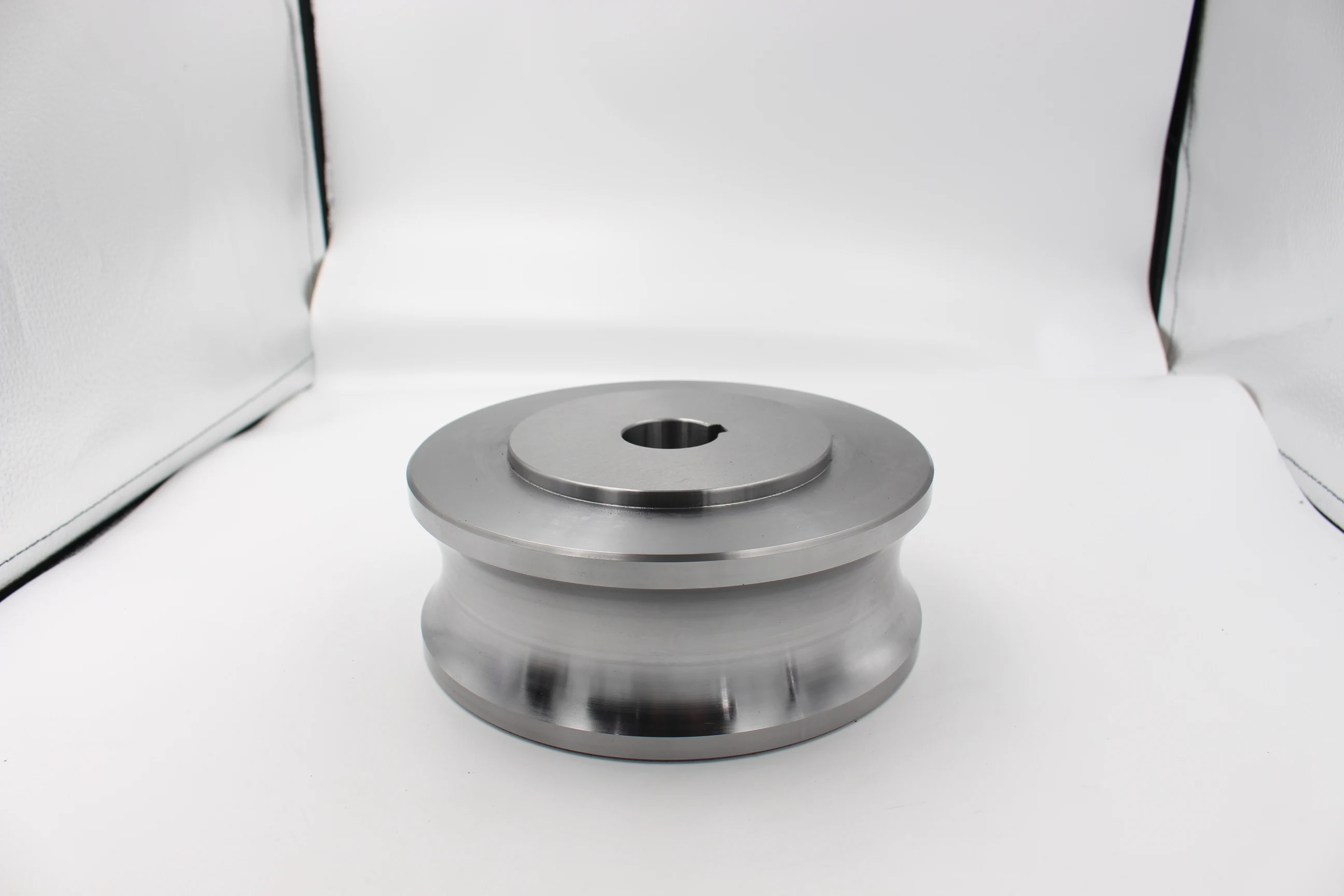

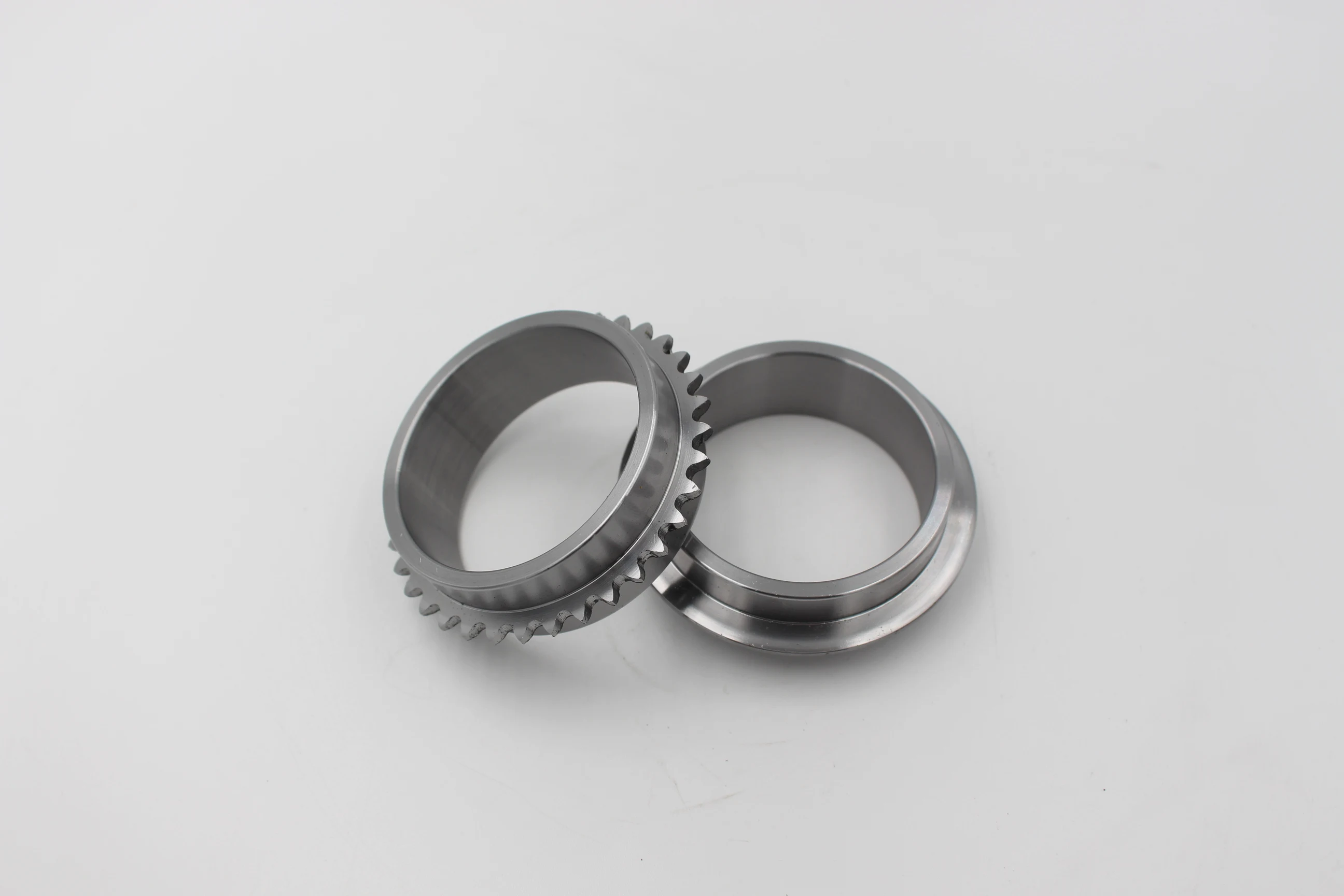

Processed products
Specifications
Item | Specification | unit | RL-46MY |
Capacity | Max. swing over bed | mm | Ф420 |
Max. turning diameter | mm | Ф420 | |
Swing over cross slide | mm | Ф126 | |
Max. turning length | mm | 280 | |
Bar hole | mm | Ф45 | |
Spindle | Spindle nose | / | A2-5 |
Spindle hole | mm | Ф56 | |
Spindle speed | rpm | 5000 | |
Spindle motor | kw | 7.5/11 | |
Chuck size | / | 6" | |
positioning accuracy | mm | ±0.005 | |
repeat accuracy | mm | ±0.003 | |
Travel | X/Y/Z axis | mm | 900 /±35/360 |
X/Z axis motor | kw | 1.7/1.7 | |
linear guide way | mm | 30 | |

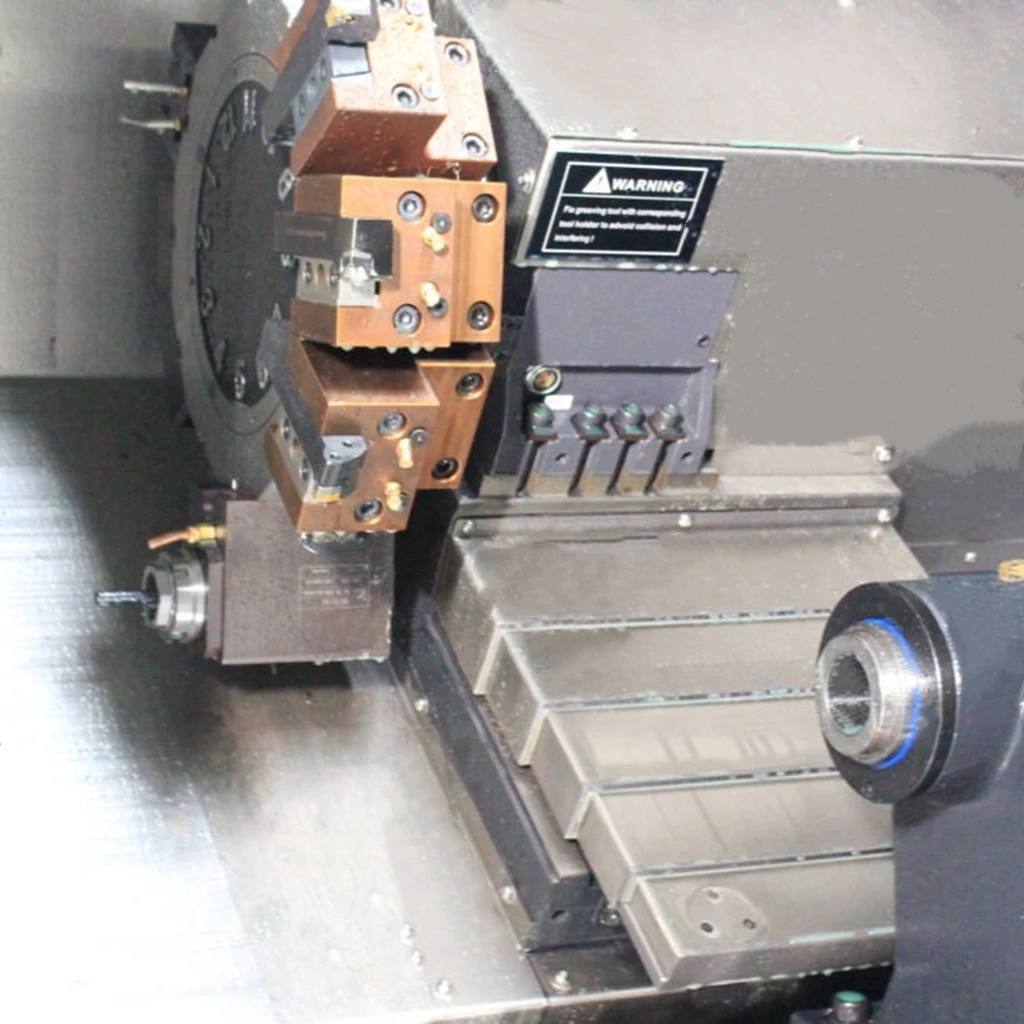

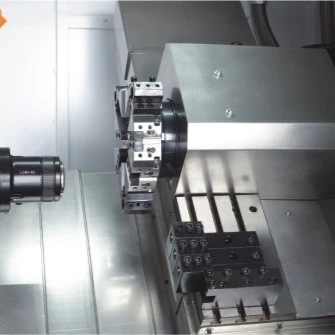

gang tool | Turret type | / | BMT40-12T |
I.D. tool holder | mm | Ф25 | |
O.D. tool holder | mm | 25*25 | |
Machine dimensions | L*W*H | m | 2.1X1.7X1.75 |
weight | kg | 2900 |
