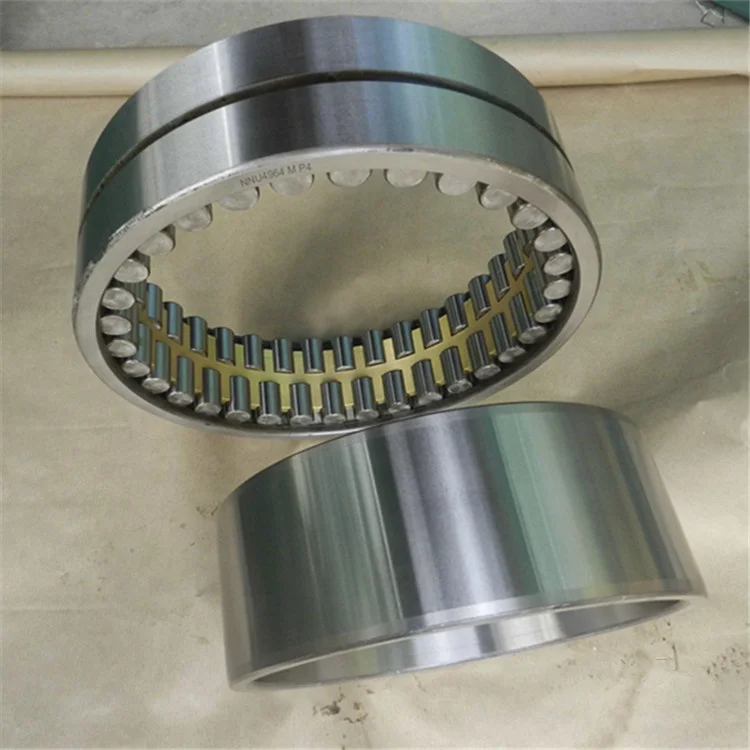

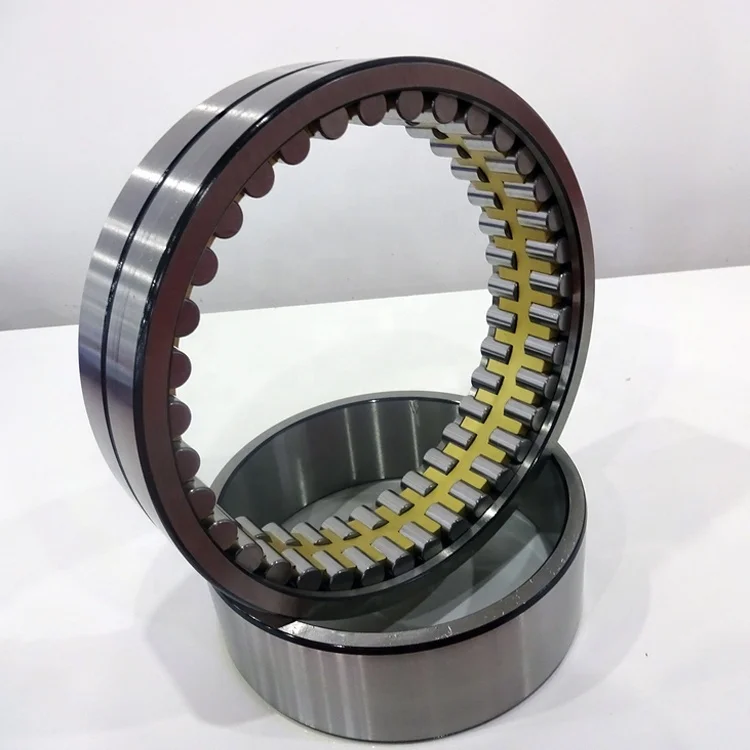

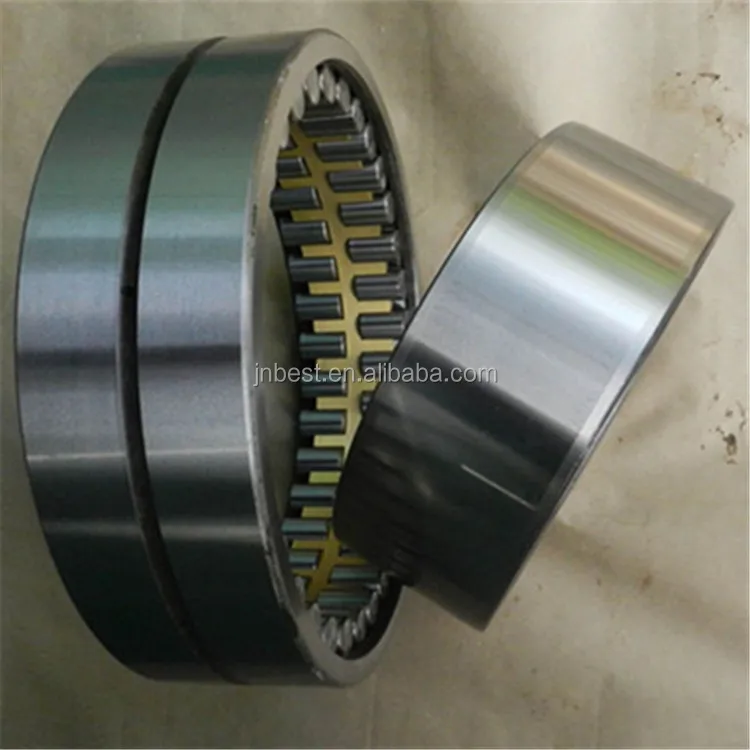

Six columns NNU 6092 M 4964 NNU4928 NNU4924 Cylindrical Roller Bearing NNU 4924 NNU 4928 bearing

• non-locating bearing


• double row


• separable


• with cage


• reduced radial internal clearance


• restricted tolerances


NNU 4928 K SP, NNU-SERIES CYLINDRICAL ROLLER BEARING WITH A 140MM BORE - BRASS CAGE - PREMIUM RANGE

Double Row Cylindrical Roller Bearing with Tapered Bore from our Premium range. Fixed outer race with a loose inner ring. 140mm ID, 190mm OD, 50mm bore.

Dimensions

d	140 mm
D	190 mm
B	50 mm
D1	172 mm
F	156 mm
b	5.5 mm
K	3 mm
r1,2 (min.)	1.5 mm
s (max.)	2.2 mm

Abutment dimensions

da (min.)	147 mm
da (max.)	154 mm
db (min.)	159 mm
Da (max.)	182 mm
ra (max.)	1.5 mm
dn	157 mm

Calculation data

Basic dynamic load rating (C)	190 kN
Basic static load rating (C0)	400 kN
Fatigue load limit (Pu)	41.5 kN
Attainable speed for grease lubrication	4000 r/min
Attainable speed for oil-air lubrication	4500 r/min
Reference grease quantity (Gref)	45 cm³
Static radial stiffness (guideline value)	3670 N/µm

Mass

Mass bearing

4.1 kg

cylindrical roller bearings are available in many designs, series and sizes. The major design differences between the bearings presented in this section are in:

• the number of roller rows (one, two or four)


• the type of cage (with, without or special designs)




• Bearings with a cage can accommodate heavy radial loads, rapid accelerations and high speeds.


• Full complement bearings (without a cage) incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads at moderate speeds.


• high-capacity cylindrical roller bearings combine the high load carrying capacity of a full complement bearing with the high speed capability of a bearing with cage.




• the configuration of the inner and outer ring flanges (position and number of guide flanges)



1.Single row cylindrical roller bearing	NU, NJ, NF, NUP, RN series
2.Double rowcylindrical roller bearing	NNU series

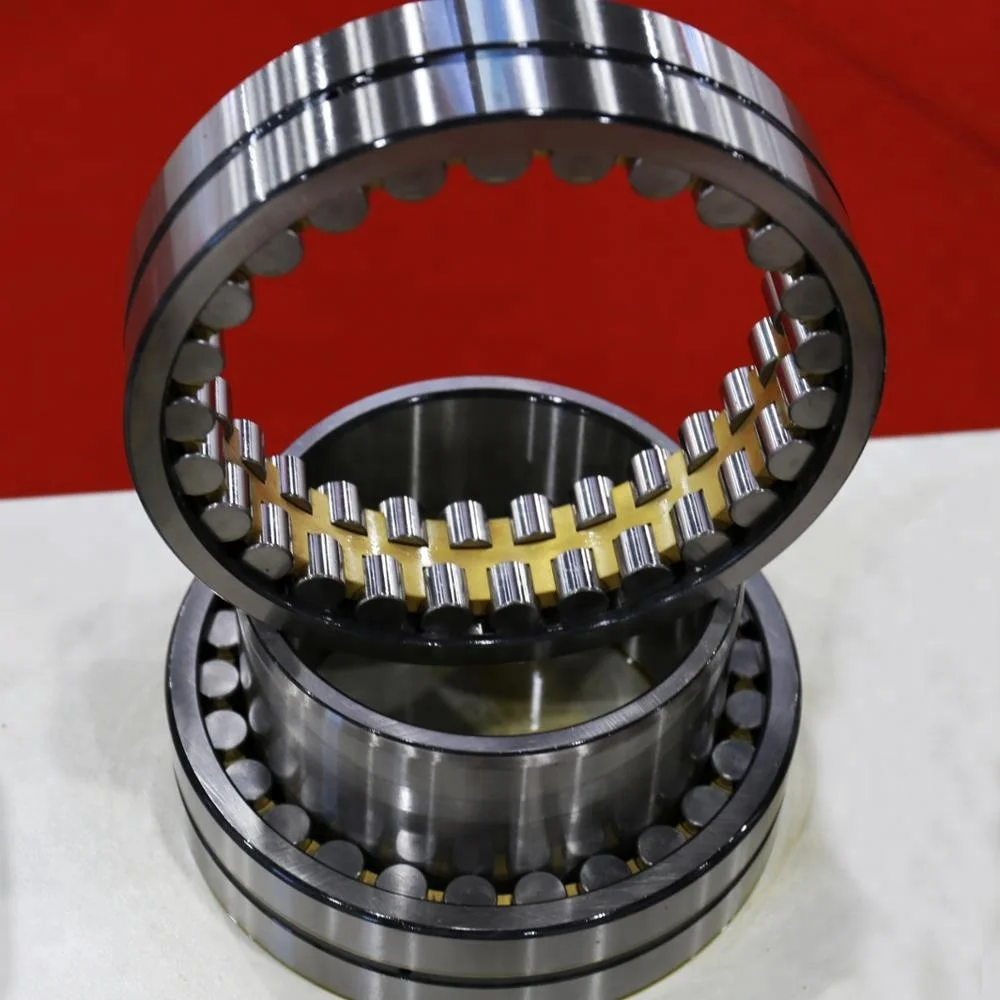

3.Four row cylindrical roller bearing	FC series
4.Single row full complement cylindrical roller bearing	SL18 series, SL 19 series

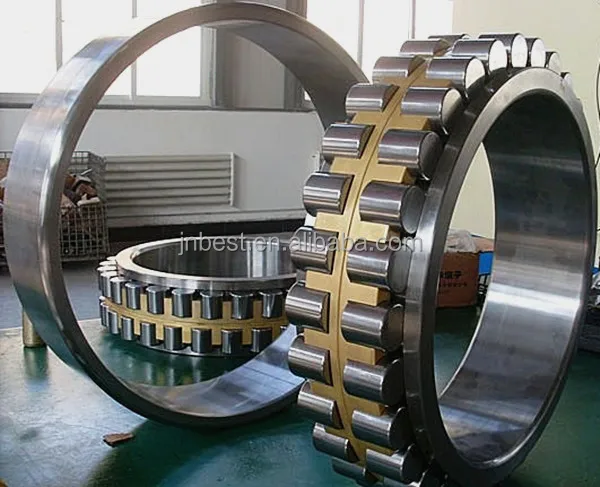

5.Double row full complement cylindrical roller bearing	SL01 series







Dimensions			Dynamic	Static	Speed rate	Limit S/R	Designations
d(mm)	D(mm)	B(mm)	C(kn)	C0(kn)	r/min
100	150	90	369	850	1600	1900	NNU 6020 M
110	150	71	238	570	1500	1800	NNU 6922 M
110	150	90	238	570	1500	1800	315754
120	165	80	281	680	1400	1700	NNU 6924 M
140	190	90	358	915	1100	1400	NNU 6928 M
150	225	136	682	1630	1000	1300	NNU 6030 M
160	240	145	952	2450	950	1200	NNU 6032 M
170	230	109	523	1370	950	1200	NNU 6934 M
180	250	125	671	1730	900	1100	NNU 6936 M
190	290	180	1140	2800	800	950	NNU 6038 M
200	310	200	1340	3250	750	900	NNU 6040 M
220	300	145	880	2400	750	900	NNU 6944 M
220	340	218	1610	3900	700	850	NNU 6044 M
240	360	218	1650	4150	630	750	NNU 6048 M
260	360	180	1320	3650	630	750	NNU 6952 M
280	420	250	2240	5850	530	630	NNU 6056 M
320	480	290	2810	7500	480	560	NNU 6064 M
360	540	325	3580	9800	400	480	NNU 6072 M
380	560	325	3580	10000	380	450	NNU 6076 M
440	650	375	4950	14300	320	380	NNU 6088 M
460	680	400	5500	15600	300	360	NNU 6092 M
