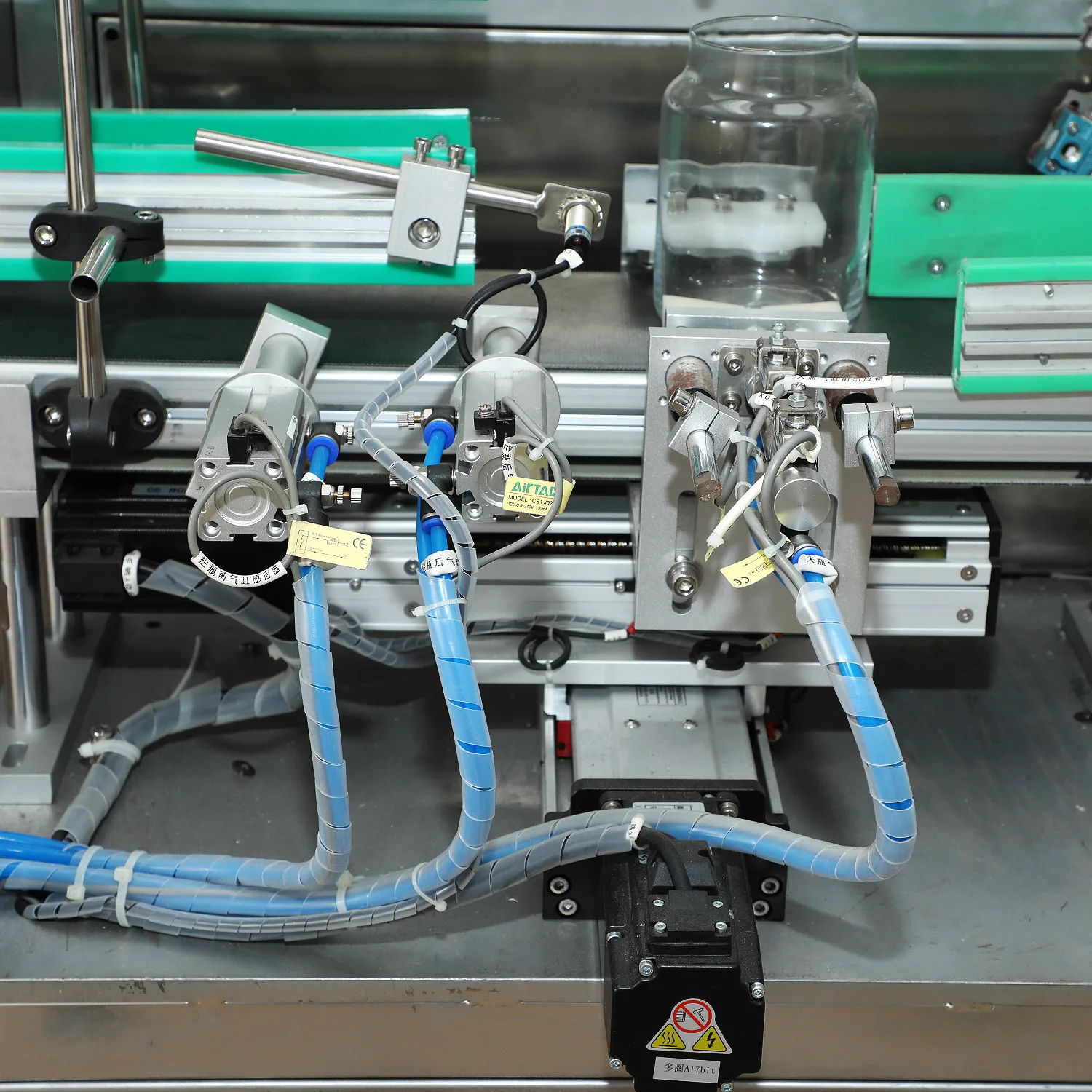

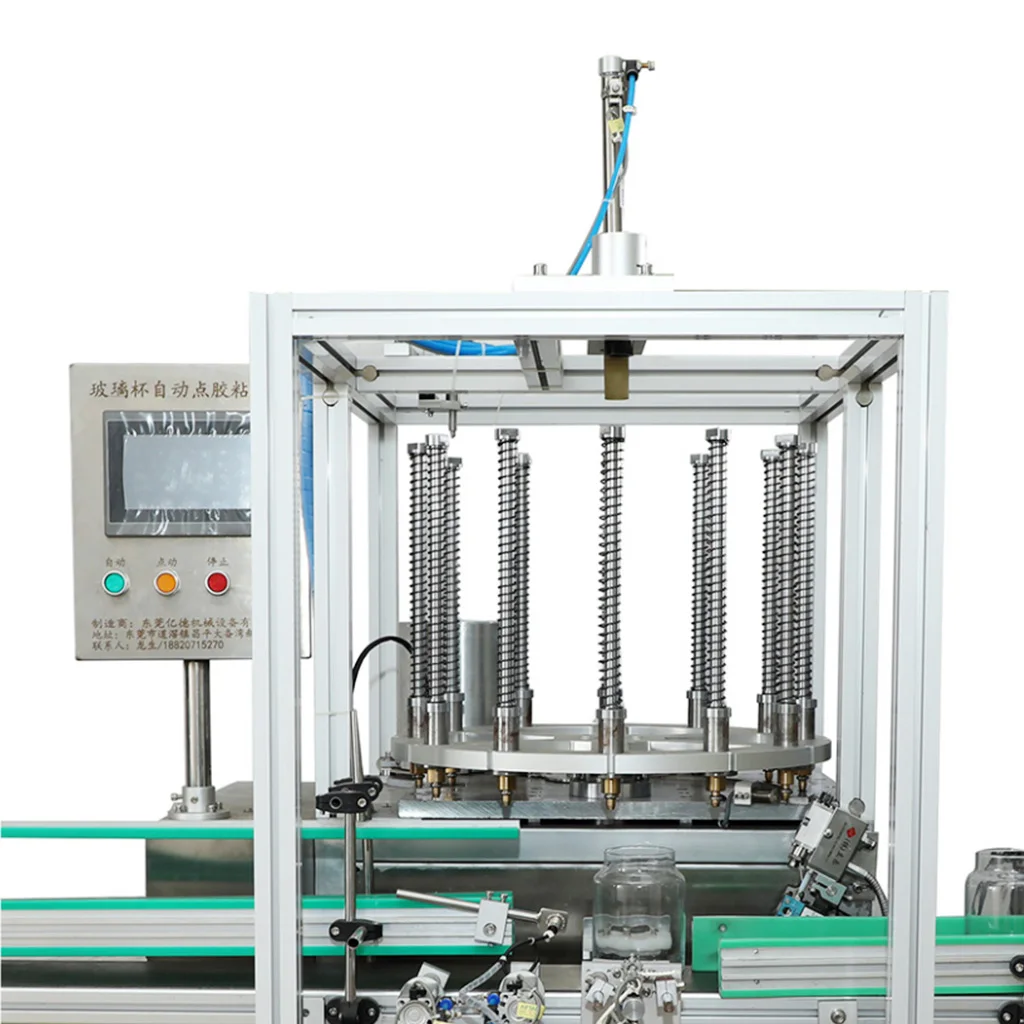

Wick inserting machine for small to medium outputs Very flexible since no format parts are necessary
- Category: >>>
- Supplier: Dongguan Yide Machinery Co. Ltd.
Share on (1600519552837):
Product Overview
Description
Video Description
Product Description
Product Name | Automatic Wick Inserting Machine |
Voltage | 380V 60Hz Three phase |
Power | 10KW |
machine Size | 300*120*170cm |
Working principle | Electric and Pneumatic Type |

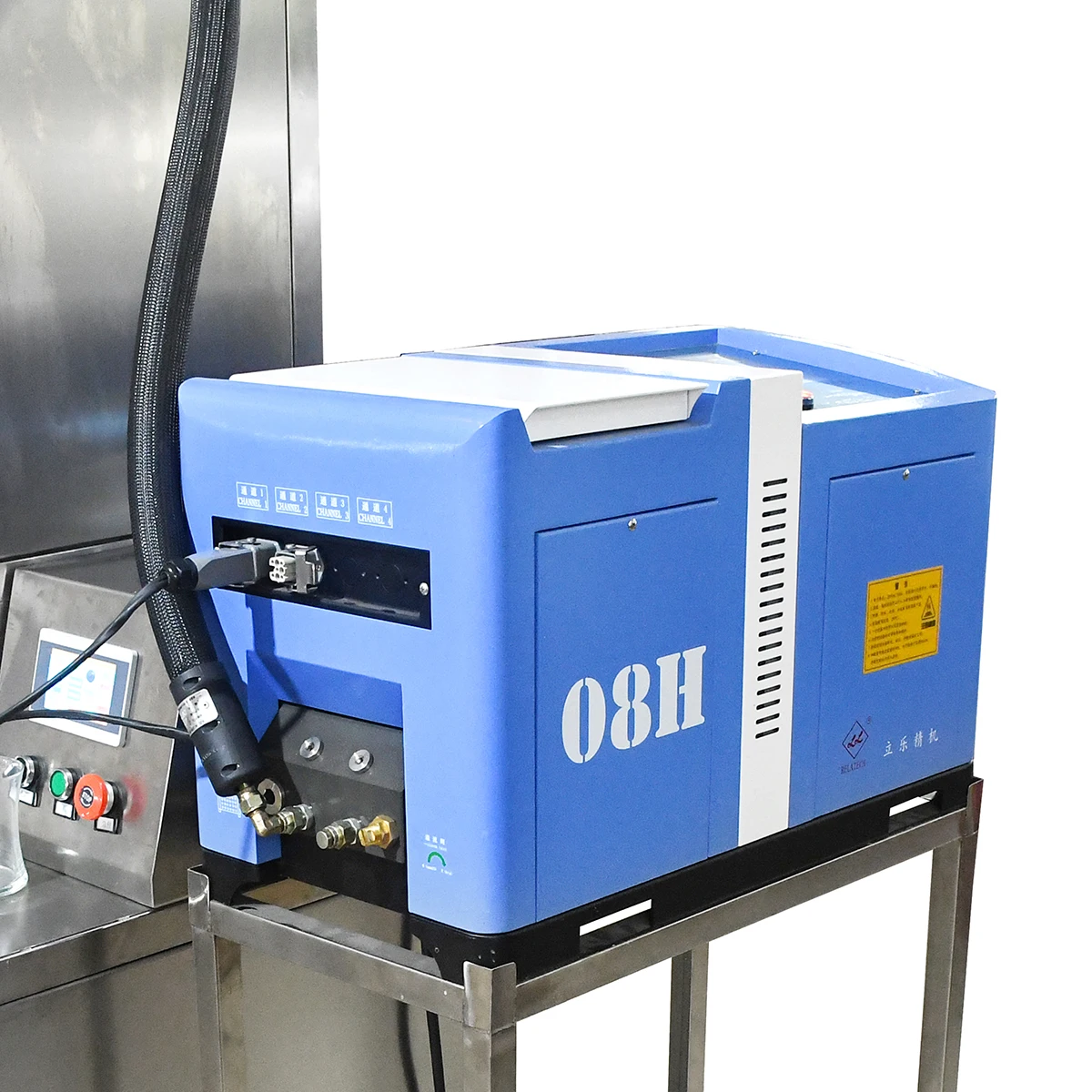

Machine Contains | Glue Machine and Wick Cutting |
Function | Wick Cutting，Wick Gluing，Wick centering |
Suitable Container Shape | Round，Square，Polygon，accept customize make |

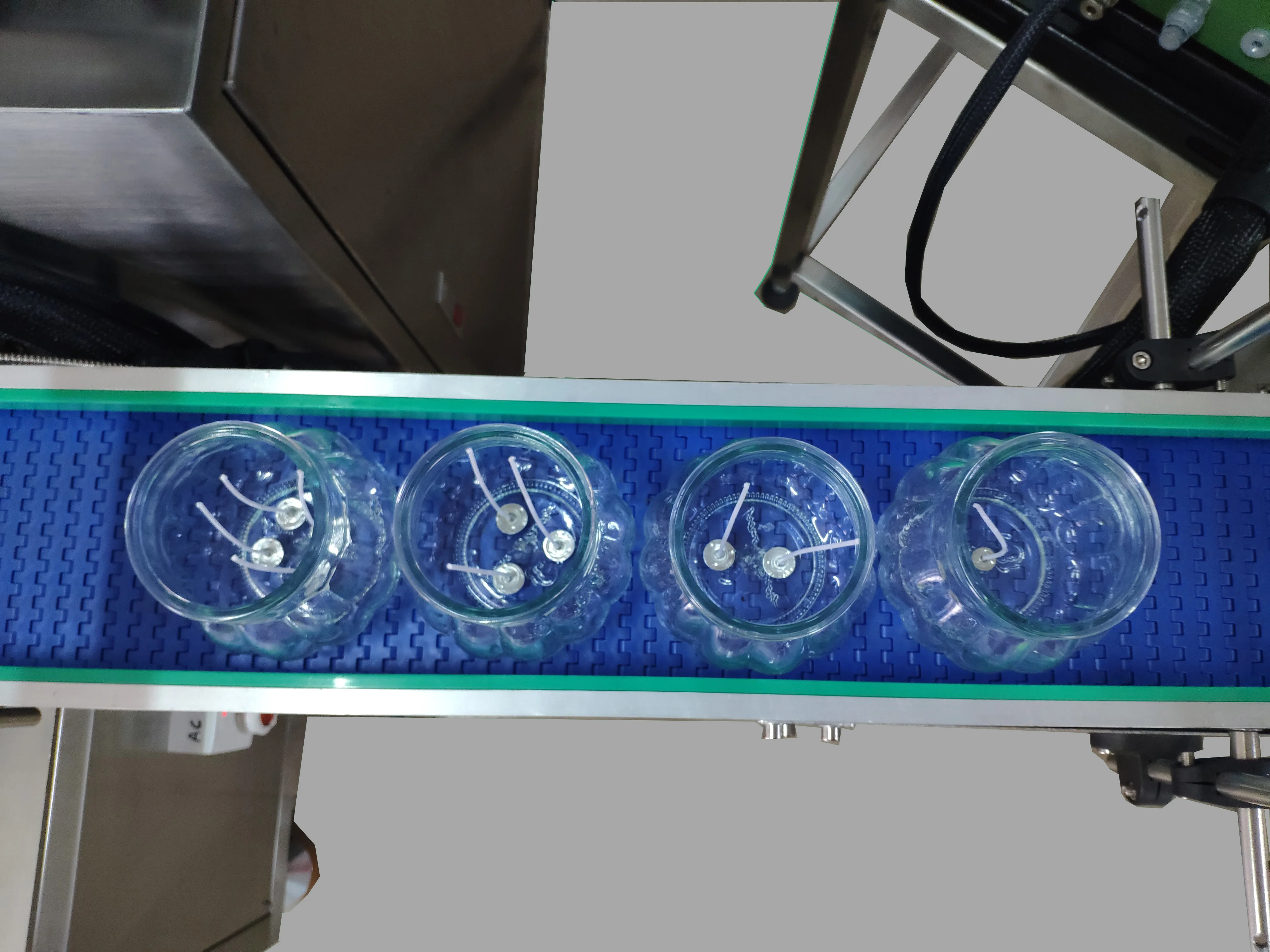

Wick Amount | 1-4 Wicks acceptable |
Container Diamter | 20-120MM |
Ø | 30-200MM |
Wick Tab Size | 12.5MM,14MM,16MM,20MM,30MM,accept customize make |
Capacity | up to 3000 pieces / hour due to new servo technique |
Weight | 500kg |
Glass candles and other containers
One of our many core competencies around candle manufacturing is the fully-automated wicking of different containers for a wide range of container candles. The machine pulls the previously waxed wick from a roll, cuts it to the correct length, pushes it into the wick sustainer and crimps both with each other. After that the wicking sustaining plate is coated with glue and inserted in the container. This process takes place in fractions of a second, so that depending on the container size and wick configuration. several thousand containers can be wicked per hour.
There are a wide range of wick and wick sustaining plate pairs and glues of which nearly all can be processed by our machines. Customer-specific parts are nevertheless processed in bulk to make their production as effective as possible.
Often our wicking machines are part of a large filling line for glass candles or fragranced candles. More and more frequently, however, they are purchased individually to first automate the labor-intensive wicking process. Later when the quantities increase, the machine can be expanded to an entire line to combine it with an automated filling line, for example.
Tealight, cemetery light, glass candles, fragranced candles or other container candles, we do more than putting the wick into a container. Irrespective of whether an individual wick or multiple wicks are required, we have the wicking machine which is perfectly suitable for each case. Talk to us, we would be delighted to advise you.
There are a wide range of wick and wick sustaining plate pairs and glues of which nearly all can be processed by our machines. Customer-specific parts are nevertheless processed in bulk to make their production as effective as possible.
Often our wicking machines are part of a large filling line for glass candles or fragranced candles. More and more frequently, however, they are purchased individually to first automate the labor-intensive wicking process. Later when the quantities increase, the machine can be expanded to an entire line to combine it with an automated filling line, for example.
Tealight, cemetery light, glass candles, fragranced candles or other container candles, we do more than putting the wick into a container. Irrespective of whether an individual wick or multiple wicks are required, we have the wicking machine which is perfectly suitable for each case. Talk to us, we would be delighted to advise you.
Comparison：
Semi Automatic Wick inserting machine
1.Small set machine,take small space
2.Can not equip with production line
3.One Worker to pick up container and insert
4.Suitable for small candle factory
5.Favorable price
6.Accept Customize make

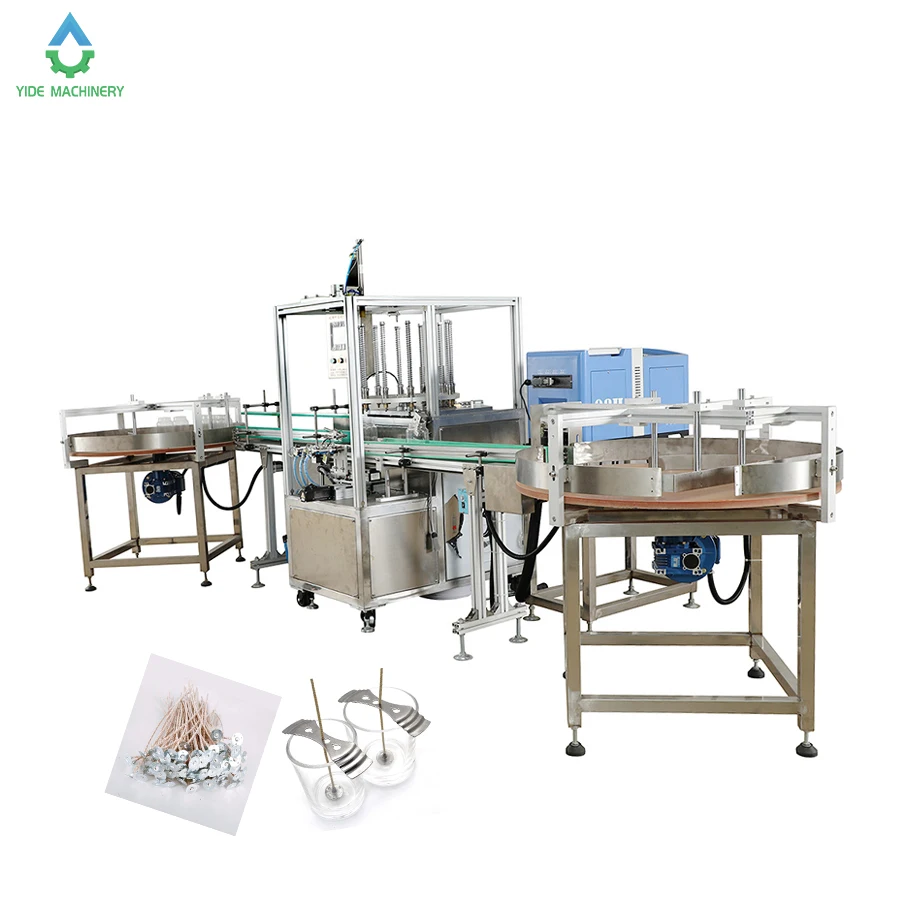

Full Automatic Wick inserting machine
1.Bigger set machine,take bigger space
2.Can equip with production line
3.Machine will insert automatic
4.Suitable for big candle factory
5.High efficiency
6.Accept customize make
Details Images

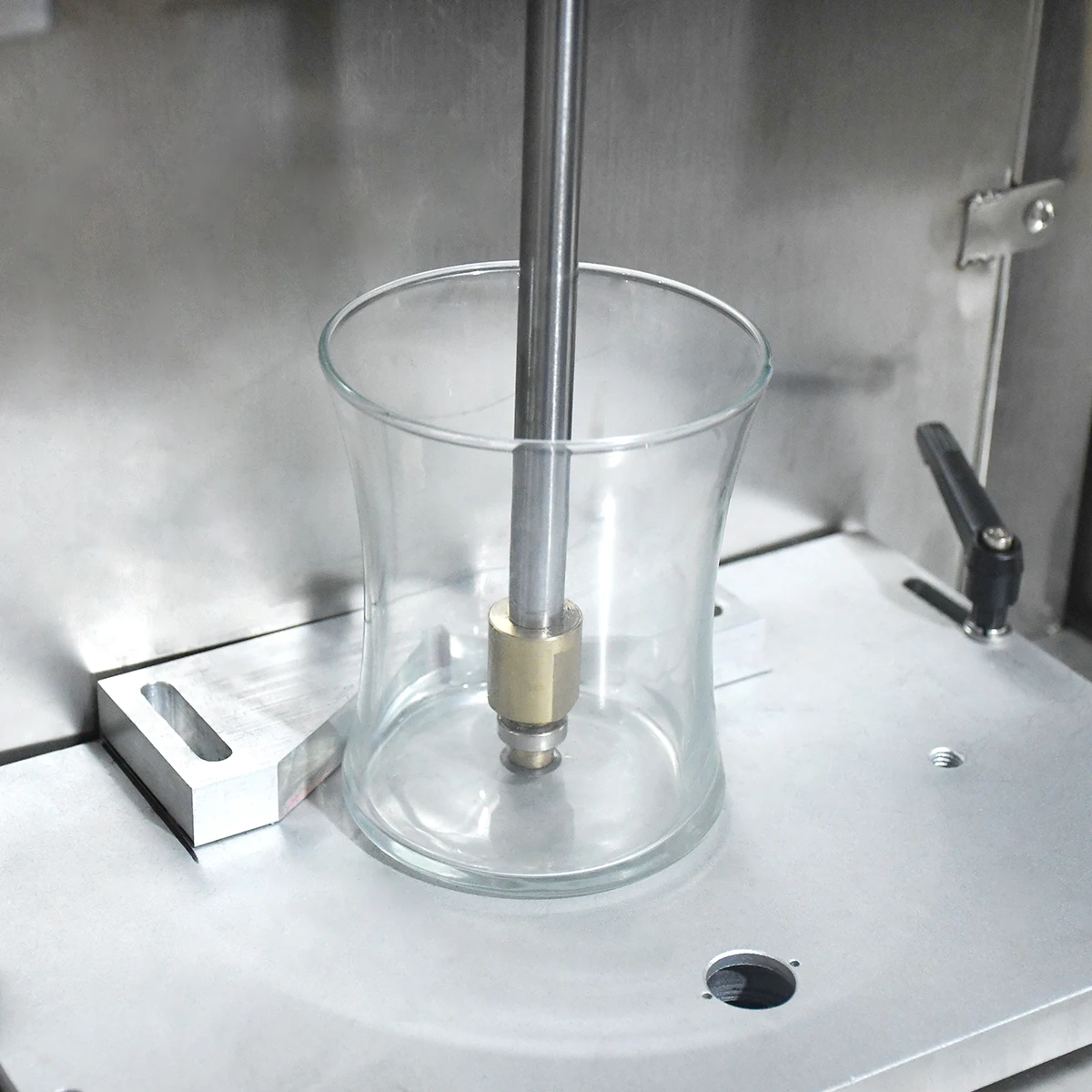

2 Jar locator

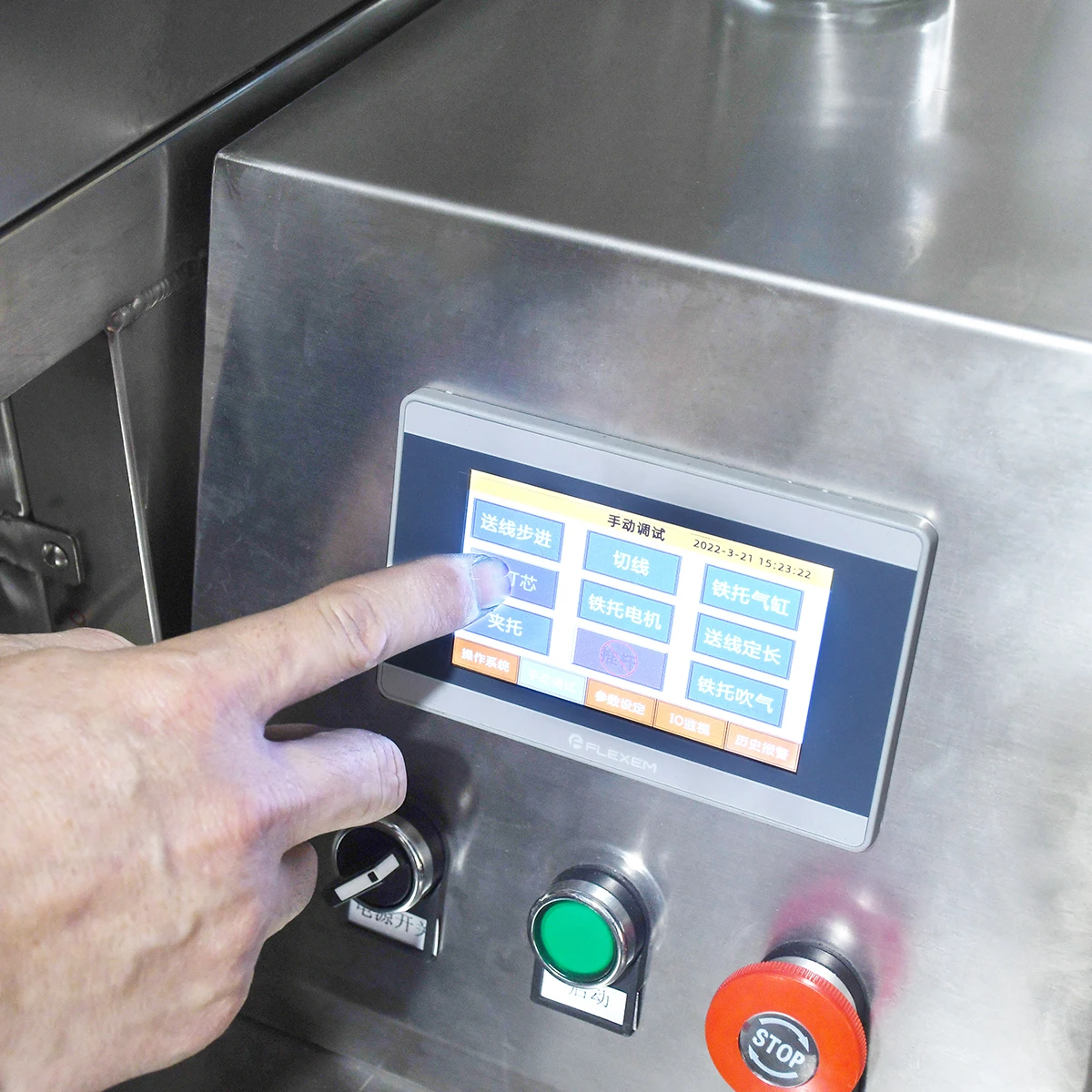

3 PLC Touch Screen

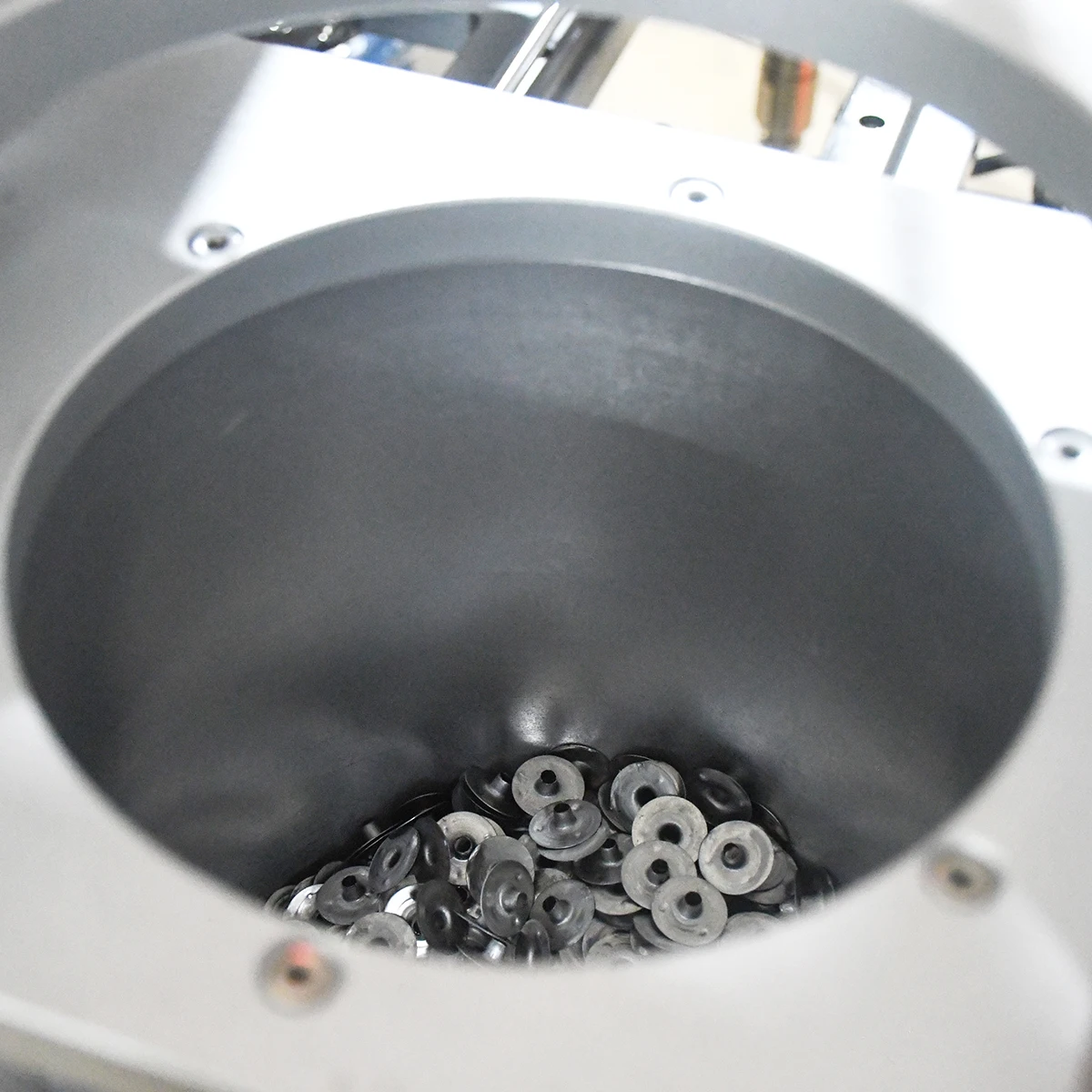

4 Wick tab tank
5 Wick Roller(coated by wax)
