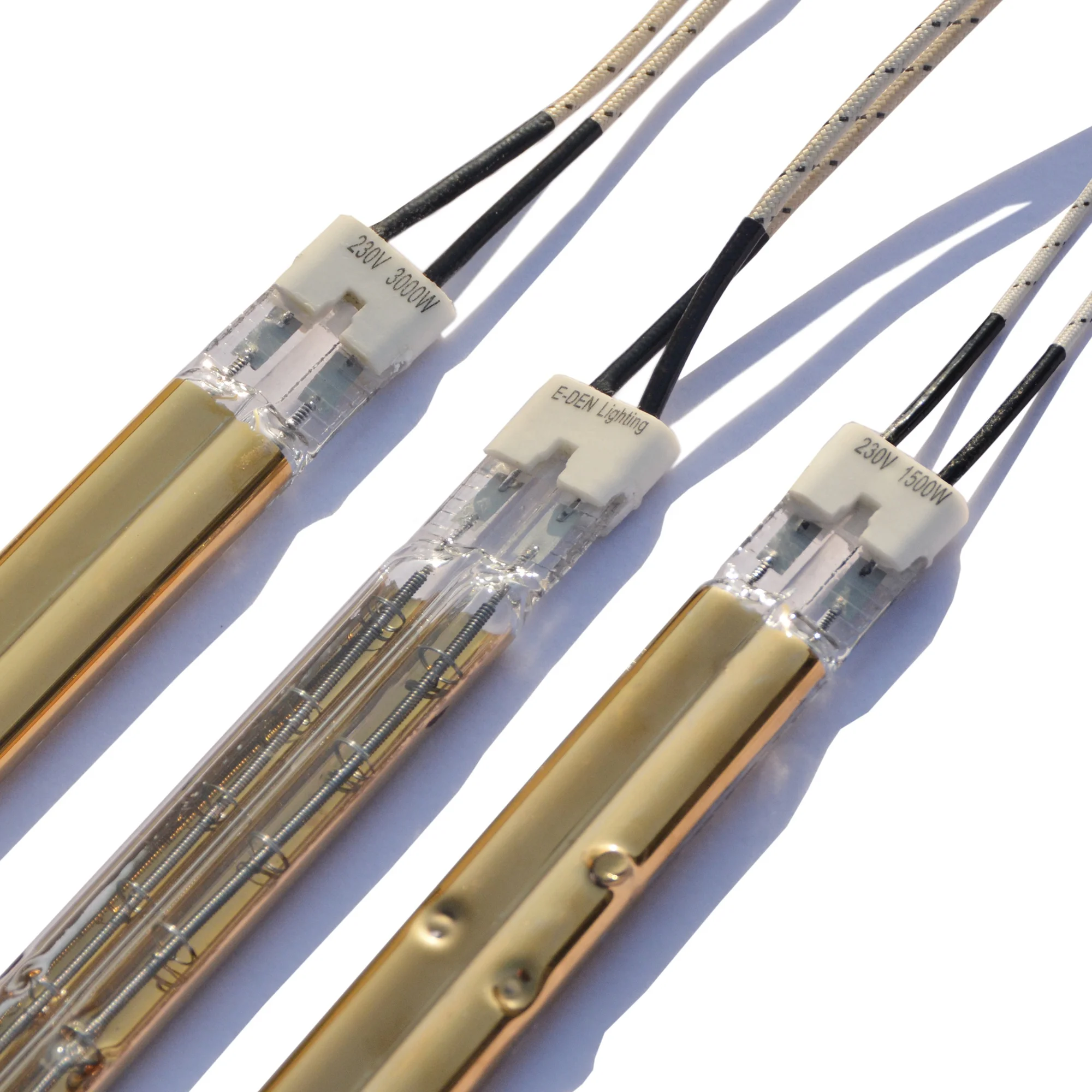

Industrial Laminating 230V 3000W Quartz Infrared Heat Lamp PET Blowing Quartz Tube IR Lamp

E-DEN Halogen Infrared Heater Lamps / Advantages

1: Can switch on and off frequently
2: 1~2 seconds fast response time to full power heating
3: Output power can be adjusted simply by voltage regulator (0V~lamp rated voltage)
4: Accurate(±1 ℃)heating temperature control with SCR regulator
5: Small installation space, flexible horizontal or vertical burning position
6: For all industrial applications, the highest working temperature up to 1000 ℃
7:Special Gold reflector (90% reflective rate) and Nano-ceramic reflector (70% reflective rate) coated on lamp quartz surface to reflect and increase the infrared radiation on heated objects
8: Different objects different matched IR radiation wavelength Short wave (1.1~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~4.0μm), Medium wave (2.2~4.0μm).
9: Higher density power output The highest surface power output of short wave lamp is 600KW/M², Fast response medium wave lamp is 300KW/M², Carbon medium wave lamp is 120KW/M², Medium wave lamp is 100KW/M².
10: We guarantee 5000 hours average working life.

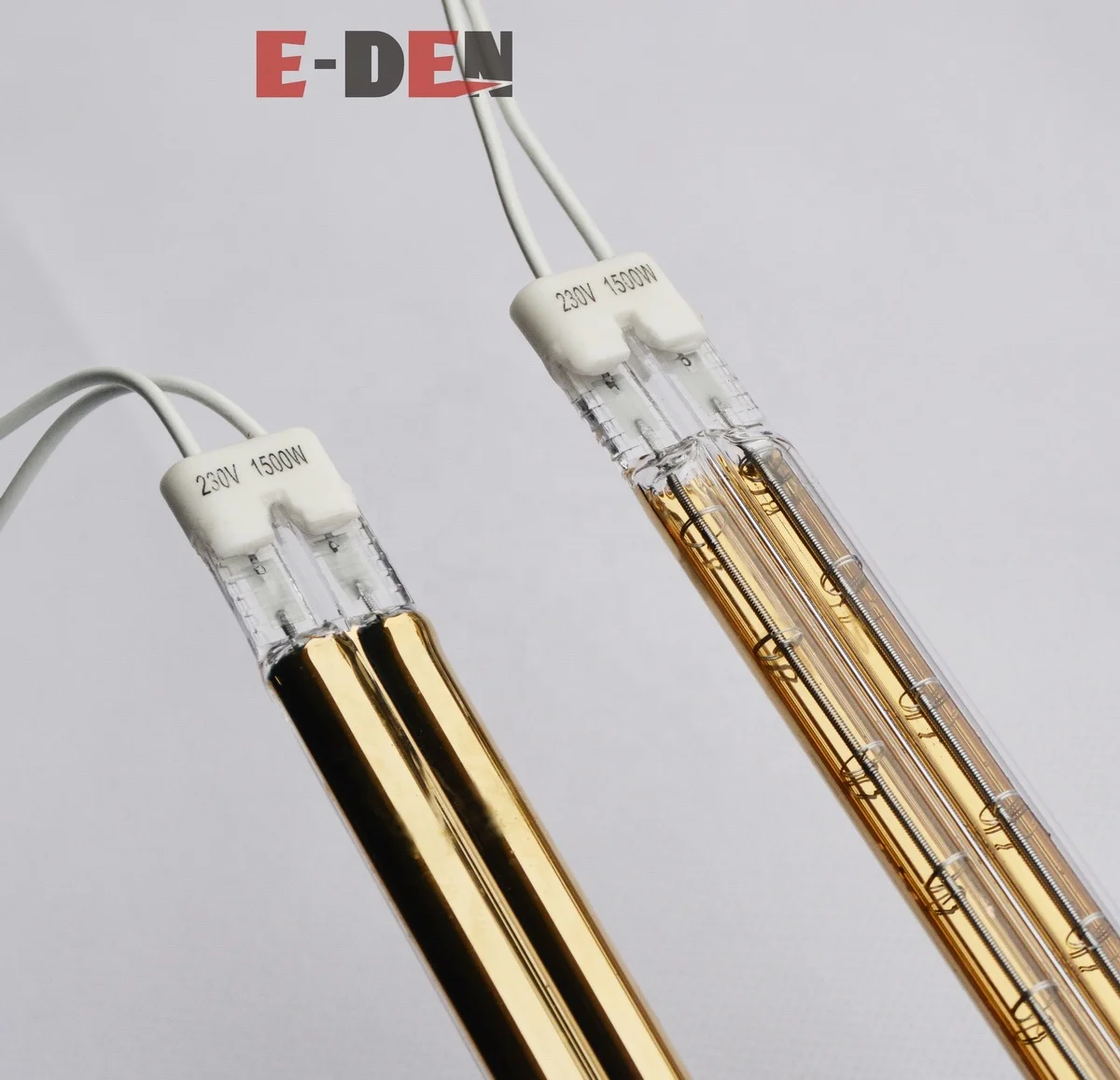

Fast response medium wave infrared lamp can be switched on/off the same as short wave lamps in a short time, and the range of IR radiation wave is 1.4-2.0μm. The especial fast medium wave can heat the surface and thin layers quickly. Fast medium wave lamps can be made in all lengths up to 6 meter long. The twin tube designed lamps are stable and its high power density lamp can transfer high energy to the long material.

According to the configuration of different heating filament and ending cables, medium wave twin tube infrared lamps can be produced in the following one side or two side connection configuration.

Short wave infrared lamp is designed with high heating power, the range of radiation wave is 1.0-1.4μm, it is particularly suited for fast response heating processes. This short wave infrared radiation penetrates more deeply into materials, as they can obtain their full-efficiency within seconds. In addition, a white or gold reflector can be fixed directly on the short wave infrared lamp to improve the energy radiation on the heating materials.

Nanjing E-DEN Lighting Technology Co., Ltd., a professional manufacturer and trading company established in 2011, specialized in producing infrared heating lamps and providing IR heating solutions. Our customers spread all over the Euro-Asia and south and north America, such as Germany, Italy, UK, Spain, USA, Canada, Russia and other dozens of countries. We also offer OEM/ODM manufacturing service for our customers all over the world. We can design and produce infrared heating lamps or heaters according to your requests. We manufacture singe and twin tube IR heating lamps in short wave, fast response medium wave, carbon medium wave and medium wave. Base on reliable quality and honest reputation, our IR products pass the ISO 9001 international quality certification and CE safety certificate. We always do our best to provide our customers highest quality products and most satisfactory after-sales service.

Q1. Can I have a sample order for infrared heating lamp?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks

Q3. Do you have any MOQ limit for IR lamp order?

A: Low MOQ, 4pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for infrared lamp?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the infrared lamp product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 5000 hours average working life warranty to our products.

Q8: How to deal with the broken lamps after orders?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 1%.

If there is any breakage during the transport, please take clear photos for the broken products and send the photos to us within 48 hours after receiving the package.
If there is any breakage during the guarantee period, we will send new replacement lamps with your new order. For defective batch products, we will resend them to you or we can discuss the solution including re-call according to real situation.
