Share on (1600519569779):


Price:$0.28

Quantity:


Product Overview

Description



JA solar power panels 530w 540w 550W half cell pv module mono solar panels


Products Description




Mechanical Data
Model:
JAM72D30-550/MR
Cell type:
182*182mm monocrystalline
Cell number:
144 (6*24)
Dimensions:
2285*1134*35mm
Weight:
31.6kg
Front glass:
2.0mm thickness, low iron tempered glass
Backsheet:
2.0mm glass
Junction box:
IP68 Rated
Frame:
Anodized Aluminium Alloy Type 6063 T5, silver color
Connector:
QC4.10-35
Cable:
4.0mm²/ 12AWG, 1400mm
Standard Test Conditions:
AM1.5 100MW/cm 25°C

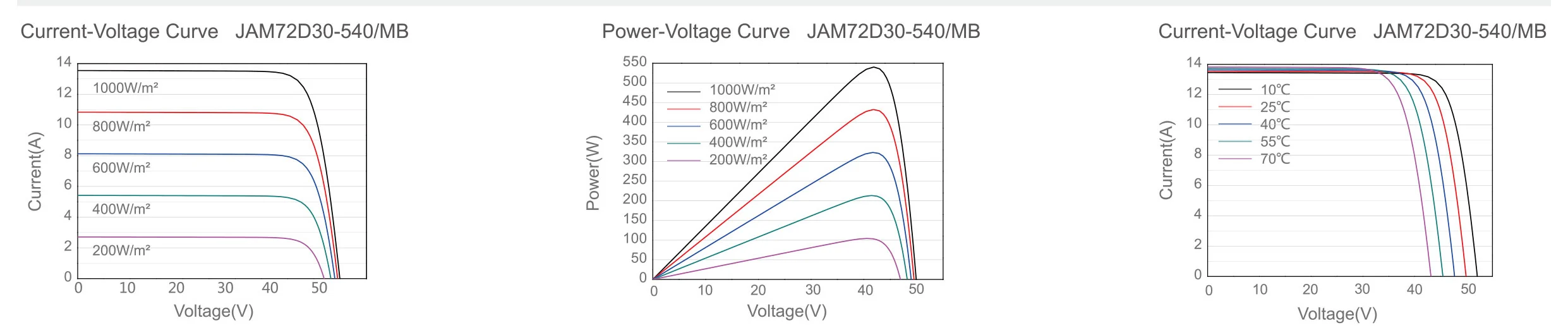

Electrical Data(STC)
Rated Power Watt- Pmax (W)
525W
530W
535W
540W
545W
550W
Maximum Power Voltage-Vmp(V)
41.15
41.31
41.47
41.64
41.80
41.96
Maximum Power Current- Imp (A)
12.76
12.83
12.90
12.97
13.04
13.11
Open Circuit Voltage- Voc (V)
49.15
49.30
49.45
49.60
49.75
49.90
Short Circuit Current- Isc (A)
13.65
13.72
13.79
13.86
13.94
14.00
Module Efficiency (%)
20.3
20.5
20.6
20.8
21.0
21.2
Power Output Tolerance (W)
0 ~ +5W
STC
Irradiance 800W/m², Ambient temperature 20℃,Wind speed 1m/s
Operational Temperature
-40~+85℃
Maximum System Voltage
1500V DC(IEC), 1500V DC(UL)
Max Series Fuse Rating
30A
Maximum Static Load front
5400Pa
Temperature Coefficient of Isc
+0.45%/℃
Temperature Coefficient of Voc
-0.275%/℃
Temperature Coefficient of Pmax
-0.350%/℃
Fire Performance
UL Type 29


Certifications




Main Material


GLASS
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

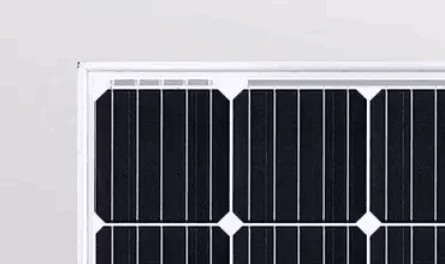

SOLAR CELL
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

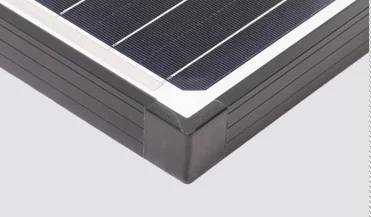

FRAME
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection.

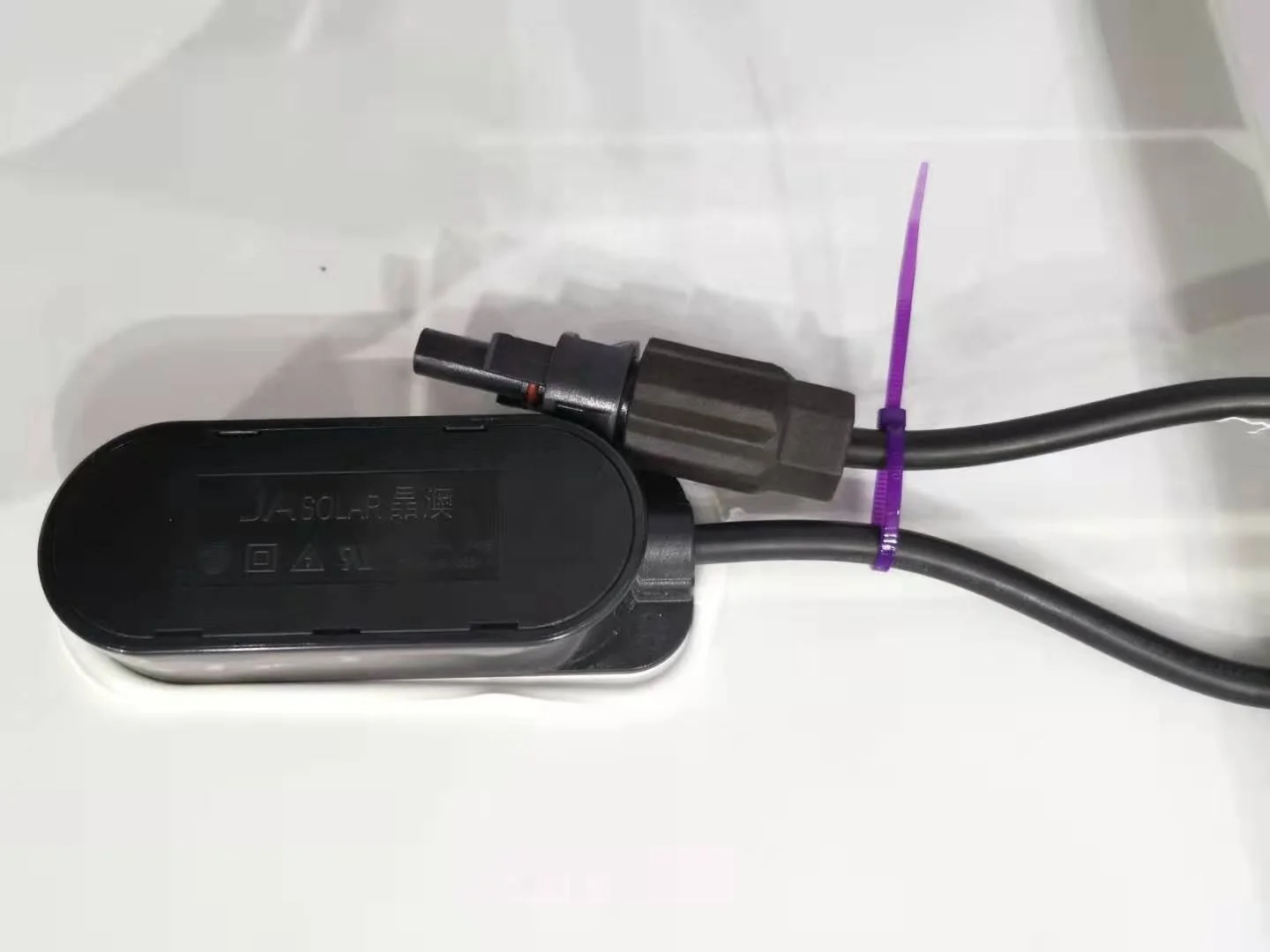

JUNCTION BOX
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life

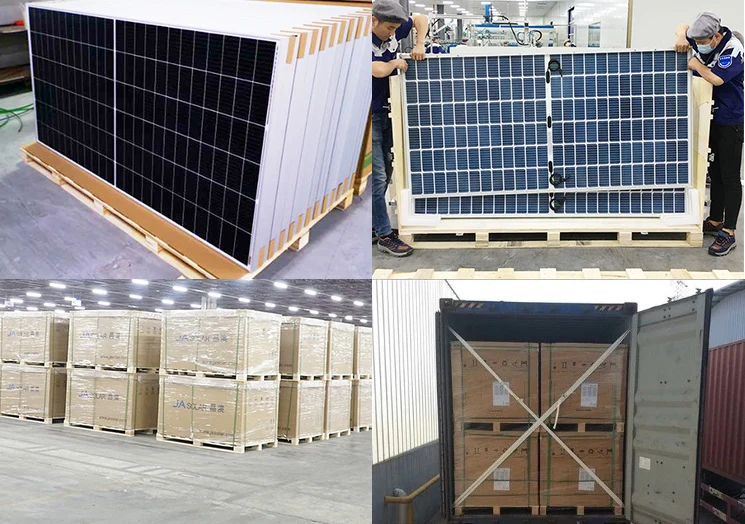

Product packaging




Project Case
