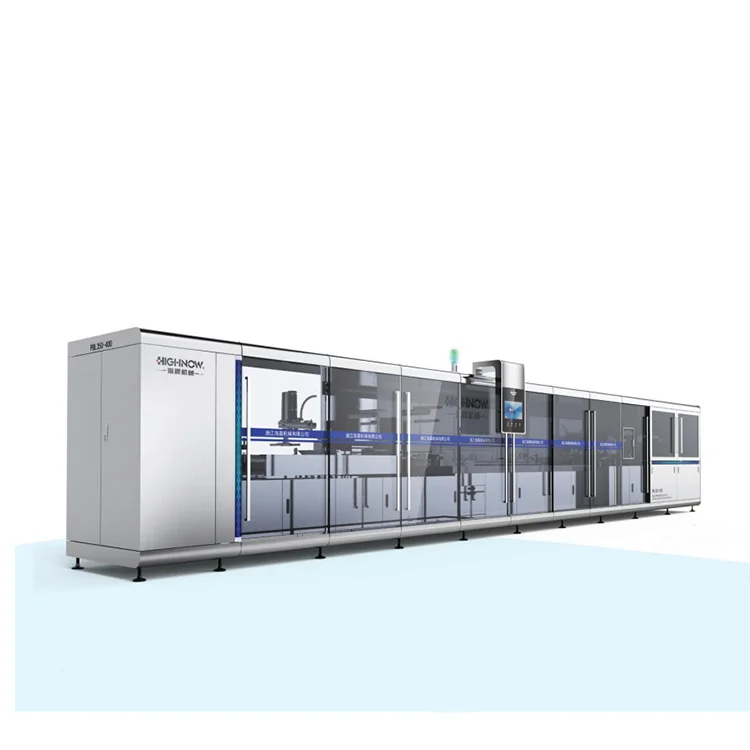

Automatic Capsule Packaging Machine Cartoning Machine Packaging Production Line
- Category: >>>
- Supplier: Zhejiang Haichen Machinery Co. Ltd.
Share on (1600519591496):
Product Overview
Description
Products Description

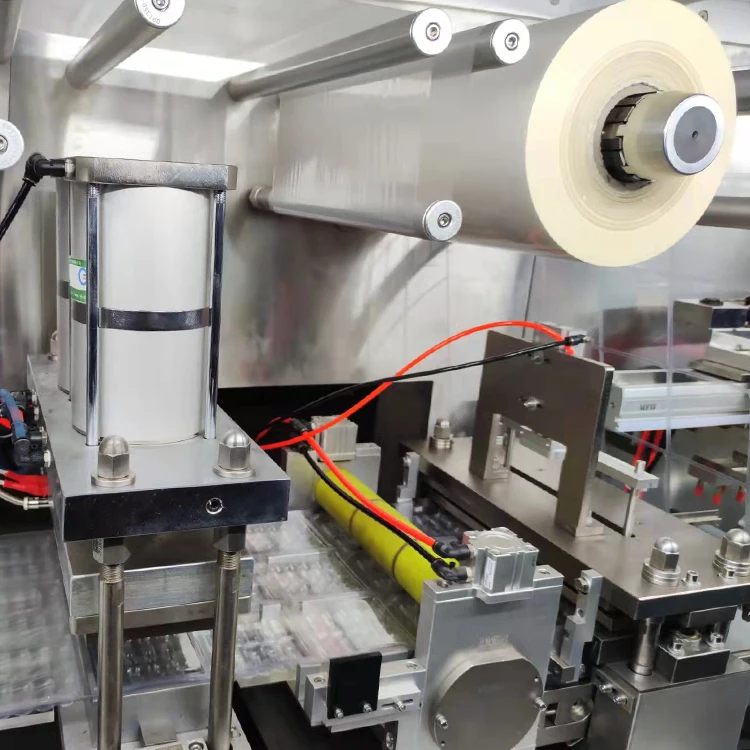

泡罩铝 塑包装部分Blister making machine | 冲裁频率 Cutting frequency | 16～30 times/min | |||
最大成形面积 Maximum forming area | 220×350 mm | ||||
行程范围 Travel distance | 50 ～220 mm | ||||
药版规格 Tablet plate specification | At clients' request | ||||
包装材料 Packing material | 无毒PVC硬片（应符合GB5663）Non-toxic hard PVC film(conform to GB5663) | ||||
0.15～0.5×350mm， | |||||
卷轴孔径均为75mm Winding axle diameter is 75mm | |||||
电加热功率Electric heating power | PVC预热板 PVC preheating plate 2×4.5 KW | ||||
模具冷却 Mould tool cooling | 循环水13-15° recycling water≥ 60 L/h | ||||
主电机功率Main motor power | 3KW | ||||

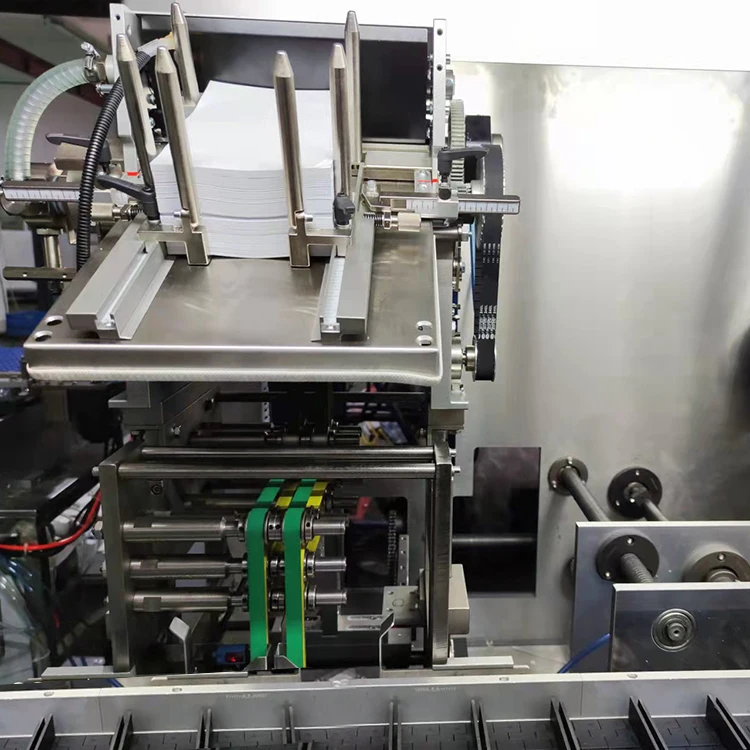

装盒部分Cartoning packaging machine | 纸盒规格（长×宽×高）Box specification(length*width*height) | （65～210）×（35～125）×（16～70）mm | |||
纸盒质量 Box paper specification | white cardboard 300~350g/m2 | ||||
药品说明书（长×宽）Tablet instruction sheet size(Length*width) | （90～260）×（100～190）mm | ||||
药品说明书质量Tablet instruction sheet specificatioin | 60-75g/m2（printing papaer） | ||||
装盒能力(MAX)Cartoning capacity | 240boxes/min(according tablet plate shape and size) | ||||
主电机功率 Main motor power | 3.7KW | ||||
电源 Power supply | 380V Three phase four line 50Hz | ||||
气泵 Air pump | 容量 Volume | ＞0.2 m3 | |||
气压 Air pressure | 0.6~0.8MPa | ||||
外形尺寸（长×宽×高）The whole production line (length*width*height) | 10700×2400×1750mm | ||||
重量 Total weight | 7500 kg | ||||
机器总功率 Total power | 24KW | ||||
总耗气量(最大)Total Air consumption (Max) | 480 L/min | ||||
