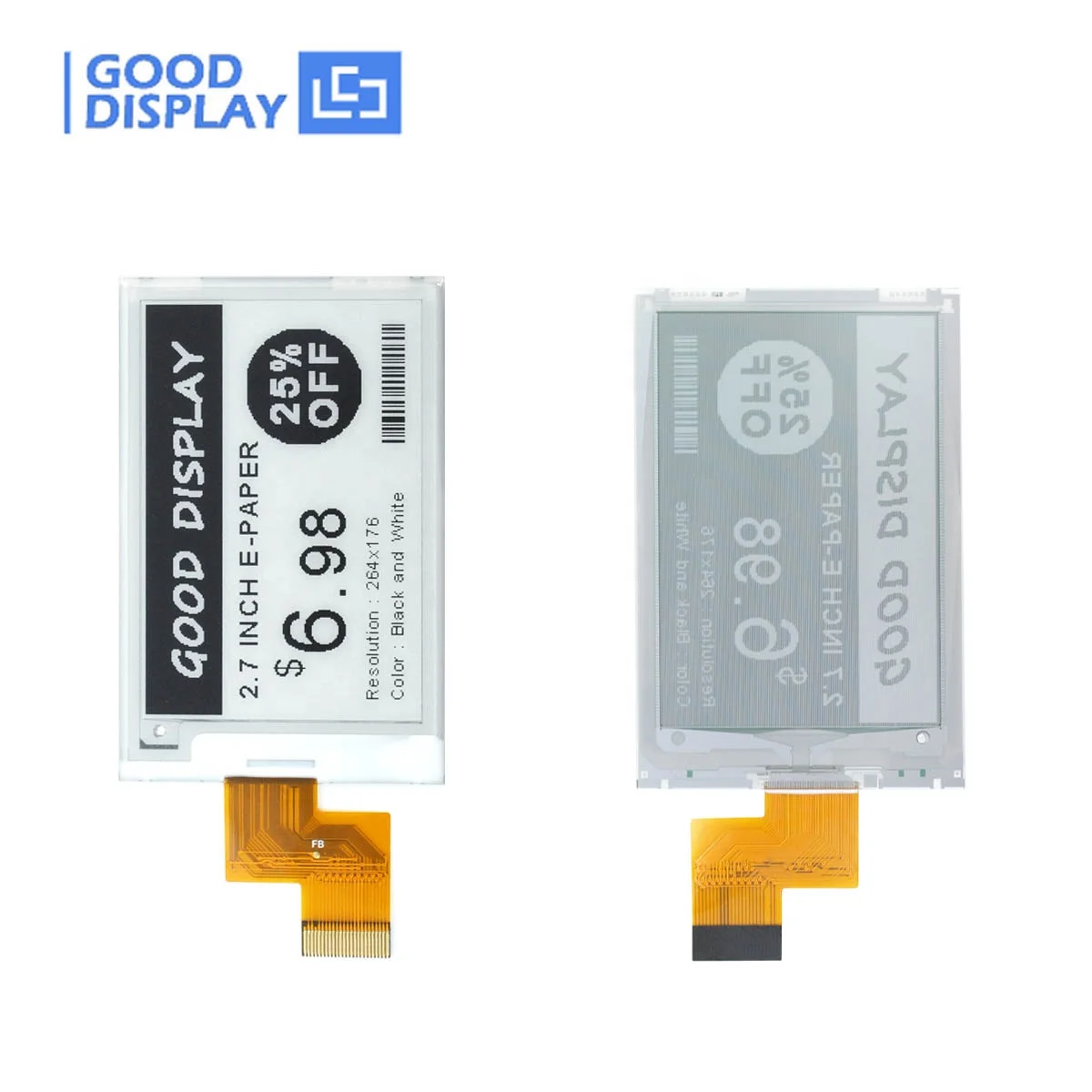

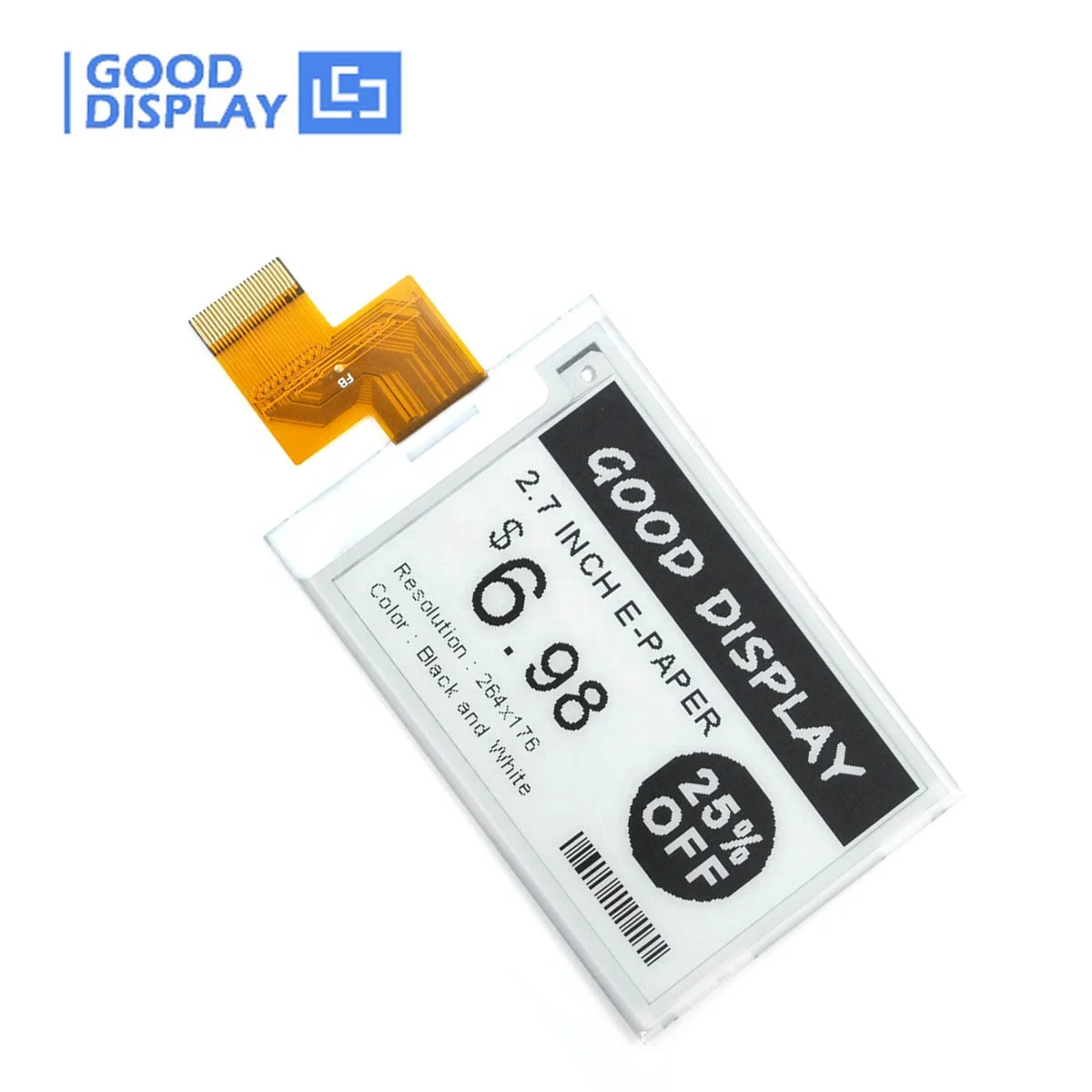

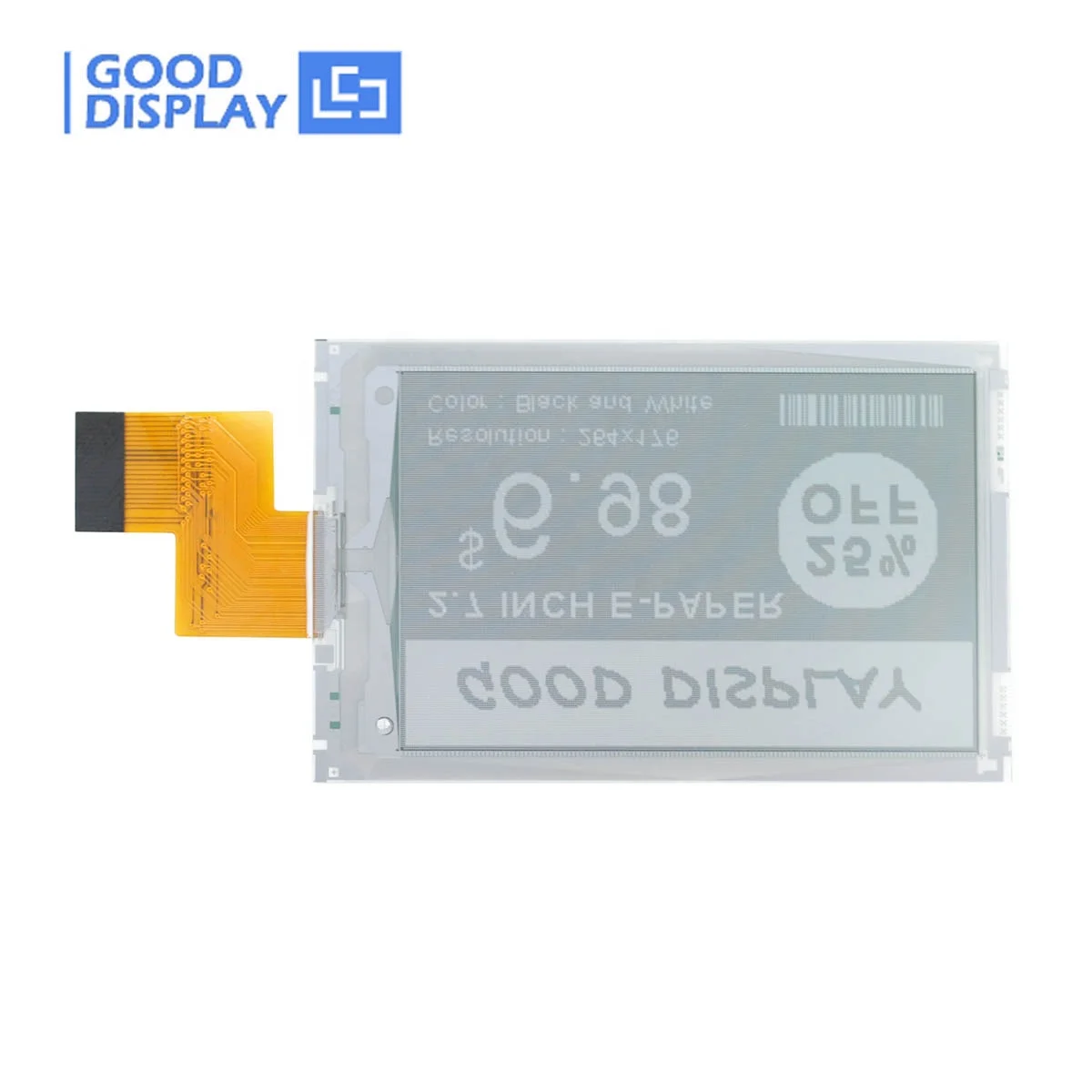

E ink 2.7 inch eink Panel 264x176 Electronic E Paper Display
- Category: >>>
- Supplier: Dalian Good Display Co. Ltd.
Share on (1600519614074):
Product Overview
Description
E ink 2.7 inch eink Panel 296x152 Electronic E-Paper Display
\t\t\t\t\t\t\t\t\tGeneral Description \t\t\t\t\t\t\t
This is a electronic paper screen, 2.7 inch, 264x176 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This electronic paper display GDEY027T91 is perfect for low power devices powered by solar or batteries.
We could provide Front light, Touch screen and other accessories for you.
Use our free e-paper software to prepare your bitmap image for this display.
Part Number | GDEY027T91 |
Size | 2.7'' |
IC | SSD1680 |
Type | Dot Matrix |
Resolution | 264x176 |
Outline Size(mm) | 70.42x45.8x1.0 |
Active Size(mm) | 57.29x38.19 |
Pixel Pitch(mm) | 0.217x0.217 |
Operating Temp. | 0℃~50℃ |
Storage Temp. | -25℃~70℃ |

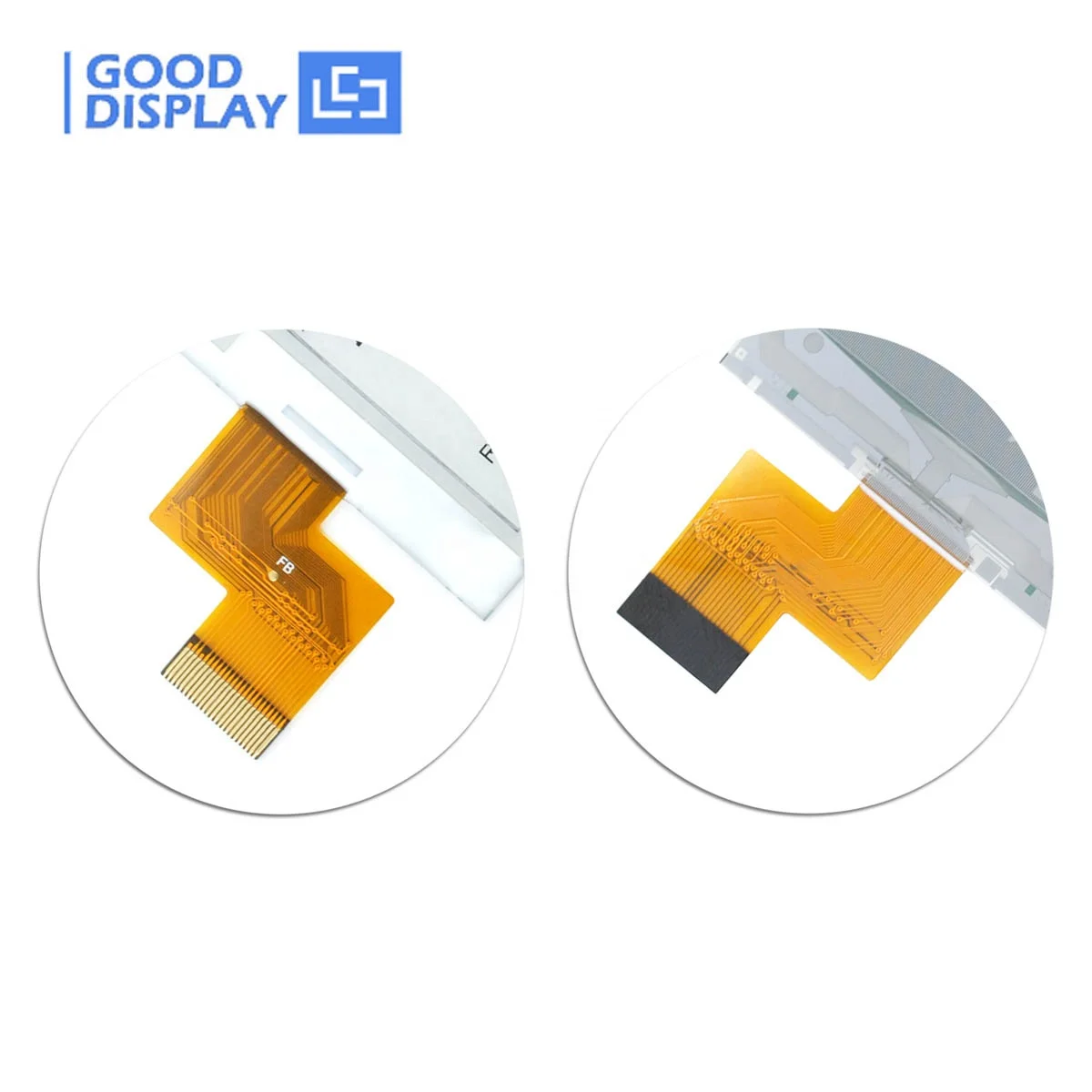

Connector | 24 Pin FPC, Pitch:0.5mm |
Max Grayscale | Black,White |
Color | SPI |
Power consumption of the refresh(mW) | 9 |
Standby power consumption Pc(mW) | 0.003 |
Time of refresh(s) | 3 |
Time of partial refresh(s) | 0.4 |
Fast Refesh(s) | 1.5 |
How does E-paper Display Work?
\t\t\t\t\t\t\t\t\tFeatures \t\t\t\t\t\t\t
● Support 4 Grayscale
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.4s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports fast refresh, the refresh rate is 1.5s/frame
● It supports partial refresh, the refresh rate is 0.4s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● It enable a greater contrast ratio and wider viewing angle with high reflectance compared to liquid crystal displays
\t\t\t\t\t\t\t\t\tOther Products \t\t\t\t\t\t\t
E-Paper Display Q&A
Q: How large/small can Matrix e-ink displays be?
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
Q: Any solution to achieve lower power consumption of E-paper display?
A: After E-paper enters deep sleep mode, turn off the driving circuit and IC power supply so that the electronic paper can achieve zero power consumption.
A: After E-paper enters deep sleep mode, turn off the driving circuit and IC power supply so that the electronic paper can achieve zero power consumption.
