Tobee Effluent Handling
$12,600

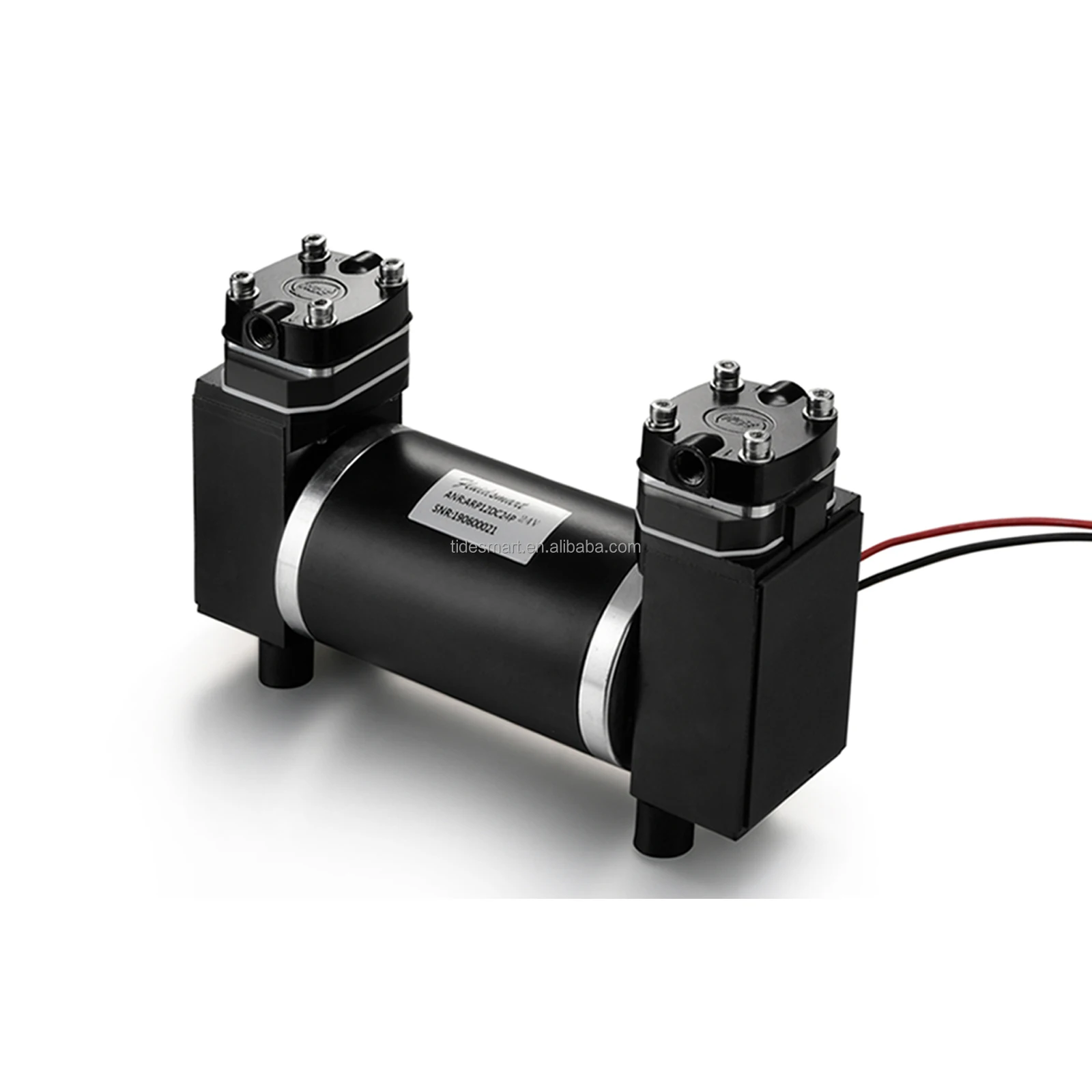

ARP12DC24P high pressure stainless piston pump 30L/min oilless rocking piston pump 24v double piston vacuum pump
- Category: >>>
- Supplier: Tide Smart Technology (Shanghai) Co. Ltd
Share on (1600519629470):
Product Overview
Description
Brush Motor Dual Piston Pump
Features
Optimized pump body to ensure small volume, provide large
flow and maintain relatively low power consumption.
The gas flow is stable and the motor runs in a wide range.
* High performance dc brushed motor >6000hours lifetime
* Professional seal design ensures low leakage rate
* Pollution-free sample gas
* High quality imported stainless piston cup withstand a variety of gas corrosion
* Piston valve: EPDM
Model: | ARP12DC24P |
Voltage range: | 24VDC |
Maximum flow(in parallel): | 30L/min |
Max. Negative Pressure: | -90KPa |
Max. Positive Pressure: | 8Bar |
DMotor type: | Dc brush motor |
Max. power: | 130w |
Waterproof grade: | IP00 |
Storage environment temp.: | -40℃~60℃ |
Working environment temp.: | -20℃~50℃ |
Pump head material: | Aluminum alloy |
Pump Body material: | Aluminum alloy |

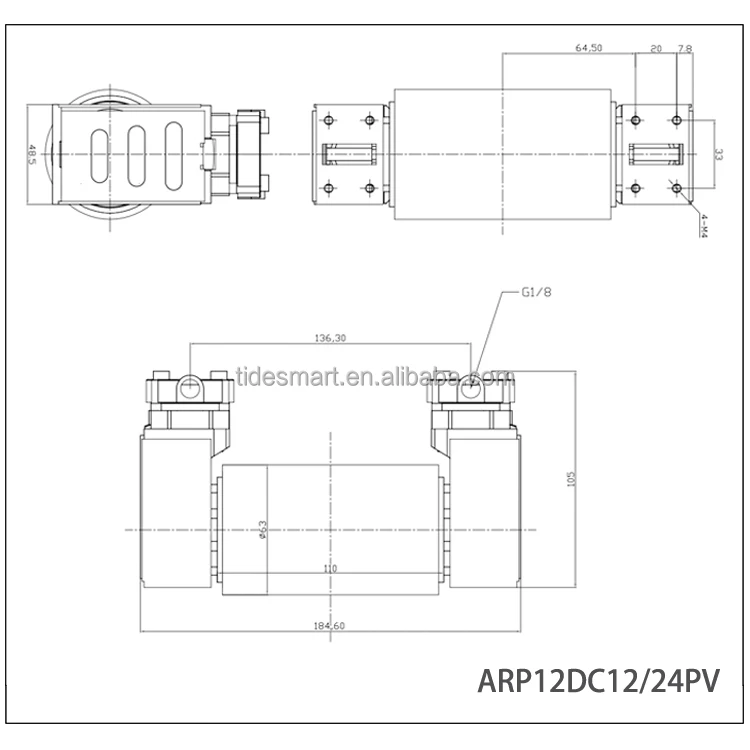

Dimensions(mm): | 185*63*112mm |
